For: Puch

33464

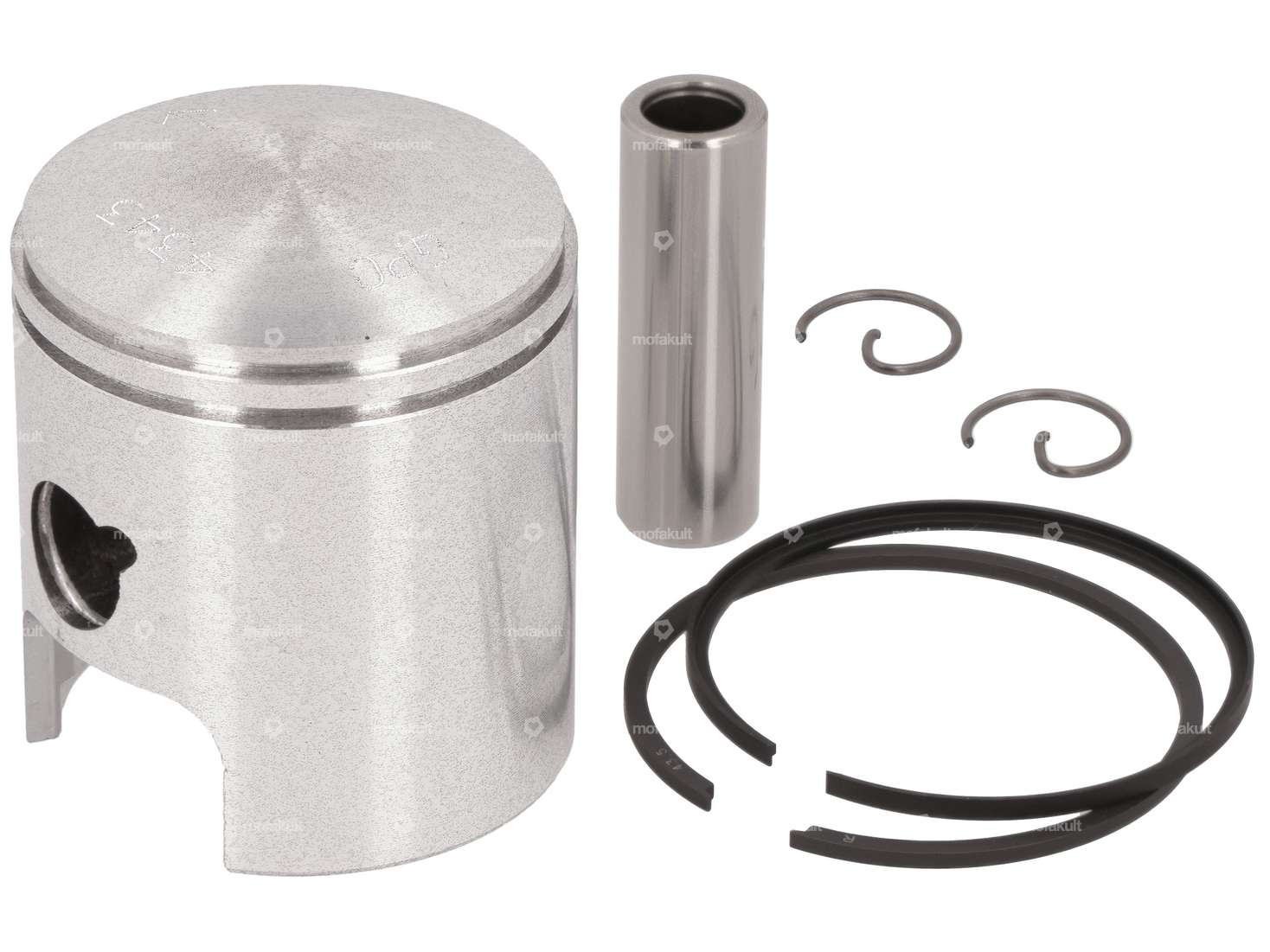

GPO 43.5 mm piston (Metrakit replica) | Puch

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 59.20

Incl. 21% VAT.

Description

43.5 mm piston with a 2 mm L-piston ring with internal circlip (IS) and a 1.5 mm rectangular piston ring with flank circlip (FS) for the «GPO Metrakit» cylinder kit on your Puch Maxi S, N, X30 Sport NS, NL and Supermaxi LG1 and LG2 moped / moped.

The detailed dimensioning of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

ManufacturerGPO
MaterialAluminum
Ø outside piston (A)43.46 mm
Compression height (C)22.9 mm
Curvature (D)3.1 mm
Total piston height (E)49.55 mm
Number of piston rings (F)2 pcs
Nominal diameter43.5 mm
Piston ring moldRectangular ring, L-ring
Ø piston pin (B)12 mm
Piston ring impactInternal fuse (IS)
Piston ring height1.55 mm, 2 mm
Thick piston ring1.9 mm, 1.8 mm
Weight piston kit87 g
Puch

E50

ZA50 (air-cooled)

Z50 (X30 Sport)
