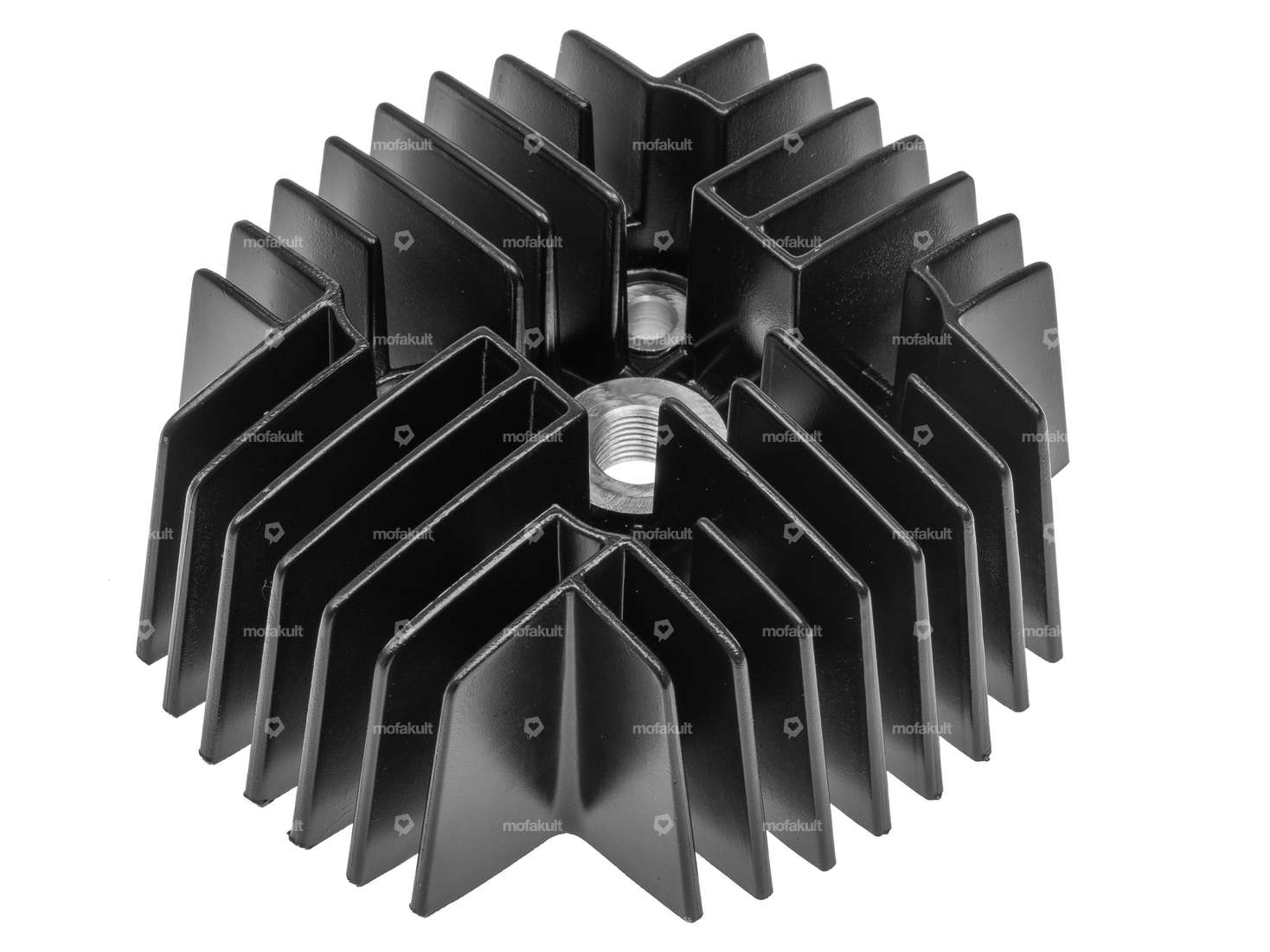

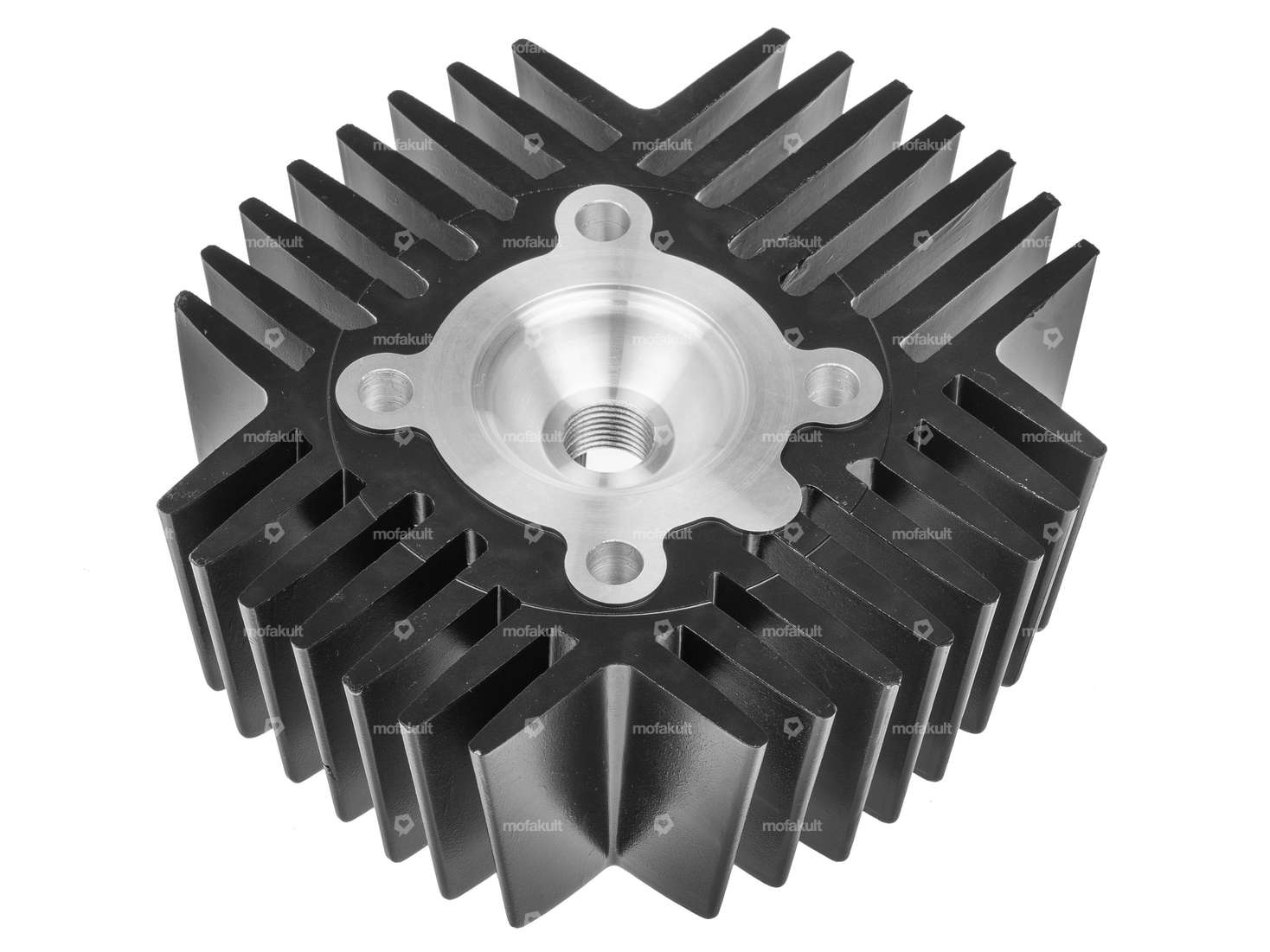

GPO 45 mm cylinder head tuning black | Puch Maxi S, N, X30 NS, NL, N-2AH

GPO 45 mm cylinder head tuning | Puch Maxi S, N / X30 NS, NL, N-2AH

Manufacturer: GPO · Material: Aluminum · Surface: sandblasted · Width: 125 mm · Total length: 135 mm · Height: 55 mm · Ø cylinder: 45 mm · Number of fixing points: 4 pcs · Area of application: Tuning · Candle thread: short · Hole pattern [mm]: 44 x 44 · Decompressor: No · Camouflaged: Yes

swiing® revival stud bolt M6x106 (10.9 strength class)

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Thread type: M6x1 (standard thread) · Nominal diameter (thread): 6 mm · Thread length: 12 mm · Thread length: 20 mm · Total length: 106 mm · Puch OEM number: 360.1.10.034.1

Airsal gasket set 44 - 45 mm | Puch

Manufacturer: Airsal · Material: Aluminum · Material: Sealing carton · Material: Sealing paper · Area of application: Tuning · Ø cylinder: 44 mm · Ø cylinder: 45 mm · Decompressor: Yes · Hole spacing outlet: 42 mm · Number of components: 4 pcs · Hole spacing inlet: 38 mm · Hole pattern [mm]: 44 x 44 mm

swiing® ingenious gasket set 44 - 45 mm cylinder | Puch

Manufacturer: swiing® ingenious parts · Number of components: 4 pcs · Ø cylinder: 44 mm · Ø cylinder: 45 mm · Hole spacing inlet: 38 mm · Decompressor: Yes · Hole pattern [mm]: 44 x 44 mm · Hole spacing outlet: 42 mm · Area of application: Tuning

NGK (B5HS - B10HS) spark plug short thread

Manufacturer: NGK · Candle thread type: short · Spark plug socket: M4 · Thread type: MF14x1.25 (fine pitch thread) · Spark plug socket: SAE · Suppressed: No · Width across flats: 21 mm

BOSCH (W7AC - W9AC) spark plug short thread Cu

Manufacturer: BOSCH · Thread type: MF14x1.25 (fine pitch thread) · Candle thread type: short · Spark plug socket: M4 · Suppressed: No · Spark plug socket: SAE · Electrode material: Copper · Width across flats: 21 mm

BOSCH WR7AP Spark plug short thread suppressed platinum

Manufacturer: BOSCH · Thread type: MF14x1.25 (fine pitch thread) · Candle thread type: short · Spark plug socket: M4 · Spark plug socket: SAE · Suppressed: Yes · Electrode material: Platinum · Width across flats: 21 mm

swiing® revival Stud Bolt, Inlet/Outlet M6x30 (Grade 10.9)

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Diameter: 5.95 mm · Thread type: M6x1 (standard thread) · Nominal diameter (thread): 6 mm · Thread length: 12 mm · Total length: 30 mm · Strength class: 10.9

swiing® ingenious 17 mm SRF carburetor camouflaged | Puch Maxi, Supermaxi, X30 NS / NL

Manufacturer: swiing® ingenious parts · Material: Aluminum · Area of application: Tuning · Camouflaged: Yes · Component group Carburetor: Carburetor complete · Nominal diameter: 17 mm · Carburetor type: SRE · Nozzle thread: M3.5x0.6 (standard thread) · Mounting type: Plug connection clamped · Nozzle size: 74 · Ø Inside entrance: 17 mm · Ø Internal connection: 23 mm · Total length: 65 mm · Ø Output inside: 17.1 mm · Width: 47 mm · Ø Air filter connection: 27.5 mm · Height: 89 mm · Height: 109 mm · Ø fuel hose connection: 5 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle block: 2.2 · Clamping screw torque (max.): 3 N/m · Clamping screw torque (max.): 4 N/m

swiing® ingenious intake manifold 17 mm SRF camouflaged | Puch E50

Manufacturer: swiing® ingenious parts · Material: Aluminum · Area of application: Performance · Area of application: Racing · Area of application: Tuning · Camouflaged: Yes · Total length: 38 mm · Mounting type: Stud bolts & nuts · Number of fixing points: 2 pcs · Ø inside: 17 mm · Height flange center hole: 42 mm · Ø External connection: 23 mm · Hole spacing inlet: 38 mm · Total height: 53.5 mm

GPO 45 mm piston (Metrakit replica) | Puch

Manufacturer: GPO · Material: Aluminum · Ø outside piston (A): 44.93 mm · Compression height (C): 23.25 mm · Curvature (D): 2.85 mm · Total piston height (E): 49.6 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 45 mm · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.55 mm · Piston ring height: 2 mm · Thick piston ring: 1.8 mm · Thick piston ring: 1.9 mm · Ø piston pin (B): 12 mm · Weight piston kit: 98 g

GPO 45 mm Cylinder (Metrakit Replica) | Puch

Manufacturer: GPO · Camouflaged: No · Surface: varnished · Displacement: 70 ccm · Material: Aluminum · Material: Gray cast iron · Crankshaft stroke: 43 mm · Nominal diameter: 45 mm · Ø cylinder neck: 47.8 mm · Ø Inlet inside: 19 mm · Ø outlet inside: 26 mm · Hole spacing inlet: 38 mm · Thread inlet: M6x1 (standard thread) · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 · Ø piston pin (B): 12 mm · Number of fixing points: 4 pcs · Area of application: Racing · Area of application: Tuning · Outlet type: straight · Thread outlet: M6x1 (standard thread)

GPO gasket set 43.5 & 45 mm (Metrakit replica) | Puch

Manufacturer: GPO · Material: Aluminum · Material: Graphite / Graphite · Material: Sealing carton · Number of components: 4 pcs · Thickness: 0.4 mm · Thickness: 0.5 mm · Thickness: 2.6 mm · Hole spacing inlet: 38 mm · Ø outlet inside: 26.5 mm · Ø cylinder: 43.5 mm · Ø cylinder: 45 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 X 44

GPO 45 mm cylinder kit (Metrakit replica) | Puch

Nominal diameter: 45 mm · Manufacturer: GPO · Material: Aluminum · Material: Gray cast iron · Surface: varnished · Displacement: 70 ccm · Crankshaft stroke: 43 mm · Ø cylinder neck: 47.8 mm · Ø outlet inside: 26 mm · Ø Inlet inside: 19 mm · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 38 mm · Ø piston pin (B): 12 mm · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44 · Camouflaged: No · Area of application: Racing · Area of application: Tuning
