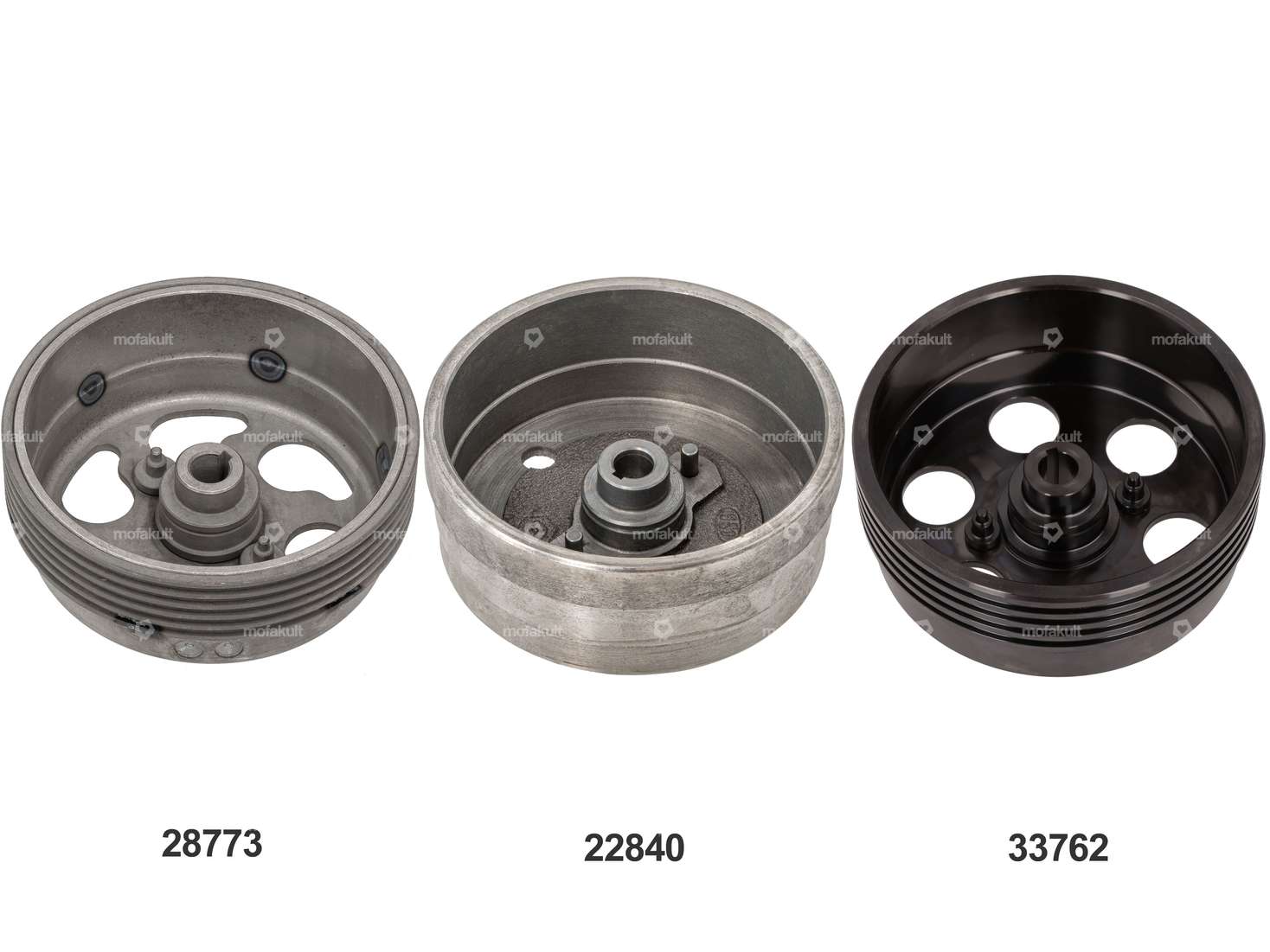

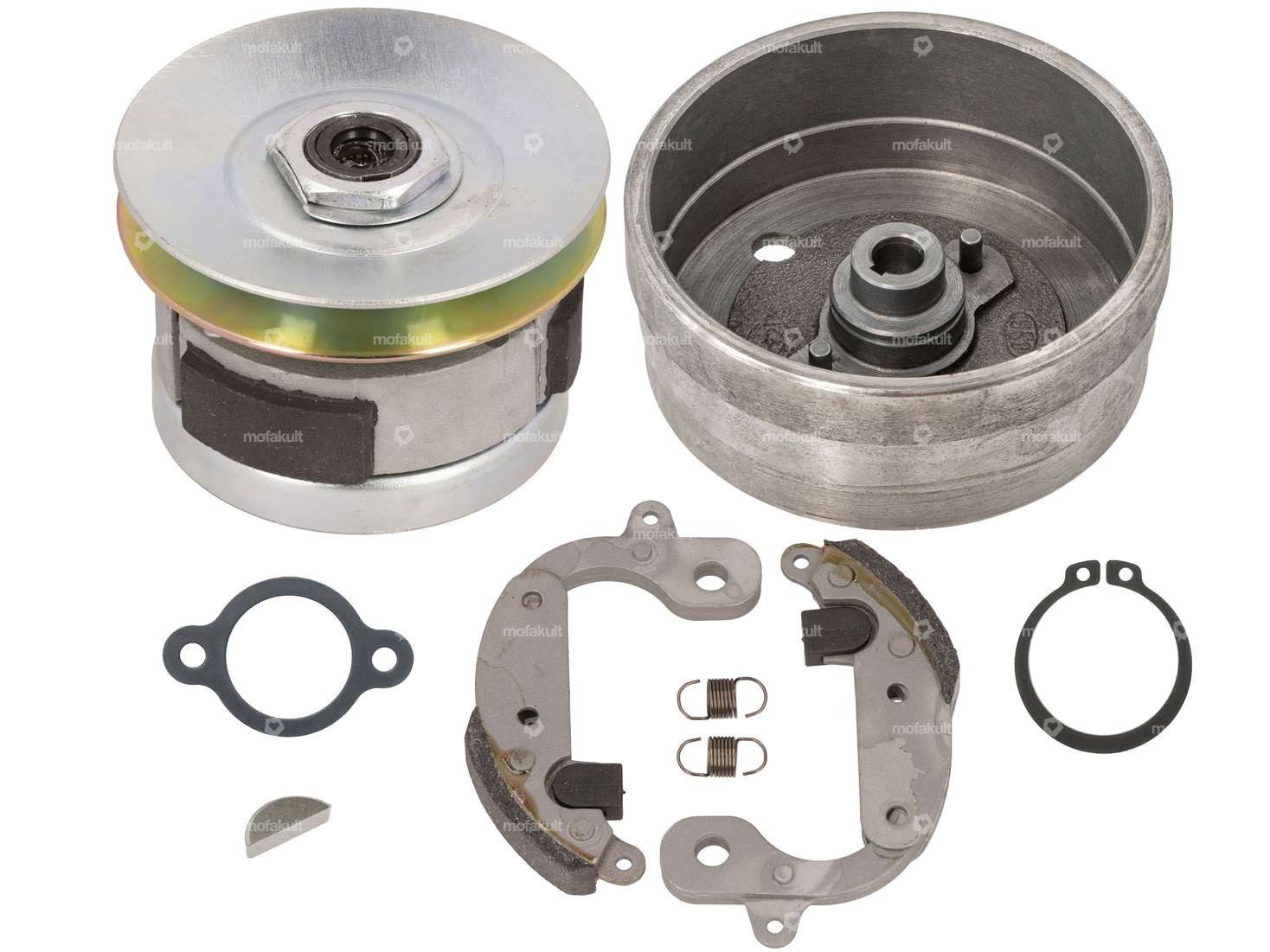

Complete torque converter unit, equipped with Ø 100 mm torque converter pulleys, torque converter bell housing (to choose from) and NewFren starter linings, suitable for your Piaggio Ciao, Si, Bravo and Boxer moped / moped with variomatic transmission.
Also suitable for your Super Bravo with variator; mostly found on the popular kick-starter models.
High-quality radial shaft seals, correctly installed shim plates, lubricated needle bearings and a precisely fitting bearing bush characterize this torque converter clutch.
In the selection window, you have the choice between a CIF, Malossi or Polini torque converter clutch.
Notes:
For installation on a Piaggio Ciao, the pulleys must be turned down to approx. 96 mm or the frame must be ground out a little.
The required belt length in combination with a racing vario is 950 mm (rear engine position) to 975 mm (front engine position) for the Ciao. For Piaggio Si models from 1134 mm to 1150 mm.
The installed counter-pressure spring corresponds to the original in terms of spring force. For a higher starting speed, you can replace this with a higher version as required. When fitting, make sure that the spring tab does not protrude too far into the pulley and could damage the belt.
The starter belts are not yet fitted in the torque converter bell housing in this set. The components are supplied in individual parts.
You can find more parts for your Piaggio with Vario drive in the accessories section.
Good, inexpensive standard spare part. GPO – GOOD PARTS ONLY.
Original Piaggio spare part numbers:
221171, 124775 (converter unit)
190312 (clutch bell)
120870 (starter belts)
220441 (locking plate)
006426 (locking ring)
Manufacturer: GPO · Gearbox type: Vario · Ø outside: 100 mm · Hardness level Counter pressure spring: Standard (30 kg - steel-colored) · Area of application: Standard · Alternative version of the Piaggio OEM number: 221171, 104649 · Ø inside: 93.5 mm · Number of jaws: 3 pcs · Number of springs: 3 pcs · Angle pulley: 17 ° · Thickness: 74 mm
Manufacturer: Piaggio · Material: Spring steel · Spring design: Leaf spring · Piaggio OEM number: 220441
Manufacturer: Piaggio · Material: Spring steel · Fuse type: Outside · Place of use: Clutch · Nominal diameter: 25 mm · Piaggio OEM number: 006426
Manufacturer: NewFren · Gearbox type: Vario · Number of jaws: 2 pcs · Number of springs: 2 pcs
Material: Steel · Total length: 12.5 mm · Width: 3 mm · Height: 4.9 mm
| Manufacturer | GPO |
| Gearbox type | Vario |
| Ø outside | 100 mm |
| Hardness level Counter pressure spring | Standard (30 kg - steel-colored) |
| Piaggio OEM number | 124775, 221171, 190312, 120870, 220441, 006426 |
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo Gilera CBA Gilera Citta |
Ratings
Accessories & related products

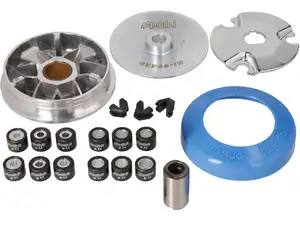

Polini Rennvariomat | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Polini · Gearbox type: Vario · Number of weights: 6 pcs · Number of weights: 12 pcs · Weight Standard weights: 4.4 g · Weight Standard weights: 5.6 g · Ø Weights: 16 mm · Length Weights: 13 mm · Ø External variator: 90 mm
EUR 154.80
EUR 117.80
Stage6 6.5 - 9.5 g vario weight set Ø 16 x 13 mm
Manufacturer: Stage6 · Number of weights: 24 pcs · Weight Standard weights: 6.5 g · Weight Standard weights: 7.5 g · Weight Standard weights: 8.5 g · Weight Standard weights: 9.5 g · Ø Weights: 16 mm · Length Weights: 13 mm · Gearbox type: Vario
EUR 39.20
Hot

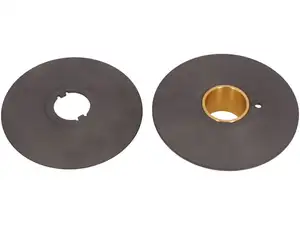

swiing® ingenious pulleys Ø 96 mm | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: swiing® ingenious parts · Material: Steel · Material: special bearing bronze · Surface: gas nitrided · Ø Outer pulley: 96 mm · Gearbox type: Vario · Alternative version of the Piaggio OEM number: 103382 · Alternative version of the Piaggio OEM number: 103823 · Alternative version of the Piaggio OEM number: 220923 · Alternative version of the Piaggio OEM number: 220924
EUR 142.90
Not in stock

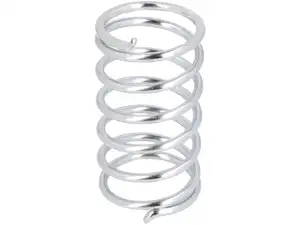

swiing® revival counter pressure spring (original force) torque converter | Piaggio Ciao, SI, Bravo
