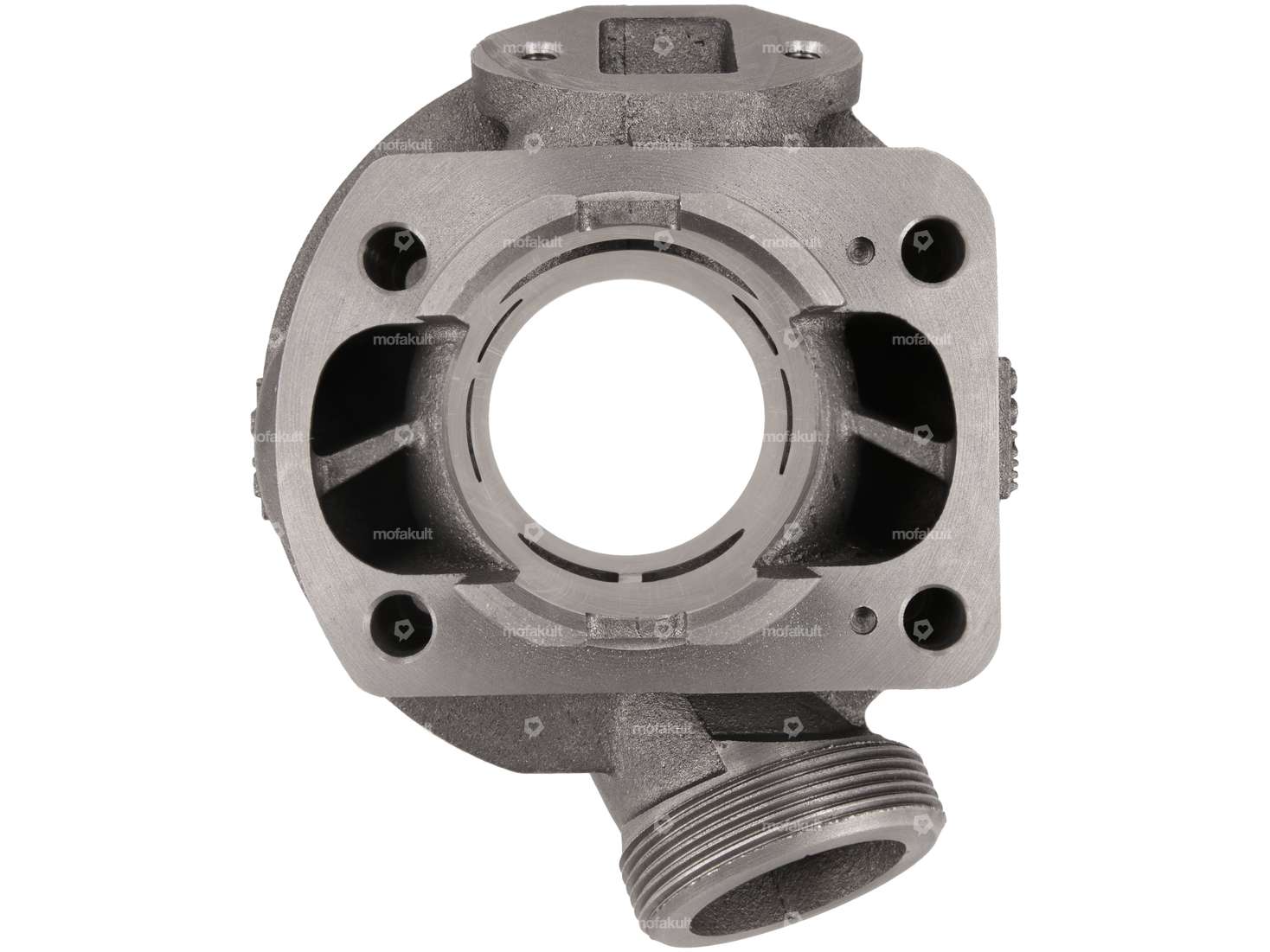

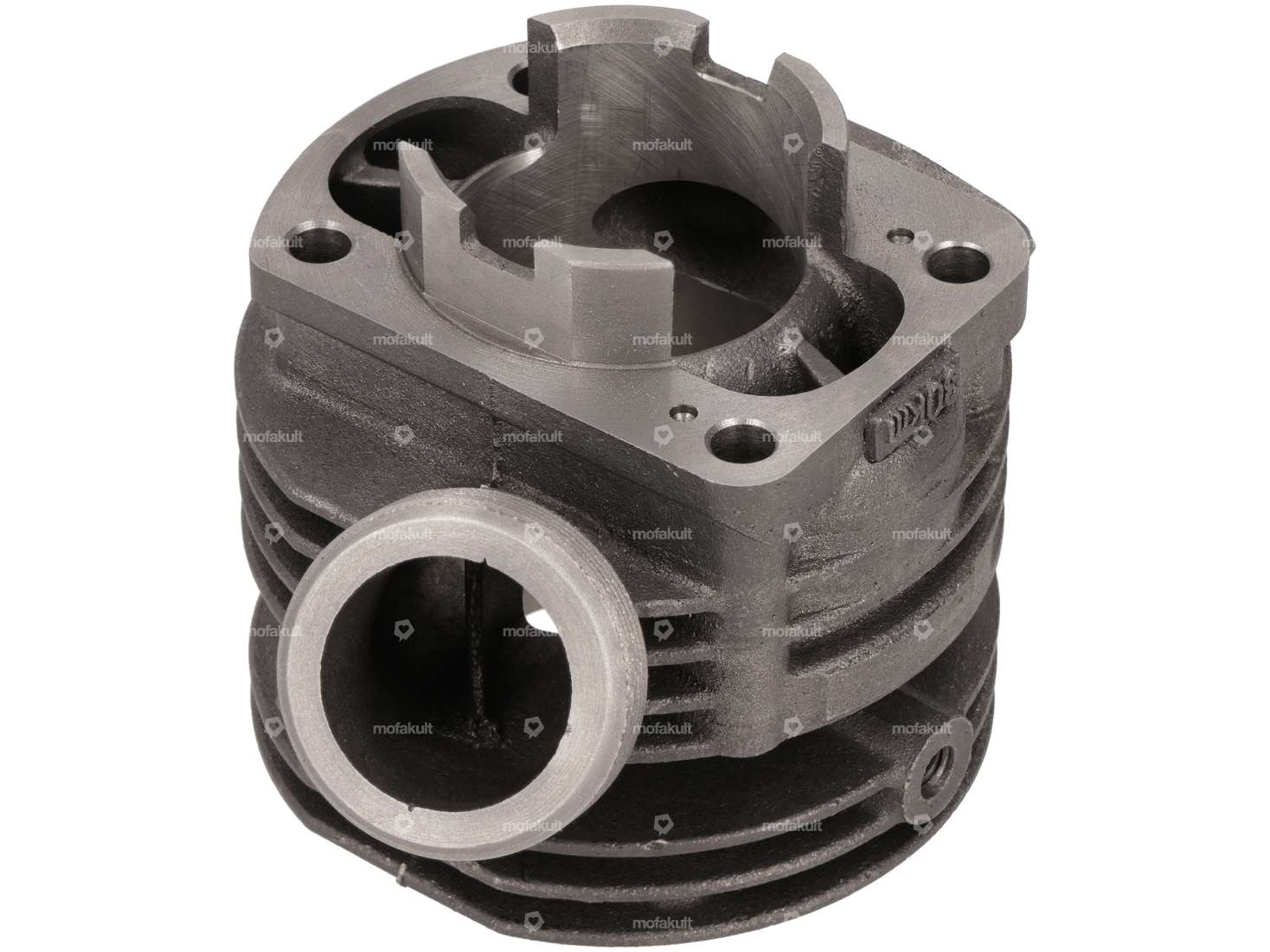

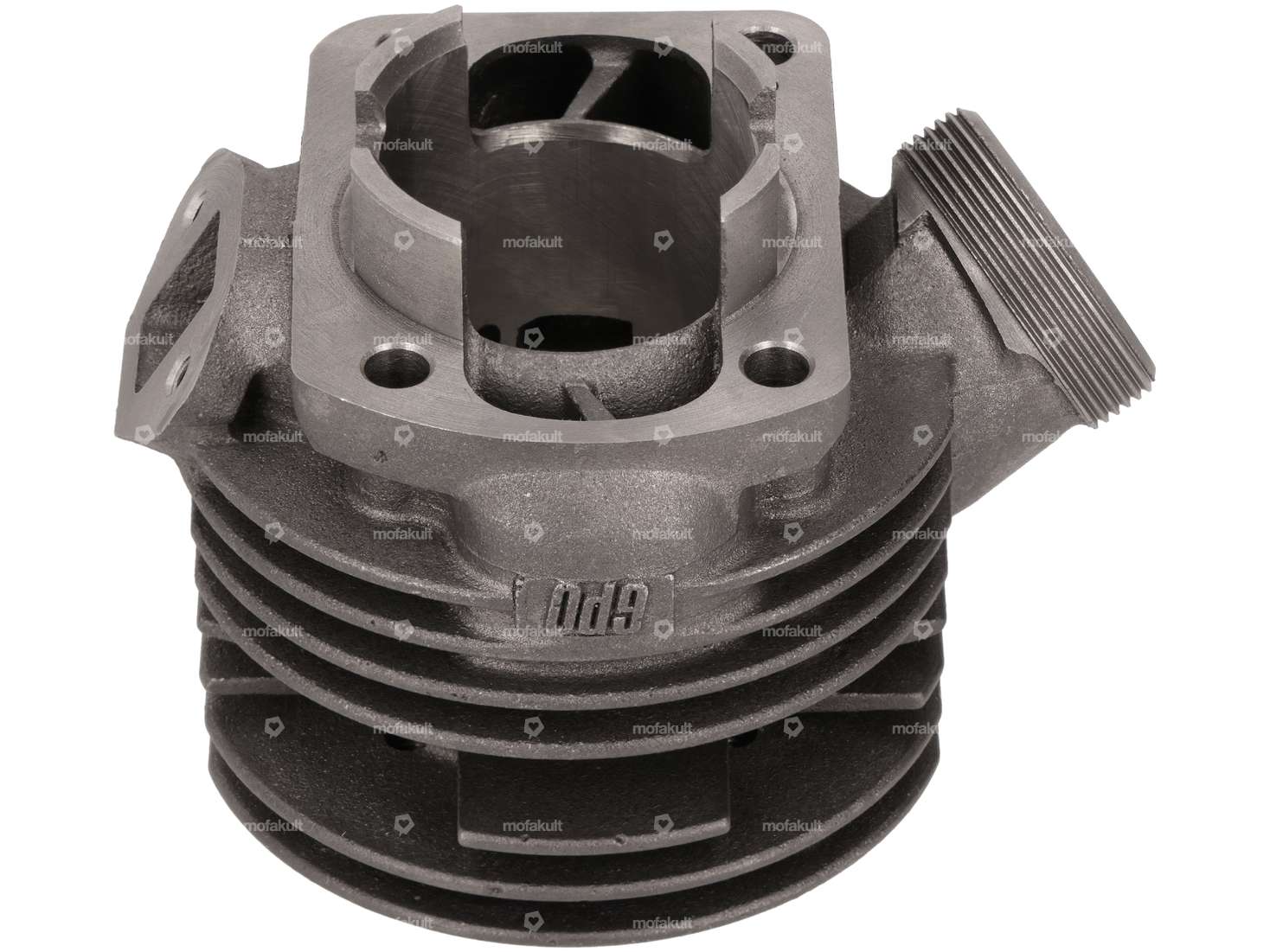

Blade-cooled 41 mm (55 cc) racing kit suitable for your moped / moped with Sachs 50, 502, 50/2, 50/3 or 50/4 engine.

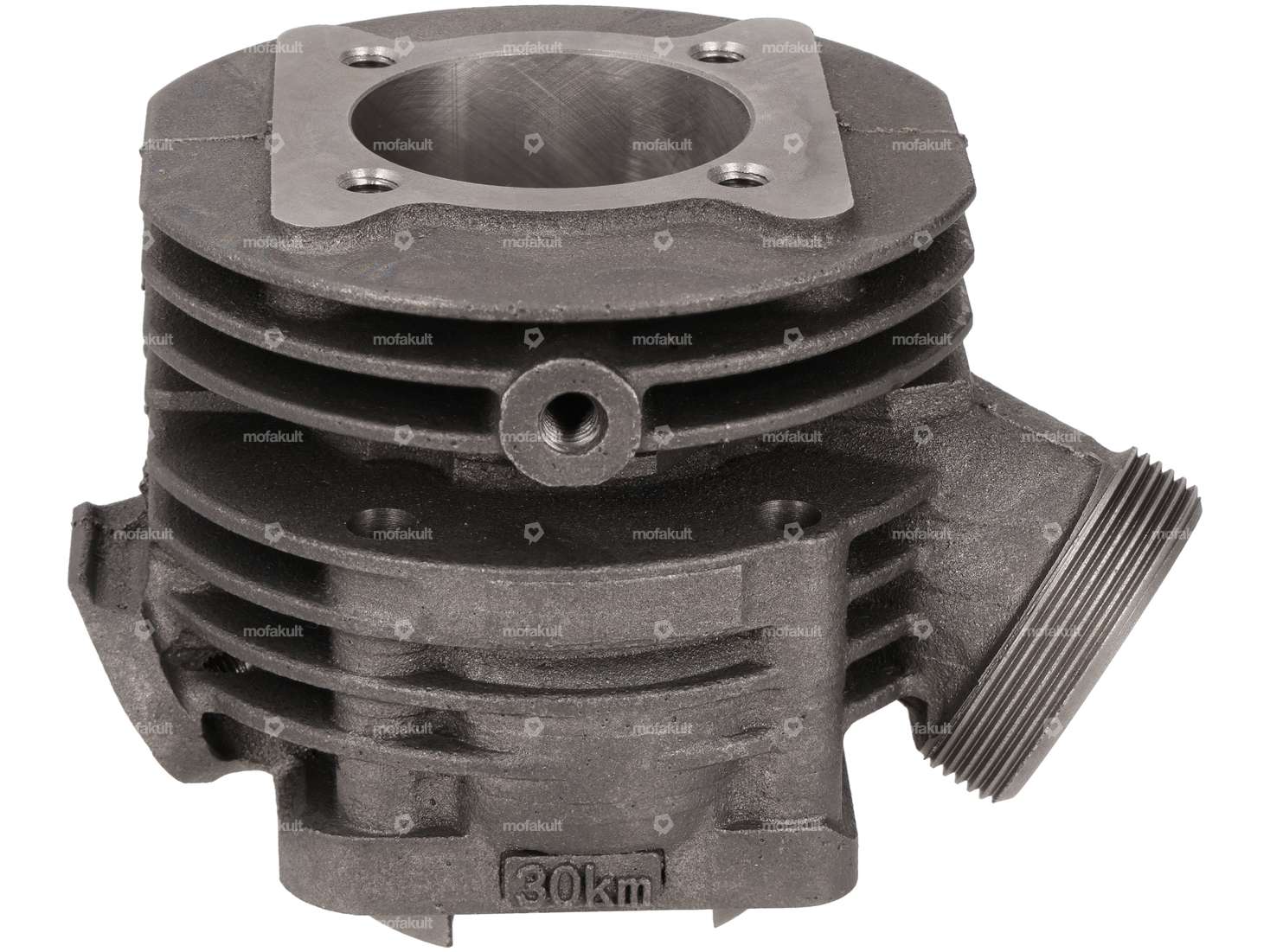

The timing of this racing cylinder is deliberately kept low, which ensures high torque in the lower speed range. This effect is further enhanced by the two-piece exhaust. So that you can enjoy every ride in everyday life without worrying, a «30 km» test disguises the actual performance of your power unit.

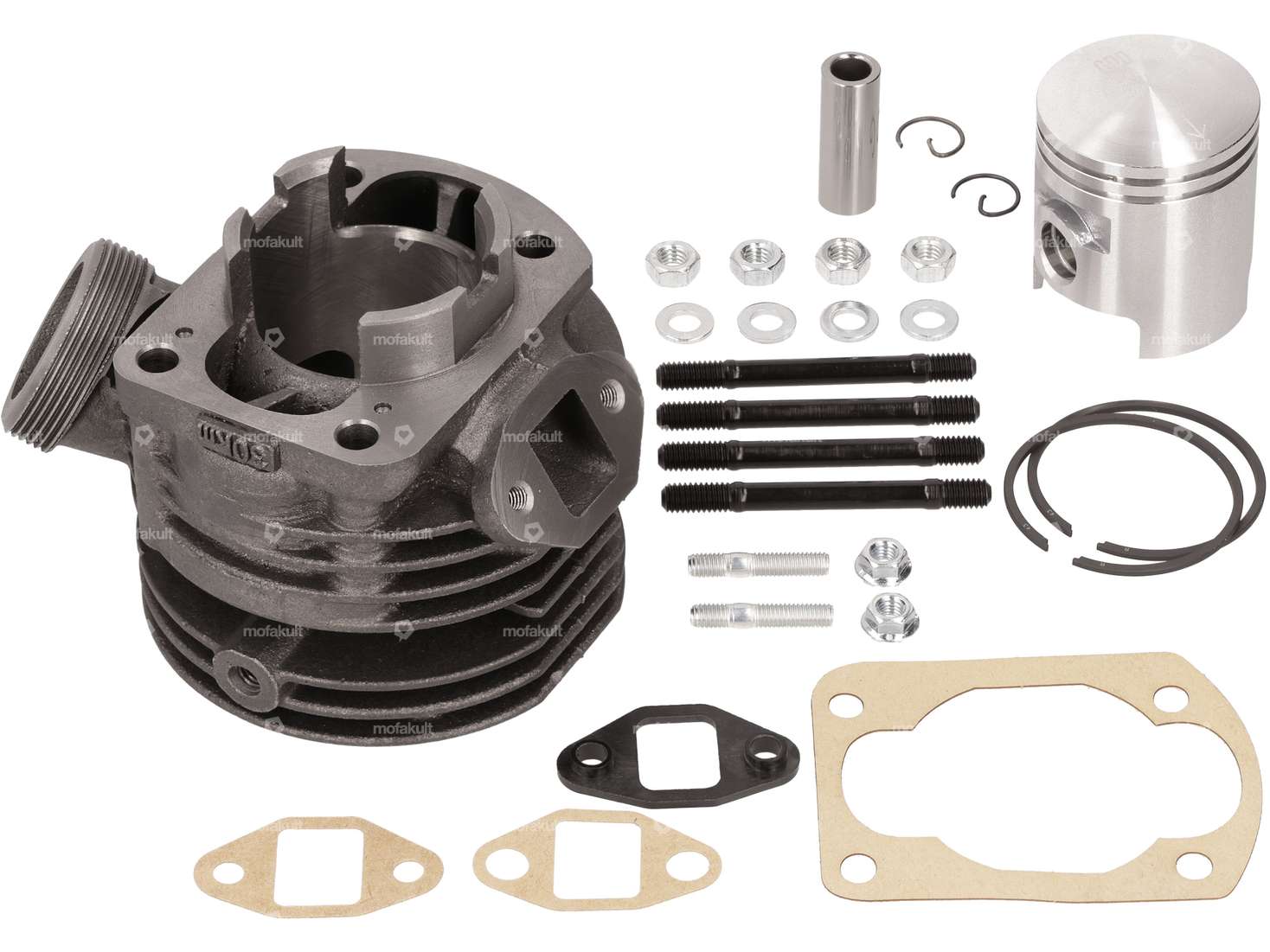

The racing cylinder set includes cylinder, complete piston kit, cylinder studs and a cylinder base gasket.
Differences to the original BADASS Diablo cylinder:
- On the GPO cylinder, the web of the split exhaust is ground behind to minimize the risk of heat trapping on the exhaust side

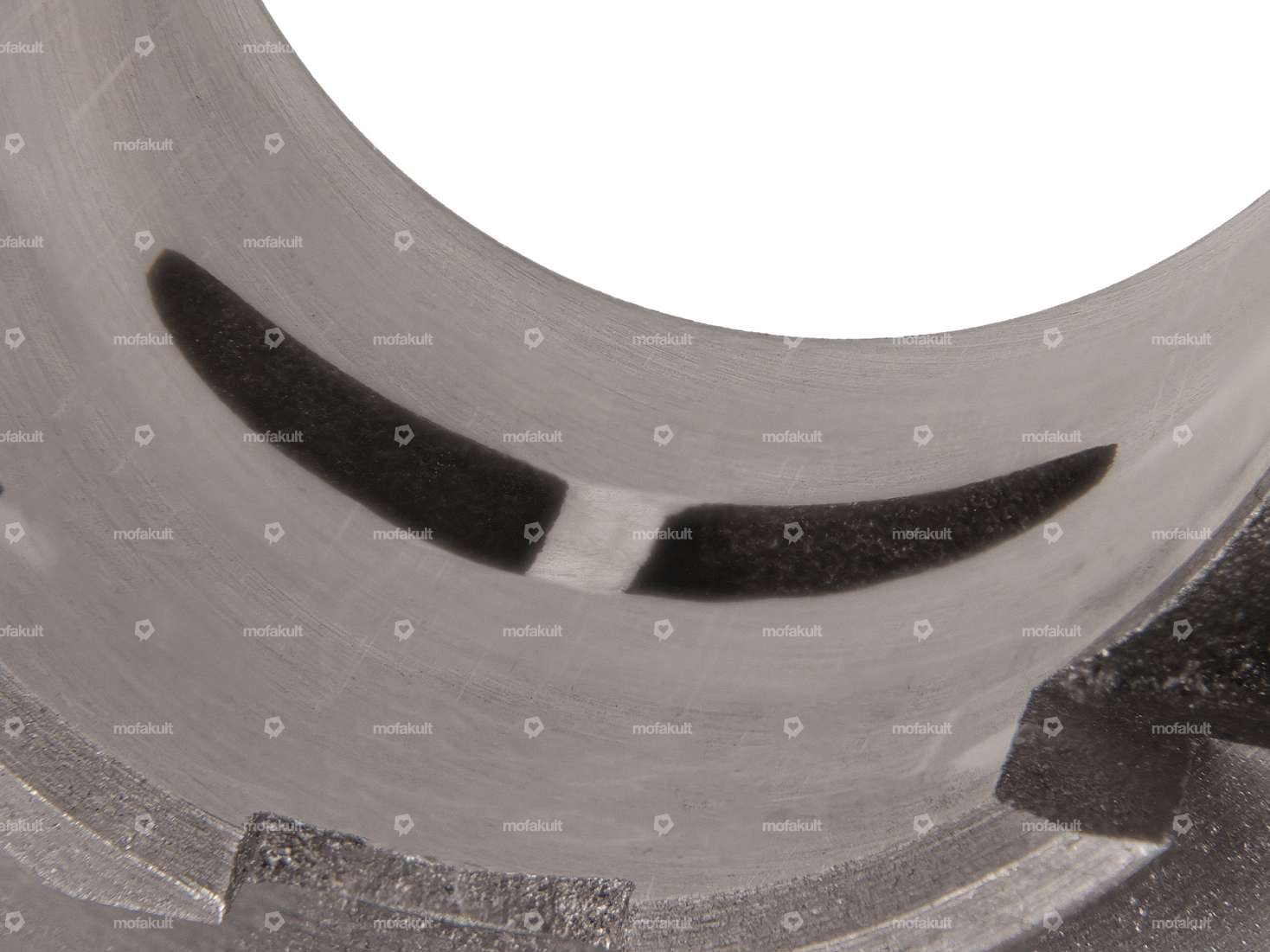

- On the GPO tuning cylinder, the edges of the overflow ports have been chamfered in the area of the cylinder neck to make it easier to fit the piston rings.
- The original BADASS cylinder is supplied with a GOL piston, while the GPO Divertimento is equipped with a GPO piston matched to the cylinder. Differences can be seen, among other things, in the crown and in the cut-outs on the piston skirt for opening the overflow ports.
- In the GPO Divertimento, more space has been created for the nuts to tighten the cylinder base.
Manufacturer: GPO · Material: Gray cast iron · Displacement: 55 ccm · Nominal diameter: 41 mm

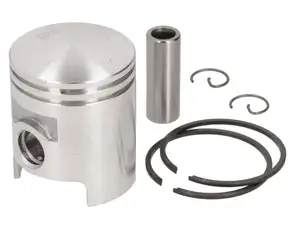

Manufacturer: GPO · Nominal diameter: 41 mm · Material: Aluminum · Ø outside piston (A): 40.95 mm · Ø piston pin (B): 12 mm · Compression height (C): 28 mm · Curvature (D): 3.4 mm · Total piston height (E): 50.5 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Thick piston ring: 1.7 mm
Manufacturer: GPO · Material: Sealing carton · Number of components: 4 pcs
Manufacturer: GPO · Material: Steel · Surface: blackened · Diameter: 5.3 mm · Thread type: M6x1 (standard thread) · Total length: 62 mm · Thread length: 11.8 mm, 7.8 mm · Width across flats: 10 mm · Strength class: 10.9 · Drive: External hexagon
Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Thread type: M5x0.8 (standard thread) · Total length: 26 mm · Thread length: 14 mm, 7 mm · Width across flats: 8 mm · Strength class: 8, 10.9 · Drive: External hexagon
| Nominal diameter | 41 mm |
| Manufacturer | GPO |
| Material | Gray cast iron |
| Surface | blank / oiled |
| Displacement | 55 ccm |
| Crankshaft stroke | 42 mm |
| Ø cylinder neck | 46 mm |
| Ø Outlet outside | 40 mm |
| Ø outlet inside | 28 mm |
| Inlet window | 17 x 15 mm |
| Thread inlet | M5x0.8 (standard thread) |
| Hole spacing inlet | 31 mm |
| Number of fixing points | 4 pcs |
| Ø piston pin (B) | 12 mm |
| Outlet type | Union nut |
| Thread outlet | MF40x1.5 (fine pitch thread) |
| Hole pattern [mm] | 60 x 40 / 51 x 40 / 37 x 37 |
| Decompressor | No |
| Camouflaged | Yes |
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 hp, DE) 502 (Saxonette) - AL, AML 50/2 - L CH (0.8 PS), ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS), LKH (4.5 PS) |
