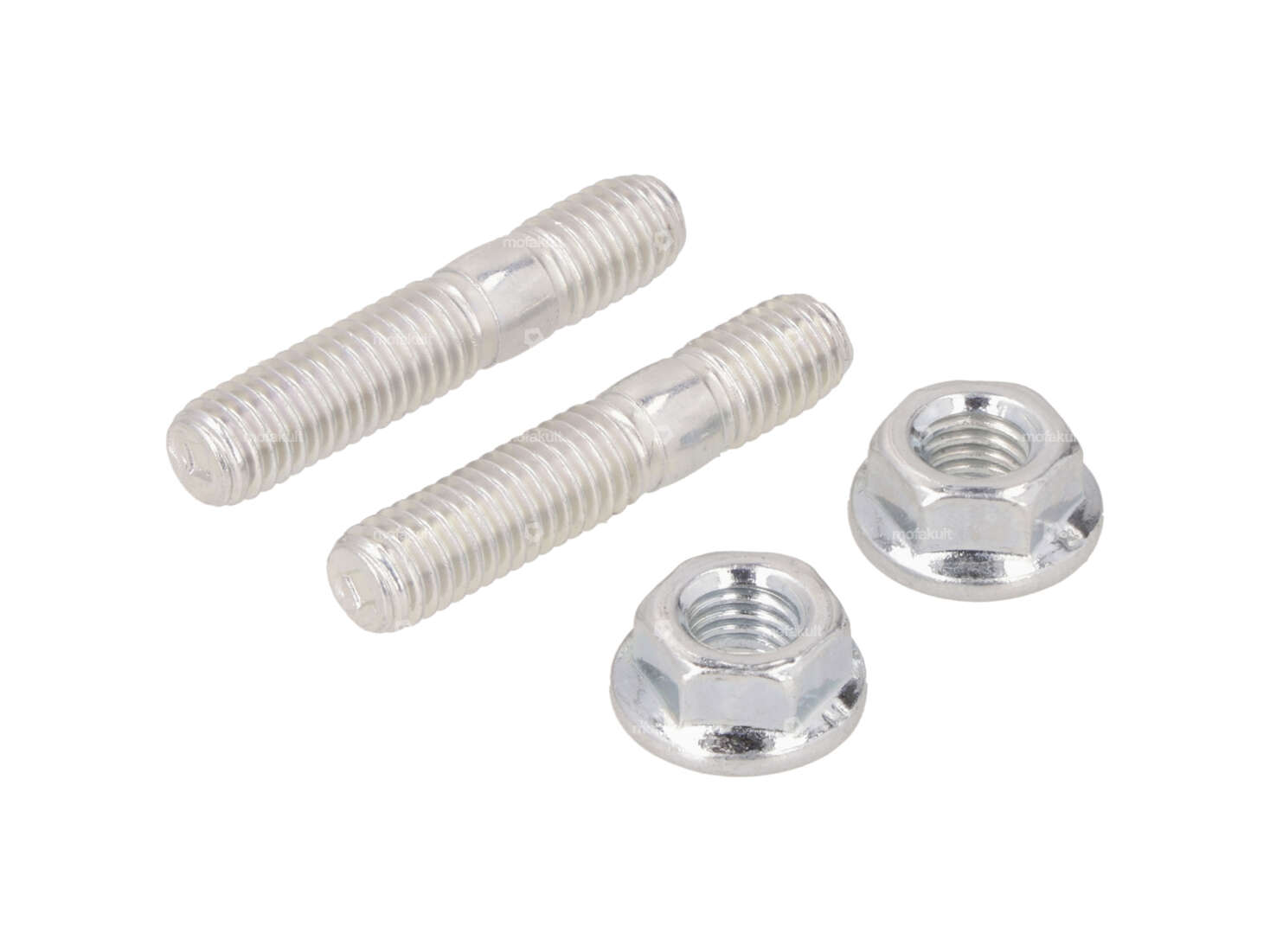

Set of galvanized M5 threaded stud bolts and flange nuts with increased strength for the intake of slotted cylinders on Sachs mopeds / mopeds with 502, 50/2, 50/3, 50/4 engines.
These stud bolts are used to fasten the intake manifold.
Total length: 26 mm
Thread length: 14 / 7 mm
Strength of stud bolt: 10.9
Strength of flange nut: 8
Material: Steel, galvanized
Nostalgic product for the highest demands of the quality brand swiing®.
| Manufacturer | swiing® revival parts |
| Material | Steel |
| Surface | galvanized (blue) |
| Drive | External hexagon |
| Total length | 26 mm |
| Thread type | M5x0.8 (standard thread) |
| Width across flats | 8 mm |
| Strength class | 8, 10.9 |
| Thread length | 14 mm, 7 mm |
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 hp, DE) 502 (Saxonette) - AL , AML 50/2 - L CH (0.8 PS) , ML CH (0.8 PS) , MB (2.6 PS) , MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS) , LKH (4.5 PS) |
Ratings
Accessories & related products
Loctite 243 medium-strength threadlocker 10 ml
Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Color: blue · Area of application: Chemistry · Hazard warning: Causes serious eye irritation · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Signal word: Attention · Contents: 10 ml · Hazard pictogram: GHS07 - Caution dangerous · Hazard pictogram: GHS09 - Hazardous to the aquatic environment · Adhesion: medium strength · Gap dimension (max.): 0.01 mm · Temperature resistance (min.): -75 - 200 °C · Type of application: 1K · Alignment time: 600 sec · Breakaway torque (according to material): 3 N/m · Breakaway torque (according to material): 12 N/m · Breakaway torque (according to material): 26 N/m
EUR 25.30
EUR 2’530.00/l
swiing® revival stud bolt M5 x 23 inlet (diaphragm) 10.9 | Sachs 50/2 (A3700)
Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Diameter: 4.9 mm · Total length: 23 mm · Thread length: 6 mm · Thread length: 12 mm · Thread type: M5x0.8 (standard thread) · Area of application: Standard · Pony OEM number: A3700 · Sachs OEM no.: 0640 016 101 · Sachs OEM no.: 0640 016 102
EUR 2.10
swiing® revival stud bolt inlet M5x26 mm galvanized (10.9 strength) | Sachs (A1474)
Manufacturer: swiing® revival parts · Material: Steel · Thread type: M5x0.8 (standard thread) · Surface: galvanized (blue) · Total length: 26 mm · Thread length: 7 mm · Thread length: 14 mm · Strength class: 10.9 · Pony OEM number: A1474 · Sachs OEM no.: 0241 031 101
EUR 2.10
Moped fans also bought
GPO piston 40.96 mm | Sachs 502, 50/2, 50/3, 50/4
Manufacturer: GPO · Ø outside piston (A): 40.96 mm · Compression height (C): 28 mm · Curvature (D): 2.5 mm · Total piston height (E): 52 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Nominal diameter: 41 mm · Piston ring height: 1.5 mm · Ø piston pin (B): 12 mm · Weight piston kit: 90 g
EUR 39.10
Gasket cylinder base 0.5 mm | Sachs 50/2, 503
Place of use: Cylinder base · Material: Sealing carton · Thickness: 0.5 mm · Hole pattern [mm]: 60 x 40 · Area of application: Standard · Alternative version of the Pony OEM number: A1848 · Alternative version of the Sachs OEM number: 0250 113 100
EUR 4.50
GPO 43 mm piston "Divertimento" | Sachs 502, 50/2, 50/3, 50/4
Manufacturer: GPO · Material: Aluminum · Thick piston ring: 1.7 mm · Ø outside piston (A): 42.95 mm · Compression height (C): 28 mm · Curvature (D): 3.4 mm · Total piston height (E): 50.5 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Nominal diameter: 43 mm · Piston ring height: 1.5 mm · Ø piston pin (B): 12 mm
EUR 51.80
GPO Ø 43 mm cylinder kit "Divertimento" (slotted) | Sachs 502, 50/2, 50/3, 50/4
Nominal diameter: 43 mm · Manufacturer: GPO · Camouflaged: Yes · Material: Gray cast iron · Surface: blank / oiled · Crankshaft stroke: 42 mm · Displacement: 61 ccm · Hole spacing inlet: 31 mm · Ø cylinder neck: 46 mm · Ø Outlet outside: 40 mm · Ø outlet inside: 28 mm · Ø piston pin (B): 12 mm · Inlet window: 17 x 15 mm · Thread inlet: M5x0.8 (standard thread) · Number of fixing points: 4 pcs · Decompressor: No · Outlet type: Union nut · Hole pattern [mm]: 60 x 40 / 51 x 40 / 37 x 37 · Thread outlet: MF40x1.5 (fine pitch thread)
EUR 201.60

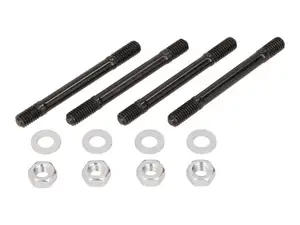

GPO stud bolt set "Divertimento" & "Diablo" cylinder | Sachs 502, 50/2, 50/3, 50/4
