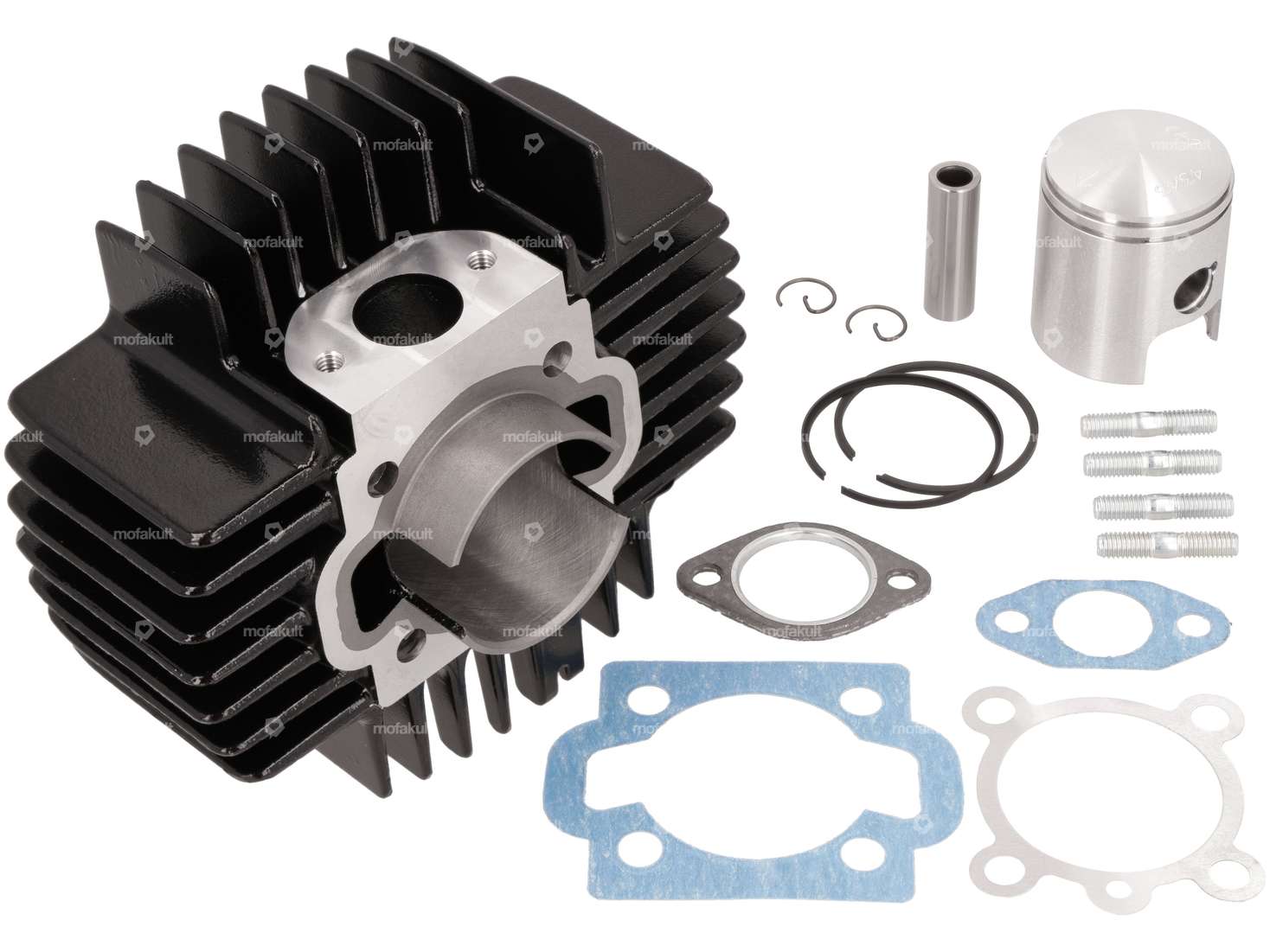

The legend is back! The legendary 43.5 mm Metrakit racing cylinder from days gone by has risen like a phoenix from the ashes and ignites a new fire in your Puch Maxi S, N, X30 Sport NS, NL and Supermaxi LG1 and LG2 moped / moped.

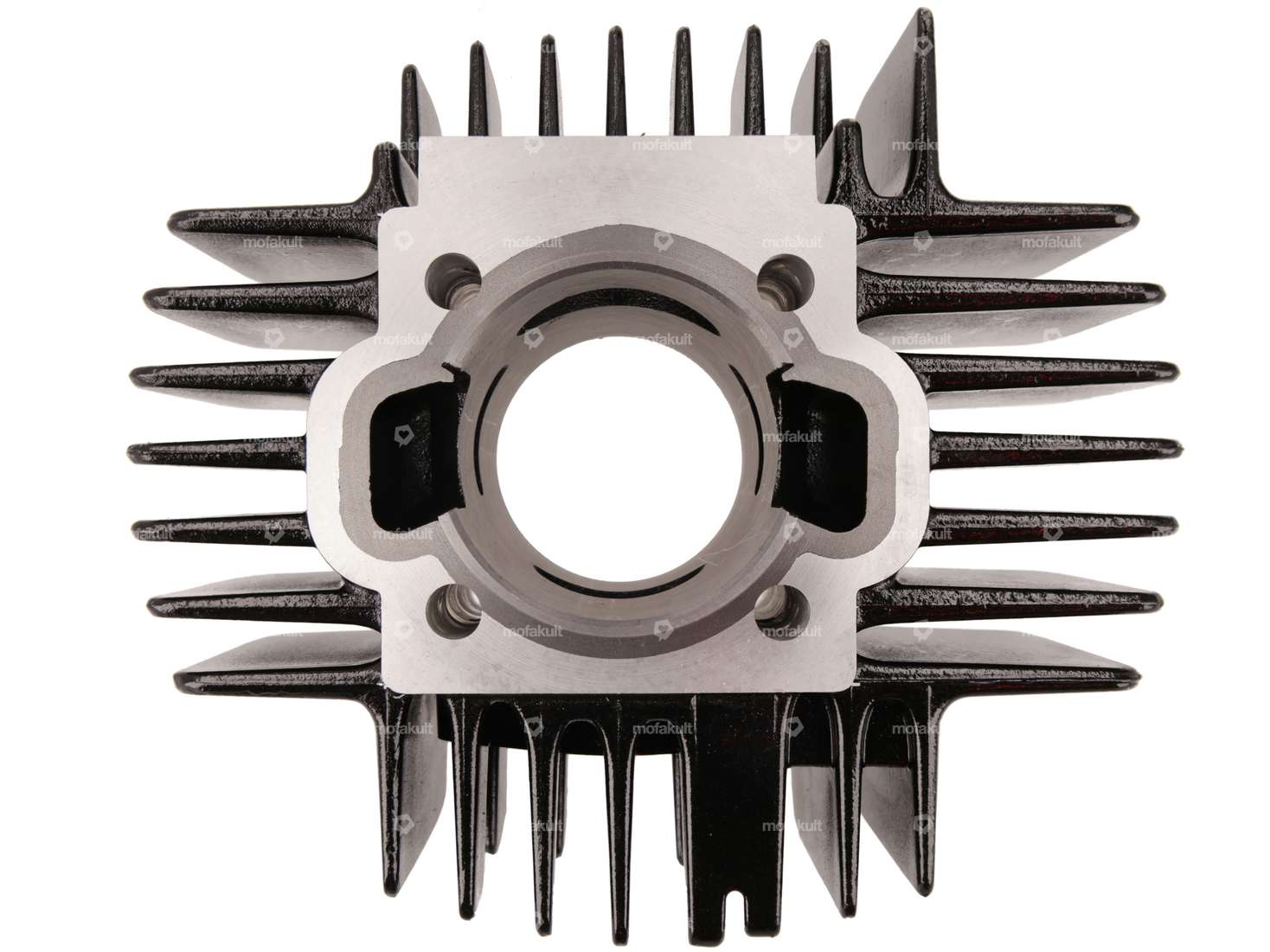

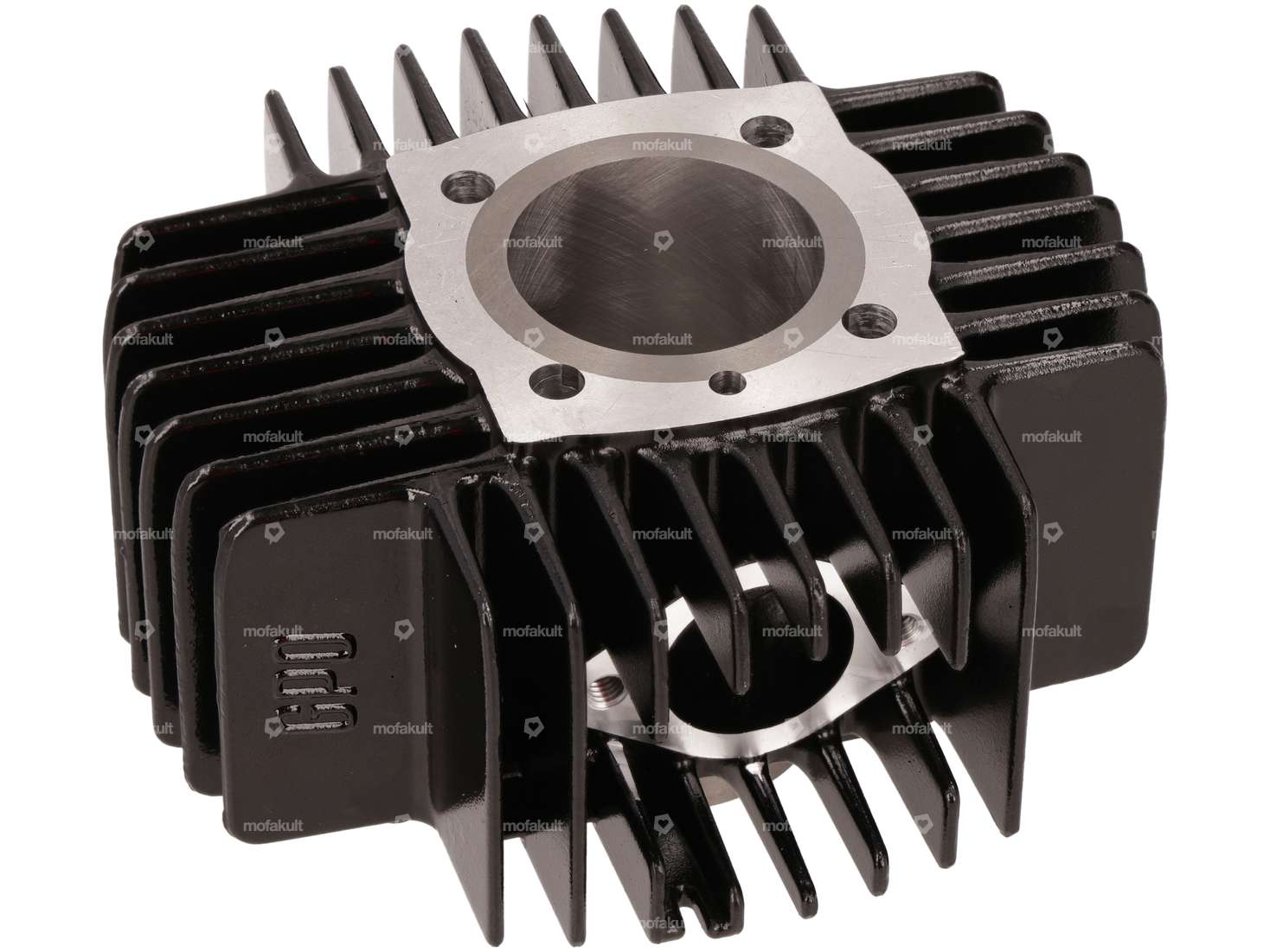

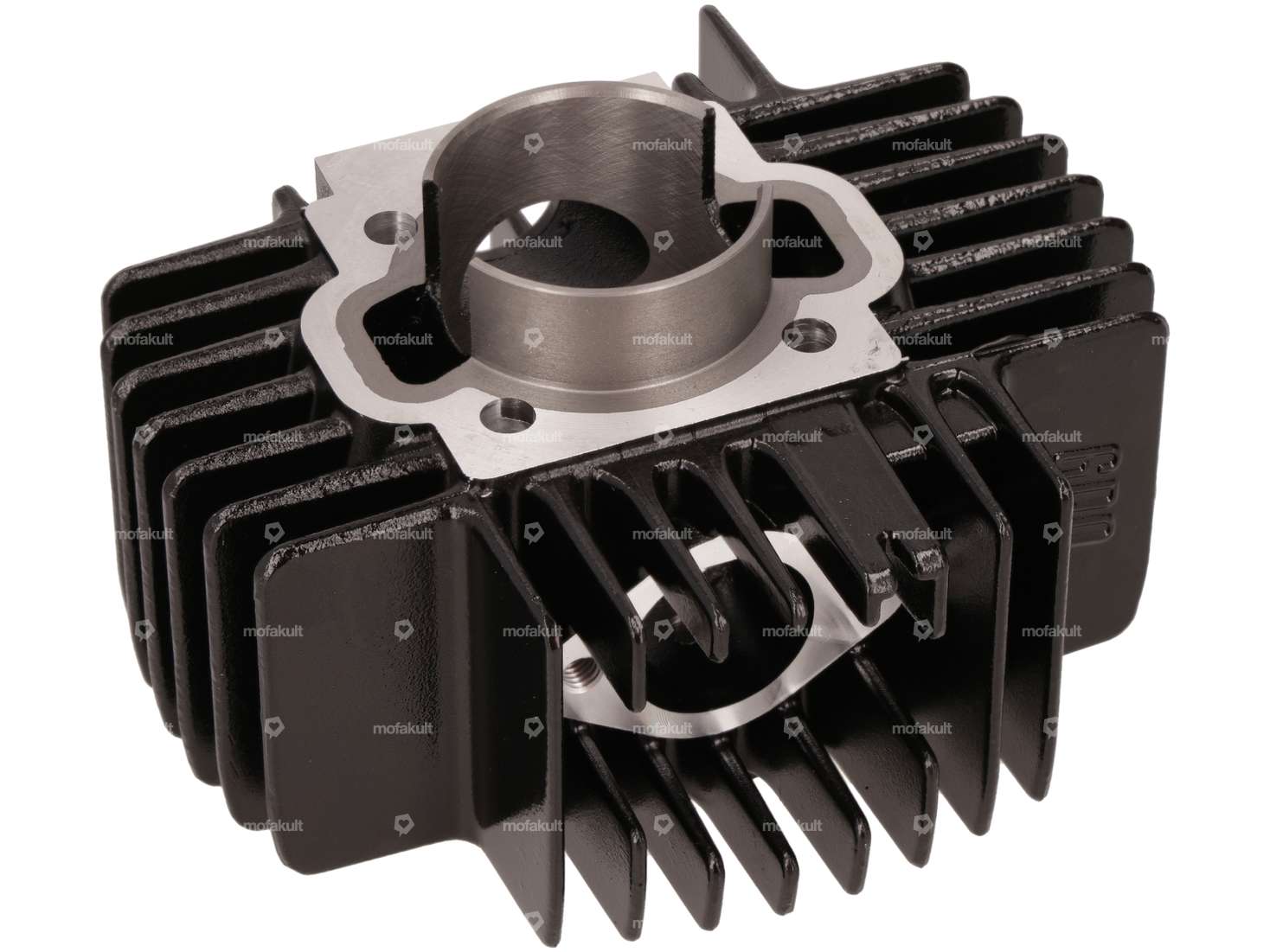

The aluminium cylinder with grey cast iron liner is an optimized replica of the original Metrakit racing cylinder. The timing has been revised compared to the original and provided with more advance, making the well-known piston sticking problem due to high heat development a thing of the past. In addition, the cylinder height has been precisely adapted so that the extra-thick base gasket previously required is now superfluous.
This GPO racing cylinder is one of the strongest and most powerful in its class and has been extensively tested. It impresses with ample torque across the entire power band and offers an impressively powerful performance. Thanks to the optimizations compared to the original, the cylinder also achieves a noticeably higher engine speed, which ensures even more power and driving pleasure.
To get the full power out of this tuning cylinder, we recommend at least a 15 mm carburetor. However, you can achieve significantly more power with a 17 mm carburetor. Thanks to the generous 19 mm intake, you have sufficient scope for optimum power delivery.
Manufacturer: GPO · Nominal diameter: 43.5 mm · Material: Aluminum · Ø outside piston (A): 43.46 mm · Ø piston pin (B): 12 mm · Compression height (C): 22.9 mm · Curvature (D): 3.1 mm · Total piston height (E): 49.55 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring, L-ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.55 mm, 2 mm · Thick piston ring: 1.9 mm, 1.8 mm · Weight piston kit: 87 g
Manufacturer: GPO · Material: Sealing carton, Aluminum, Graphite / Graphite · Number of components: 4 pcs · Thickness: 0.4 mm, 0.5 mm, 2.6 mm · Ø cylinder: 43.5 mm, 45 mm · Hole spacing inlet: 38 mm · Ø outlet inside: 26.5 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 X 44
Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Diameter: 5.95 mm · Thread type: M6x1 (standard thread) · Total length: 30 mm · Thread length: 12 mm · Strength class: 10.9
| Manufacturer | GPO |
| Material | Aluminum, Gray cast iron |
| Surface | varnished |
| Displacement | 64 ccm |
| Nominal diameter | 43.5 mm |
| Crankshaft stroke | 43 mm |
| Ø piston pin (B) | 12 mm |
| Ø cylinder neck | 47.8 mm |
| Ø outlet inside | 26 mm |
| Ø Inlet inside | 19 mm |
| Area of application | Tuning, Racing |
| Thread inlet | M6x1 (standard thread) |
| Hole spacing inlet | 38 mm |
| Number of fixing points | 4 pcs |
| Outlet type | straight |
| Hole spacing outlet | 42 mm |
| Thread outlet | M6x1 (standard thread) |
| Hole pattern [mm] | 44 x 44 |
| Camouflaged | No |
| Puch | E50 ZA50 (air-cooled) Z50 (X30 Sport) |
Ratings
Accessories & related products
swiing® ingenious 15 mm carburetor set camouflaged | Puch E50
Manufacturer: swiing® ingenious parts · Area of application: Tuning · Component group Carburetor: Carburetor complete · Carburetor type: SRE · Choke control: Hand choke · Mounting type: Plug connection clamped · Mounting type: Stud bolts & nuts · Nominal diameter: 15 mm · Ø Inside entrance: 15 mm · Ø Internal connection: 20 mm · Ø Output inside: 15 mm · Ø Air filter connection: 20 mm · Hole spacing inlet: 38 mm · Ø fuel hose connection: 5 mm · Ø fuel hose connection: 6 mm · Nozzle thread: M3.5x0.6 (standard thread) · Camouflaged: Yes · Nozzle size: 62 · Clamping screw torque (max.): 4 N/m
EUR 124.50
Hot
swiing® ingenious crankshaft "High End" with mounted bearings | Puch E50
Manufacturer: swiing® ingenious parts · Weight: 968 g · Area of application: High End · Area of application: Racing · Area of application: Tuning · Material: Aluminum · Cheek type: Full cheeks · Material: Steel · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Number of gears: 1 pcs · Thread length: 11 mm · Thread length: 15 mm · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 15 mm · Thread type: MF10x1 (fine pitch thread) · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm
EUR 213.50
swiing® ingenious resonance exhaust set Ø 28 / 70 mm | Puch Maxi, X30 Sport
Manufacturer: swiing® ingenious parts · Material: Steel · Color: Chrome · Surface: chrome-plated · Ø outside: 70 mm · Total length: 730 mm · Ø Internal connection: 28 mm · Exhaust type: Cigar · Mounting type: Screwed clamp · Flame tube attachment: Flange
EUR 142.30
Hot
swiing® ingenious intake manifold 17 mm SRF camouflaged | Puch E50
Manufacturer: swiing® ingenious parts · Area of application: Performance · Area of application: Racing · Area of application: Tuning · Material: Aluminum · Ø inside: 17 mm · Mounting type: Stud bolts & nuts · Total height: 53.5 mm · Number of fixing points: 2 pcs · Ø External connection: 23 mm · Total length: 38 mm · Hole spacing inlet: 38 mm · Height flange center hole: 42 mm · Camouflaged: Yes
EUR 53.30
HOMOET Exhaust RS Cigar 28 mm black | Puch Maxi / E50
Manufacturer: HOMOET · Material: Steel · Surface: powder-coated · Color: black · Ø Internal connection: 24.5 mm · Number of fixing points: 3 pcs · Ø Flame tube outside: 28 mm · Exhaust type: Cigar · Flame tube attachment: Nuts & bolts · Mounting type: Welded lug · Total length: 920 mm
EUR 183.80
swiing® ingenious 17 mm carburetor set camouflaged | Puch E50
Manufacturer: swiing® ingenious parts · Area of application: Racing · Area of application: Tuning · Component group Carburetor: Carburetor complete · Carburetor type: SRF · Choke control: Hand choke · Mounting type: Plug connection clamped · Nominal diameter: 17 mm · Ø Air filter connection: 27.5 mm · Hole spacing inlet: 38 mm · Mixed oil connection: No · Nozzle thread: M3.5x0.6 (standard thread) · Nozzle block: 2.2 · Camouflaged: Yes · Nozzle size: 74 · Clamping screw torque (max.): 4 N/m
EUR 213.50
swiing® ingenious resonance exhaust set Ø 28 / 70 mm camouflaged | Puch Maxi
Manufacturer: swiing® ingenious parts · Material: Steel · Surface: chrome-plated · Color: Chrome · Total length: 730 mm · Ø outside: 70 mm · Ø Silencer: 70 mm · Mounting type: Screwed clamp · Ø Internal connection: 28 mm · Ø Flame tube outside: 28 mm · Exhaust type: Cigar · Flame tube attachment: Flange
EUR 183.80
GPO piston rings 43.5 mm (Metrakit replica) | Puch
Manufacturer: GPO · Diameter: 43.5 mm · Thick piston ring: 1.7 mm · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring impact: Internal fuse (IS) · Nominal diameter: 43.5 mm · Height: 1.5 mm
EUR 15.30
GPO Ø 45 mm cylinder kit (Metrakit replica) | Puch
Manufacturer: GPO · Area of application: Racing · Area of application: Tuning · Material: Aluminum · Material: Gray cast iron · Surface: varnished · Displacement: 70 ccm · Crankshaft stroke: 43 mm · Ø cylinder neck: 47.8 mm · Nominal diameter: 45 mm · Ø outlet inside: 26 mm · Ø Inlet inside: 19 mm · Number of fixing points: 4 pcs · Ø piston pin (B): 12 mm · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 38 mm · Hole spacing outlet: 42 mm · Outlet type: straight · Hole pattern [mm]: 44 x 44 · Thread outlet: M6x1 (standard thread) · Camouflaged: No
EUR 189.70
Explore categories from Cylinder
Moped fans also bought
swiing® revival stud bolt set M6 x 106 | Puch
Total length: 106 mm · Drive: External hexagon · Diameter: 5.9 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Thread length: 13 mm · Thread length: 18.5 mm · Width across flats: 10 mm · Thread type: M6x1 (standard thread) · Alternative version of the Puch OEM number: 360.1.10.034.1
EUR 8.80
GPO 44 mm cylinder head Puch Tuning (Maxi S, N | X30 NS, NL, N-2AH) black
Manufacturer: GPO · Material: Aluminum · Camouflaged: Yes · Surface: varnished · Ø cylinder: 44 mm · Width: 125 mm · Height: 55 mm · Total length: 135 mm · Candle thread: short · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44 · Decompressor: No · Area of application: Tuning
EUR 50.90
GPO 43.5 mm piston (Metrakit replica) | Puch
Manufacturer: GPO · Material: Aluminum · Thick piston ring: 1.8 mm · Thick piston ring: 1.9 mm · Ø outside piston (A): 43.46 mm · Compression height (C): 22.9 mm · Curvature (D): 3.1 mm · Total piston height (E): 49.55 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Nominal diameter: 43.5 mm · Piston ring height: 1.55 mm · Piston ring height: 2 mm · Ø piston pin (B): 12 mm · Weight piston kit: 87 g
EUR 59.20
GPO 45 mm piston (Metrakit replica) | Puch
Manufacturer: GPO · Material: Aluminum · Thick piston ring: 1.8 mm · Thick piston ring: 1.9 mm · Ø outside piston (A): 44.93 mm · Compression height (C): 23.25 mm · Curvature (D): 2.85 mm · Total piston height (E): 49.6 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Nominal diameter: 45 mm · Ø piston pin (B): 12 mm · Piston ring height: 1.55 mm · Piston ring height: 2 mm · Weight piston kit: 98 g
EUR 59.20

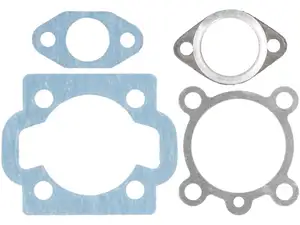

GPO gasket set 43.5 & 45 mm (Metrakit replica) | Puch
Manufacturer: GPO · Material: Aluminum · Material: Graphite / Graphite · Material: Sealing carton · Ø cylinder: 43.5 mm · Ø cylinder: 45 mm · Number of components: 4 pcs · Ø outlet inside: 26.5 mm · Thickness: 0.4 mm · Thickness: 0.5 mm · Thickness: 2.6 mm · Hole spacing inlet: 38 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 X 44
EUR 17.70
GPO Ø 45 mm cylinder kit (Metrakit replica) | Puch
Manufacturer: GPO · Area of application: Racing · Area of application: Tuning · Material: Aluminum · Material: Gray cast iron · Surface: varnished · Displacement: 70 ccm · Crankshaft stroke: 43 mm · Ø cylinder neck: 47.8 mm · Nominal diameter: 45 mm · Ø outlet inside: 26 mm · Ø Inlet inside: 19 mm · Number of fixing points: 4 pcs · Ø piston pin (B): 12 mm · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 38 mm · Hole spacing outlet: 42 mm · Outlet type: straight · Hole pattern [mm]: 44 x 44 · Thread outlet: M6x1 (standard thread) · Camouflaged: No
EUR 189.70
