For the economical repair of damaged or worn threads (of all materials) and as a structural element for thread reinforcement when using materials with low shear strength (e.g. aluminum, aluminum-magnesium alloys). The use of wear-free HeliCoil thread inserts not only repairs the thread, but also increases the thread load-bearing capacity.
Execution:
High-strength, free-running HeliCoil® plus thread inserts made of stainless steel with high wear resistance, low thread friction in tight tolerances, high surface quality as well as corrosion and heat resistance. The flexible design enables even load and stress distribution and thus produces durable screw connections of the highest quality for all operating loads (static, dynamic) with ideal force transmission. Uncomplicated, quick assembly, a gauge-containing internal thread that can be used on both sides is created.

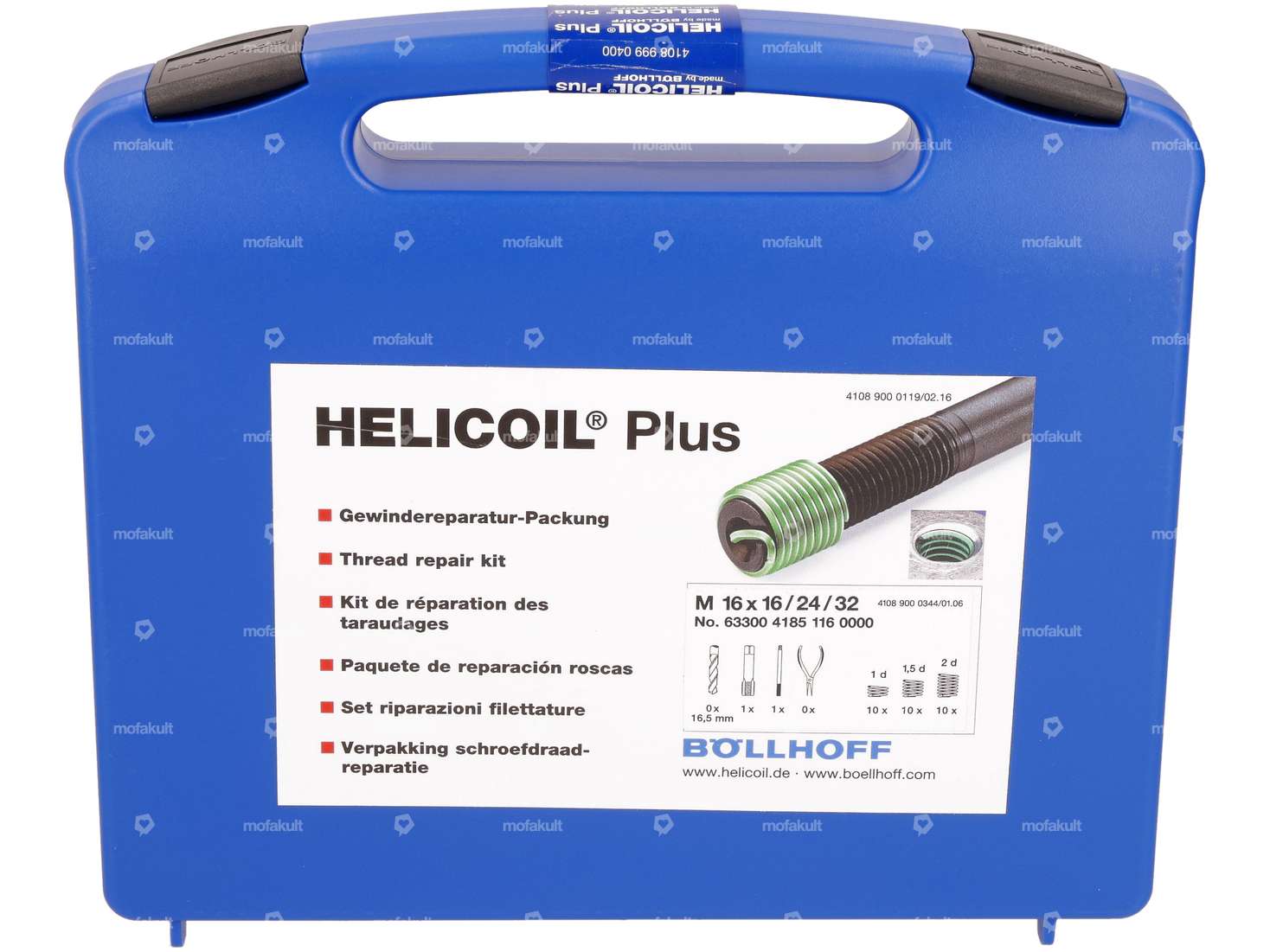

Complete repair kit for M16x2.00 thread sizes in plastic case.
Application:
1. Drill out defective thread with 16.5 mm drill (not included in scope of delivery).
2. Check the tap and threaded bolt.
3. Cut the holding thread with the special HeliCoil tap.
4. Turn the thread insert into the holding thread using the installation tool.
5. Remove the tang with a punch or needle-nose pliers.

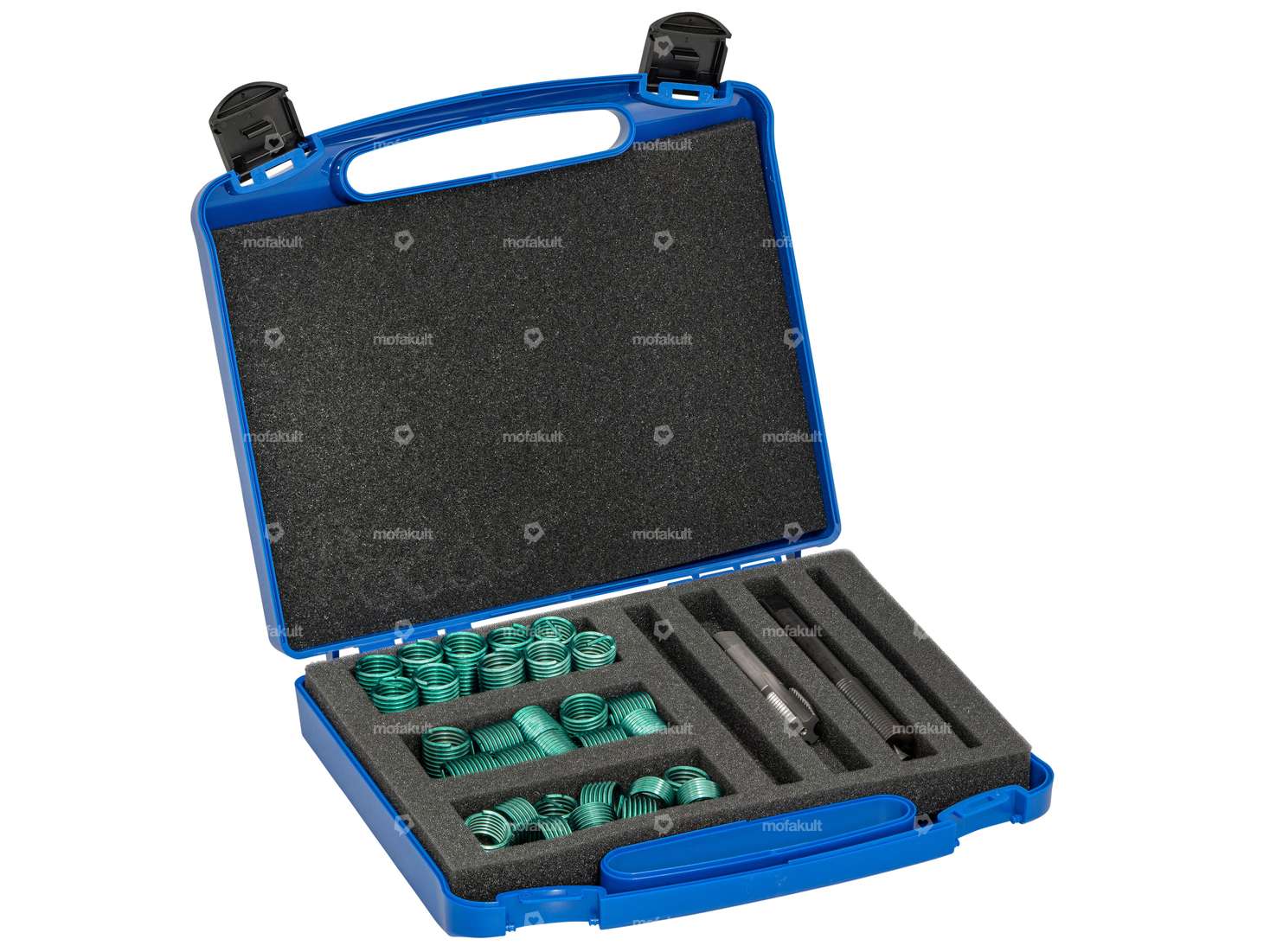

Scope of delivery

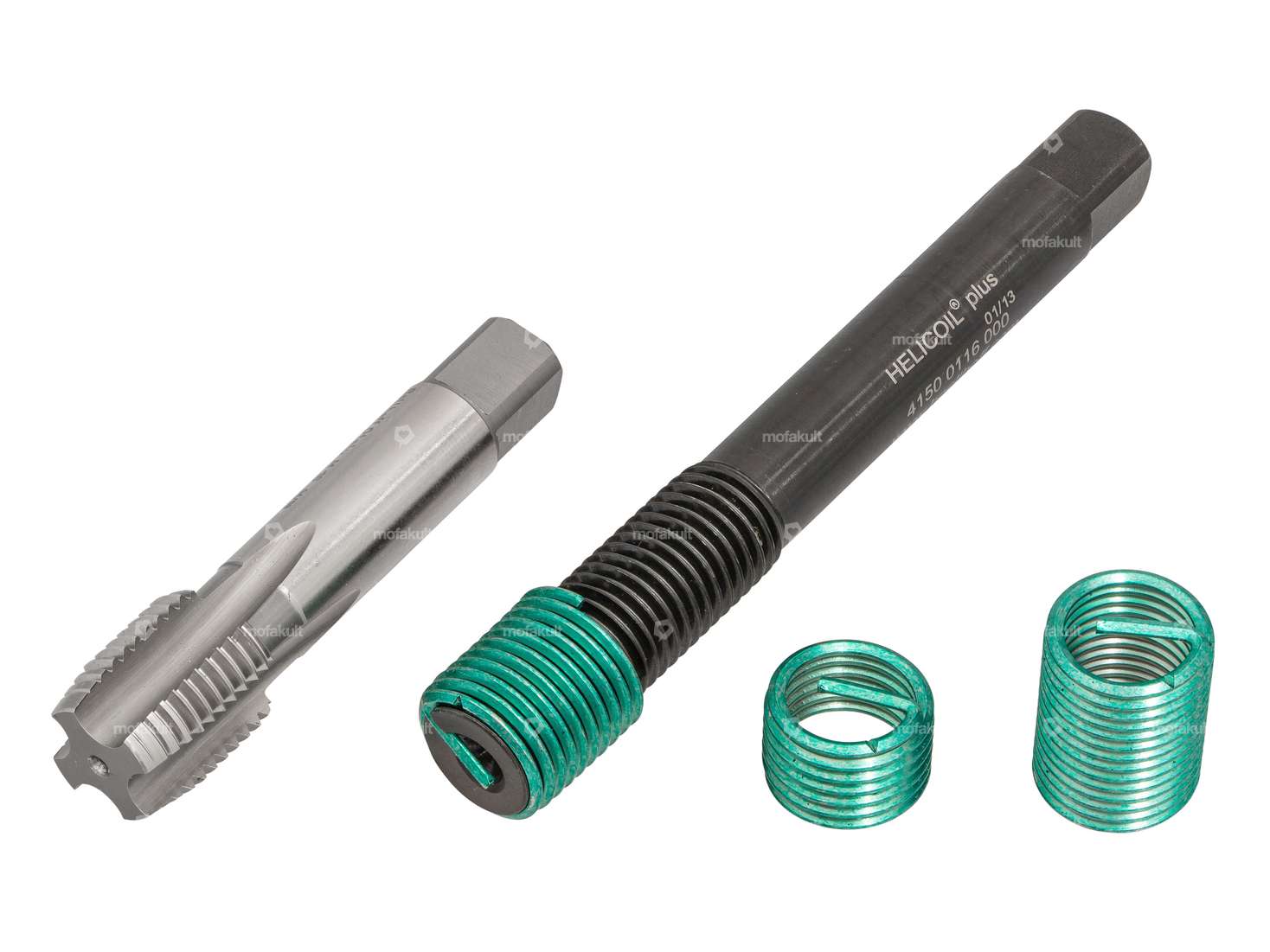

- 1 pc. Thread cutter
- 1 pc. Installation tool
- 10 pcs. HeliCoil thread insert (1D / 16 mm)
- 10 pcs. HeliCoil thread insert (1.5D / 24 mm)
- 10 pcs. HeliCoil threaded insert (2D / 32 mm)
- 1 pc. Plastic case
A detailed instruction manual is included.
Original HeliCoil product from the German manufacturer Böllhoff.
| Storage method | Plastic box |
| Manufacturer | HeliCoil |
| Material | Chrome steel (colloquially known as stainless steel) |
| Thread type | M16x2 (standard thread) |
| Dimension thread insert | 1D, 1.5D, 2D |
| Ø bore | 16.5 mm |
| Total length | 16 mm, 24 mm, 32 mm |
| Nominal diameter (thread) | 16 mm |
| Number of components | 32 pcs |
| Area of application | Workshop accessories |
Ratings
Accessories & related products
HeliCoil thread repair case M5 - M12 (professional tool)
Manufacturer: HeliCoil · Number of components: 300 pcs · Material: Chrome steel (colloquially known as stainless steel) · Thread type: M10x1.5 (standard thread) · Thread type: M12x1.75 (standard thread) · Thread type: M5x0.8 (standard thread) · Thread type: M6x1 (standard thread) · Thread type: M8x1.25 (standard thread) · Nominal diameter (thread): 5 mm · Nominal diameter (thread): 6 mm · Nominal diameter (thread): 8 mm · Nominal diameter (thread): 10 mm · Nominal diameter (thread): 12 mm · Dimension thread insert: 1D · Dimension thread insert: 1.5D · Dimension thread insert: 2D · Storage method: Suitcase · Storage box dimension [mm]: 420 x 345 x 120 mm · Area of application: Workshop accessories
EUR 402.70
HeliCoil plug thread repair set M14x1.25 (professional tool)
Storage method: Suitcase · Manufacturer: HeliCoil · Storage box dimension [mm]: 250 x 50 x 220 mm · Thread type: MF14x1.25 (fine pitch thread) · Material: Chrome steel (colloquially known as stainless steel) · Number of components: 30 pcs · Nominal diameter (thread): 14 mm · Dimension thread insert: 0.5D · Dimension thread insert: 1D · Dimension thread insert: 1.5D · Area of application: Workshop accessories
EUR 165.80
HeliCoil thread repair set M12x1.5 oil spigot hole (fine thread)
Manufacturer: HeliCoil · Material: Chrome steel (colloquially known as stainless steel) · Area of application: Workshop accessories · Thread type: MF12x1.5 (fine pitch thread) · Nominal diameter (thread): 12 mm · Dimension thread insert: 0.75D · Dimension thread insert: 1D · Dimension thread insert: 1.5D · Total length: 9 mm · Total length: 12 mm · Total length: 16 mm · Number of components: 35 pcs · Storage method: Plastic box
EUR 225.00

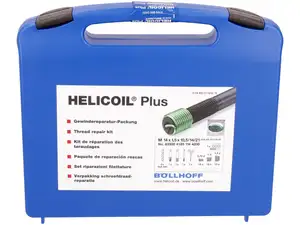

HeliCoil thread repair set M14x1.5 oil spigot hole (fine thread)
