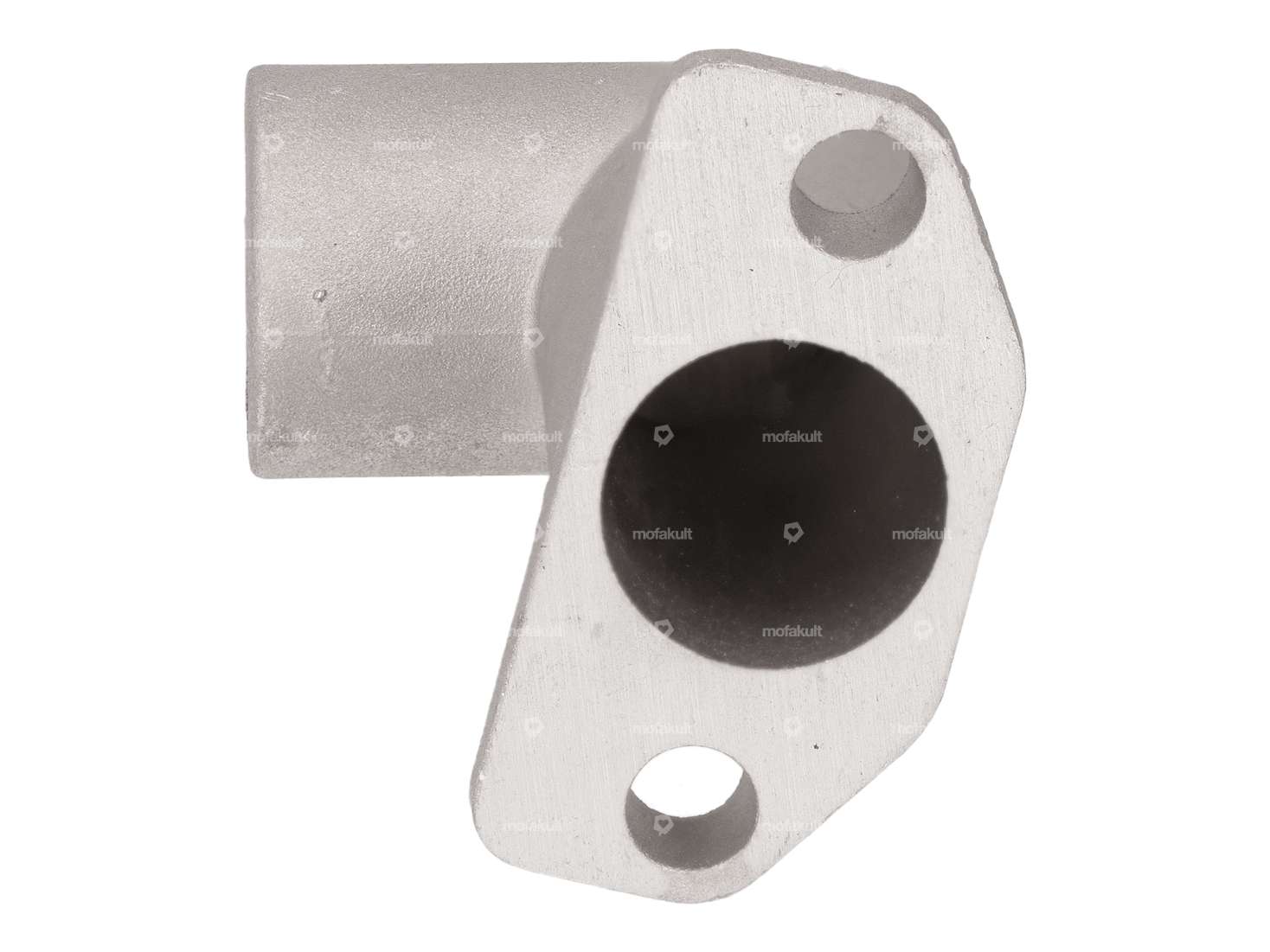

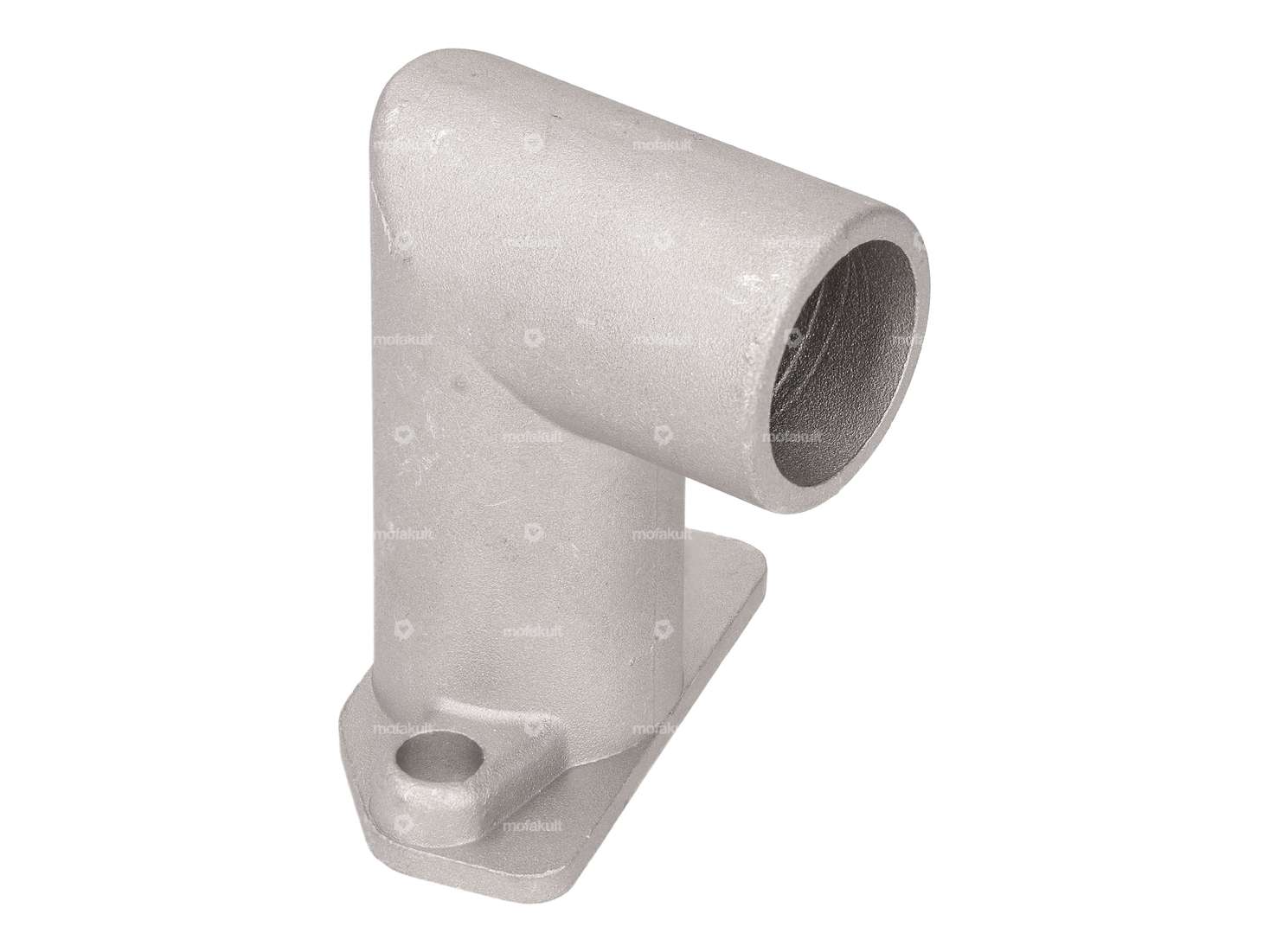

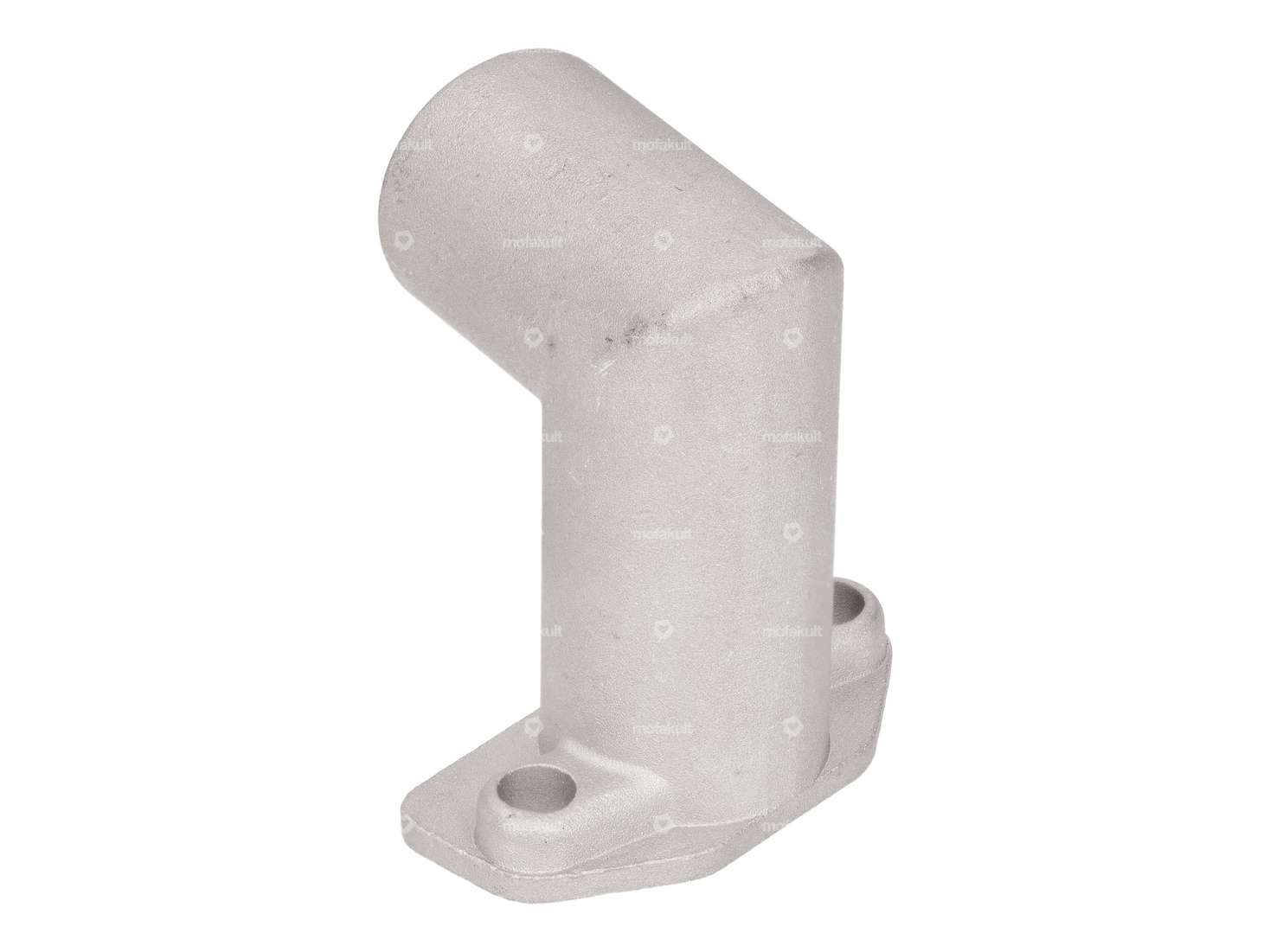

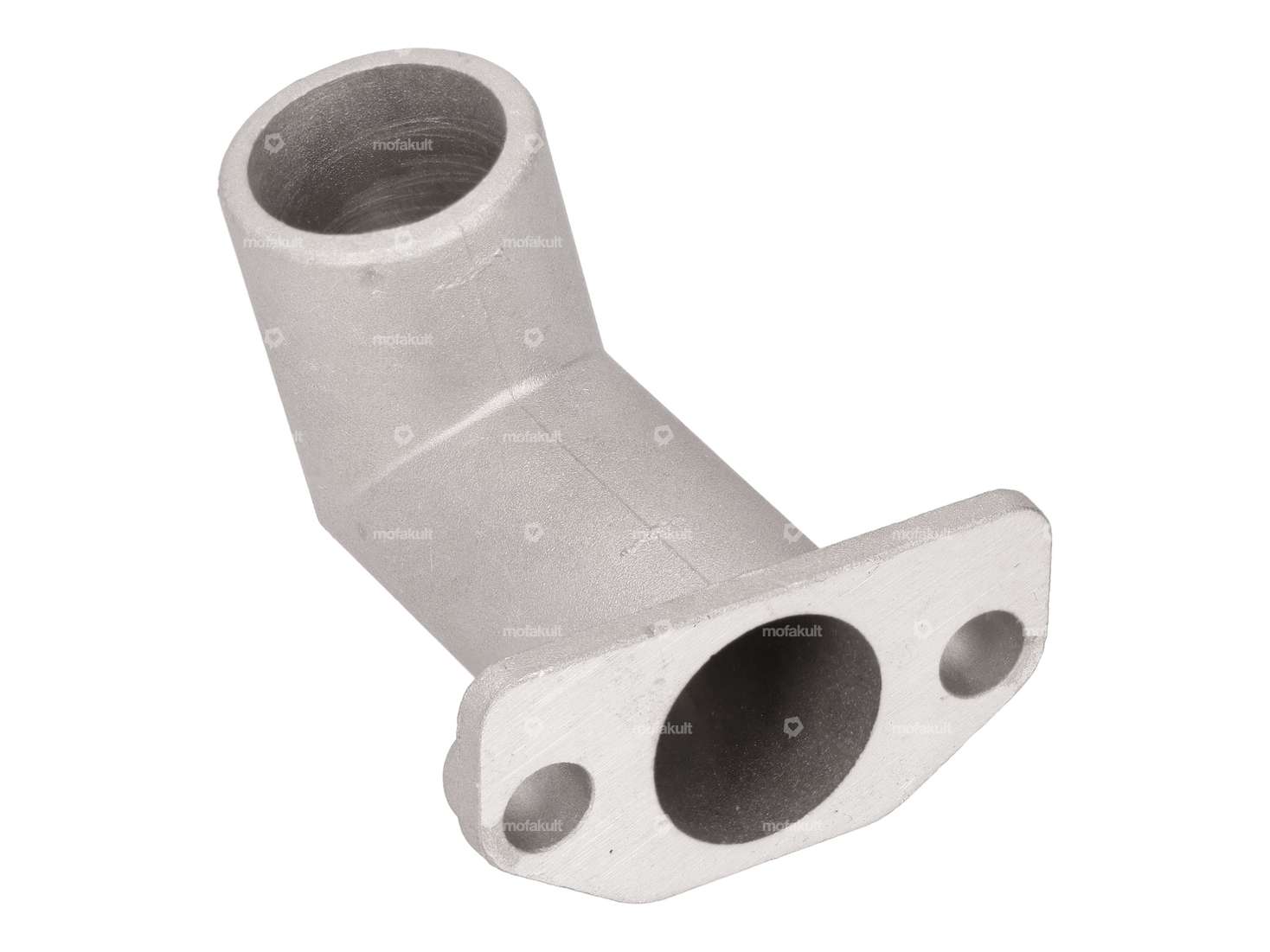

Intake manifold 19 mm | Puch E50

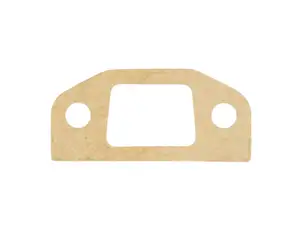

Airsal intake gasket 0.45 mm racing kit | Puch

Manufacturer: Airsal · Material: Sealing paper · Area of application: Standard · Place of use: Admission · Reinforced: No · Thickness: 0.4 mm · Ø screw holder: 6.7 mm · Hole spacing inlet: 38 mm

swiing® ingenious 15 mm carburetor set camouflaged | Puch E50

Nominal diameter: 15 mm · Manufacturer: swiing® ingenious parts · Camouflaged: Yes · Component group Carburetor: Carburetor complete · Area of application: Tuning · Carburetor type: SRE · Choke control: Hand choke · Nozzle thread: M3.5x0.6 (standard thread) · Mounting type: Plug connection clamped · Mounting type: Stud bolts & nuts · Nozzle size: 62 · Ø Inside entrance: 15 mm · Ø Output inside: 15 mm · Ø Air filter connection: 20 mm · Hole spacing inlet: 38 mm · Ø Internal connection: 20 mm · Ø fuel hose connection: 5 mm · Ø fuel hose connection: 6 mm · Clamping screw torque (max.): 4 N/m

Polini intake rubber Ø 28.5 / 25 mm (PHBG, Polini CP)

Ø inside: 28.5 mm · Ø outside: 38.5 mm · Color: black · Total length: 37.5 mm · Manufacturer: Polini · Material: Rubber · Ø inside 2: 25 mm · Ø Passage: 25 mm · Ø External connection: 37 mm · Ø Connection 2 external: 37 mm · Clamping diameter: 26.5 mm

swiing® ingenious intake manifold 17 mm SRF camouflaged | Puch E50

Manufacturer: swiing® ingenious parts · Material: Aluminum · Camouflaged: Yes · Area of application: Performance · Area of application: Racing · Area of application: Tuning · Ø inside: 17 mm · Ø External connection: 23 mm · Mounting type: Stud bolts & nuts · Number of fixing points: 2 pcs · Hole spacing inlet: 38 mm · Total length: 38 mm · Height flange center hole: 42 mm · Total height: 53.5 mm

swiing® ingenious 17 mm carburetor set camouflaged | Puch E50

Nominal diameter: 17 mm · Manufacturer: swiing® ingenious parts · Area of application: Racing · Area of application: Tuning · Component group Carburetor: Carburetor complete · Carburetor type: SRF · Choke control: Hand choke · Nozzle thread: M3.5x0.6 (standard thread) · Mounting type: Plug connection clamped · Nozzle size: 74 · Ø Air filter connection: 27.5 mm · Hole spacing inlet: 38 mm · Mixed oil connection: No · Nozzle block: 2.2 · Camouflaged: Yes · Clamping screw torque (max.): 4 N/m

GPO clutch trigger | Puch E50

Manufacturer: GPO · Material: Steel · Surface: blackened · Area of application: (Dis)assembly tool

swiing® revival Stud Bolt, Inlet/Outlet M6x30 (Grade 10.9)

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Diameter: 5.95 mm · Thread length: 12 mm · Total length: 30 mm · Thread type: M6x1 (standard thread) · Nominal diameter (thread): 6 mm · Strength class: 10.9

Dell'Orto 19 mm PHBG CS carburetor hand choke

Color: black · Nominal diameter: 19 mm · Manufacturer: Dell'Orto · Material: Aluminum · Component group Carburetor: Carburetor complete · Area of application: Racing · Area of application: Tuning · Width: 70 mm · Carburetor type: PHBG CS · Total length: 82 mm · Mounting type: Plug connection clamped · Ø without reducing sleeve: 26 mm · Nozzle size: 75 · Ø Inside entrance: 19 mm · Height: 124 mm · Ø Output inside: 19 mm · Ø Air filter connection: 32 mm · Ø Air filter connection: 60 mm · Air filter connection thread: MF32x1.25 (fine pitch thread) · Ø Internal connection: 24 mm · Ø fuel hose connection: 5.4 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: Yes · Vacuum connection: Yes · Choke control: Hand choke · Choke nozzle size: 60 · Nozzle thread: M5x0.8 (standard thread) · Camouflaged: No · Size of secondary nozzle: 45

Gas cable Ø 1.25 mm x 220 cm (cylindrical nipple) Bing

Ø nipple: 3 mm · Manufacturer: Made in Germany · Material: Steel · Surface: galvanized (blue) · Number of components: 1 pcs · Ø Stranded wire: 1.25 mm · Cable length: 2200 mm · Nipple shape: Cylinder · Area of application: Standard · Nipple length: 5 mm

GPO 45 mm cylinder head tuning | Puch Maxi S, N / X30 NS, NL, N-2AH

Total length: 135 mm · Manufacturer: GPO · Material: Aluminum · Camouflaged: Yes · Surface: sandblasted · Area of application: Tuning · Ø cylinder: 45 mm · Number of fixing points: 4 pcs · Candle thread: short · Decompressor: No · Width: 125 mm · Height: 55 mm · Hole pattern [mm]: 44 x 44

Motorex Automatic Motor Oil (ATF) 450 ml

Temperature resistance (min.): -45 - 200 °C · Manufacturer: Motorex · Contents: 450 ml · Gearbox type: Automatic machine · Area of application: Gearbox lubrication with clutch · Pony OEM number: A2080 · Sachs OEM no.: 0263 014 002

Airsal intake gasket 0.45 mm racing kit | Puch

Manufacturer: Airsal · Material: Sealing paper · Area of application: Standard · Place of use: Admission · Reinforced: No · Thickness: 0.4 mm · Ø screw holder: 6.7 mm · Hole spacing inlet: 38 mm

swiing® ingenious crankshaft "High End" with mounted bearings | Puch E50

Manufacturer: swiing® ingenious parts · Material: Aluminum · Material: Steel · Cheek type: Full cheeks · Weight: 968 g · Crankshaft stroke: 43 mm · Thread type: MF10x1 (fine pitch thread) · Connecting rod length center-center: 90 mm · Thread length: 11 mm · Thread length: 15 mm · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Ø Connecting rod eye: 15 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Area of application: High End · Area of application: Racing · Area of application: Tuning · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Number of gears: 1 pcs
