For: Puch

30016

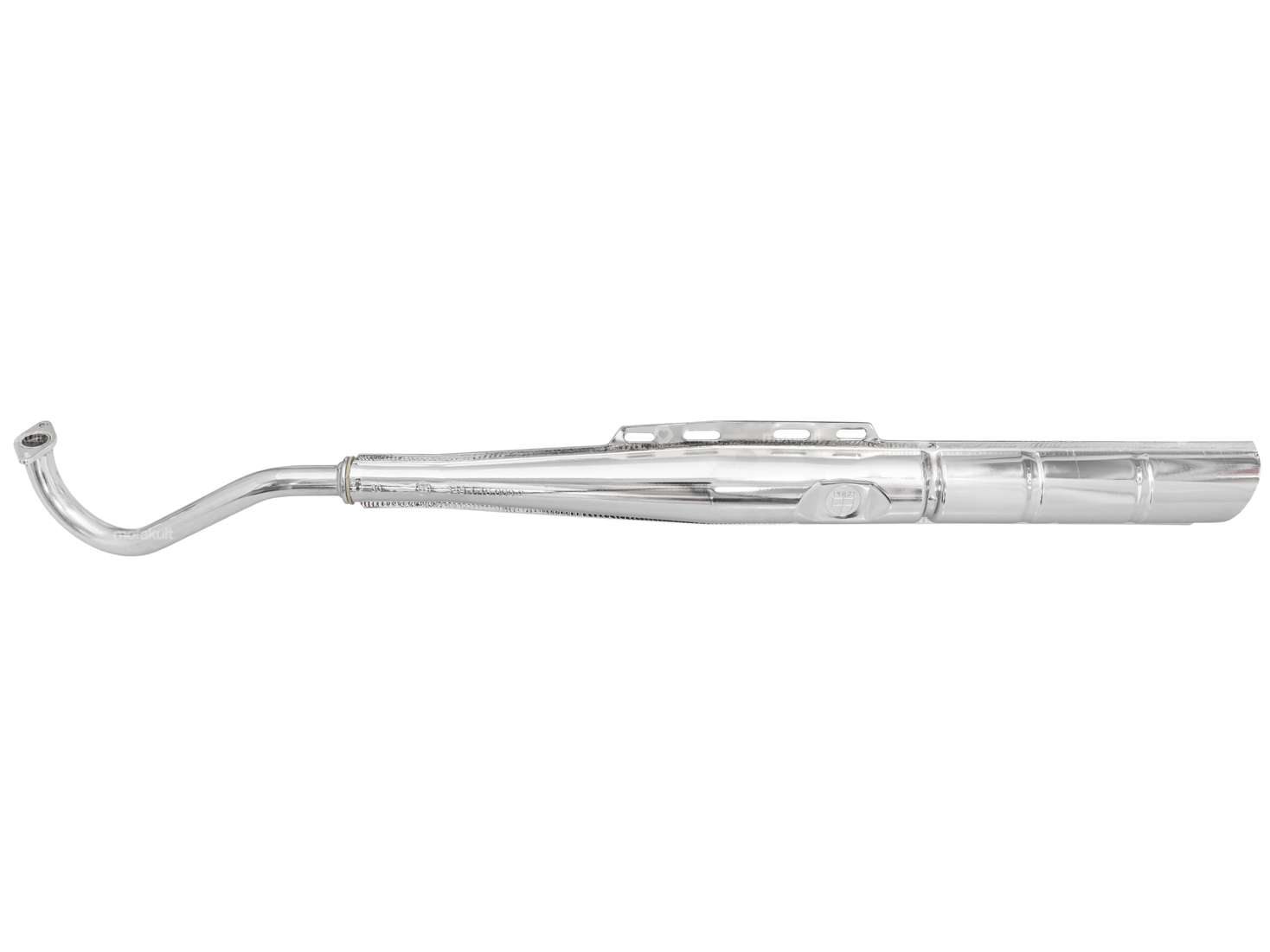

Jamarcol exhaust 22 mm 2-piece replica (with number & logo) | Puch

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 119.30

Incl. 21% VAT.

Description

22 mm reproduction exhaust suitable for Puch Maxi S & N, Puch X30 Sport NS / NL and Supermaxi LG1 / LG2 mopeds / mopeds (if Puch Maxi cylinder is mounted).

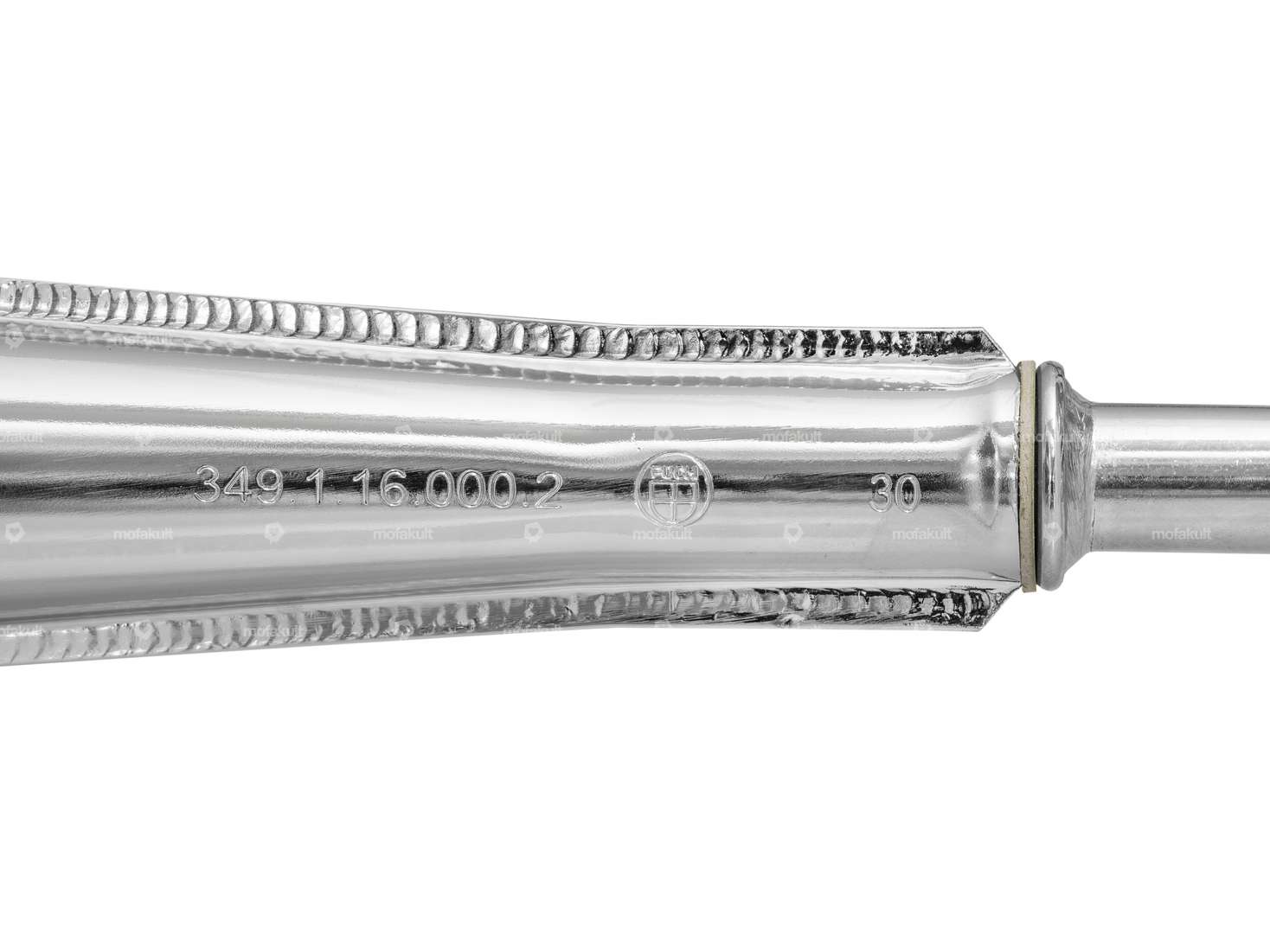

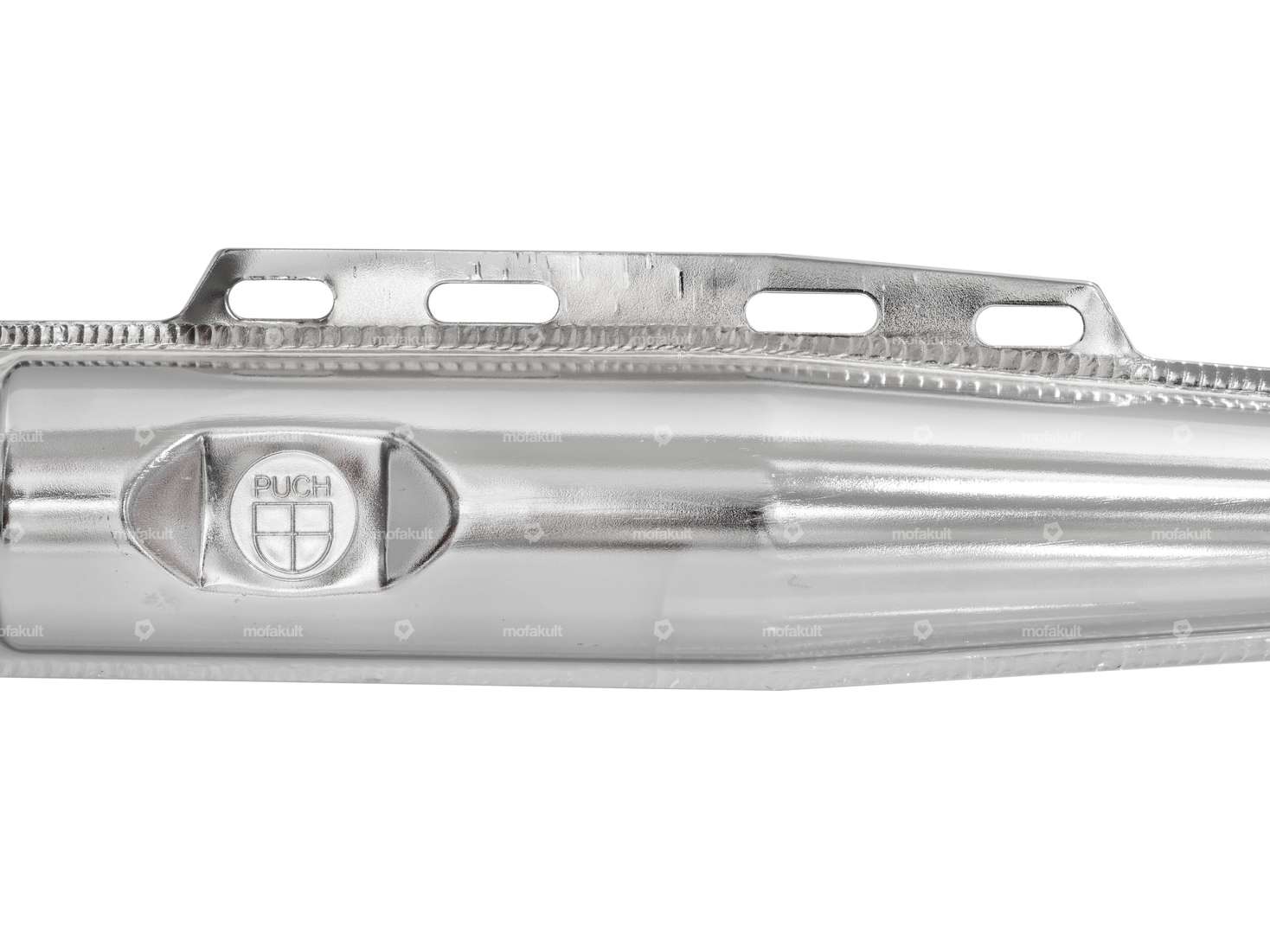

The exhaust is a 2-piece, bolted, with corresponding Puch number and stamped logo.

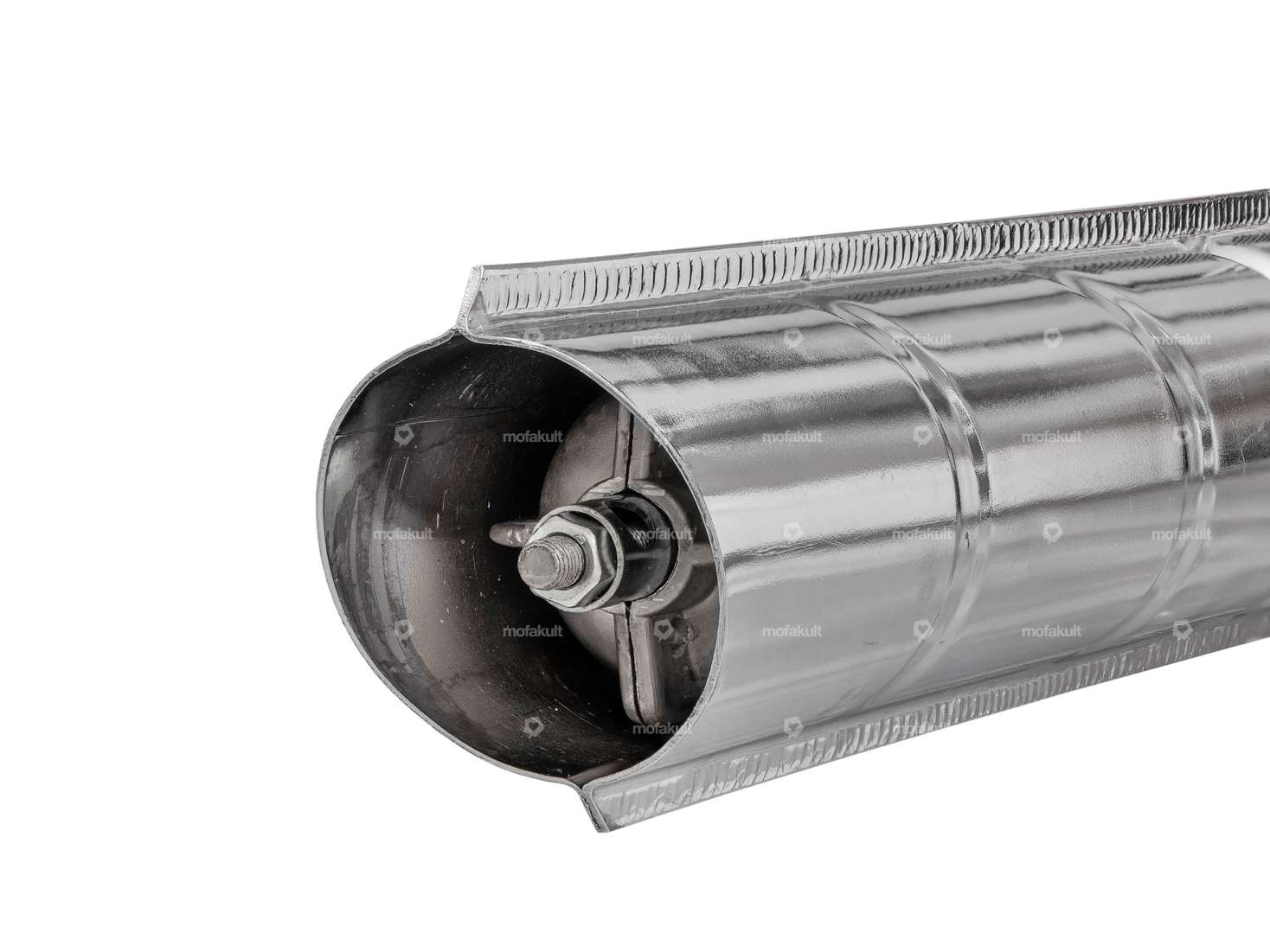

The M7 bolt at the end of the flame tube must be locked with an additional nut, otherwise the nut may loosen and the muffler insert may fall out.
We also recommend replacing the mounted gasket between the flame tube and the muffler. You can find a high-quality replacement product in the accessories section.

Attention: The sound of the replica exhausts can be slightly louder than the originals. This can be remedied by wrapping insulation wool around the muffler. You can find this among the accessories.

Original Puch spare part number: 349.1.16.000.2

Branded product from the Portuguese manufacturer Jamarcol.

Surfacechrome-plated
ManufacturerJamarcol
Total length920 mm
MaterialSteel
ColorChrome
Mounting typeWelded lug, Stud bolts & nuts
Ø outside59 mm
Ø Flame tube outside22 mm
Exhaust typeFlute
Number of fixing points4 pcs
Flame tube attachmentFlange
Puch

E50
