For: Zündapp Belmondo · Zündapp

16151

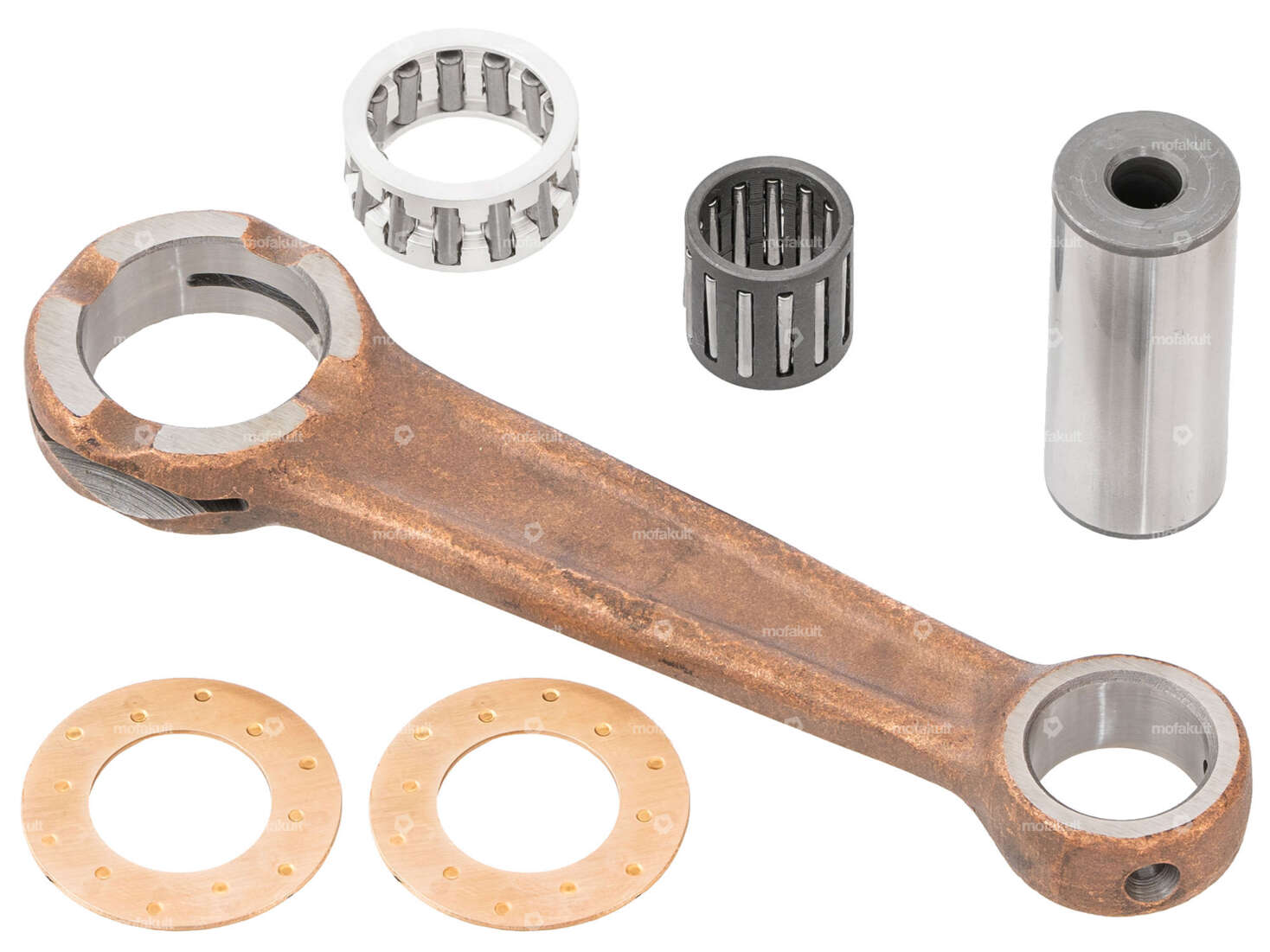

Jasil connecting rod set | Zündapp

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 65.20

Incl. 21% VAT.

Description

Complete connecting rod suitable for crankshafts of various Zündapp engines.
Some dimensions differ from the original Zündapp Belmondo (Type 247) connecting rod.

  • Dimension connecting rod bolt 1: Ø16 x 37.85 mm
  • Connecting rod length (center - center): 91 mm
  • Total connecting rod length: 118.2 mm
  • Thickness: 10 mm
  • Ø outside lower connecting rod eye: 31 mm
  • Ø outside upper connecting rod eye: 23 mm
  • Lower needle roller bearing (silver ball): Ø21/16 x 9.75 mm
  • Upper needle bearing: Ø15/12 x 12.7 mm
  • Ø für piston pin: 12 mm

The two brass spacers are included.

Branded product from the Portuguese manufacturer Jasil under the Top Racing brand.

Total length118.2 mm
ManufacturerJasil
MaterialSteel
Area of applicationStandard, Tuning
Surfacecopper-coated
Ø piston pin (B)12 mm
Connecting rod length center-center91 mm
Ø Connecting rod bolt16 mm
Ø lower connecting rod eye outside31 mm
Ø upper connecting rod eye outside23 mm
Ø lower bearing inside21 mm
Ø inside upper bearing15 mm
Dimension lower bearing16/21 x 9.75 mm
Thickness10 mm
Dimension upper bearing12/15 x 12.7 mm
Connecting rod pin length37.85 mm
Zündapp Belmondo
Zündapp
