Hot

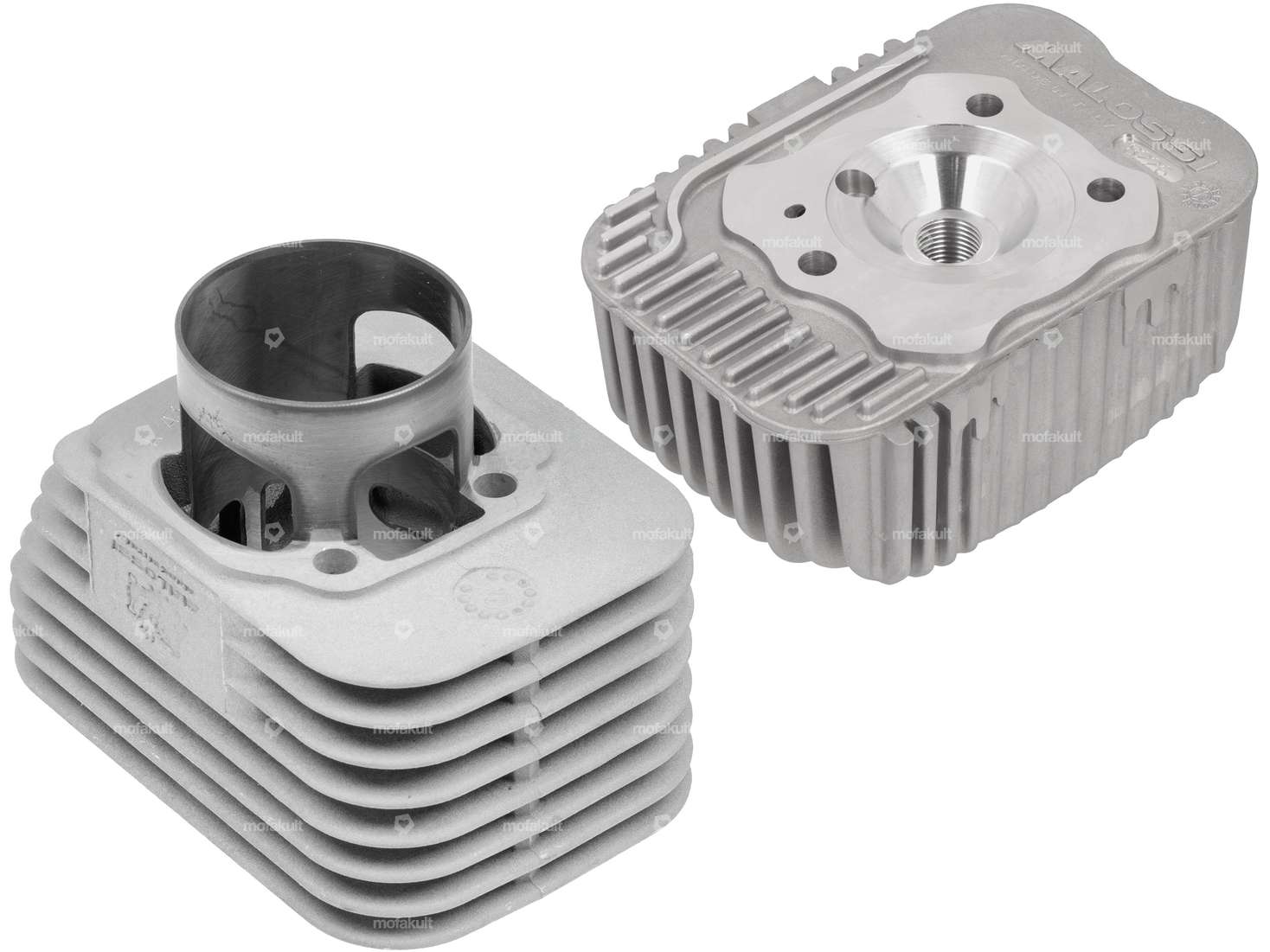

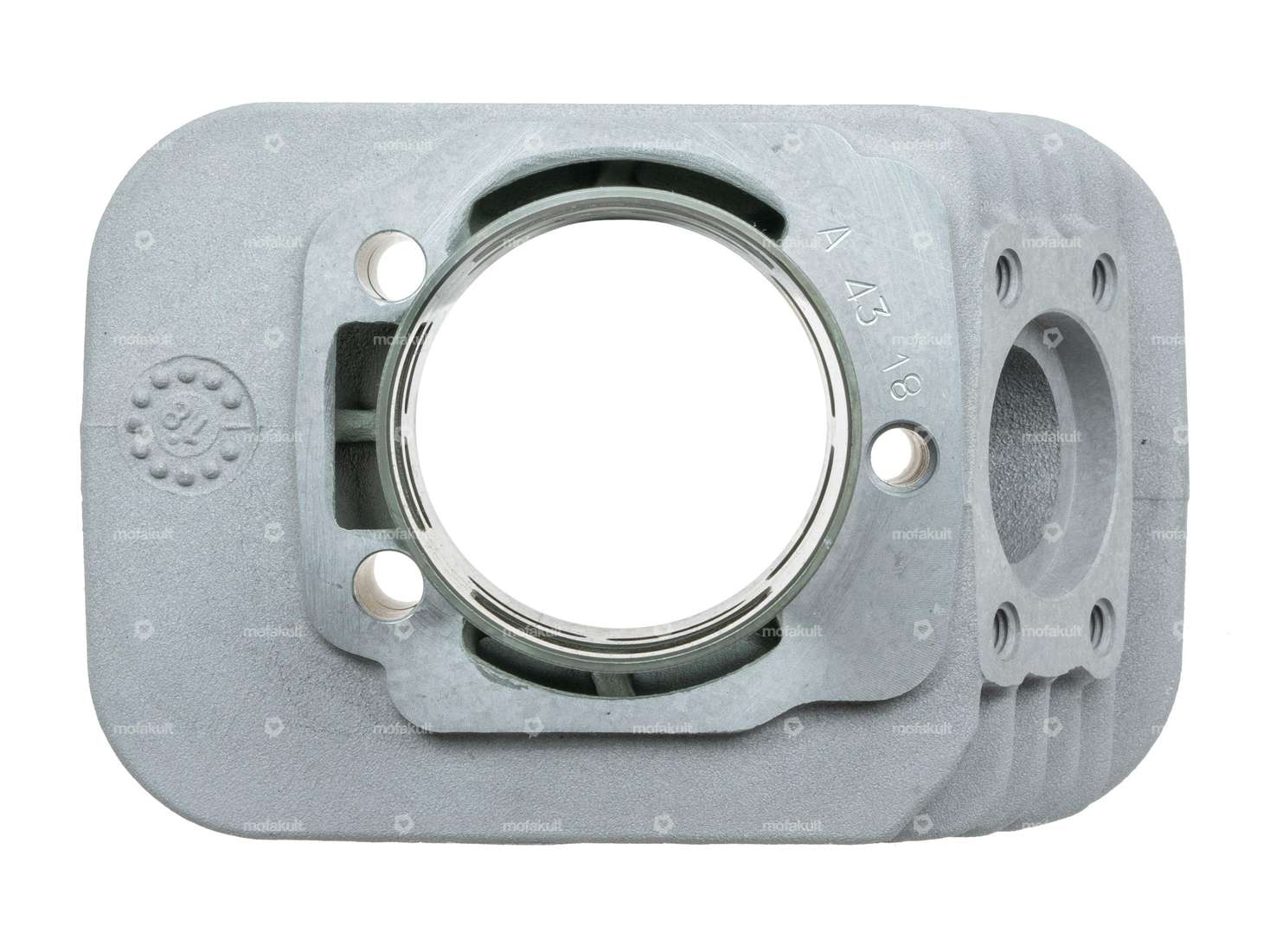

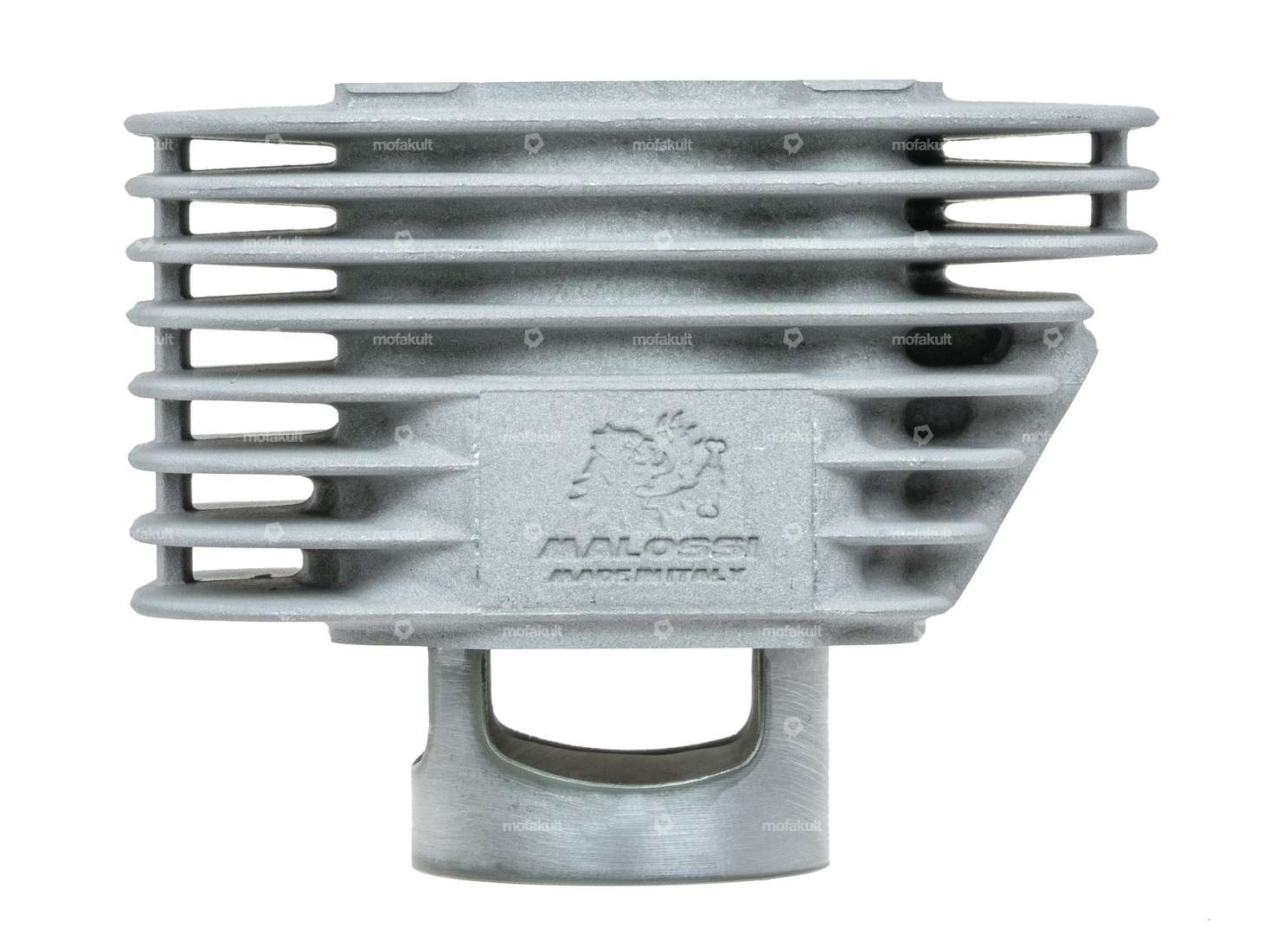

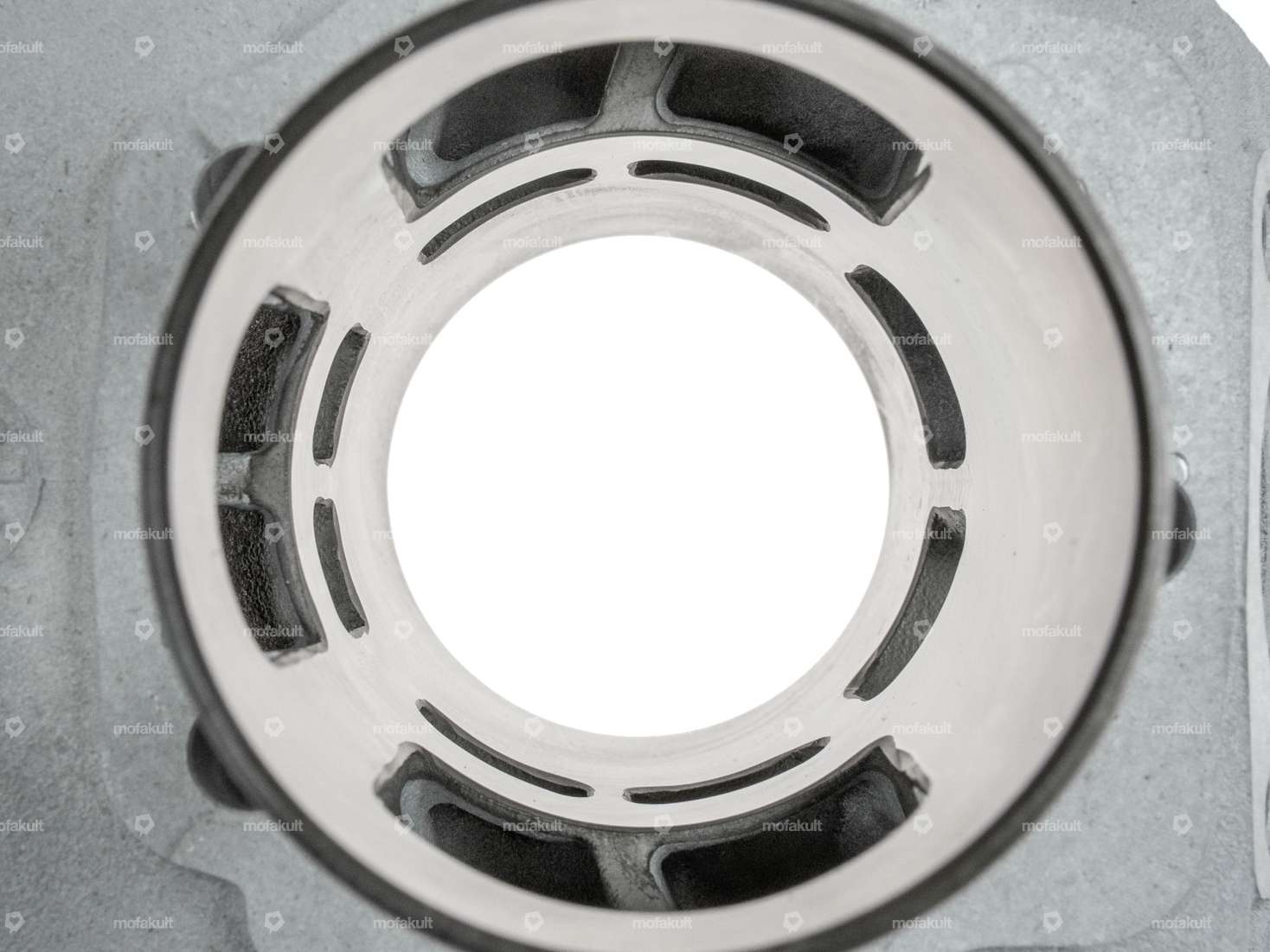

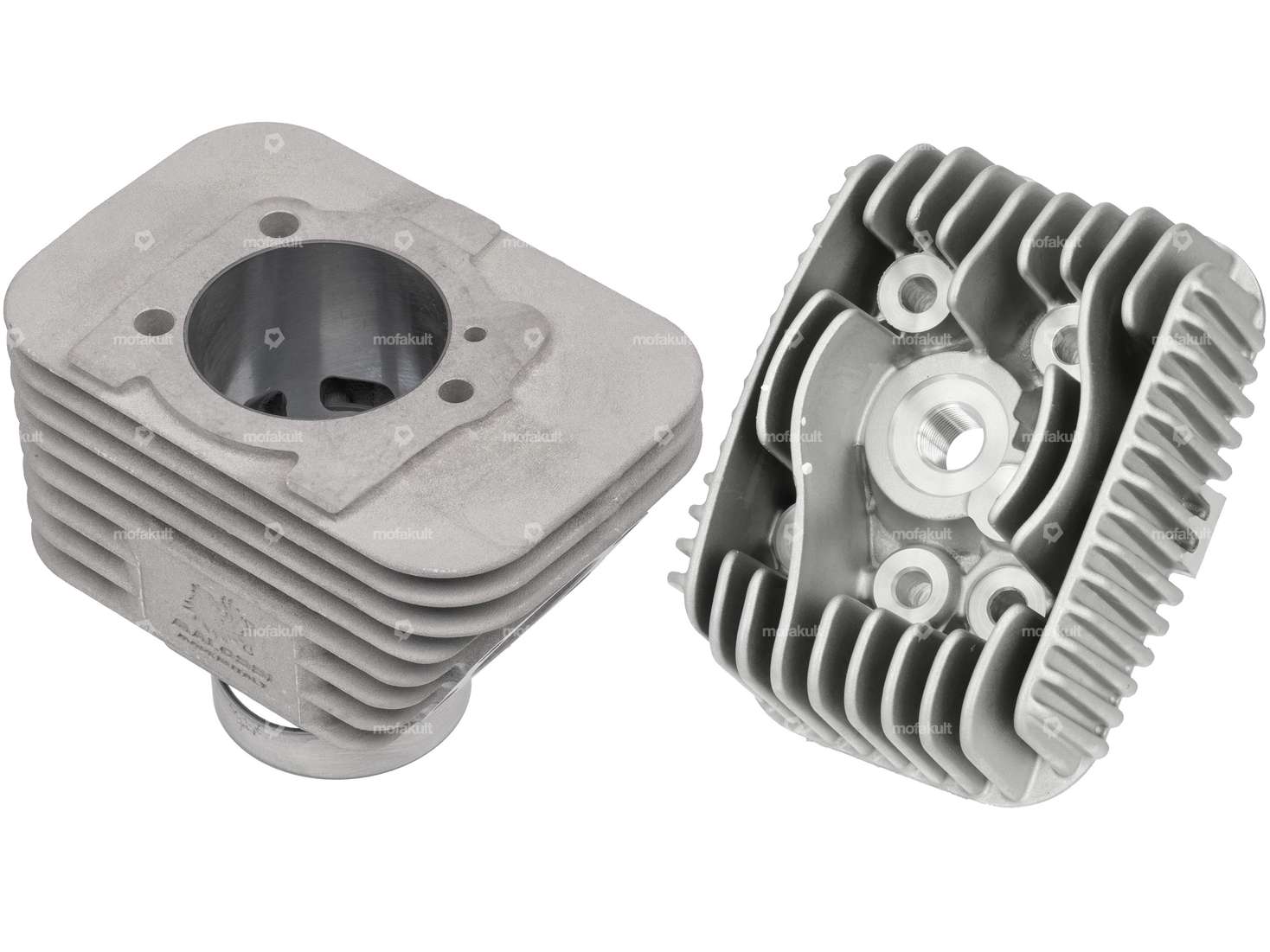

The new Malossi aluminum cylinder BIG D.E.P.S, which is supplied with the matching cylinder head, is the must-have for your Piaggio Ciao!
The 47 mm racing cylinder from Malossi with the specially developed double exhaust port system is probably the most powerful cylinder for Piaggio mopeds.
This cylinder can only be fitted to one of the two Malossi engine cases: Art. 18968 / 18967.
The new model is equipped with, among other things, adapted and larger exhaust ports and an open boost port.
The exhaust flange is no longer screwed on, but securely bolted on using a flange plate and four bolts.

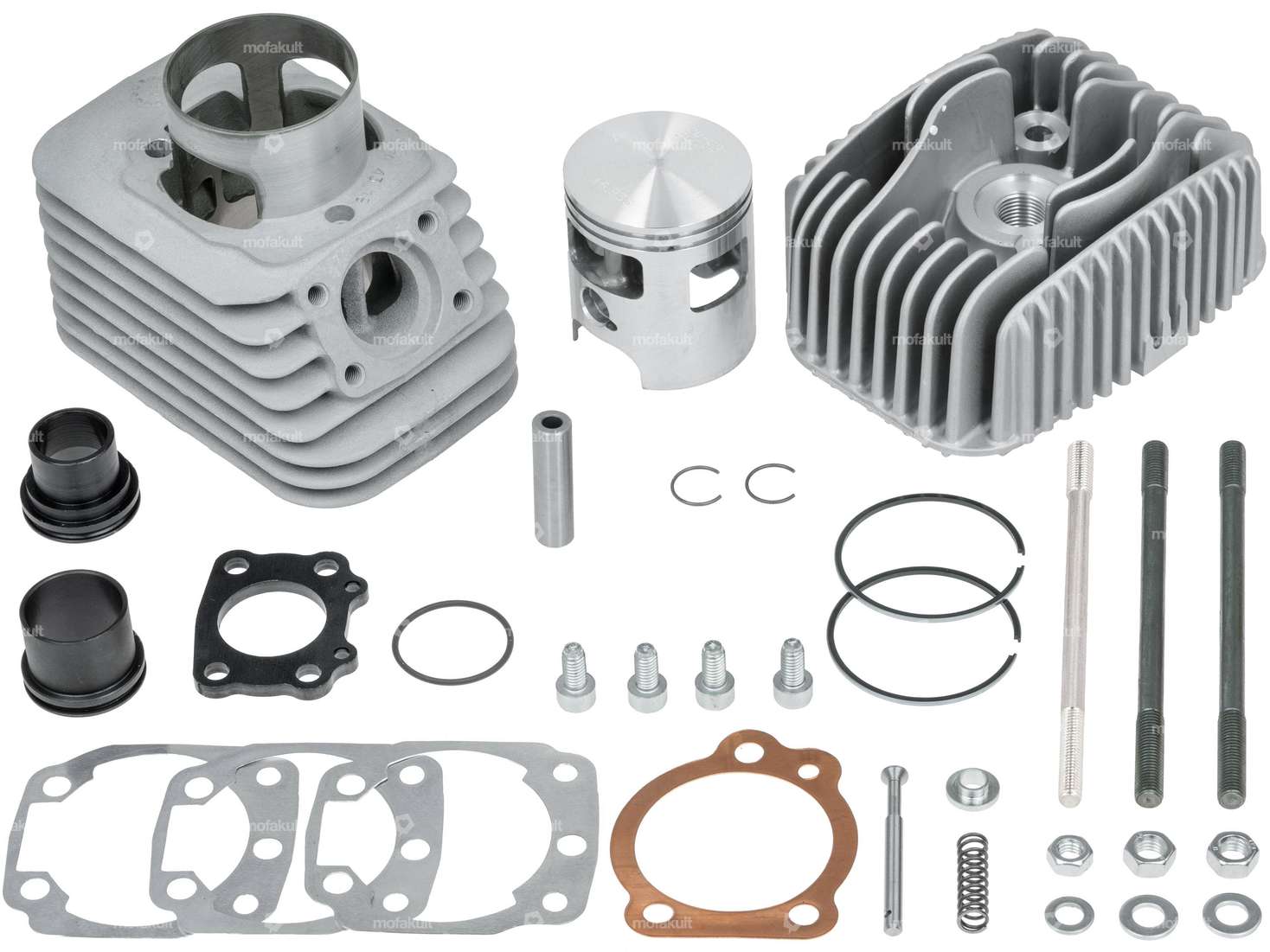

All parts shown are included in the scope of delivery.
The piston pin has a diameter of 10 mm.
Ø Exhaust connection: 22 & 27 mm
Quality product from the Italian manufacturer Malossi.
| Nominal diameter | 47 mm |
| Manufacturer | Malossi |
| Camouflaged | No |
| Surface | sandblasted |
| Displacement | 75 ccm |
| Material | Aluminum |
| Crankshaft stroke | 43 mm |
| Ø cylinder neck | 49.9 mm |
| Ø Outlet outside | 22 mm, 27 mm |
| Ø outlet inside | 18 mm, 24 mm |
| Ø piston pin (B) | 10 mm |
| Number of fixing points | 3 pcs |
| Outlet type | clamped, slanted |
| Area of application | Tuning |
| Hole spacing outlet | 38.5 mm, 23 mm |
| Thread outlet | M6x1 (standard thread) |
| Hole pattern [mm] | 55 x 34 |
| Decompressor | Yes |
| Piaggio | Ciao - P, SC, PX, C24 |
