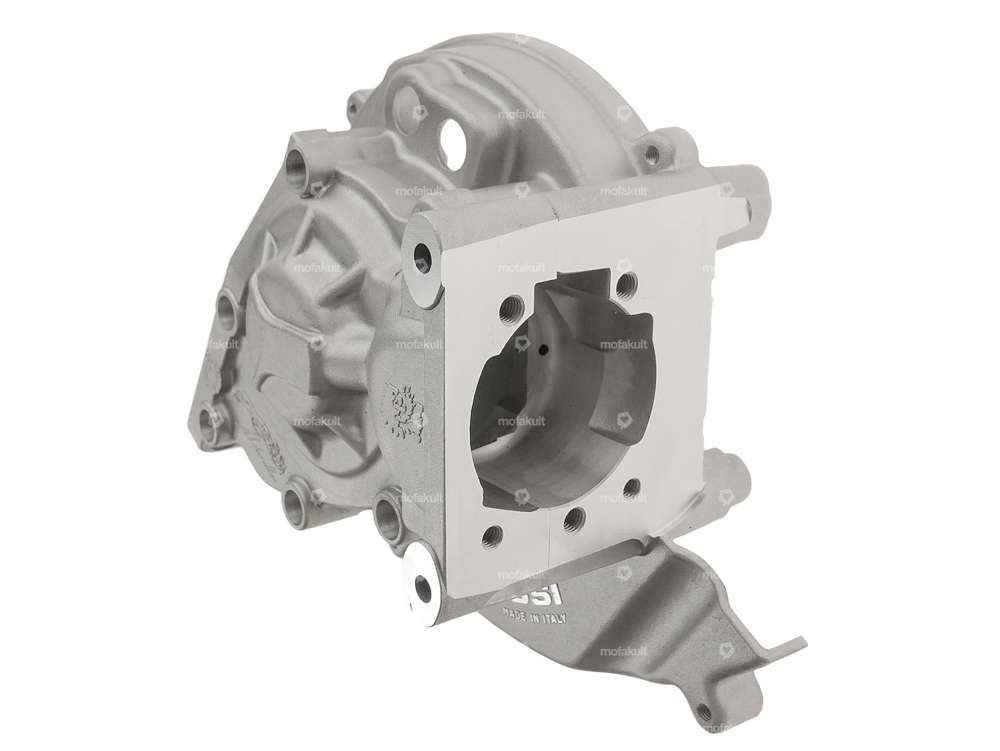

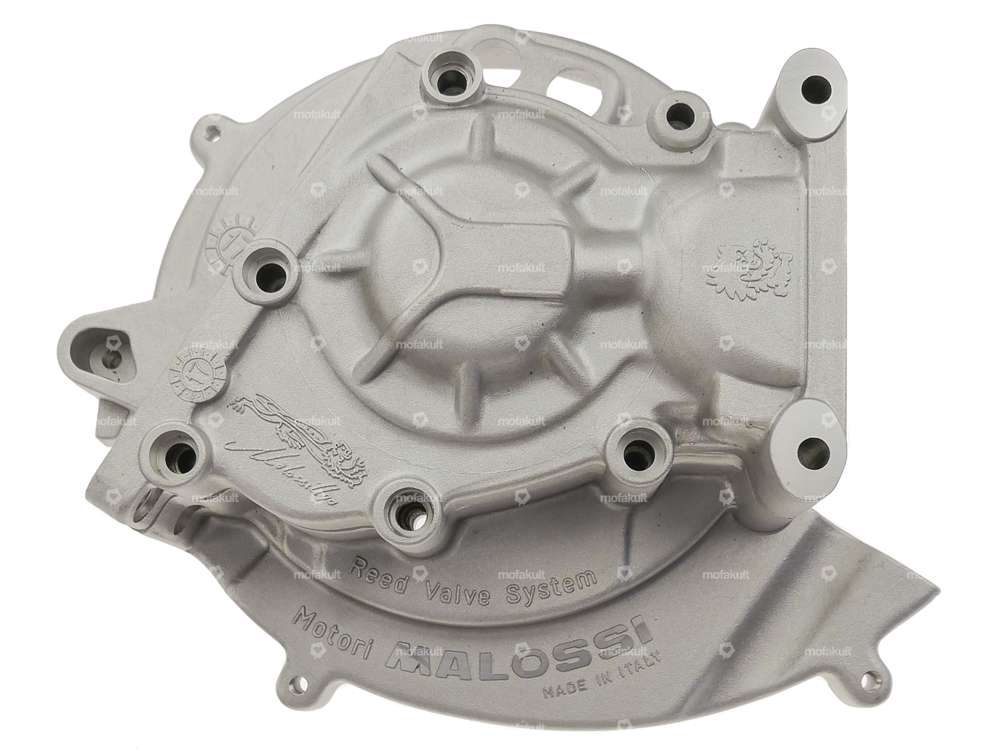

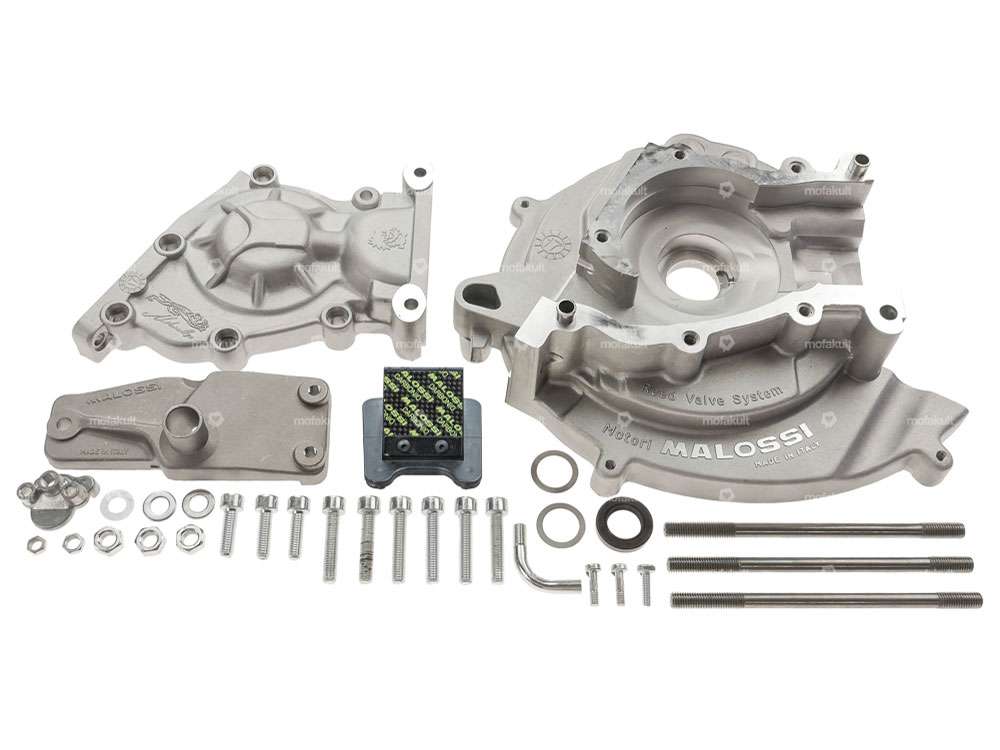

Revised 2018 version of the Malossi racing housing for Piaggio Ciao / Si / Boss / Boxer / Bravo / Grillo / Superbravo mopeds / mopeds.
With this complete revision of the housing, the Malossi Zündung finally fits without tedious grinding or milling.
The high-quality aluminium housing testifies to perfect workmanship and resistance.
The optimized channels ensure an excellent increase in performance, especially in conjunction with Malossi cylinder kits. However, other cylinders up to 47 mm can also be installed.
With two-valve diaphragm and intake manifold, suitable for the 13/13 Dell'Orto carburetor.
Note: This housing is designed for electronic ignitions. Original or reproduction shafts for standard housings fit into the MP-One, but it is recommended to use a Malossi MHR full cheek crankshaft.
Intake manifolds to fit larger carburetors as well as other matching parts for the housing can be found in the accessories section.
Quality product from the Italian manufacturer Malossi.
| Ø inside | 24 mm |
| Width | 104 mm |
| Ø outside | 140 mm |
| Height | 174 mm |
| Manufacturer | Malossi |
| Material | Aluminum |
| Surface | sandblasted |
| Color | silver |
| Ignition type | Electronic |
| Total length | 220 mm |
| Piaggio | Ciao - P , SC , PX , C24 Si Bravo / Super Bravo Boxer Grillo |
Accessories & related products

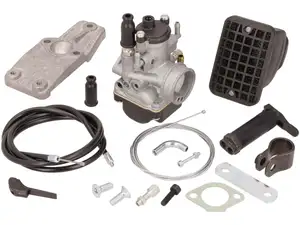

Malossi carburetor set Dellorto 19/19 racing case | Piaggio Ciao, SI, Bravo, Boxer
