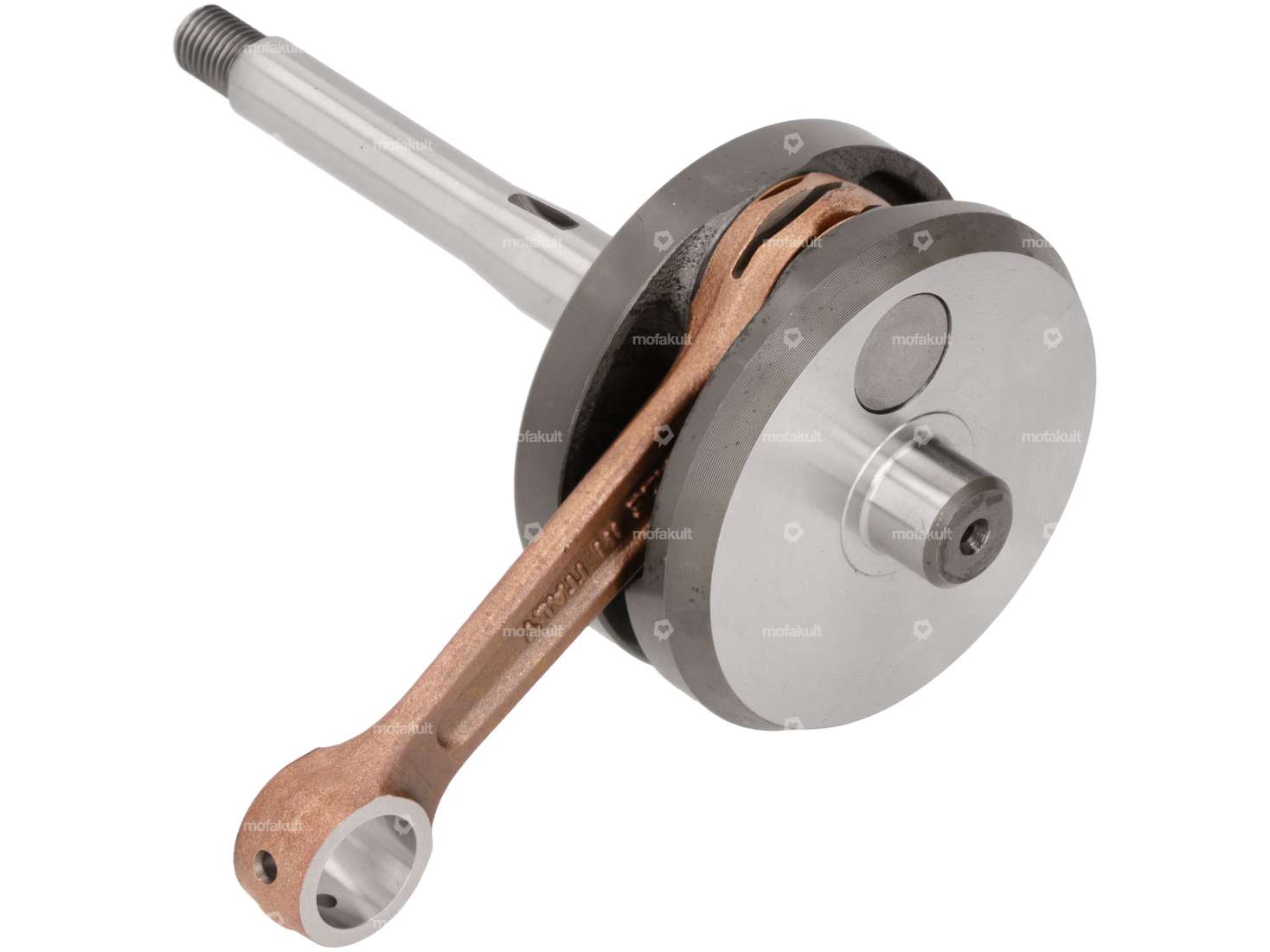

Racing crankshaft suitable for your Piaggio Ciao, SI, Bravo and Boxer moped / moped.
The finely balanced tuning crankshaft has been tested up to 16,000 rpm and fits all cylinders with 12 mm piston pins. The quality of the workmanship and the steel used is exceptionally high, which ensures impressive durability.
Note: This crankshaft can only be used in conjunction with a Malossi engine case.
No shim needs to be inserted between the racing crankshaft and its main bearings for installation.
Quality product from the Italian manufacturer Malossi.

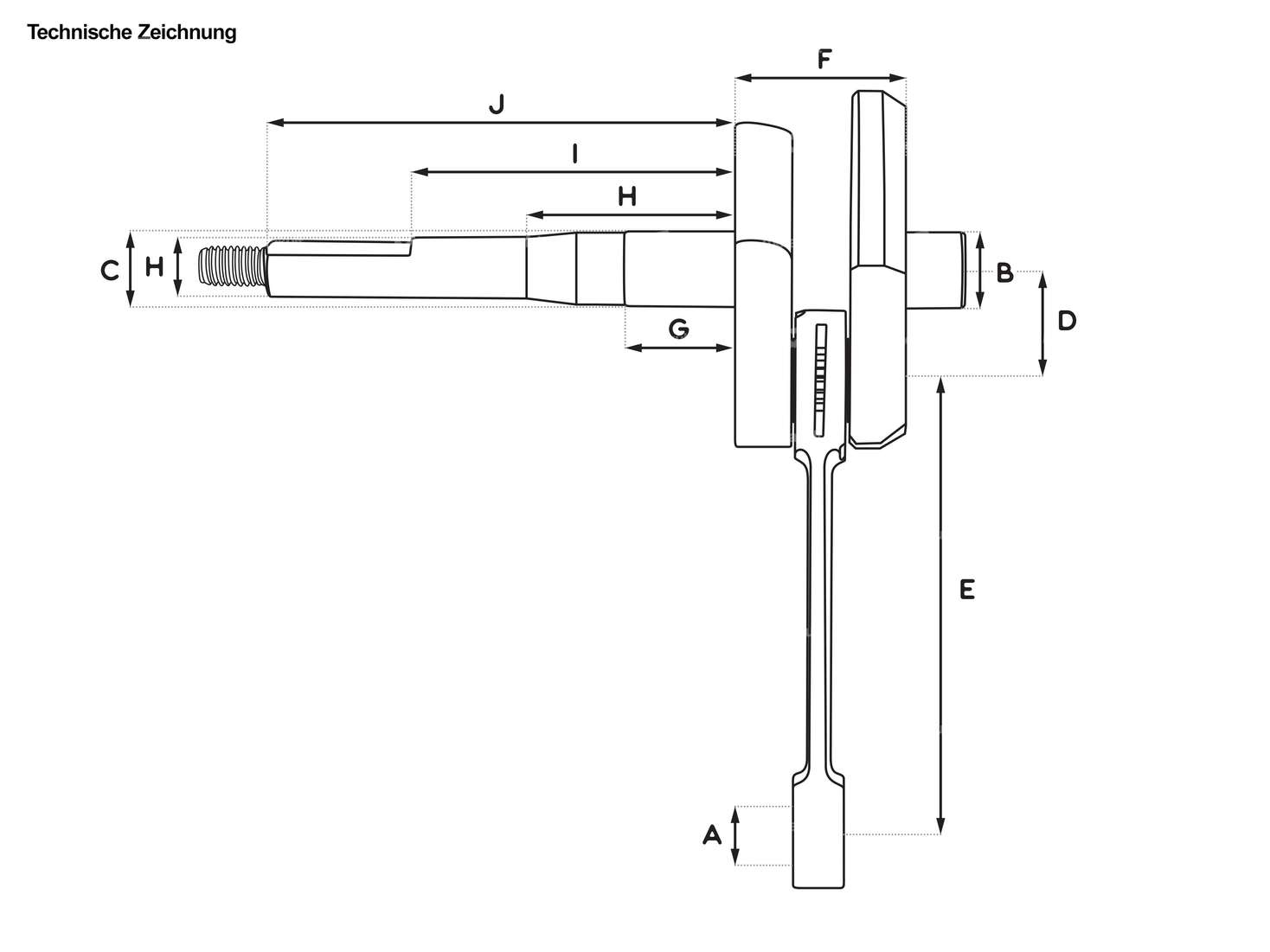

| Manufacturer | Malossi |
| Area of application | Racing |
| Material | Steel |
| Cheek type | Full cheeks |
| Thread type | M10x1.5 (standard thread) |
| Crankshaft stroke | 43 mm |
| Ø coupling pin / vario pin | 12 mm |
| Connecting rod length center-center | 87 mm |
| Total length crankpin ignition side | 91 mm, 106 mm |
| Ø crank webs | 69.95 mm |
| Thread length | 15 mm |
| Ø Connecting rod eye | 15 mm |
| Bearing seat right | 15 mm |
| Weight | 813 g |
| Ø piston pin (B) | 12 mm |
| Ø Bearing seat (ignition side) | 15 mm |
| Dimension needle bearing | 12 / 15 x 14.7 mm (axe 12) |
| Wide crank webs | 32.4 mm |
| Length 1st paragraph | 21.3 mm |
| Length 2nd paragraph | 43.7 mm |
| Length 3rd paragraph | 63 mm |
| Ø 1st step (on the coupling side) | 15 mm |
| Ø 2nd shoulder (on the clutch side) | 14.4 mm |
| Ø 3rd step (on the clutch side) | 12 mm |
| Number of gears | 1 pcs |
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo |
Accessories & related products
swiing® ingenious needle roller bearing 12/15/16.2 "Racing" silver cage
Bearing cage: Silver cage · Manufacturer: swiing® ingenious parts · Bearing type: Needle roller and cage assembly · Width: 16.2 mm · Ø inside: 12 mm · Ø outside: 15 mm · Dimension needle bearing: 12/15 x 16.2 · Tomos OEM number: 035548
EUR 16.40
swiing® ingenious puller flywheel | Piaggio Ciao, SI, Bravo, Boxer
Width across flats (trigger): 10 mm · Width across flats (trigger): 17 mm · Manufacturer: swiing® ingenious parts · Area of application: (Dis)assembly tool · Material: Steel · Thread type: MF12x1.5 (fine pitch thread) · Thread type: MF17x1 (fine pitch thread) · Surface: blackened · Surface: galvanized (blue) · Number of components: 2 pcs · Diameter: 12 mm · Diameter: 24 mm · Total length: 100 mm · Width across flats Screw: 19 mm
EUR 21.20
Moped fans also bought
Dell'Orto 19 mm PHBG CS carburetor hand choke
Nominal diameter: 19 mm · Manufacturer: Dell'Orto · Material: Aluminum · Area of application: Racing · Area of application: Tuning · Component group Carburetor: Carburetor complete · Carburetor type: PHBG CS · Ø fuel hose connection: 5.4 mm · Ø fuel hose connection: 6 mm · Ø without reducing sleeve: 26 mm · Ø Inside entrance: 19 mm · Ø Internal connection: 24 mm · Ø Output inside: 19 mm · Color: black · Ø Air filter connection: 32 mm · Ø Air filter connection: 60 mm · Width: 70 mm · Air filter connection thread: MF32x1.25 (fine pitch thread) · Height: 124 mm · Total length: 82 mm · Mounting type: Plug connection clamped · Mixed oil connection: Yes · Vacuum connection: Yes · Choke control: Hand choke · Choke nozzle size: 60 · Nozzle thread: M5x0.8 (standard thread) · Camouflaged: No · Nozzle size: 75 · Size of secondary nozzle: 45
EUR 141.70
Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom
Possible lever positions: open / closed / reserve · Thread type: MF12x1 (fine pitch thread) · Material lever: Metal · Filter type: Plastic net · Mounting type: Union nut · Ø fuel hose connection: 6 mm · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Reserve level: 70 mm
EUR 11.70
Hot
Malossi 47 mm cylinder kit BIG DEPS incl. head 12 mm KoBo | Piaggio Ciao, Bravo, Boxer
Manufacturer: Malossi · Material: Aluminum · Surface: sandblasted · Area of application: Tuning · Displacement: 75 ccm · Nominal diameter: 47 mm · Crankshaft stroke: 43 mm · Ø cylinder neck: 49.9 mm · Ø Outlet outside: 22 mm · Ø Outlet outside: 27 mm · Ø outlet inside: 18 mm · Ø outlet inside: 24 mm · Number of fixing points: 3 pcs · Ø piston pin (B): 12 mm · Hole spacing outlet: 23 mm · Hole spacing outlet: 38.5 mm · Outlet type: clamped · Outlet type: slanted · Hole pattern [mm]: 55 x 34 · Thread outlet: M6x1 (standard thread) · Decompressor: Yes · Camouflaged: No
EUR 395.90
Malossi racing ignition 12V | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Malossi · Material: Steel · Ø Internal flywheel: 80.5 mm · Ø cable: 7 mm · Light coil voltage: 12 V · Performance: 90 W · Direction of rotation: right · Number of fixing points: 2 pcs · Ø Flywheel outside: 105 mm · Ø Flywheel outside: 139.5 mm · Mounting type: Screws · Weight: 804 g · Weight: 890 g · Area of application: High End · Area of application: Performance · Area of application: Racing · Area of application: Tuning
EUR 472.70
Not in stock
SKF 6202 C3 ball bearing 15/35/11
Bearing cage: "-" Sheet steel cage ball-guided · Inner ring width: 11 mm · Manufacturer: SKF · Bearing clearance: C3 · Bearing type: Deep groove ball bearing · Ø outside: 35 mm · Ø inside: 15 mm · Stock number: 6202 · Width: 11 mm · Puch OEM number: 900.4.6202
EUR 11.70
Hot

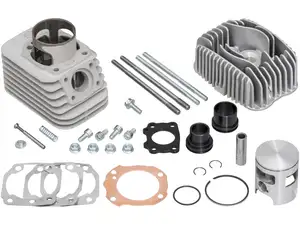

Malossi 47 mm cylinder kit BIG DEPS 4 MHR incl. head 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer
