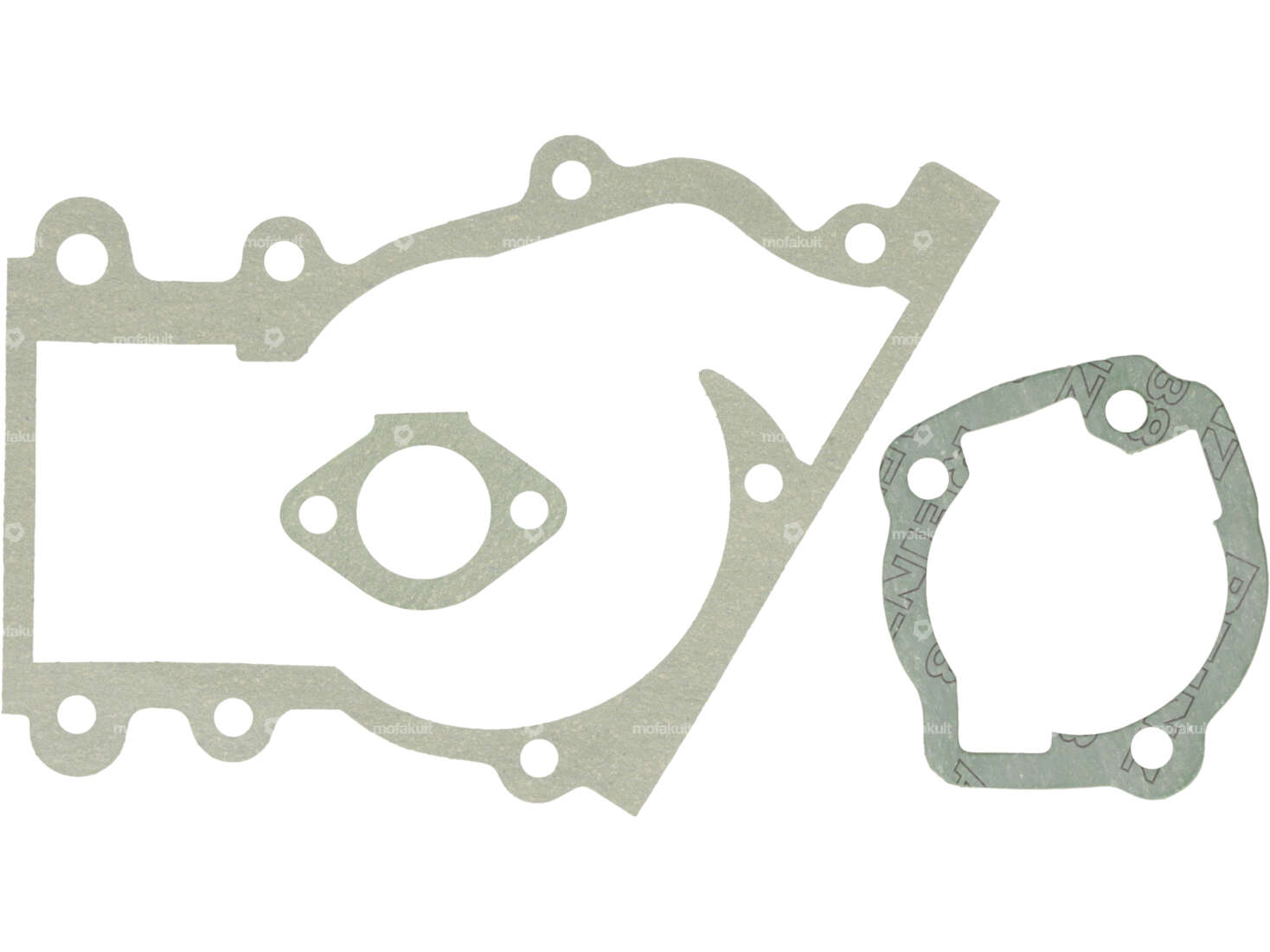

Three-piece set of gaskets for the racing engine on your Piaggio moped / moped.
The gasket set consists of a housing gasket, cylinder base gasket and intake gasket to fit the two Malossi racing cases for all Piaggio mopeds.
You can find the matching racing cases in the accessories section.
Quality product from the Italian manufacturer Malossi.
Details
| Manufacturer | Malossi |
| Area of application | Tuning |
| Number of components | 3 pcs |
Suitable for the following models
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo |
Accessories & related products
Hot

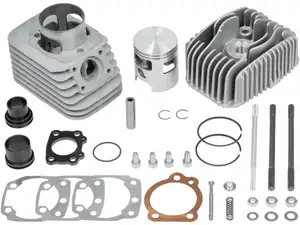

Malossi 47 mm cylinder kit BIG DEPS incl. head 10 mm KoBo | Piaggio Ciao, Bravo, Boxer
Nominal diameter: 47 mm · Manufacturer: Malossi · Material: Aluminum · Surface: sandblasted · Displacement: 75 ccm · Crankshaft stroke: 43 mm · Ø cylinder neck: 49.9 mm · Ø Outlet outside: 22 mm · Ø Outlet outside: 27 mm · Ø outlet inside: 18 mm · Ø outlet inside: 24 mm · Ø piston pin (B): 10 mm · Outlet type: clamped · Outlet type: slanted · Hole spacing outlet: 23 mm · Hole spacing outlet: 38.5 mm · Thread outlet: M6x1 (standard thread) · Number of fixing points: 3 pcs · Hole pattern [mm]: 55 x 34 · Decompressor: Yes · Camouflaged: No · Area of application: Tuning
EUR 389.90
Malossi carburetor set Dellorto 19/19 racing case | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Dell'Orto · Manufacturer: Malossi · Camouflaged: No · Component group Carburetor: Carburetor complete · Material: Aluminum · Color: black · Carburetor type: PHBG · Nominal diameter: 19 mm · Ø Inside entrance: 19 mm · Ø Output inside: 19 mm · Height: 110 mm · Ø Air filter connection: 32 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: Yes · Vacuum connection: Yes · Choke control: Cable choke · Choke nozzle size: 60 · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 85 · Size of secondary nozzle: 45 · Mounting type: Flange · Hole spacing inlet: 35 mm · Total length: 60 mm · Width: 65 mm · Area of application: Racing · Area of application: Tuning
EUR 314.20
Malossi 46.5 mm cylinder kit incl. head 10 mm KoBo | Piaggio Ciao, Bravo, Boxer
Nominal diameter: 46.5 mm · Manufacturer: Malossi · Material: Gray cast iron · Surface: sandblasted · Displacement: 70 ccm · Crankshaft stroke: 43 mm · Ø piston pin (B): 10 mm · Outlet type: clamped · Number of fixing points: 3 pcs · Decompressor: Yes · Camouflaged: No · Area of application: Tuning
EUR 197.80
Malossi 46.5 mm cylinder kit incl. head 12 mm KoBo | Piaggio Ciao, Bravo, Boxer
Nominal diameter: 46.5 mm · Manufacturer: Malossi · Material: Gray cast iron · Surface: sandblasted · Displacement: 70 ccm · Crankshaft stroke: 43 mm · Ø piston pin (B): 12 mm · Outlet type: clamped · Number of fixing points: 3 pcs · Decompressor: Yes · Camouflaged: No · Area of application: Tuning
EUR 209.50
Dirko Dichtmasse rot (Silikon) Hochtemperatur 70 ml dauerelastisc
Manufacturer: Elring · Contents [ml]: 70 ml · Hazard warning: Causes serious eye irritation · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Color: red · Temperature resistance (min.): -60 - 300 °C · Gap dimension (max.): 2 mm · Area of application: Chemistry
EUR 26.70
EUR 381.43/l
Moped fans like you also bought:
Malossi cylinder head for 44 - 47 mm cylinder kit | Piaggio Ciao, Bravo 1, Boxer
Manufacturer: Malossi · Material: Aluminum · Surface: sandblasted · Ø cylinder: 44 - 47 mm · Camouflaged: No · Number of fixing points: 3 pcs · Hole pattern [mm]: 35 x 55 · Candle thread: long · Decompressor: Yes · Total length: 122 mm · Width: 87 mm · Height: 60 mm · Area of application: Racing
EUR 93.00
Malossi 46.5 mm cylinder kit without head 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer
Nominal diameter: 46.5 mm · Manufacturer: Malossi · Material: Gray cast iron · Surface: sandblasted · Displacement: 73 ccm · Crankshaft stroke: 43 mm · Ø cylinder neck: 50 mm · Ø Outlet outside: 22.4 mm · Ø outlet inside: 18.1 mm · Ø piston pin (B): 10 mm · Outlet type: clamped · Number of fixing points: 3 pcs · Hole pattern [mm]: 55 x 34 · Decompressor: Yes · Camouflaged: No · Area of application: Tuning
EUR 168.70
Malossi crankshaft 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Malossi · Material: Steel · Cheek type: Full cheeks · Crankshaft stroke: 43 mm · Ø coupling pin / vario pin: 12 mm · Connecting rod length center-center: 87 mm · Total length crankpin ignition side: 91 mm · Total length crankpin ignition side: 106 mm · Ø crank webs: 69.95 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 15 mm · Bearing seat right: 15 mm · Ø Bearing seat (ignition side): 15 mm · Thread type: M10x1.5 (standard thread) · Thread length: 15 mm · Dimension needle bearing: 12 / 15 x 14.7 mm (axe 12) · Wide crank webs: 32.4 mm · Length 1st paragraph: 21.3 mm · Length 2nd paragraph: 43.7 mm · Length 3rd paragraph: 63 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14.4 mm · Ø 3rd step (on the clutch side): 12 mm · Weight: 813 g · Number of gears: 1 pcs · Area of application: Racing
EUR 302.60
SKF 6202 C3 ball bearing 15/35/11
Bearing cage: "-" Sheet steel cage ball-guided · Inner ring width: 11 mm · Ø inside: 15 mm · Manufacturer: SKF · Ø outside: 35 mm · Bearing clearance: C3 · Width: 11 mm · Stock number: 6202 · Bearing type: Deep groove ball bearing · Puch OEM number: 900.4.6202
EUR 11.50
Malossi oil seal FPM 15/24/5 A crankshaft | Piaggio Ciao, SI, Bravo, Boxer
Temperature resistance (min.): -30 - 200 °C · Simmering type: A - With rubberized outer part / one sealing lip. · Ø inside: 15 mm · Ø outside: 24 mm · Manufacturer: Malossi · Width: 5 mm · Place of use: Crankshaft · Material: FPM / FKM (known as VITON®) · Surface: rubberized
EUR 16.70
Collection only possible with online purchase and appointment.
