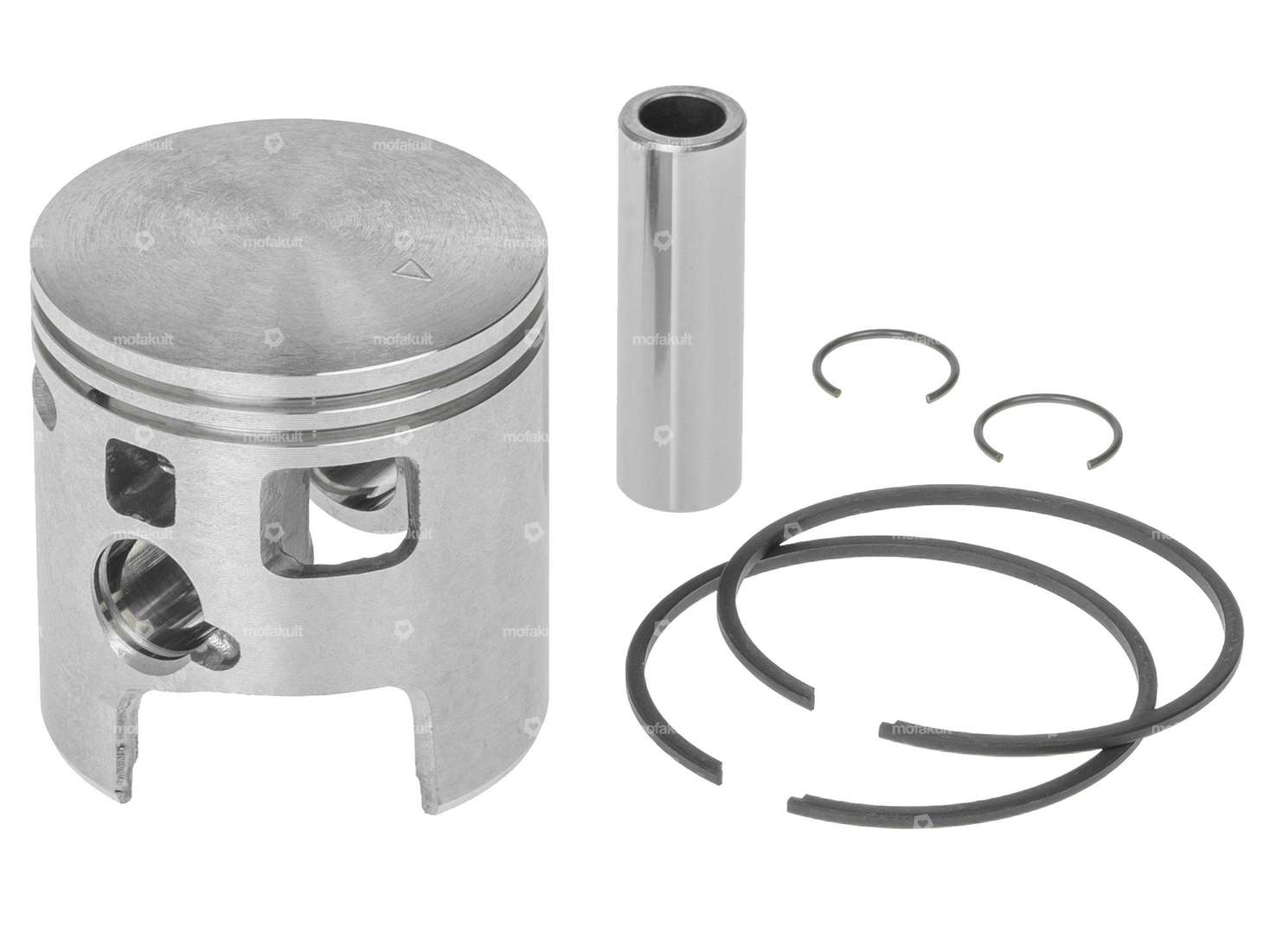

46.50 mm replacement piston / piston kit with two pieces of 1.5 mm rectangular piston ring with internal fuse (IS) for the 46.5 mm Malossi cylinder suitable for Piaggio mopeds / mopeds.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.
| Nominal diameter | 46.5 mm |
| Manufacturer | Malossi |
| Ø outside piston (A) | 46.4 mm |
| Compression height (C) | 25.9 mm |
| Curvature (D) | 2.4 mm |
| Total piston height (E) | 52.8 mm |
| Number of piston rings (F) | 2 pcs |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Internal fuse (IS) |
| Piston ring height | 1.5 mm |
| Ø piston pin (B) | 12 mm |
| Weight piston kit | 101 g |
| Piaggio | Ciao - P , SC , PX , C24 Si Bravo / Super Bravo Boxer Grillo |
Accessories & related products
swiing® ingenious needle roller bearing 12/15/16.2 "Racing" silver cage
Bearing type: Needle roller and cage assembly · Dimension needle bearing: 12/15 x 16.2 · Manufacturer: swiing® ingenious parts · Bearing cage: Silver cage · Ø outside: 15 mm · Ø inside: 12 mm · Width: 16.2 mm · Tomos OEM number: 035548
EUR 16.50
GPO piston pin extractor Ø 10, 12, 14 mm
Manufacturer: GPO · Area of application: (Dis)assembly tool · Material: Steel · Surface: burnished · Number of components: 7 pcs · Total length: 130 mm · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Width across flats: 10 mm · Width across flats: 17 mm
EUR 23.60
Malossi 46.5 mm cylinder kit without head 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Malossi · Material: Gray cast iron · Surface: sandblasted · Nominal diameter: 46.5 mm · Displacement: 73 ccm · Crankshaft stroke: 43 mm · Ø piston pin (B): 12 mm · Ø cylinder neck: 50 mm · Ø Outlet outside: 22.4 mm · Ø outlet inside: 18.1 mm · Outlet type: clamped · Number of fixing points: 3 pcs · Hole pattern [mm]: 55 x 34 · Decompressor: Yes · Camouflaged: No · Area of application: Tuning
EUR 171.90
Meteor piston pin Ø 12 mm (length: 31 - 40 mm)
Manufacturer: Meteor · Material: Steel · Surface: Hardened · Ø piston pin (B): 12 mm · Total length: 31 mm · Total length: 31.5 mm · Total length: 33 mm · Total length: 35.5 mm · Total length: 37 mm · Total length: 38 mm · Total length: 40 mm · Pony OEM number: A1112 · Sachs OEM no.: 0216 003 105
EUR 8.20
