Piaggio gearbox

CIF revision set gearbox variator | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Gearbox type: Vario · Area of application: Original · Area of application: Standard

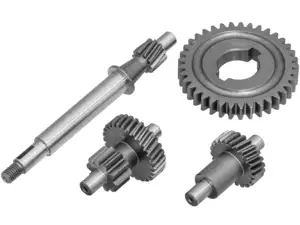

CIF transmission 11:1 Vario | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Surface: Hardened · Material: Steel · Toothing type: helical toothed · Toothing type: straight toothed · Translation: 10.73 / 1 · Gearbox type: Vario · Area of application: Racing · Area of application: Tuning

CIF transmission 9.5:1 Vario (long ratio) | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Surface: Hardened · Material: Steel · Toothing type: helical toothed · Translation: 9.49 / 1 · Gearbox type: Vario · Area of application: Tuning

CIF gasket set engine / gearbox with oil seals Mono | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Place of use: Gear hub · Gearbox type: Mono · Area of application: Standard · Piaggio OEM number: 112967 · Piaggio OEM number: 114469 · Piaggio OEM number: 124571 · Piaggio OEM number: 131511 · Piaggio OEM number: 182519 · Piaggio OEM number: 480464 · Piaggio OEM number: 482552

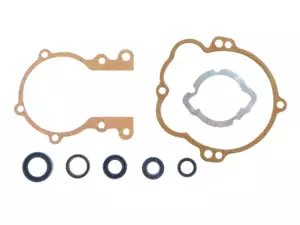

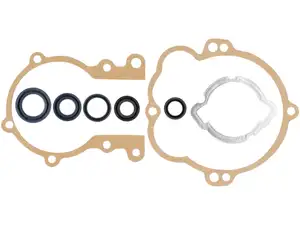

CIF gasket set engine / gearbox with shaft seals Vario | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Place of use: Gear hub · Gearbox type: Vario · Area of application: Standard · Piaggio OEM number: 008766 · Piaggio OEM number: 008771 · Piaggio OEM number: 112967 · Piaggio OEM number: 131511 · Piaggio OEM number: 182519 · Piaggio OEM number: 240222 · Piaggio OEM number: 480464 · Piaggio OEM number: 482552

Spacer 23/34/0.5 Gearbox original | Piaggio Ciao, SI, Bravo, Boxer

Ø inside: 23 mm · Nominal diameter inside: 23 mm · Ø outside: 34 mm · Thickness: 0.5 mm · Manufacturer: Piaggio · Material: Steel · Surface: blank / oiled

Spacer 20/33/1 Gearbox original | Piaggio Ciao, SI, Bravo, Boxer

Ø inside: 20 mm · Nominal diameter inside: 20 mm · Ø outside: 33 mm · Thickness: 1 mm · Manufacturer: Piaggio · Material: Steel · Surface: blank / oiled · Piaggio OEM number: 131513

Washer 18/29/1 gearbox original | Piaggio Ciao, SI, Bravo, Boxer

Nominal diameter inside: 8 mm · Manufacturer: Piaggio · Material: Steel · Surface: blank / oiled · Ø outside: 29 mm · Ø inside: 18 mm · Thickness: 1 mm

Spacer 15/28/1 Gearbox original | Piaggio Ciao, SI, Bravo, Boxer

Nominal diameter inside: 28 mm · Manufacturer: Piaggio · Material: Steel · Surface: blank / oiled · Ø outside: 15 mm · Ø inside: 28 mm · Thickness: 1 mm

Koyo HK1712 Needle roller bearing 17/23/12 Gearbox | Piaggio Ciao, SI, Bravo, Boxer

Bearing type: Needle sleeve · Bearing cage: Sheet steel cage · Stock number: HK1712 · Dimension needle bearing: 17/23 x 12 · Ø inside: 17 mm · Ø outside: 23 mm · Manufacturer: Koyo · Width: 12 mm · Piaggio OEM number: 103696

Koyo HK2012 Needle roller bearing 20/26/12 Gearbox | Piaggio Ciao, SI, Bravo, Boxer

Bearing type: Needle sleeve · Bearing cage: Sheet steel cage · Stock number: HK2012 · Dimension needle bearing: 20/26 x 12 · Ø inside: 20 mm · Ø outside: 26 mm · Manufacturer: Koyo · Width: 12 mm · Piaggio OEM number: 131509

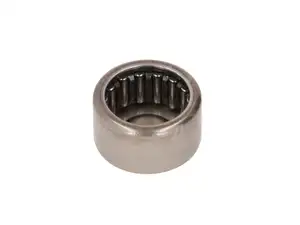

Needle bearing 15/21/12 gearbox original | Piaggio Ciao, SI, Bravo, Boxer

Bearing type: Needle box · Dimension needle bearing: 15/21 x 12 · Ø inside: 15 mm · Ø outside: 21 mm · Manufacturer: Piaggio · Width: 12 mm · Piaggio OEM number: 103689

Needle bearing 9/13/12 gearbox original | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Piaggio · Bearing type: Needle box · Dimension needle bearing: 9/13 x 12 · Width: 12 mm · Ø inside: 9 mm · Ø outside: 13 mm

Corteco oil seal set transmission Vario & torque converter | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Corteco

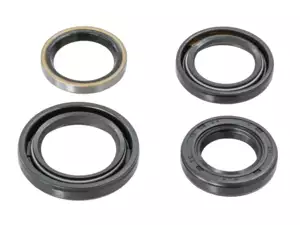

GPO oil seal set engine & gearbox (mono) | Piaggio Ciao, SI, Bravo, Boxer

Place of use: Clutch · Place of use: Crankshaft · Place of use: Gear hub · Place of use: Gearbox cover · Temperature resistance (min.): -30 - 120 °C · Shaft seal type: A - With rubberized outer part / one sealing lip. · Shaft seal type: B - With sheet metal outer casing / one sealing lip. · Ø inside: 15 mm · Ø inside: 16 mm · Ø inside: 17 mm · Ø inside: 20 mm · Ø outside: 22 mm · Ø outside: 24 mm · Ø outside: 25 mm · Ø outside: 30 mm · Width: 3 mm · Width: 4 mm · Width: 5 mm · Manufacturer: GPO · Material: NBR · Area of application: Original

Spacer 16.4/24/0.6 clutch mono / gearbox original | Piaggio Ciao, SI, Bravo, Boxer

Nominal diameter inside: 16 mm · Ø inside: 16.4 mm · Ø outside: 24 mm · Thickness: 0.6 mm · Manufacturer: Piaggio · Material: Steel · Surface: blank / oiled

Gear wheel 74 teeth mono gearbox original | Piaggio Ciao, SI, Bravo, Boxer

Surface: Hardened · Material: Steel · Manufacturer: Piaggio · Number of teeth: 74 pcs · Toothing type: straight toothed · Gearbox type: Mono

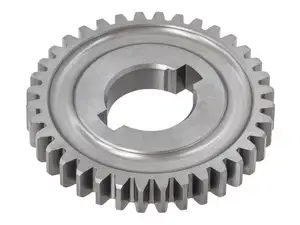

CIF gear wheel 37 teeth Mono / Vario gearbox | Piaggio Ciao, SI, Bravo, Boxer

Surface: Hardened · Material: Steel · Manufacturer: CIF · Number of teeth: 37 pcs · Toothing type: straight toothed · Translation: 8.41 / 1 · Translation: 9.17 / 1 · Translation: 10.73 / 1 · Translation: 11.92 / 1 · Gearbox type: Mono · Gearbox type: Vario

Pin gearbox axle shaft original | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Piaggio · Ø outside: 6.98 mm · Total length: 30 mm

CIF gear shaft 10 teeth variator | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Number of teeth: 10 pcs · Ø shaft: 13 mm · Toothing type: helical toothed · Total length: 137 mm

Brake lever rear wheel NOS | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Piaggio · Material: Steel · Surface: galvanized (blue) · Color: silver · Piaggio OEM number: 178339

Oil seal NBR 22/35/6 A splined gearbox original | Piaggio Ciao

Temperature resistance (min.): -30 - 100 °C · Shaft seal type: A - With rubberized outer part / one sealing lip. · Ø inside: 22 mm · Ø outside: 35 mm · Width: 6 mm · Manufacturer: Piaggio · Material: NBR

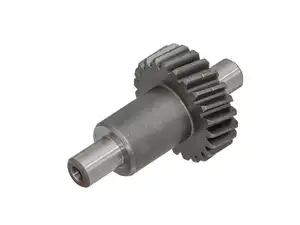

CIF gearwheel 23 teeth Mono / Vario transmission | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Surface: Hardened · Material: Steel · Gearbox type: Mono · Gearbox type: Vario · Number of teeth: 23 pcs · Toothing type: helical toothed · Translation: 9.23 / 1 · Translation: 9.49 / 1 · Translation: 10.44 / 1 · Translation: 10.63 / 1 · Translation: 10.73 / 1 · Translation: 11.92 / 1 · Translation: 12.24 / 1 · Translation: 13.05 / 1 · Translation: 14.82 / 1 · Ø outside: 32 mm

Spacer washer 14/24/1 gearbox original | Piaggio Ciao, SI, Bravo, Boxer

Ø inside: 14 mm · Nominal diameter inside: 14 mm · Ø outside: 24 mm · Thickness: 1 mm · Manufacturer: Piaggio · Material: Steel · Surface: blank / oiled

Spacer 10/18/1 Gearbox original | Piaggio Ciao, SI, Bravo, Boxer

Ø inside: 10 mm · Nominal diameter inside: 10 mm · Ø outside: 18 mm · Thickness: 1 mm · Manufacturer: Piaggio · Material: Steel · Surface: blank / oiled

swiing® revival screw set engine / gearbox galvanized | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue)

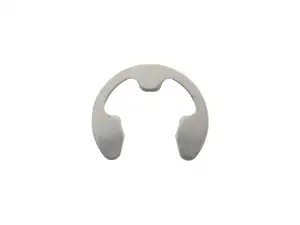

Rear brake pad fuse | Piaggio Ciao, SI, Bravo, Boxer

Fuse type: Inside · Place of use: Brake · Material: Steel · Surface: galvanized (blue) · Piaggio OEM number: 103112

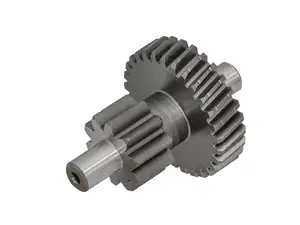

CIF gearwheel 29/10 teeth Mono / Vario gearbox | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Surface: Hardened · Material: Steel · Number of teeth: 10 pcs · Number of teeth: 29 pcs · Toothing type: helical toothed · Toothing type: straight toothed · Translation: 10.44 / 1 · Translation: 10.73 / 1 · Translation: 13.05 / 1 · Gearbox type: Mono · Gearbox type: Vario

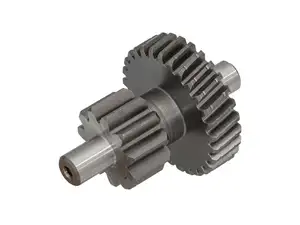

CIF gearwheel 29/11 teeth Vario gearbox | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Surface: Hardened · Material: Steel · Number of teeth: 11 pcs · Number of teeth: 29 pcs · Toothing type: helical toothed · Toothing type: straight toothed · Translation: 9.23 / 1 · Translation: 9.49 / 1 · Ø outside: 23 mm · Ø outside: 39 mm · Gearbox type: Vario

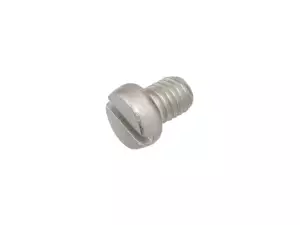

Oil filler plug M8x10 Inox original | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Piaggio · Thread type: M8x1.25 (standard thread) · Nominal diameter (thread): 8 mm · Drive: Slot · Thread length: 10 mm · Piaggio OEM number: 030280

O-ring shift fork (Velogang) original | Piaggio Ciao, SI, Bravo, Boxer

Ø inside: 6 mm · Ø outside: 9.4 mm · Cord thickness: 1.7 mm · Manufacturer: Piaggio

swiing® revival screw set engine / gearbox Inox | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: swiing® revival parts · Material: Chrome steel (colloquially known as stainless steel)

46-Tooth Sprocket for Vario Transmission, NOS | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Piaggio · Number of teeth: 46 pcs · Toothing type: straight toothed · Gearbox type: Vario · Area of application: Original

Transmission shaft 11 teeth variator NOS | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Piaggio · Material: Steel · Number of teeth: 11 pcs · Ø shaft: 13 mm · Toothing type: helical toothed · Total length: 137 mm · Area of application: Original

swiing® revival thrust washer 10/18/0.3 gearbox | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Ø inside: 10 mm · Ø outside: 18 mm · Thickness: 0.3 mm

swiing® revival thrust washer 10/18/0.5 gearbox | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Ø inside: 10 mm · Ø outside: 18 mm · Thickness: 0.5 mm

swiing® revival thrust washer 14/24/0.2 gearbox | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Ø inside: 14 mm · Ø outside: 24 mm · Thickness: 0.2 mm

Malossi gearbox HTQ 13:1 Vario | Piaggio Ciao, SI, Bravo, Boxer, Grillo

Manufacturer: Malossi · Material: Steel · Toothing type: straight toothed · Translation: 12.82 / 1 · Gearbox type: Vario · Area of application: Racing · Area of application: Tuning

swiing® revival thrust washer 23/34/0.4 gearbox | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Ø inside: 23 mm · Ø outside: 34 mm · Thickness: 0.4 mm

swiing® revival thrust washer 15/28/0.2 gearbox | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Ø inside: 15 mm · Ø outside: 28 mm · Thickness: 0.2 mm

swiing® revival thrust washer 20/33/0.5 gearbox | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Ø inside: 20 mm · Ø outside: 33 mm · Thickness: 0.5 mm

swiing® revival thrust washer 20/33/0.2 gearbox | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Ø inside: 20 mm · Ø outside: 33 mm · Thickness: 0.2 mm

Pinasco gearbox 9.2-12.3 Vario | Piaggio Ciao, SI, Bravo, Boxer, Grillo

Manufacturer: Pinasco · Toothing type: helical toothed · Toothing type: straight toothed · Translation: 7.40 / 1 · Translation: 9.23 / 1 · Translation: 9.49 / 1 · Translation: 10.44 / 1 · Translation: 11.92 / 1 · Translation: 12.27 / 1 · Gearbox type: Vario · Area of application: Tuning

Malossi variator gearbox housing | Piaggio SI, Boxer

Material: Aluminum · Manufacturer: Malossi · Surface: varnished · Gearbox type: Vario · Area of application: High End · Area of application: Racing

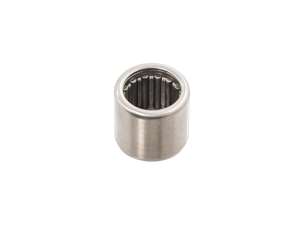

INA needle roller bearing 9/13/12 gearbox | Piaggio Ciao, SI, Bravo, Boxer

Bearing type: Needle box · Stock number: BK0912 · Dimension needle bearing: 9/13 x 12 · Ø inside: 9 mm · Ø outside: 13 mm · Manufacturer: INA · Width: 12 mm

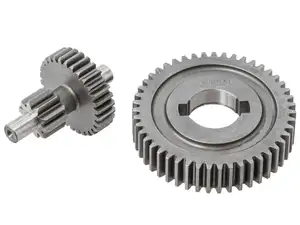

Malossi HTQ gearbox conversion kit reinforced version Vario | Piaggio Ciao, SI, Bravo, Boxer, Grillo

Manufacturer: Malossi · Material: Steel · Toothing type: straight toothed · Gearbox type: Vario · Area of application: Cross · Area of application: Performance · Area of application: Tuning

swiing® revival Shift Fork Velogang | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: swiing® revival parts · Material: Steel · Surface: burnished · Surface: galvanized (blue) · Gearbox type: Mono · Gearbox type: Vario · Ø outside: 8.95 mm · Total length: 60 mm · Width: 43 mm · Area of application: Original · Piaggio OEM number: 131523

INA needle roller bearing 17/23/12 Mono gearbox | Piaggio Ciao, SI, Bravo, Boxer

Bearing type: Needle sleeve · Bearing cage: Sheet steel cage · Stock number: HK1712 · Dimension needle bearing: 17/23 x 12 · Ø inside: 17 mm · Ø outside: 23 mm · Manufacturer: INA · Width: 12 mm · Piaggio OEM number: 103696

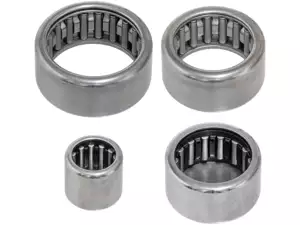

Koyo needle bearing set MG2 Mono gearbox | Piaggio Ciao, SI, Bravo, Boxer

Bearing type: Needle box · Bearing type: Needle sleeve · Bearing cage: Sheet steel cage · Stock number: BK0912 · Stock number: BK1512 · Stock number: HK1712 · Stock number: HK2012 · Manufacturer: Koyo · Manufacturer: Piaggio · Piaggio OEM number: 103613 · Piaggio OEM number: 103689 · Piaggio OEM number: 103696 · Piaggio OEM number: 131509

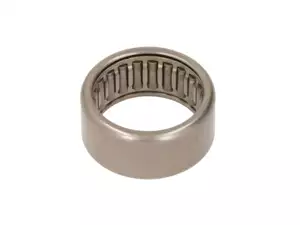

SKF Needle roller bearing 20/26/12 Gearbox | Piaggio Ciao, SI, Bravo, Boxer

Bearing type: Needle sleeve · Bearing cage: Sheet steel cage · Stock number: HK2012 · Dimension needle bearing: 20/26 x 12 · Ø inside: 20 mm · Ø outside: 26 mm · Manufacturer: SKF · Width: 12 mm · Piaggio OEM number: 131509
