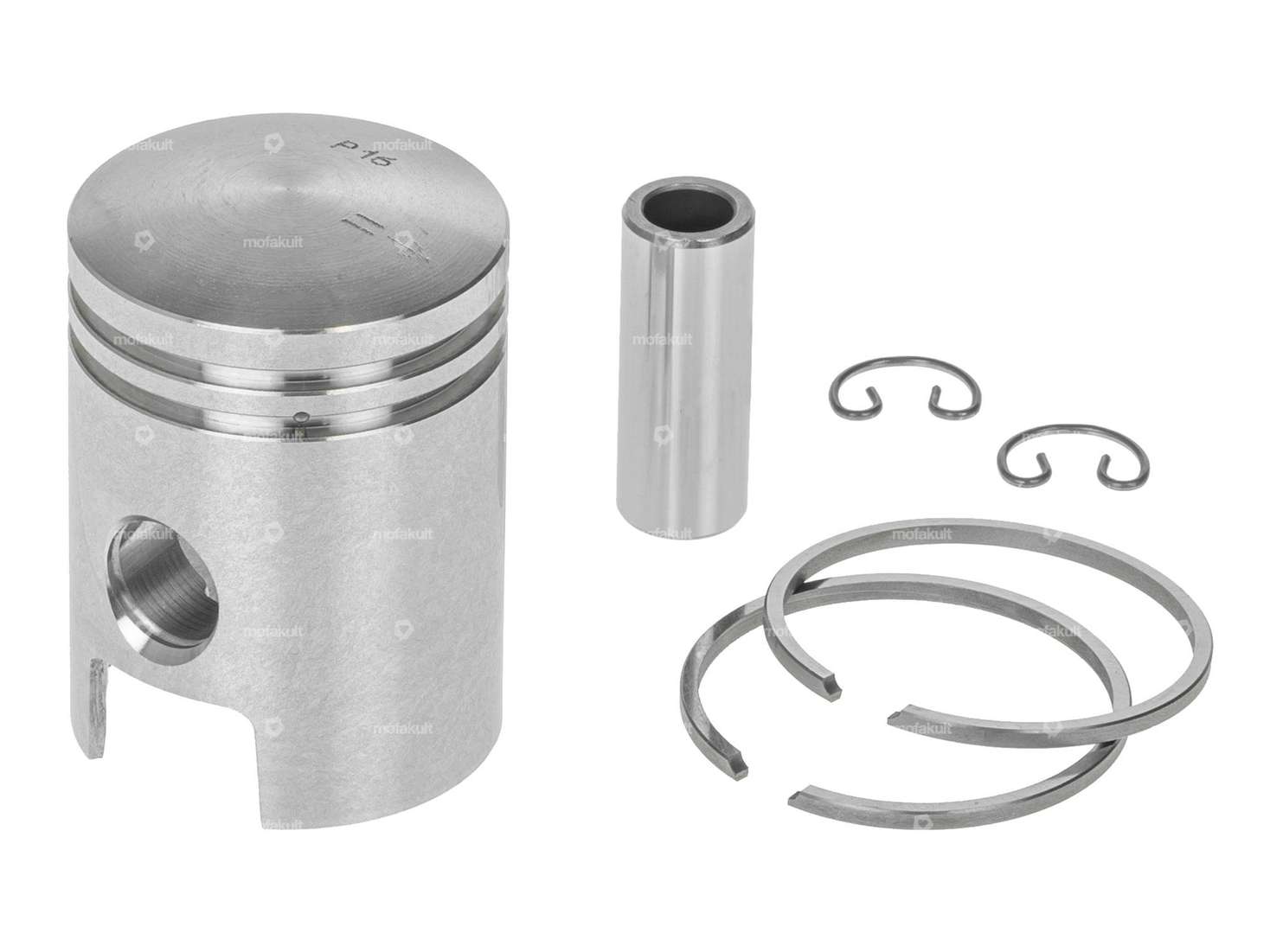

Meteor piston 37.97 mm type A | Sachs 504

Airsal piston pin lock Ø 12 mm (single)

Manufacturer: Airsal · Material: Spring steel · Number of sensors / lugs: 1 pcs · Ø outside: 12 mm

Motorex 2-stroke oil "POWER SYNT" fully synthetic 1 L

Manufacturer: Motorex · Oil type: fully synthetic · Contents: 1000 ml · Color: red

Buzzetti pliers for piston ring assembly

Manufacturer: Buzzetti · Area of application: (Dis)assembly tool

Meteor piston 37.98 mm type B | Sachs 504

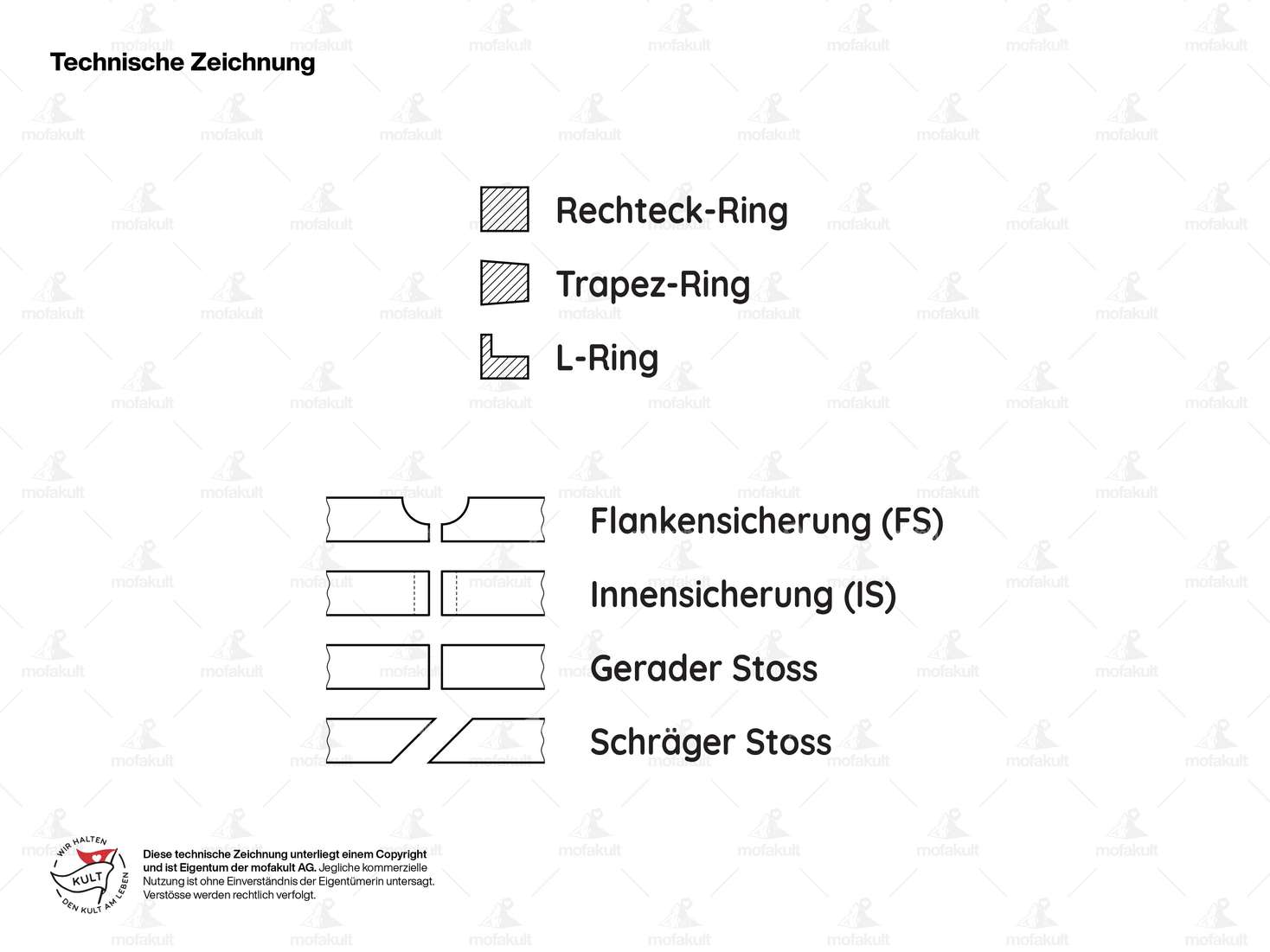

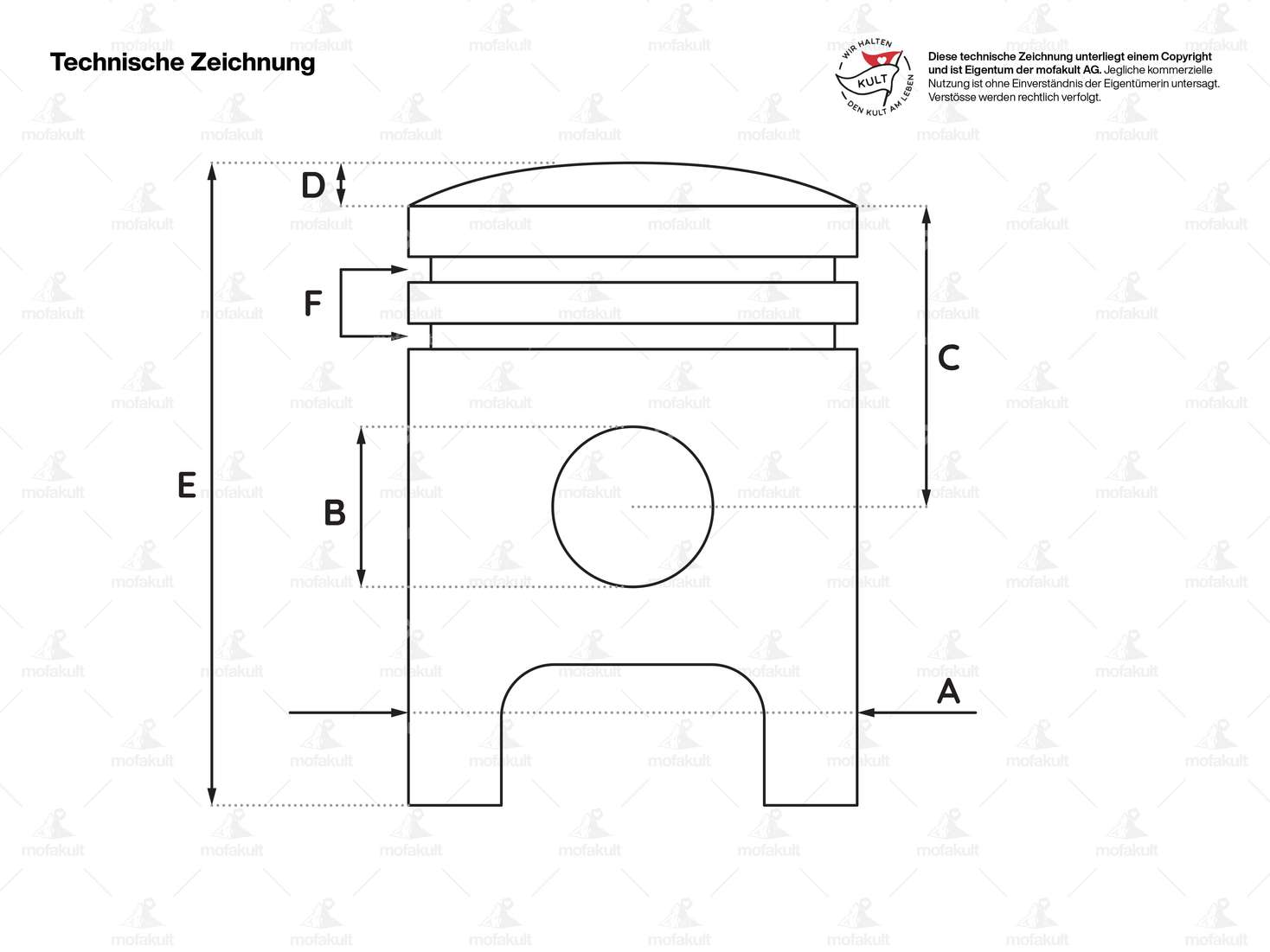

Nominal diameter: 38 mm · Manufacturer: Meteor · Ø outside piston (A): 37.98 mm · Compression height (C): 28 mm · Curvature (D): 3 mm · Total piston height (E): 53 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Ø piston pin (B): 12 mm · Tolerance group: B · Weight piston kit: 77 g

Meteor piston 37.99 mm type C | Sachs 504

Nominal diameter: 38 mm · Manufacturer: Meteor · Ø outside piston (A): 37.99 mm · Compression height (C): 28 mm · Curvature (D): 3 mm · Total piston height (E): 53 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Ø piston pin (B): 12 mm · Tolerance group: C · Weight piston kit: 77 g

Meteor piston pin lock Ø 12 mm (double)

Manufacturer: Meteor · Material: Spring steel · Number of sensors / lugs: 2 pcs · Ø outside: 12 mm · Pony OEM number: A1632 · Tomos OEM number: 032039 · Sachs OEM no.: 0245 000 000

GPO piston pin extractor Ø 10, 12, 14 mm

Manufacturer: GPO · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Area of application: (Dis)assembly tool · Material: Steel · Surface: burnished · Width across flats: 10 mm · Width across flats: 17 mm · Total length: 130 mm · Number of components: 7 pcs

GPO oil filler plug black | Puch Z50, ZA50

Manufacturer: GPO · Material: NBR · Color: black · Ø mounting hole: 11 mm · Clamping diameter: 13 mm · Ø outside: 16.4 mm · Total length: 25 mm · Puch OEM number: 364.2.10.660.1

Wippermann drive chain No.18 (double reinforced)

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Manufacturer: Wippermann · Material: Steel · Surface: blank / oiled · Color: gray · Number of chain links: 114 pcs · Rolling circumference: 1448 mm · Chain lock type: Spring lock · Ø bore: 4.2 mm · Ø Pin: 4.15 mm

swiing® revival Stud Bolt, Inlet/Outlet M6x30 (Grade 10.9)

Manufacturer: swiing® revival parts · Strength class: 10.9 · Diameter: 5.95 mm · Material: Steel · Surface: galvanized (blue) · Nominal diameter (thread): 6 mm · Thread type: M6x1 (standard thread) · Total length: 30 mm · Thread length: 12 mm

Magura cable holder

Ø Nipple hole: 6.2 mm · Manufacturer: Magura · Area of application: Standard · Material: Brass · Surface: nickel-plated · Color: silver · Ø Cable bushing: 4 mm · Ø Bundle: 10 mm · Ø outside: 8 mm · Total length: 14.5 mm

Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom

Manufacturer: GPO · Possible lever positions: open / closed / reserve · Material lever: Metal · Filter type: Plastic net · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Mounting type: Union nut · Thread type: MF12x1 (fine pitch thread) · Ø fuel hose connection: 6 mm · Reserve level: 70 mm

Magura gas cable clamp / deco cable clamp Ø 5 x 6 mm

Manufacturer: Magura · Material: Brass · Material: Steel · Surface: nickel-plated · Ø Cable bushing: 1.6 mm · Drive: Slot · Screw head: Lens head · Ø outside: 5 mm · Thread type: M4x0.7 (standard thread) · Total length: 6 mm · Thread length: 4 mm · Number of components: 2 pcs

Oil seal NBR 15/32/5.5 A main shaft | Sachs 504, 505, 535 (A4216)

Shaft seal type: A - With rubberized outer part / one sealing lip. · Manufacturer: Sachs · Material: NBR · Width: 5.5 mm · Ø inside: 15 mm · Temperature resistance (min.): -30 - 100 °C · Ø outside: 32 mm

Gasket cylinder base Sachs 504, 505, 535 (A4277, A4456)

Manufacturer: Sachs · Place of use: Cylinder base · Pony OEM number: A4277 · Pony OEM number: A4456 · Sachs OEM no.: 0250 154 000

VEC electronic ignition coil (replaces ignition coil, capacitor & contact breaker)

Manufacturer: VEC · Hole spacing: 54 mm · Place of use: Internal (in the ignition) · Area of application: Original · Area of application: Performance · Area of application: Standard · Ø Internal flywheel: 90 mm · Ø cable holder: 5 mm · Color: black · Cable length: 140 mm · Cable length: 420 mm · Height: 48 mm · Mounting type: Screws · Ø mounting hole: 4.6 mm · Total length: 77 mm · Number of fixing points: 2 pcs

swiing® ingenious Exhaust Clamp, 28 mm, Heat-Resistant, Chrome

Manufacturer: swiing® ingenious parts · Material: FPM / FKM (colloquially known as Viton) · Material: Steel · Surface: chrome-plated · Color: Chrome · Width: 40 mm · Ø inside: 25 - 28 mm · Mounting type: Nuts & bolts · Total length: 40 mm
