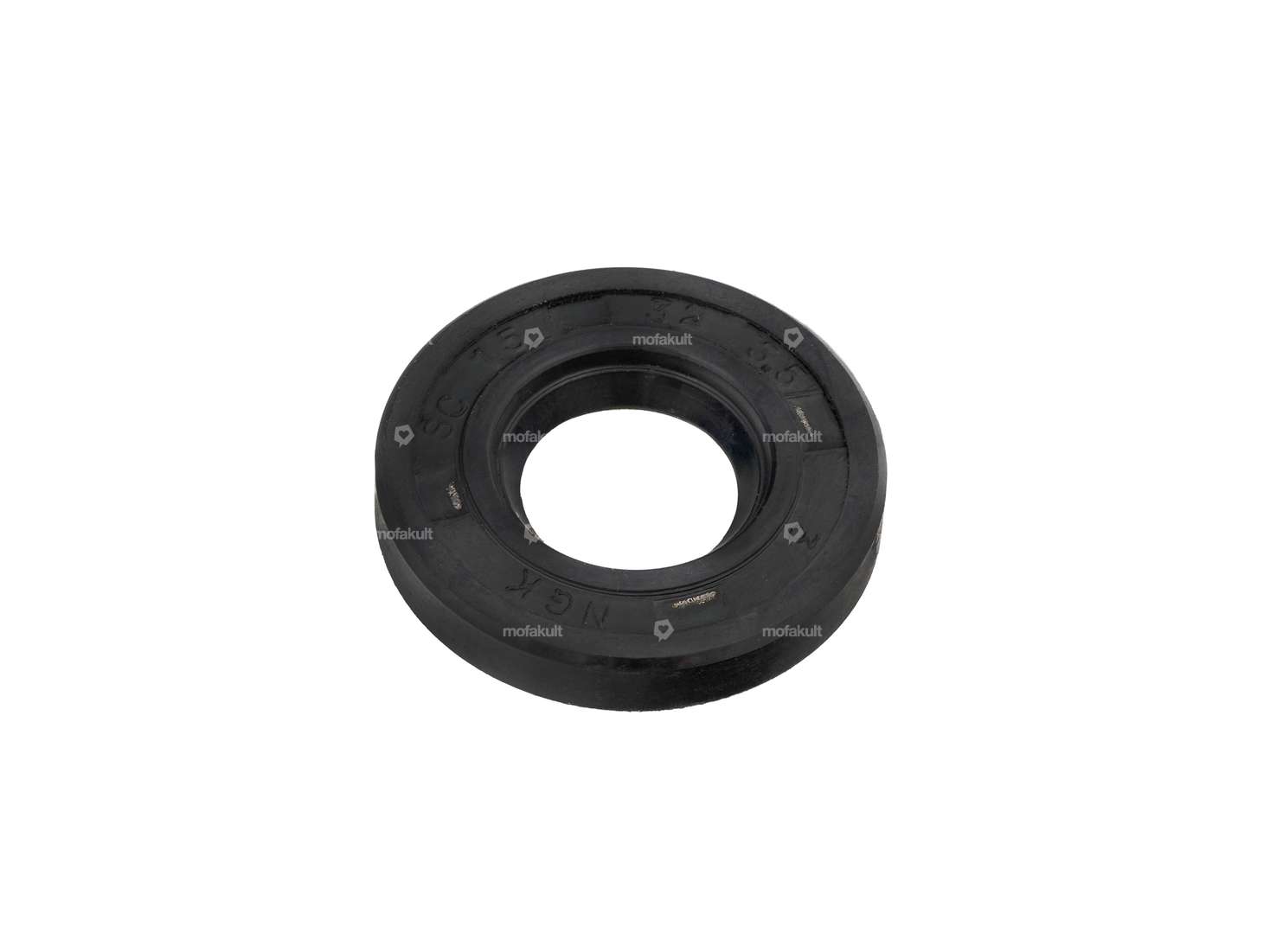

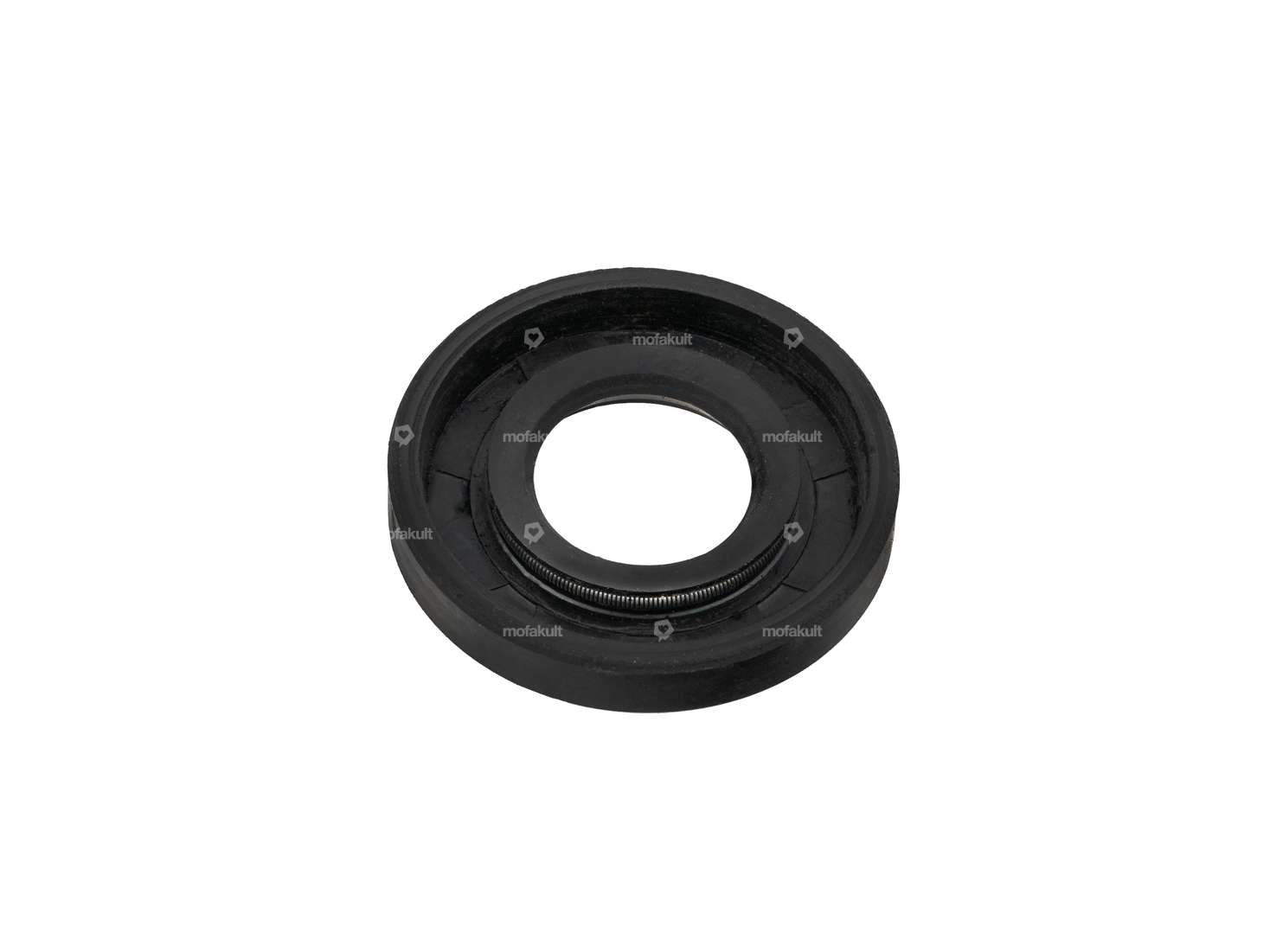

Shaft seal ring 15x32x5.5 mm for use on the main shaft of your moped / moped with Sachs 504, 505 and 535 engine.
This seal ring is suitable for Hercules Prima M, 2, 3, 4, 5 and Optima models, among others.
This shaft seal ring (colloquially known as an oil seal) is fitted to the main shaft.
Ø
| Simmering type | A - With rubberized outer part / one sealing lip. |
| Manufacturer | Sachs |
| Material | NBR |
| Surface | rubberized |
| Ø outside | 32 mm |
| Width | 5.5 mm |
| Ø inside | 15 mm |
| Temperature resistance (min.) | -30 - 100 °C |
| Sachs | 504 (without pedal shaft) 505 (with pedal shaft) - 1A (AT), 2A (HG), 2B (HG) 508 - 1 A 535 |
| Hercules | Great - 2, 3, 4, 5, Optima |
