logo_meteor-piston-mk

For: Puch

11875

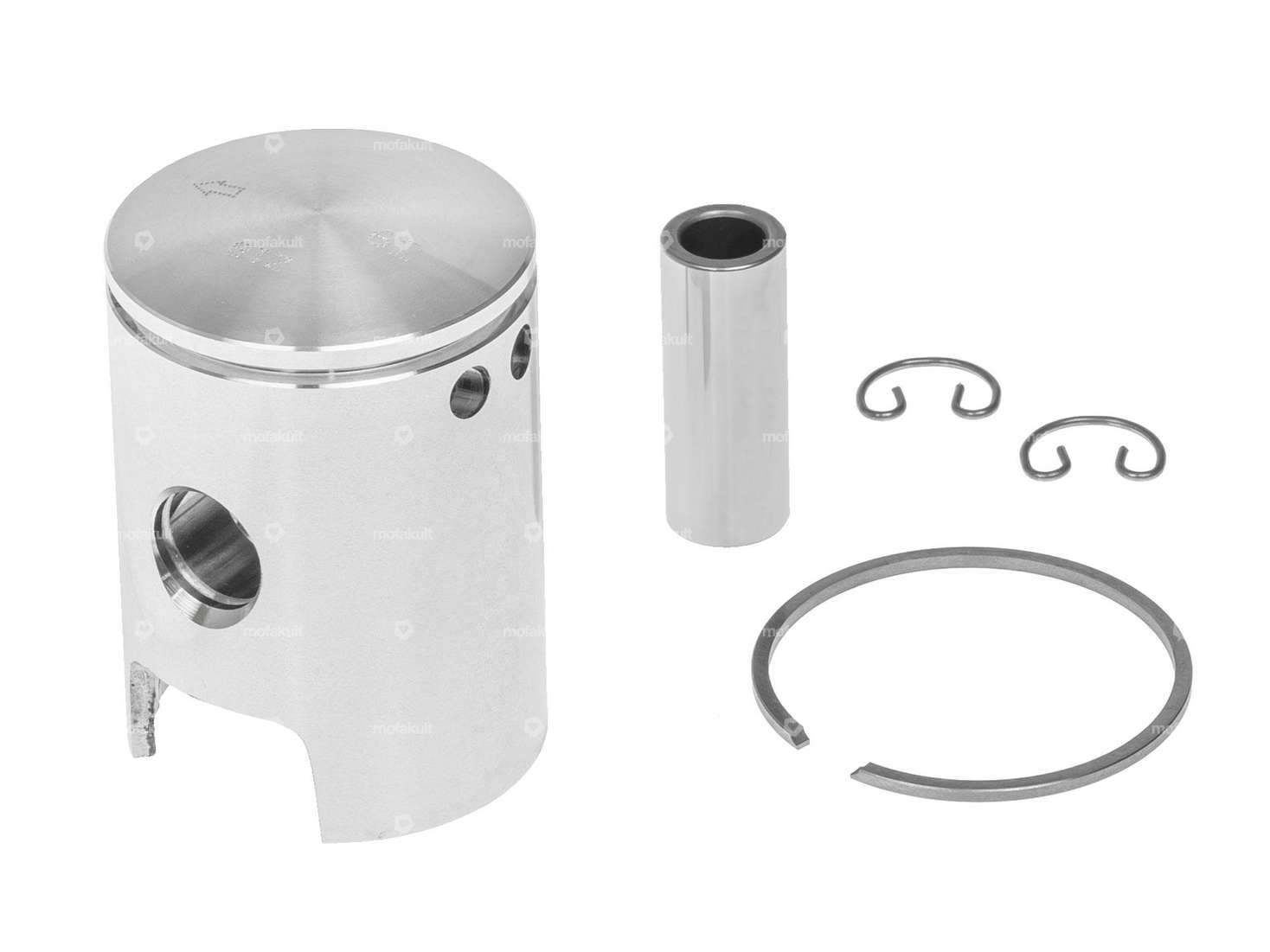

Meteor piston 38 mm #3 | Puch Supermaxi Cat.

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 65.20

Incl. 21% VAT.

Description

38.0 mm piston with a 1.5 mm rectangular piston ring with flank lock (FS) for Puch Supermaxi LG1 & LG2 mopeds / mopeds with catalytic converter.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

Nominal diameter38 mm
ManufacturerMeteor
Ø outside piston (A)37.965 mm
Compression height (C)24 mm
Curvature (D)2.3 mm
Total piston height (E)55.3 mm
Number of piston rings (F)1 pcs
Piston ring moldRectangular ring
Piston ring impactFlank safety device (FS)
Piston ring height1.5 mm
Ø piston pin (B)12 mm
Tolerance group3
Weight piston kit78 g
Puch

E50

ZA50 (air-cooled)

Accessories & related products

swiing® revival gasket cylinder base | Puch Kat

For: Puch

10192

swiing® revival gasket cylinder base | Puch Kat

Place of use: Cylinder base · Manufacturer: swiing® revival parts · Material: Sealing paper · Thickness: 0.6 mm

EUR 4.05

Airsal piston pin lock Ø 12 mm (single)
undefined

For: Universal · Puch · Sachs · Pony / Cilo (Beta 521 & 512) · Piaggio · Solex · Tomos · Bye Bike · Alpa Chopper / Turbo · Cilo · DKW · Fantic · Garelli · Honda · Hercules · ILO / JLO · Kreidler · Malaguti · MBK / Motobécane · Miele · --- PLEASE USE --- · Monark · Peugeot · Victoria · Yamaha

10240

Airsal piston pin lock Ø 12 mm (single)

Manufacturer: Airsal · Material: Spring steel · Surface: blank · Number of sensors / lugs: 1 pcs · Ø outside: 12 mm

EUR 1.45

Hot Hot
Motorex POWER SYNT 2-stroke mixed oil fully synthetic 1 L
undefined

Universal

10610

Motorex POWER SYNT 2-stroke mixed oil fully synthetic 1 L

Manufacturer: Motorex · Oil type: fully synthetic · Color: red · Contents: 1000 ml

EUR 30.70

EUR 30.70/l

Gasket cylinder head 38 mm | Puch Supermaxi
undefined

For: Puch

11089

Gasket cylinder head 38 mm | Puch Supermaxi

Place of use: Cylinder head · Manufacturer: Puch · Material: Aluminum · Ø cylinder: 38 mm · Thickness: 0.8 mm · Ø screw holder: 6.5 mm

EUR 4.05

Meteor piston ring 38 x 1.5 (FS)
undefined

For: Puch · Sachs

11131

Meteor piston ring 38 x 1.5 (FS)

Nominal diameter: 38 mm · Manufacturer: Meteor · Diameter: 38 mm · Height: 1.5 mm · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Thick piston ring: 1.6 mm

EUR 14.10

Buzzetti pliers for piston ring assembly
undefined

For: Sachs · Zündapp Belmondo · Solex · Tomos · Bye Bike · Alpa Chopper / Turbo · Cilo · DKW · Fantic · Garelli · Honda · Hercules · ILO / JLO · Kreidler · Malaguti · MBK / Motobécane · Miele · --- PLEASE USE --- · Monark · Peugeot · Victoria · Yamaha · Zündapp · Franco Morini

15195

Buzzetti pliers for piston ring assembly

Manufacturer: Buzzetti · Area of application: (Dis)assembly tool

EUR 16.00

Meteor piston pin lock Ø 12 mm (double)
undefined

For: Universal · Puch · Sachs · Pony / Cilo (Beta 521 & 512) · Piaggio · Solex · Tomos · Bye Bike · Alpa Chopper / Turbo · Cilo · DKW · Fantic · Garelli · Honda · Hercules · ILO / JLO · Kreidler · Malaguti · MBK / Motobécane · Miele · --- PLEASE USE --- · Monark · Peugeot · Victoria · Yamaha

17313

Meteor piston pin lock Ø 12 mm (double)

Manufacturer: Meteor · Material: Spring steel · Surface: blank · Number of sensors / lugs: 2 pcs · Ø outside: 12 mm · Pony OEM number: A1632 · Sachs OEM no.: 0245 000 000 · Tomos OEM number: 032039

EUR 1.45

- 10 %
GPO piston pin extractor Ø 10, 12, 14 mm
undefined

For: Universal · Puch · Sachs · Pony / Cilo (Beta 521 & 512) · Piaggio · Zündapp Belmondo · Solex · Tomos · Bye Bike · Alpa Chopper / Turbo · Cilo · DKW · Fantic · Garelli · Honda · Hercules · ILO / JLO · Kreidler · Malaguti · MBK / Motobécane · Miele · --- PLEASE USE --- · Monark · Peugeot · Victoria · Yamaha · Zündapp

17988

GPO piston pin extractor Ø 10, 12, 14 mm

Manufacturer: GPO · Material: Steel · Surface: burnished · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Number of components: 7 pcs · Total length: 130 mm · Width across flats: 10 mm · Width across flats: 17 mm · Area of application: (Dis)assembly tool

EUR 23.60

EUR 21.20

Explore categories from Piston

S-10-60-020-010_Kolbenring
Piston ring
S-10-60-020-020_Kolbenbolzen
Piston pin
S-10-60-020-030_Kolbenbolzenclip
Piston pin clip
S-10-60-020-040_Kolbenkit
Piston kit
S-10-60-020-050_Werkzeug
Tool

Moped fans also bought

GPO oil filler plug black | Puch Z50, ZA50
undefined

For: Puch

10014

GPO oil filler plug black | Puch Z50, ZA50

Manufacturer: GPO · Material: NBR · Color: black · Ø outside: 16.4 mm · Ø mounting hole: 11 mm · Clamping diameter: 13 mm · Total length: 25 mm · Puch OEM number: 364.2.10.660.1

EUR 9.40

Hot Hot
BERU spark plug connector / 1 kΩ interference suppressed
undefined

Universal

10043

BERU spark plug connector / 1 kΩ interference suppressed

Manufacturer: BERU · Material: Sheet metal (steel) · Color: silver · Spark plug socket: M4 · Cable available: No · Suppressed: Yes · Resistance: 1000 Ω · Subcategory: Spark plug connector · Ø cable: 5 mm · Ø cable: 7 mm · Pony OEM number: A2099 · Sachs OEM no.: 0265 100 00

EUR 10.40

GPO clutch 3-jaw aluminum | Puch E50
undefined

For: Puch

10060

GPO clutch 3-jaw aluminum | Puch E50

Manufacturer: GPO · Material: Aluminum · Material: Steel · Material addition: Composite materials · Recording type: Cone mounting · Ø inside: 12 mm · Ø inside: 14.6 mm · Ø outside: 93 mm · Number of jaws: 3 pcs · Number of springs: 3 pcs · Thickness: 20.9 mm · Area of application: Original · Area of application: Standard

EUR 59.20

GPO gasket set | Puch E50
undefined

For: Puch

10159

GPO gasket set | Puch E50

Manufacturer: GPO · Material: Aluminum · Material: Fiber · Material: Sealing carton · Material: Sealing paper · Number of components: 7 pcs · Ø outlet inside: 19.9 mm · Hole spacing inlet: 32 - 38 mm · Hole pattern [mm]: 44 x 44 · Hole spacing outlet: 42 mm · Area of application: Standard · Decompressor: Yes

EUR 11.80

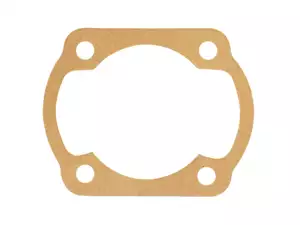

swiing® revival gasket cylinder base | Puch Kat
