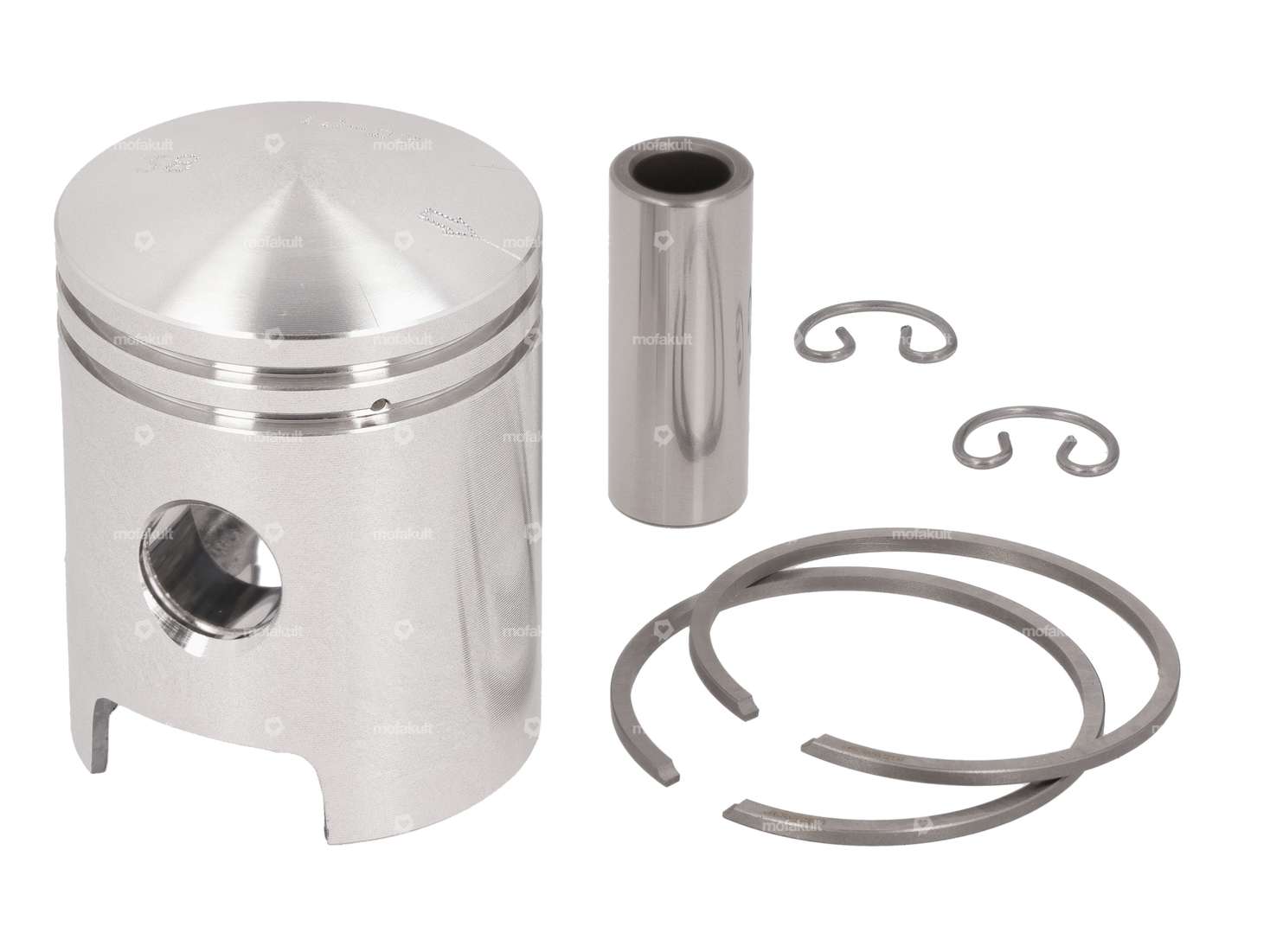

38.0 mm piston with two 2 mm rectangular piston rings with flank lock (FS) for your Tomos A35, Sprint, Colibri or Quadro moped / moped.
The detailed dimensioning of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.
| Manufacturer | Meteor |
| Material | Aluminum |
| Thick piston ring | 1.7 mm |
| Ø outside piston (A) | 37.95 mm |
| Compression height (C) | 22.35 mm |
| Curvature (D) | 3.65 mm |
| Total piston height (E) | 50 mm |
| Number of piston rings (F) | 2 pcs |
| Piston ring mold | Rectangular ring |
| Nominal diameter | 38 mm |
| Piston ring impact | Flank safety device (FS) |
| Ø piston pin (B) | 12 mm |
| Piston ring height | 1.5 mm |
| Weight piston kit | 72 g |
| Tomos | Quadro Sprint |
