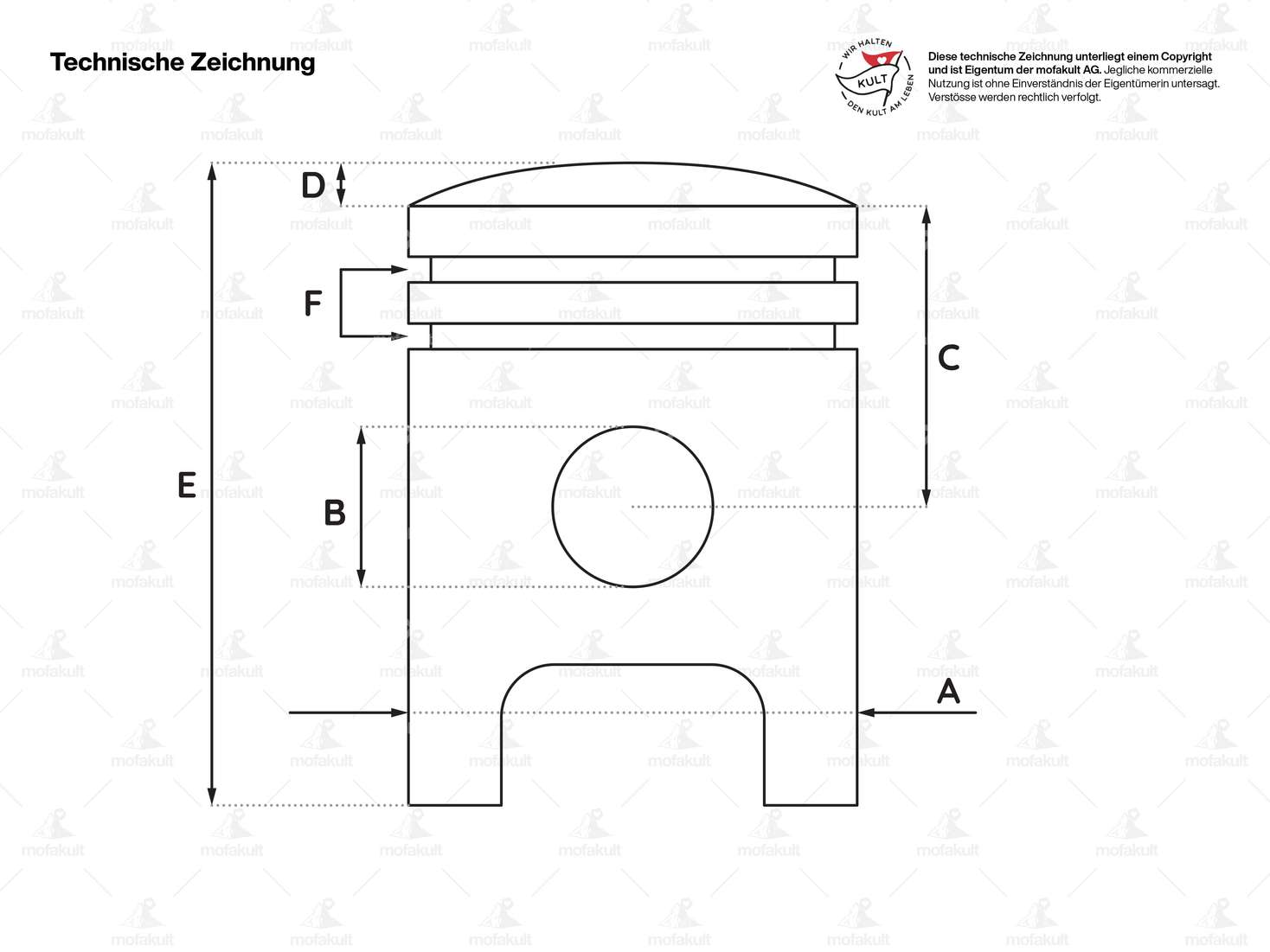

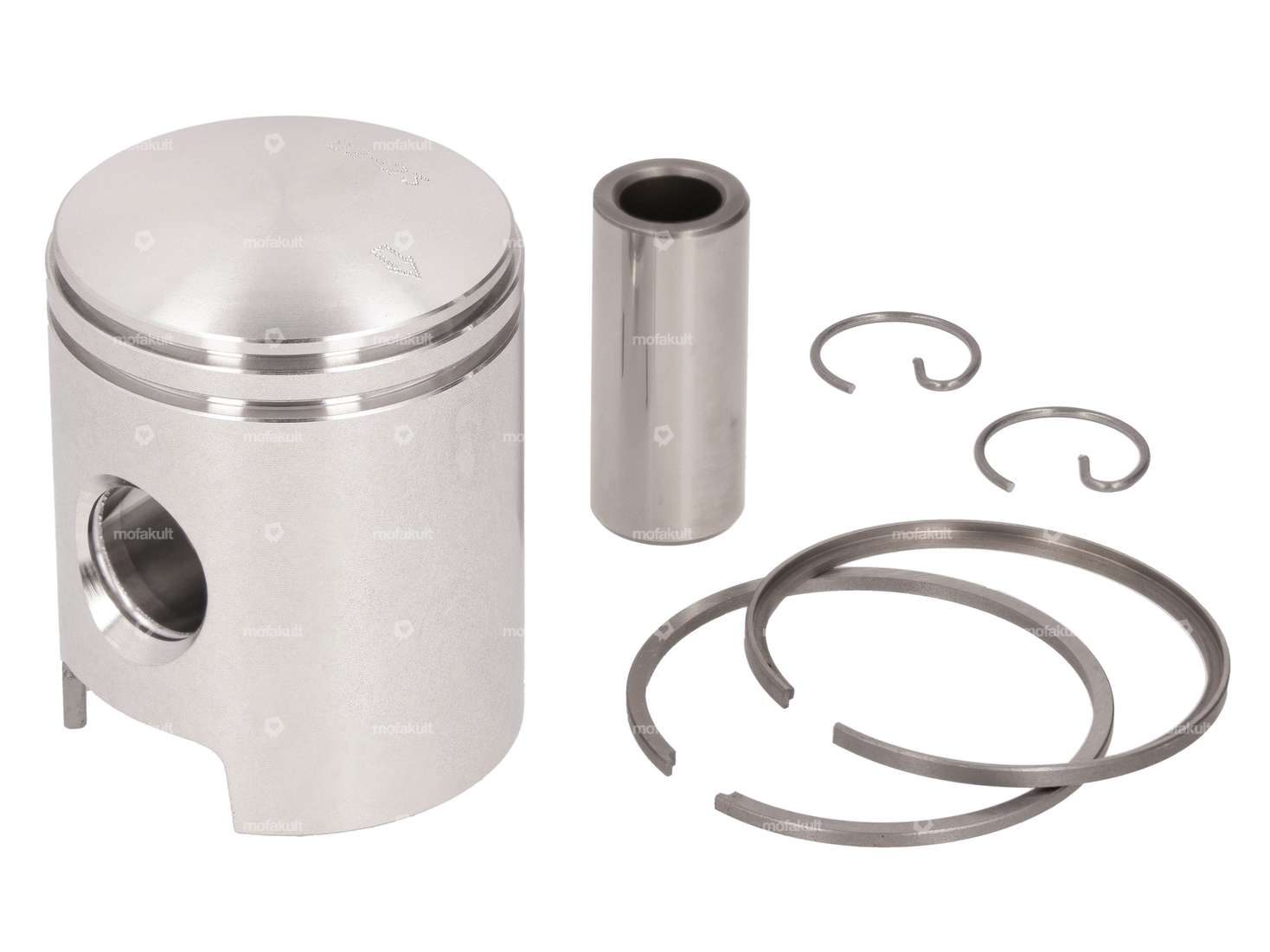

Meteor piston 39.965 mm (14 mm KoBo) D | Kreidler Florett RS

Buzzetti pliers for piston ring assembly

Manufacturer: Buzzetti · Area of application: (Dis)assembly tool

Motorex 2-stroke oil semi-synthetic 1 L (for running in cylinders)

Manufacturer: Motorex · Oil type: semi-synthetic · Color: green · Contents: 1000 ml

Buzzetti piston assembly tool 40 - 80 mm

Manufacturer: Buzzetti · Area of application: (Dis)assembly tool · Material: Metal · Number of components: 3 pcs · Ø inside: 40 - 80 mm

Clutch plates | Kreidler Florett

Ø inside: 66 mm · Ø outside: 89 mm · Ø outside: 94 mm · Number of slats: 4 pcs · Area of application: Standard

Meteor piston 39.95 mm (14 mm KoBo) A | Kreidler Florett RS

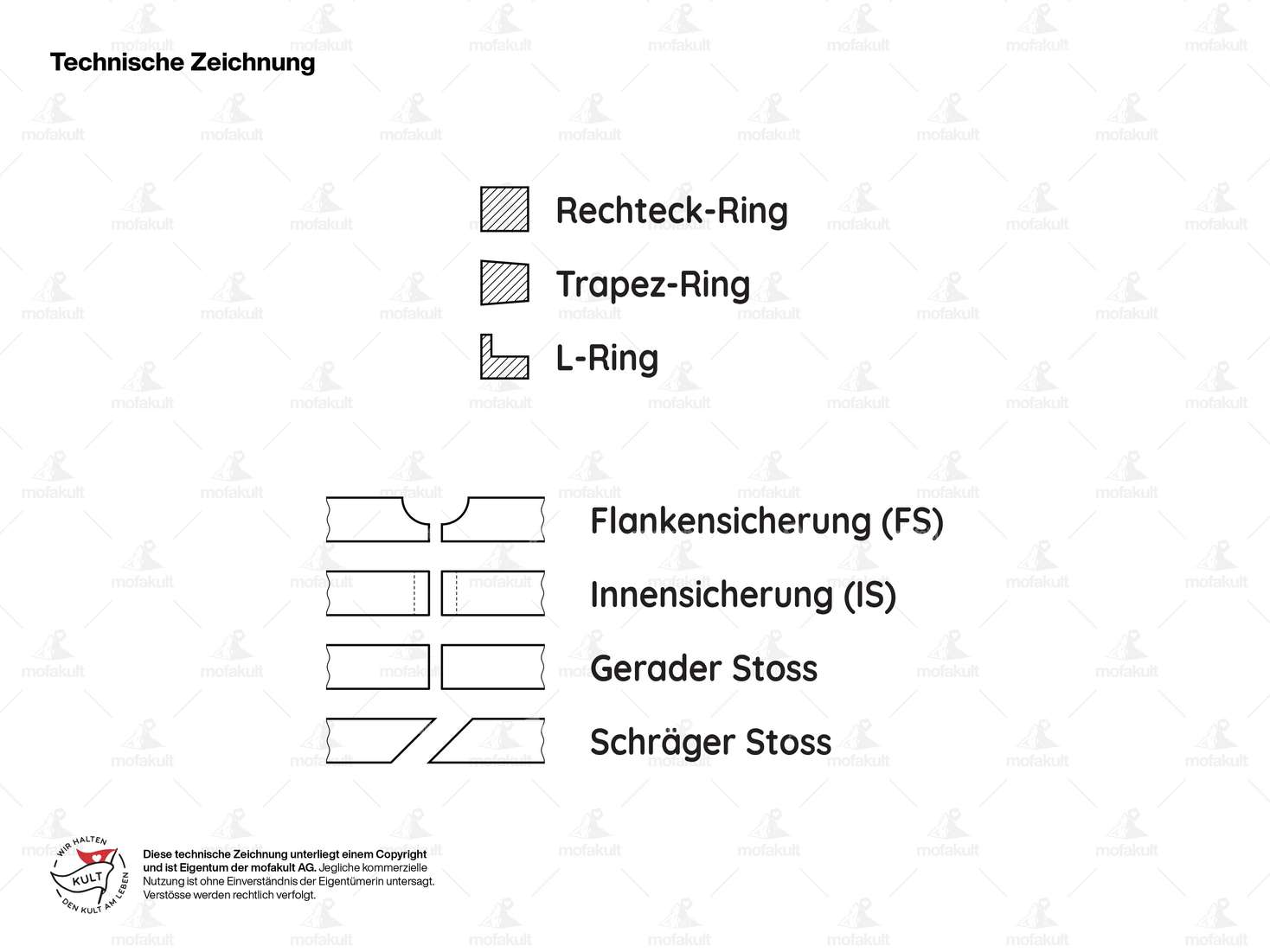

Manufacturer: Meteor · Nominal diameter: 40 mm · Ø outside piston (A): 39.95 mm · Ø piston pin (B): 14 mm · Compression height (C): 27 mm · Curvature (D): 3 mm · Total piston height (E): 51 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Tolerance group: A · Weight piston kit: 99 g

Meteor piston 39.955 mm (14 mm KoBo) B | Kreidler Florett RS

Manufacturer: Meteor · Nominal diameter: 40 mm · Ø outside piston (A): 39.955 mm · Ø piston pin (B): 14 mm · Compression height (C): 27 mm · Curvature (D): 3 mm · Total piston height (E): 51 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Tolerance group: B · Weight piston kit: 100 g

Meteor piston 39.96 mm (14 mm KoBo) C | Kreidler Florett RS

Manufacturer: Meteor · Ø outside piston (A): 39.96 mm · Compression height (C): 27 mm · Curvature (D): 3 mm · Total piston height (E): 51 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 40 mm · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Ø piston pin (B): 14 mm · Tolerance group: C · Weight piston kit: 100 g

Meteor piston 39.97 mm (14 mm KoBo) E | Kreidler Florett RS

Manufacturer: Meteor · Ø outside piston (A): 39.97 mm · Compression height (C): 27 mm · Curvature (D): 3 mm · Total piston height (E): 51 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 40 mm · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Ø piston pin (B): 14 mm · Tolerance group: E · Weight piston kit: 99 g

Meteor piston 39.975 mm (14mm KoBo) F | Kreidler Florett RS

Manufacturer: Meteor · Ø outside piston (A): 39.975 mm · Compression height (C): 27 mm · Curvature (D): 3 mm · Total piston height (E): 51 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 40 mm · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Ø piston pin (B): 14 mm · Tolerance group: F · Weight piston kit: 99 g

Meteor piston 38 mm (14 mm KoBo) B | Sachs 50

Manufacturer: Meteor · Nominal diameter: 38 mm · Ø outside piston (A): 37.96 mm · Ø piston pin (B): 14 mm · Compression height (C): 28 mm · Curvature (D): 2 mm · Total piston height (E): 51 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Tolerance group: B · Weight piston kit: 86 g

CAWI fuel filler cap bayonet 40 mm NOS

Manufacturer: CAWI · Material: Steel · Surface: chrome-plated · Color: Chrome · Fuel filler cap: Bayonet 40 mm · Lockable: No · Vented: Yes · Height: 23.4 mm · Ø External head: 64.8 mm

GPO sprocket 12 teeth (wide) | Puch

Manufacturer: GPO · Surface: Hardened · Material: Steel · Chain pitch: 1/2" x 3/16" · Chain type: 415H · Number of teeth: 12 pcs · Recording type: Interlocking · Total thickness: 4.6 mm · Ø inside: 13.7 mm · Ø inside: 16.9 mm

Magura adjusting screw brake long

Manufacturer: Magura · Material: Brass · Surface: nickel-plated · Thread type: MF6x0.75 (fine pitch thread) · Ø shaft: 6 mm · Color: silver · Ø External head: 9.1 mm · Total length: 47 mm · Total length: 65 mm · Thread length: 24 mm · Drive: Knurled screw · Shank length: 11 mm

Magura adjusting screw brake short

Manufacturer: Magura · Total length: 31 mm · Total length: 40 mm · Material: Brass · Surface: nickel-plated · Color: silver · Thread type: MF6x0.75 (fine pitch thread) · Drive: Knurled screw · Ø External head: 9.15 mm · Ø shaft: 6.1 mm · Shank length: 6.9 mm · Thread length: 15 mm · Magura OEM number: 315 390

GPO sprocket 36 teeth black | Puch Maxi, Puch X30 NG-2AH

Manufacturer: GPO · Material: Steel · Surface: powder-coated · Chain pitch: 1/2" x 3/16" · Chain type: 415H · Number of teeth: 36 pcs · Ø bolt circle: 106 mm · Ø inside: 94 mm · Ø mounting hole: 6.7 mm · Hole spacing: 36.5 mm · Hole spacing 2: 68 mm · Cranking (offset): 8 mm · Number of fixing points: 6 pcs · Color: black

Circlip A16 x 1

Fuse type: Outside · Material: Spring steel · Nominal diameter: 16 mm · Place of use: Universal

ESJOT drive chain 415H (reinforced) 114L (1A quality)

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Manufacturer: ESJOT · Material: Steel · Surface: blank / oiled · Color: gray · Number of chain links: 114 pcs · Rolling circumference: 1448 mm · Chain lock type: Spring lock · Ø bore: 4.05 mm · Ø Pin: 4 mm

swiing® revival screw set sprocket mounting galvanized | Puch Maxi

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Color: silver · Number of components: 24 pcs · Thread type: M6x1 (standard thread) · Drive: External hexagon · Screw head: Hexagon · Nominal diameter (thread): 6 mm · Width across flats: 10 mm · Shank: No · Thread length: 22 mm · Strength class: 8.8

Rubber washer under notched nail | Sachs 50/2, 503 AB/AC/ABL (A3890)

Material: Rubber · Ø inside: 3 mm · Ø outside: 10 mm · Height: 1.8 mm · Color: black · Pony OEM number: A3890 · Sachs OEM no.: 0660 002 000

swiing® revival needle roller bearing 12/15/14.2 original

Dimension needle bearing: 12/15 x 14.2 · Manufacturer: swiing® revival parts · Bearing cage: Sheet steel cage · Bearing type: Needle sleeve · Ø inside: 12 mm · Ø outside: 15 mm · Width: 14.2 mm · Alternative version of the Pony OEM number: A4222 · Tomos OEM number: 035548 · Alternative version of the Sachs OEM number: 0232 155 001
