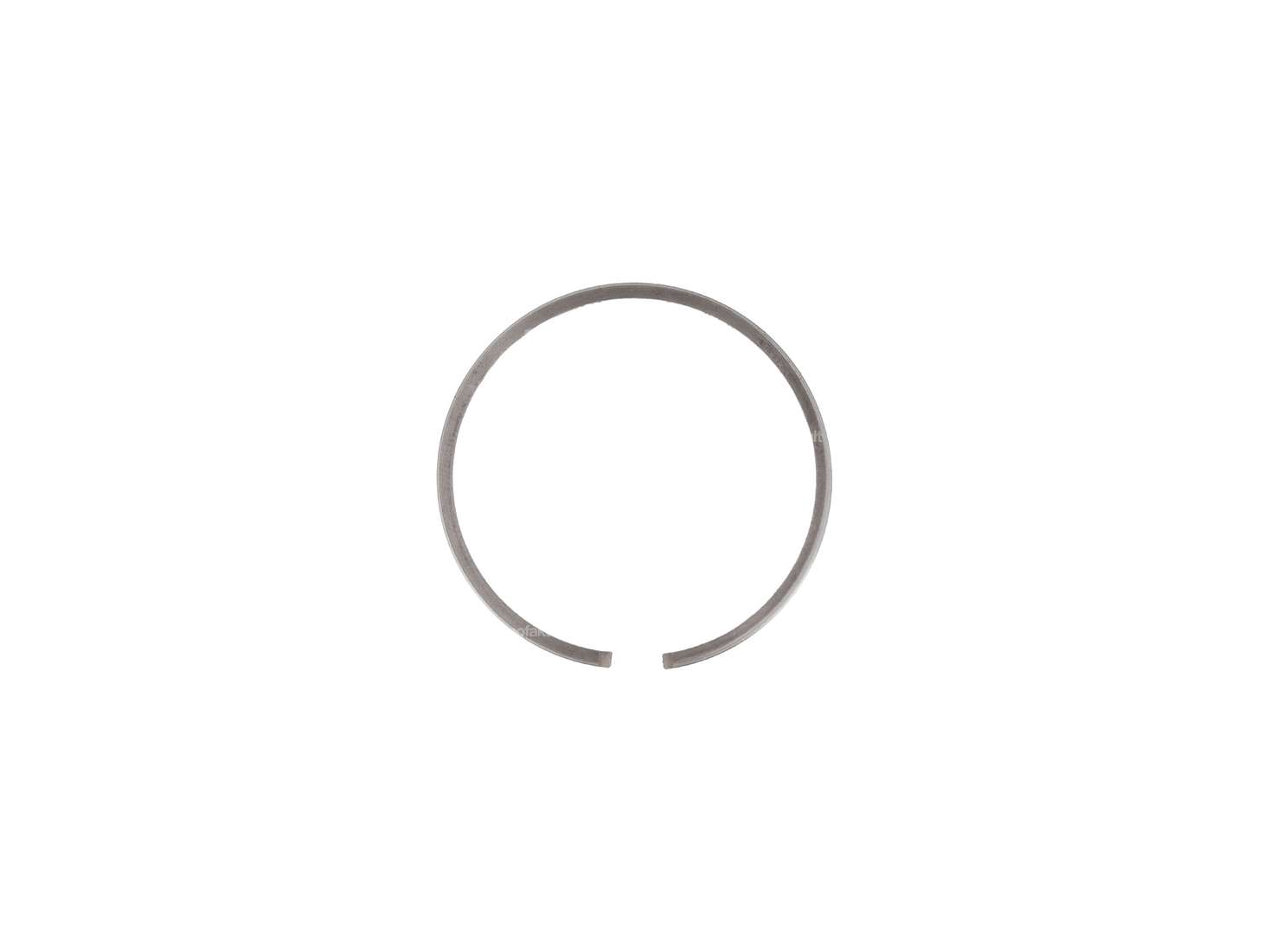

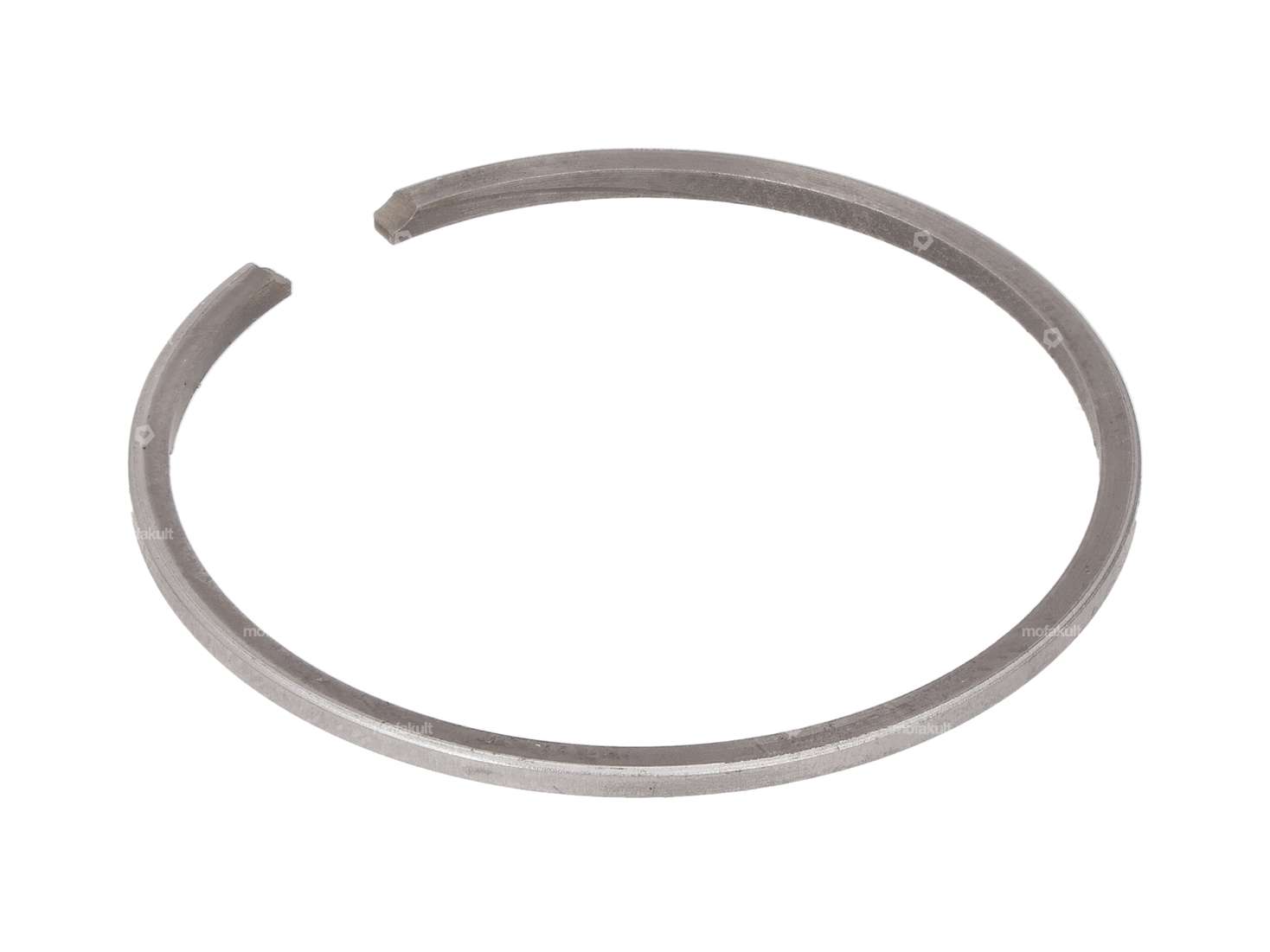

Meteor piston ring 38 x 1.5 mm (FS) hard chrome-plated

swiing® ingenious needle roller bearing 12/15/16.2 "Racing" silver cage

Bearing type: Needle roller and cage assembly · Manufacturer: swiing® ingenious parts · Bearing cage: Silver cage · Ø inside: 12 mm · Ø outside: 15 mm · Width: 16.2 mm · Dimension needle bearing: 12/15 x 16.2 · Tomos OEM number: 035548

Meteor piston 38 mm #1 | Puch Supermaxi Cat.

Manufacturer: Meteor · Nominal diameter: 38 mm · Ø outside piston (A): 37.955 mm · Ø piston pin (B): 12 mm · Compression height (C): 24 mm · Curvature (D): 2.3 mm · Total piston height (E): 55.3 mm · Number of piston rings (F): 1 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 1.5 mm · Tolerance group: 1 · Piston weight: 78 g

Meteor piston 38 mm #2 | Puch Supermaxi Cat.

Manufacturer: Meteor · Nominal diameter: 38 mm · Ø outside piston (A): 37.96 mm · Ø piston pin (B): 12 mm · Compression height (C): 24 mm · Curvature (D): 2.3 mm · Total piston height (E): 55.3 mm · Number of piston rings (F): 1 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 1.5 mm · Tolerance group: 2 · Piston weight: 78 g

Meteor piston 38 mm #3 | Puch Supermaxi Cat.

Manufacturer: Meteor · Nominal diameter: 38 mm · Ø outside piston (A): 37.965 mm · Ø piston pin (B): 12 mm · Compression height (C): 24 mm · Curvature (D): 2.3 mm · Total piston height (E): 55.3 mm · Number of piston rings (F): 1 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 1.5 mm · Tolerance group: 3 · Piston weight: 78 g

Meteor piston 38 mm type 4 | Puch Supermaxi Cat.

Manufacturer: Meteor · Ø outside piston (A): 37.97 mm · Compression height (C): 24 mm · Curvature (D): 2.3 mm · Total piston height (E): 55.3 mm · Number of piston rings (F): 1 pcs · Nominal diameter: 38 mm · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 1.5 mm · Ø piston pin (B): 12 mm · Tolerance group: 4 · Piston weight: 78 g

swiing® ingenious piston 38 mm | Sachs 50/2

Manufacturer: swiing® ingenious parts · Nominal diameter: 38 mm · Ø outside piston (A): 37.96 mm · Ø piston pin (B): 12 mm · Compression height (C): 28 mm · Curvature (D): 3.4 mm · Total piston height (E): 54 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 1.5 mm · Piston weight: 81 g

Exhaust 22 mm original 2-piece | Puch X30 Sport NS, NL

Manufacturer: Puch · Material: Steel · Color: Chrome · Surface: chrome-plated · Number of fixing points: 4 pcs · Ø Flame tube outside: 22 mm · Mounting type: Welded lug · Flame tube attachment: Flange

Chrome luggage rack | Puch Maxi S

Material: Steel · Color: Chrome · Surface: chrome-plated · Height: 32.5 mm · Total length: 425 mm · Mounting type: Nuts & bolts · Width: 168 mm · Wheel size [inch]: 17 " · Hole spacing: 29 mm · Number of fixing points: 4 pcs · Ø mounting hole: 8.3 mm · Ø mounting hole: 9 mm

Tank sticker "PUCH maxi S" 204 x 29 mm | Puch Maxi S

Material: Polyvinyl chloride (PVC) · Place of use: Tank (+ frame) · Color: Chrome · Color: black · Color: green · Color: white · Rear side texture: Adhesive · Consistency: UV-resistant · Consistency: petrol resistant · Width: 204 mm · Height: 29 mm · Border: Chrome surround · Puch OEM number: 349.2.20.537.0

OMG fuel filter metal 6 mm (removable)

Manufacturer: OMG · Material: Glass · Material: Metal · Ø inside: 3.45 mm · Ø outside: 22 mm · Filter type: Plastic net · Total length: 40 mm · Total length: 63 mm · demountable: Yes · Color: gray · Color: transparent · Color: white · Ø fuel hose connection: 5.6 mm · Ø fuel hose connection: 6 mm

GPO gasket cylinder base 0.35 mm original | Puch

Nominal diameter: 47 mm · Manufacturer: GPO · Place of use: Cylinder base · Material: Oiled paper · Ø inside: 47 mm · Thickness: 0.3 mm · Area of application: Standard · Hole pattern [mm]: 44 x 44 · Puch OEM number: 349.3.10.013.1

Exhaust gasket original | Puch

Place of use: Outlet · Material: Sealing carton · Ø inside: 18 mm · Ø inside: 22 mm · Ø mounting hole: 6.3 mm · Thickness: 1.8 mm · Number of fixing points: 2 pcs · Hole spacing: 42.5 mm

GPO 38 mm gasket cylinder head 0.4 mm aluminum | Puch

Manufacturer: GPO · Material: Aluminum · Area of application: Standard · Nominal diameter: 39 mm · Thickness: 0.4 mm · Ø cylinder: 38 mm · Ø inside: 39 mm · Place of use: Cylinder head · Ø screw holder: 7 mm · Hole pattern [mm]: 44 x 44 · Puch OEM number: 349.3.10.013.1

swiing® revival bellows Ø 23/30 x 100 mm | Puch

Material: Rubber · Manufacturer: swiing® revival parts · Color: black · Total length: 103 mm · Ø inside: 23 mm · Ø outside: 35 mm · Ø outside: 45 mm · Ø inside 2: 30 mm

Exhaust 18 mm original 1-piece | Puch Maxi S, N

Manufacturer: Puch · Surface: chrome-plated · Material: Steel · Color: Chrome · Ø Flame tube outside: 18 mm · Mounting type: Welded lug · Number of fixing points: 4 pcs · Flame tube attachment: Flange

swiing® revival stud bolt M6 x 106 mm (10.9 strength)

Manufacturer: swiing® revival parts · Total length: 106 mm · Thread length: 12 mm · Thread length: 20 mm · Material: Steel · Surface: galvanized (blue) · Thread type: M6x1 (standard thread) · Puch OEM number: 360.1.10.034.1
