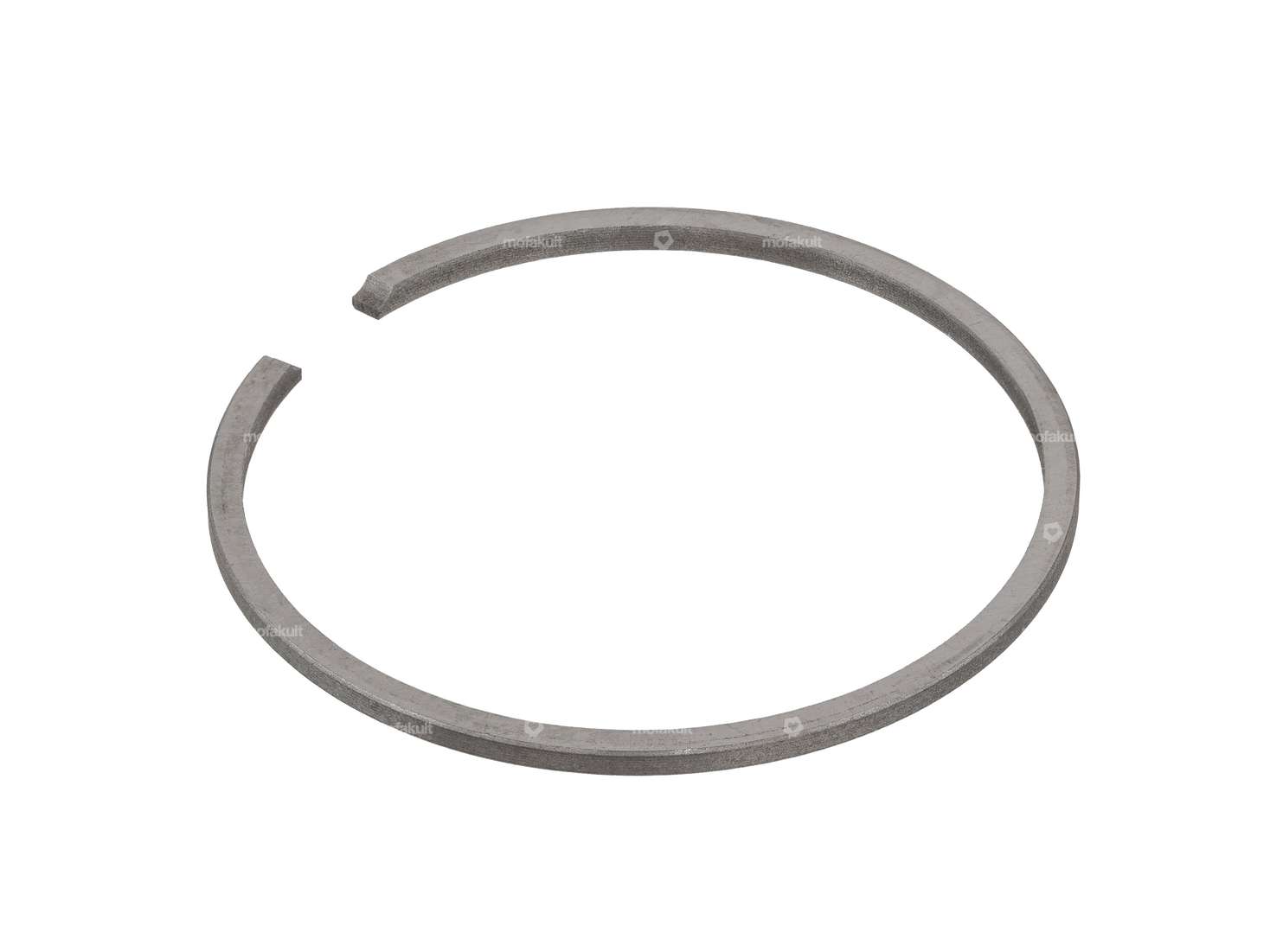

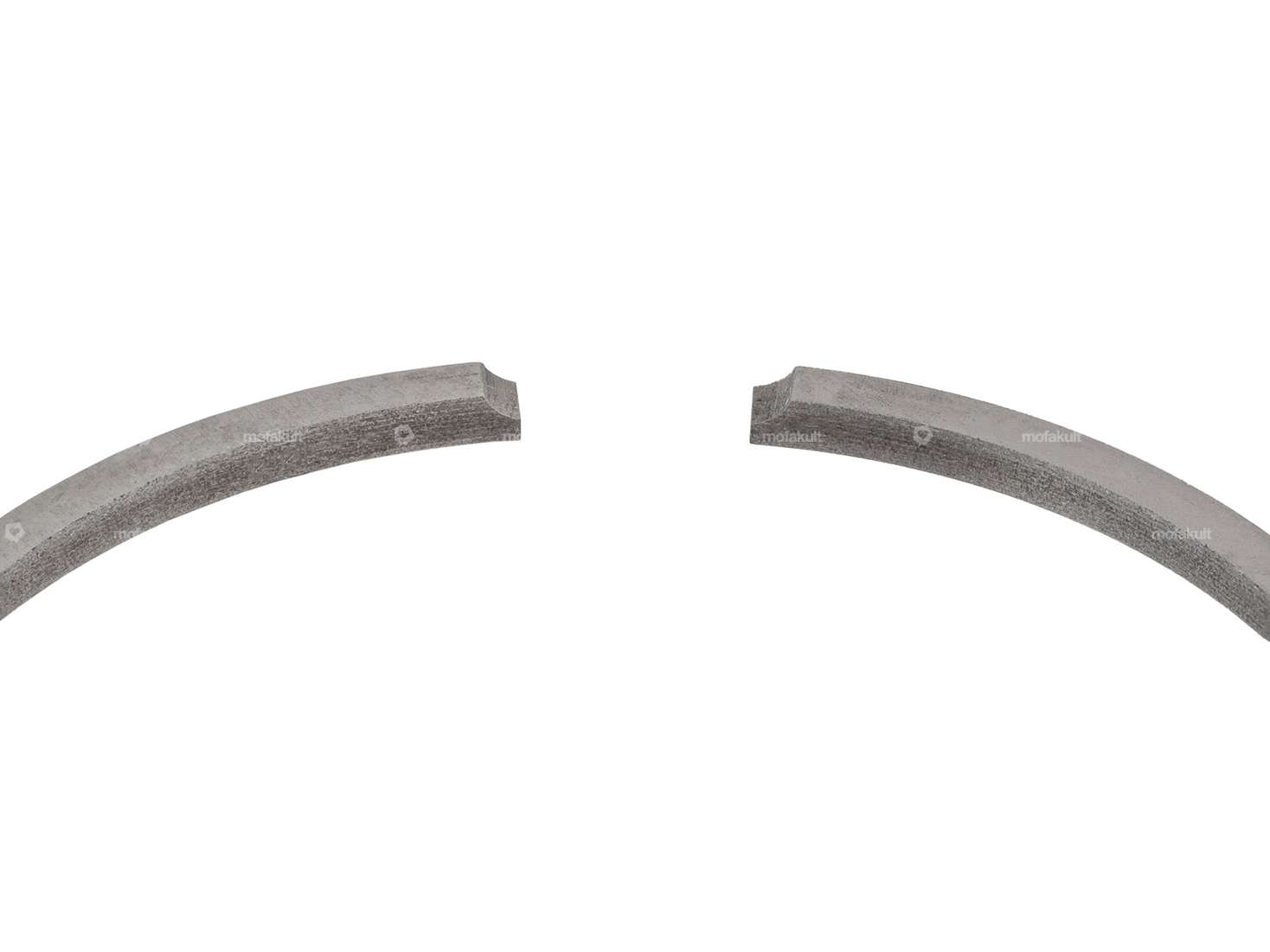

Meteor piston ring 39 x 1.5 mm (FS) | Puch Supermaxi LG1, LG2 Cat.

swiing® revival gasket cylinder base | Puch Kat

Manufacturer: swiing® revival parts · Material: Sealing paper · Place of use: Cylinder base · Thickness: 0.6 mm

swiing® revival stud bolt M6x106 (10.9 strength class)

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Thread type: M6x1 (standard thread) · Nominal diameter (thread): 6 mm · Thread length: 12 mm · Thread length: 20 mm · Total length: 106 mm · Puch OEM number: 360.1.10.034.1

Gasket cylinder head 38 mm | Puch Supermaxi

Manufacturer: Puch · Material: Aluminum · Ø cylinder: 38 mm · Place of use: Cylinder head · Thickness: 0.8 mm · Ø screw holder: 6.5 mm

Meteor piston 39 mm oversize | Puch Supermaxi Cat.

Manufacturer: Meteor · Ø outside piston (A): 39 mm · Compression height (C): 24 mm · Curvature (D): 2.3 mm · Total piston height (E): 55.3 mm · Number of piston rings (F): 1 pcs · Nominal diameter: 39 mm · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 1.5 mm · Ø piston pin (B): 12 mm · Weight piston kit: 86 g

Motorex 2-stroke oil semi-synthetic 1 L (for running in cylinders)

Manufacturer: Motorex · Oil type: semi-synthetic · Contents: 1000 ml · Color: green

swiing® ingenious needle roller bearing 12/15/14.2 original silver cage

Bearing type: Needle roller and cage assembly · Manufacturer: swiing® ingenious parts · Bearing cage: Silver cage · Ø outside: 15 mm · Ø inside: 12 mm · Width: 14.2 mm · Dimension needle bearing: 12/15 x 14.2 · Alternative version of the Pony OEM number: A4222 · Tomos OEM number: 035548 · Alternative version of the Sachs OEM number: 0232 157 001

KMC drive chain 415H (reinforced) 128L

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Manufacturer: KMC · Material: Steel · Color: gray · Number of chain links: 128 pcs · Rolling circumference: 1626 mm · Chain lock type: Spring lock · Surface: blank / oiled · Ø bore: 4 mm · Ø Pin: 3.94 mm

Magura cable clamp Ø 8 x 15 mm

Ø Bundle: 6 mm · Ø Cable bushing: 2.3 mm · Manufacturer: Magura · Material: Brass · Area of application: Standard · Material: Steel · Total length: 15 mm · Screw head: Hexagon · Surface: galvanized (blue) · Surface: nickel-plated · Ø outside: 8 mm · Width across flats: 7 mm · Drive: External hexagon · Drive: Slot · Thread type: M6x1 (standard thread) · Thread length: 7 mm

swiing® revival upright spring blue galvanized | Puch

Spring design: Tension spring · Length spring hook: 19 mm · Length spring hook: 53 mm · Manufacturer: swiing® revival parts · Material: Spring steel · Surface: galvanized (blue) · Ø wire: 2.5 mm · Ø outside: 14 mm · Ø inside: 9 mm · Total length: 122 mm

Airsal piston 45 mm | Puch

Manufacturer: Airsal · Ø outside piston (A): 44.95 mm · Compression height (C): 22.45 mm · Curvature (D): 4.3 mm · Total piston height (E): 50.3 mm · Number of piston rings (F): 1 pcs · Nominal diameter: 45 mm · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Thick piston ring: 2 mm · Ø piston pin (B): 12 mm · Weight piston kit: 91 g

swiing® revival Stud Bolt, Inlet/Outlet M6x30 (Grade 10.9)

Manufacturer: swiing® revival parts · Material: Steel · Diameter: 5.95 mm · Total length: 30 mm · Nominal diameter (thread): 6 mm · Surface: galvanized (blue) · Strength class: 10.9 · Thread type: M6x1 (standard thread) · Thread length: 12 mm

Rear brake cable | Puch

Manufacturer: Made in Germany · Material: Plastic · Material: Steel · Color: black · Quantity: 1 pcs · Ø Stranded wire: 1.8 mm · Outer shell length: 1680 mm · Nipple shape: Pears · Total length: 1820 mm

Meteor piston ring 38.5 x 1.5 (FS)

Manufacturer: Meteor · Nominal diameter: 38.5 mm · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Height: 1.5 mm · Thick piston ring: 1.6 mm

Meteor piston ring 39 x 1.5 (FS)

Height: 1.5 mm · Manufacturer: Meteor · Nominal diameter: 39 mm · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Thick piston ring: 1.65 mm

Meteor piston ring 38.5 x 1.5 mm (FS) | Puch Supermaxi LG1, LG2 Cat.

Manufacturer: Meteor · Nominal diameter: 38.5 mm · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Height: 1.5 mm · Thick piston ring: 1.6 mm
