For: Victoria

22697

Piston 38.5 mm | Victoria MS50 / MS51

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 66.30

Incl. 21% VAT.

Description

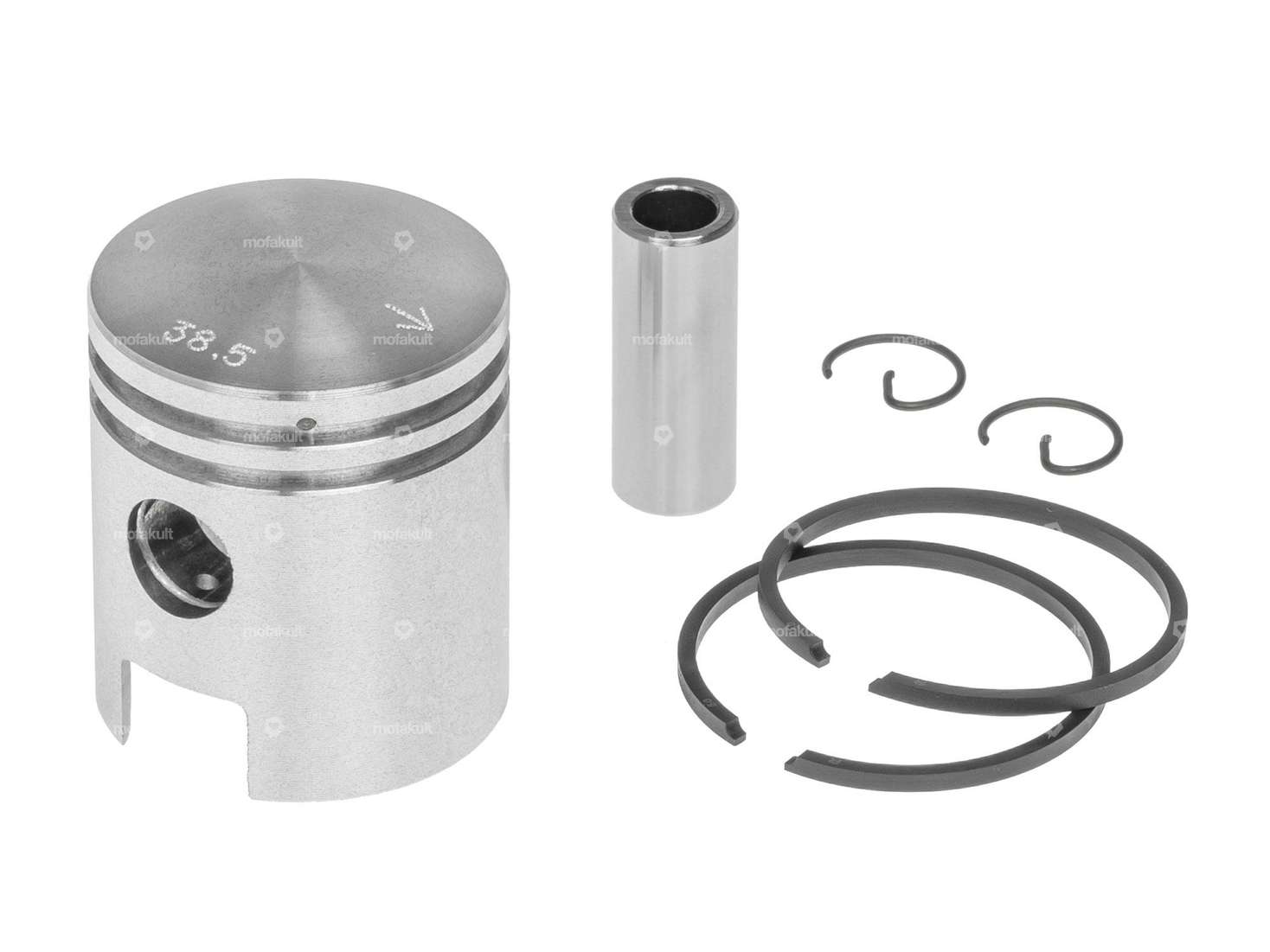

Piston with two 2 mm rectangular piston rings with flank lock (FS) suitable for Victoria MS50 / MS51 small engines.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

Ø outside piston (A)38.45 mm
Ø piston pin (B)12 mm
Compression height (C)19.8 mm
Curvature (D)2.2 mm
Total piston height (E)40.05 mm
Number of piston rings (F)2 pcs
Piston ring moldRectangular ring
Nominal diameter38 mm
Piston ring impactFlank safety device (FS)
Piston ring height2 mm
Weight piston kit71 g
