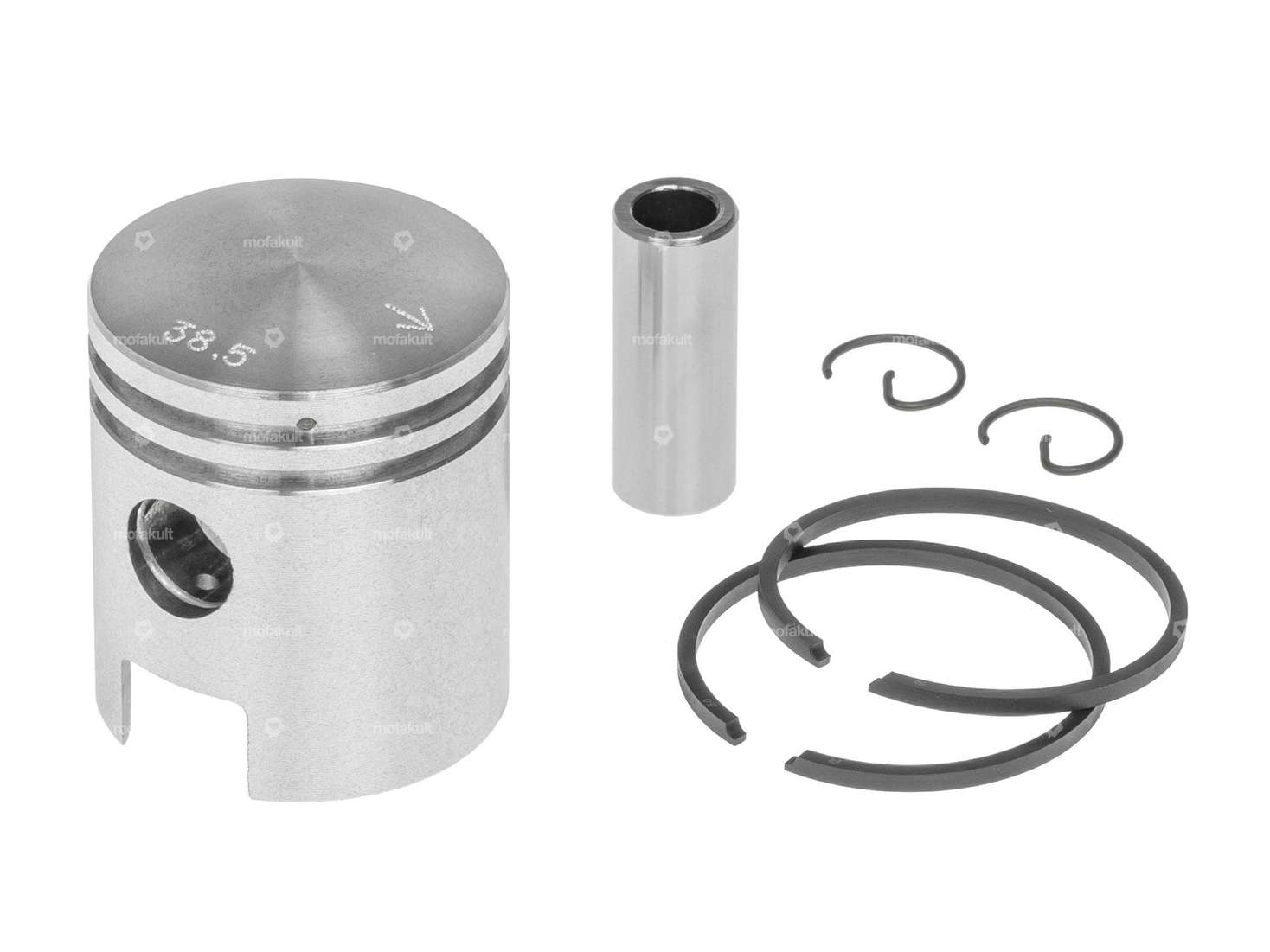

Piston with two 2 mm rectangular piston rings with flank lock (FS) suitable for Victoria MS50 / MS51 small engines.
The detailed dimensions of the piston according to the technical drawing can be found in the details. In addition, you can find out about the relevant piston rings, their stems and locking types on the legend in the images.
The piston kit contains piston pins, piston clips and piston rings.
You will find the corresponding assembly tools, piston pin locks and, if applicable, the corresponding cylinder in the accessories section.
| Nominal diameter | 38 mm |
| Ø outside piston (A) | 37.95 mm |
| Ø piston pin (B) | 12 mm |
| Compression height (C) | 19.95 mm |
| Curvature (D) | 2.1 mm |
| Total piston height (E) | 46.05 mm |
| Number of piston rings (F) | 2 pcs |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Flank safety device (FS) |
| Piston ring height | 2 mm |
| Piston weight | 70 g |
| Victoria |
Accessories & related products
GPO piston pin extractor Ø 10, 12, 14 mm
Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Manufacturer: GPO · Material: Steel · Surface: burnished · Number of components: 7 pcs · Total length: 130 mm · Width across flats SW: 10 mm · Width across flats SW: 17 mm · Area of application: (Dis)assembly tool
EUR 23.60
Piston 38.5 mm | Victoria MS50 / MS51
Ø outside piston (A): 38.45 mm · Compression height (C): 19.8 mm · Curvature (D): 2.2 mm · Nominal diameter: 38 mm · Total piston height (E): 40.05 mm · Number of piston rings (F): 2 pcs · Piston ring impact: Flank safety device (FS) · Piston ring mold: Rectangular ring · Ø piston pin (B): 12 mm · Piston ring height: 2 mm · Piston weight: 71 g
EUR 66.40
Piston 39 mm | Victoria MS50 / MS51
Ø outside piston (A): 38.95 mm · Compression height (C): 19.8 mm · Curvature (D): 2.15 mm · Nominal diameter: 39 mm · Total piston height (E): 46.05 mm · Number of piston rings (F): 2 pcs · Piston ring impact: Flank safety device (FS) · Piston ring mold: Rectangular ring · Ø piston pin (B): 12 mm · Piston ring height: 2 mm · Piston weight: 74 g
EUR 66.40

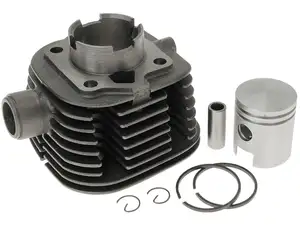

Cylinder 38 mm | Victoria MS50/MS51 (M50)
