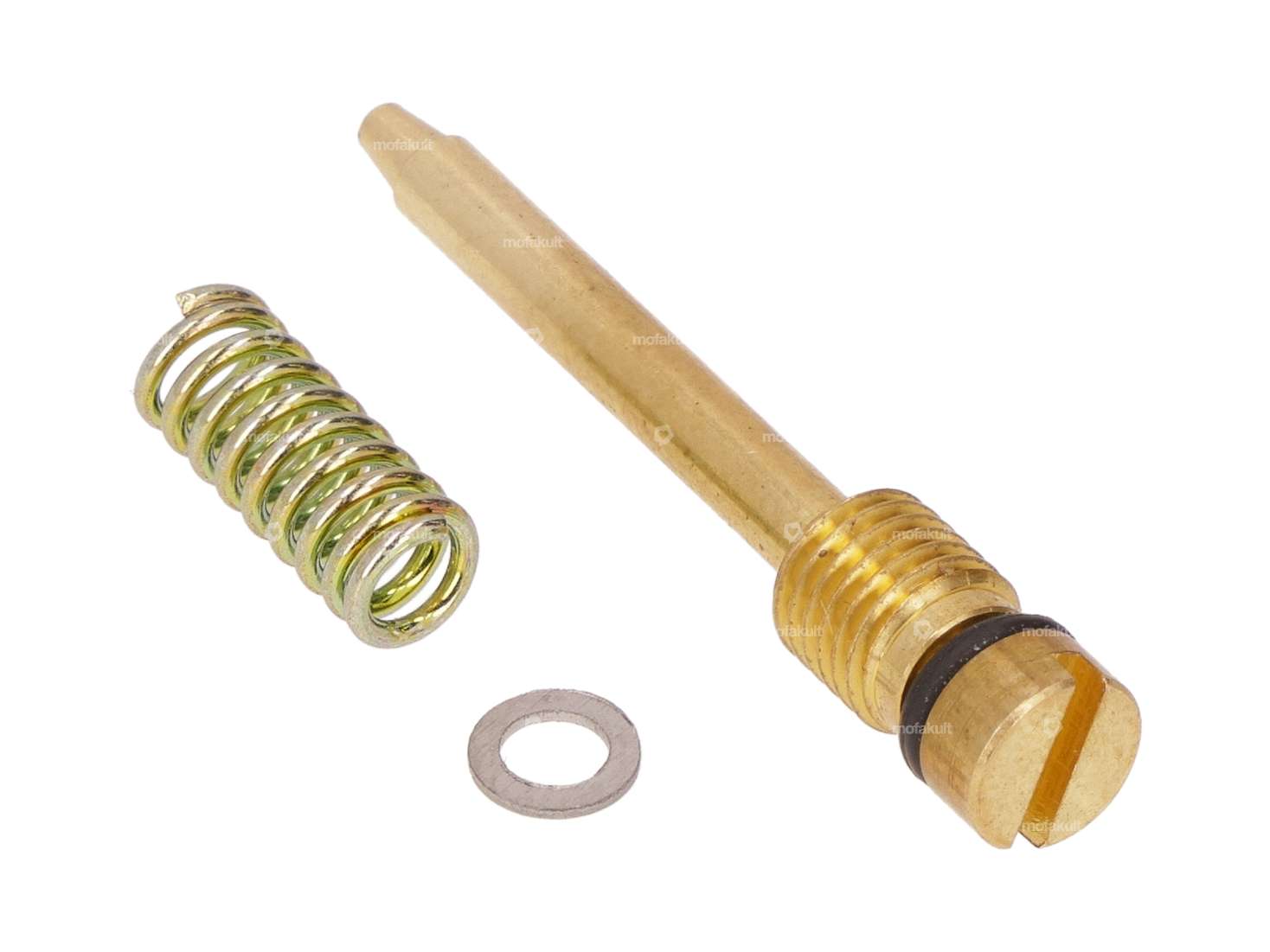

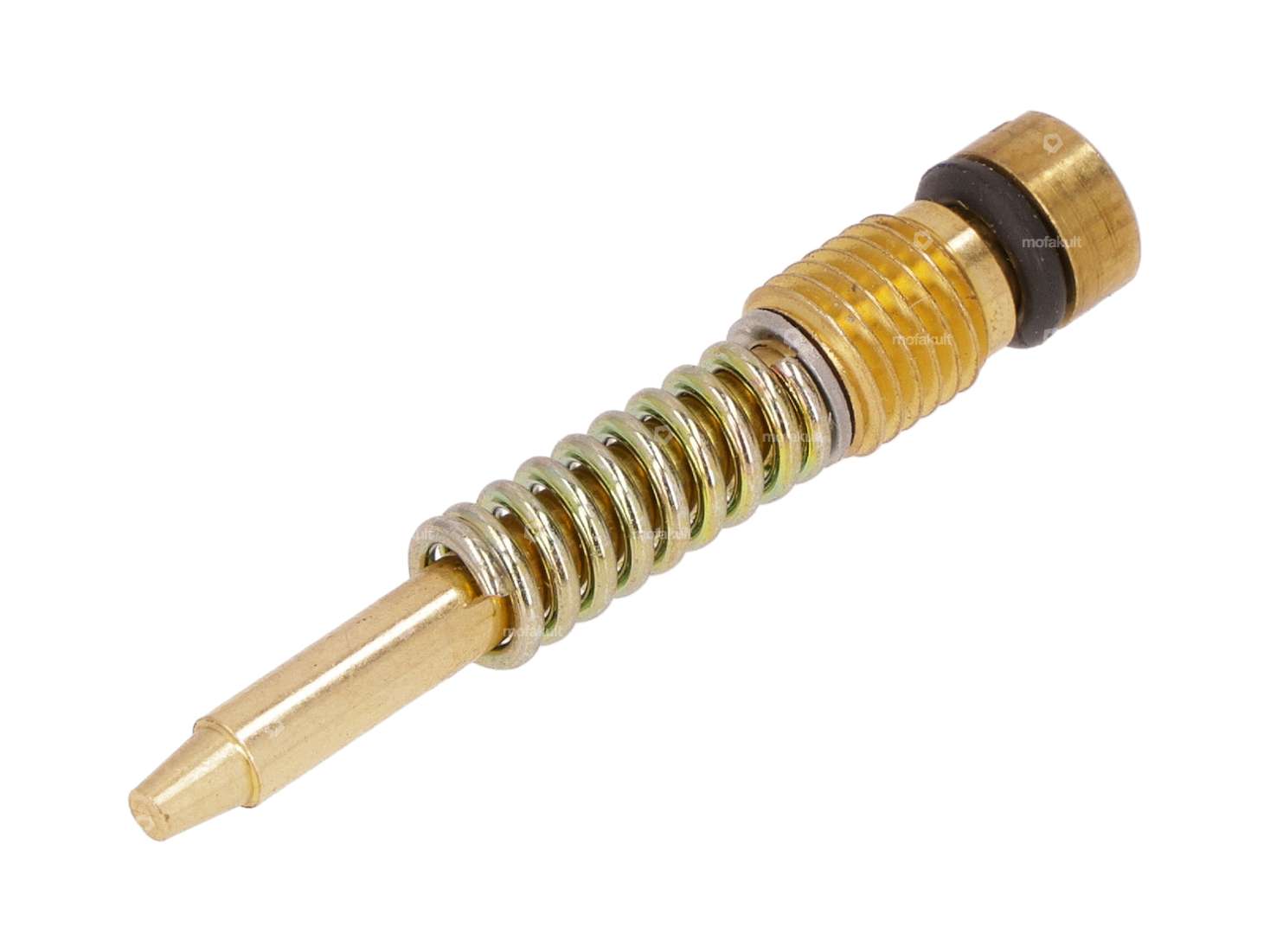

Adjusting screw for the air/fuel mixture of Polini flat slide carburetor PWK / CP in sizes 24, 26, 28 and 30 mm for your moped, moped and small motorcycle.
This screw makes it possible to precisely adjust the ratio of air to fuel in the mixture formation, which ensures optimum engine performance and efficiency.
Other Polini spare parts and corresponding carburettor equipment can be found in the accessories section.
Quality product from the Italian manufacturer Polini.
Polini spare part number: 342.0107
Details
| Total length | 36 mm |
| Manufacturer | Polini |
| Material | Brass, Spring steel, Sheet metal (steel), Rubber |
| Area of application | Tuning |
| Thread type | MF6x0.75 (fine pitch thread) |
| Drive | Slot |
| Thread length | 5 mm |
| Ø External head | 6 mm |
| Shank length | 22 mm |
| Ø shaft | 3 mm |
| Number of components | 4 pcs |
