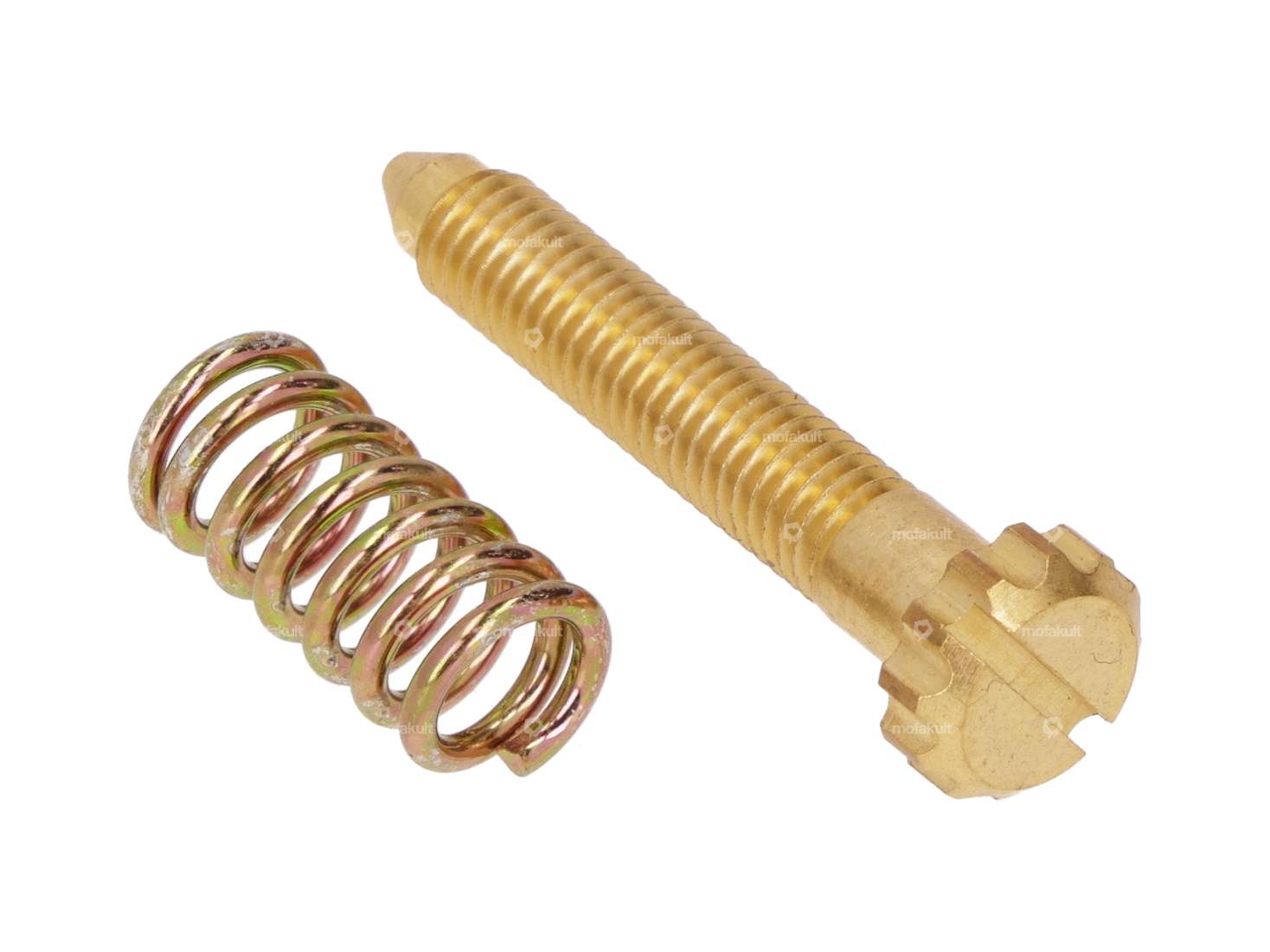

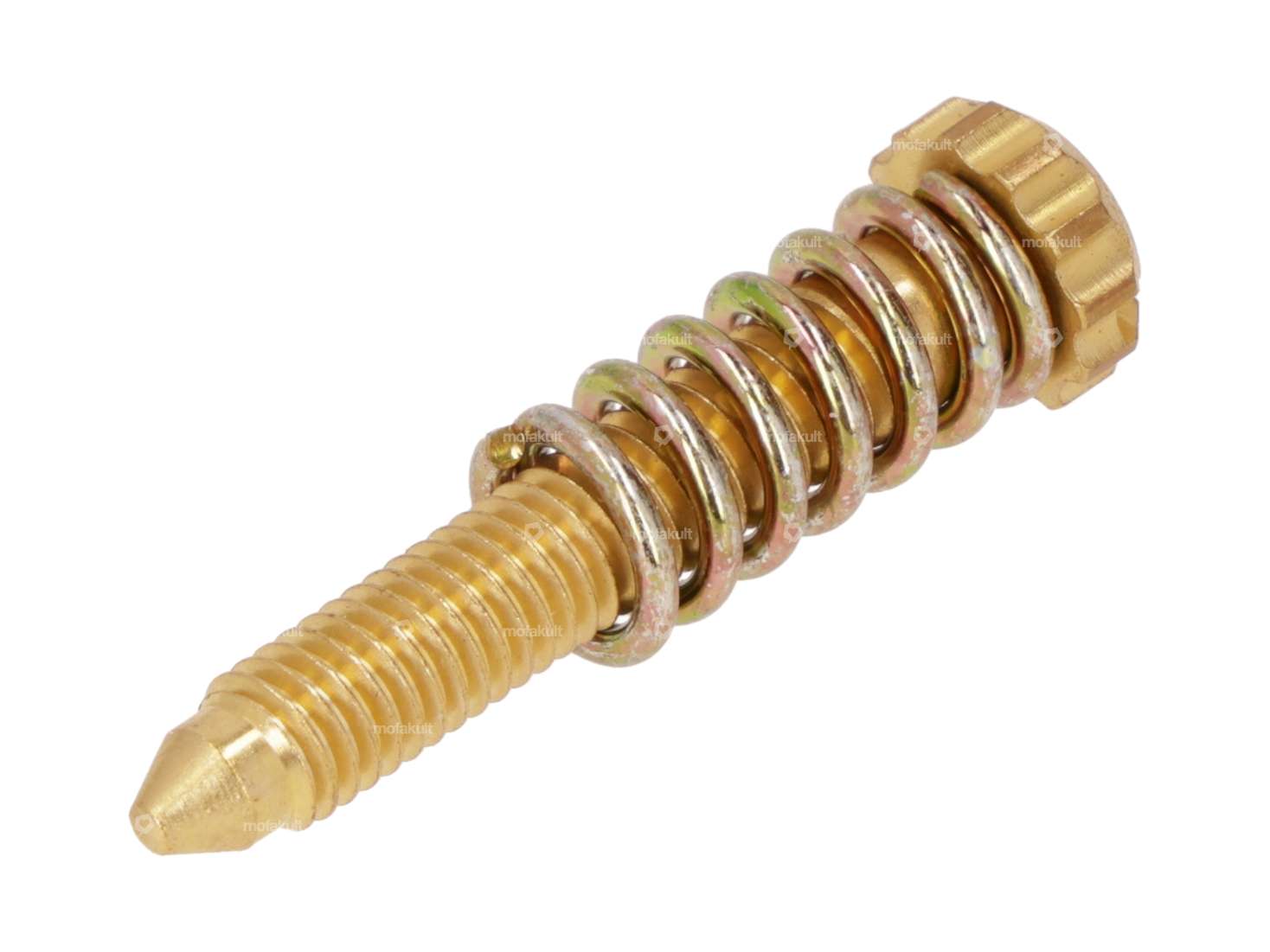

Adjusting screw for the idle throttle of Polini CP & PWK flat slide carburetor of sizes 24 / 26 / 28 / 30 mm on your moped, moped and small motorcycle.
Other Polini spare parts and corresponding carburettor equipment can be found in the accessories section.
Quality product from the Italian manufacturer Polini.
Polini spare part number: 342.0109
| Manufacturer | Polini |
| Material | Brass, Spring steel |
| Area of application | Tuning |
| Ø shaft | 5 mm |
| Drive | Slot, Knurled screw |
| Total length | 34.2 mm |
| Thread length | 22 mm |
| Shank length | 5.5 mm |
| Thread type | M5x0.8 (standard thread) |
