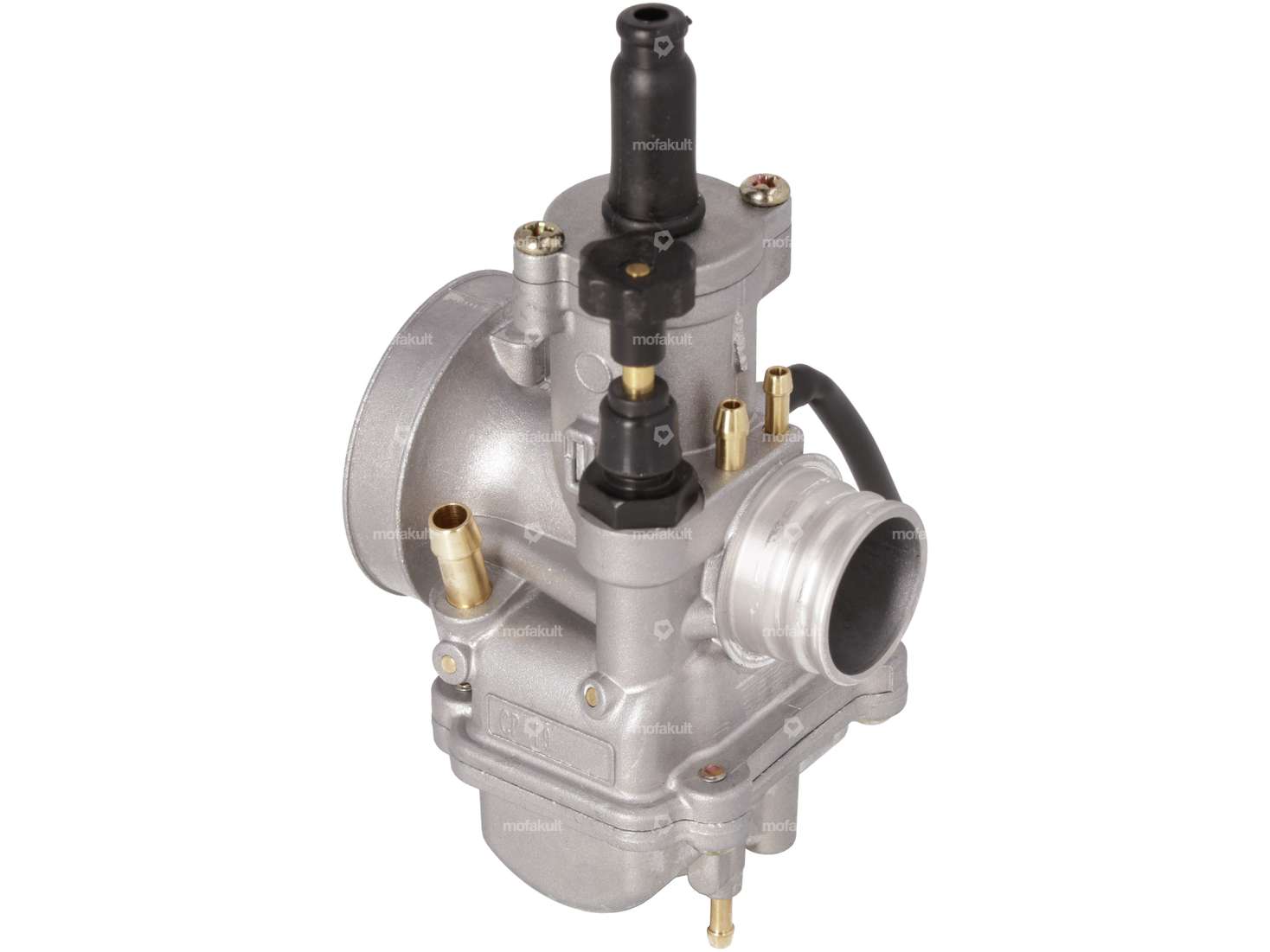

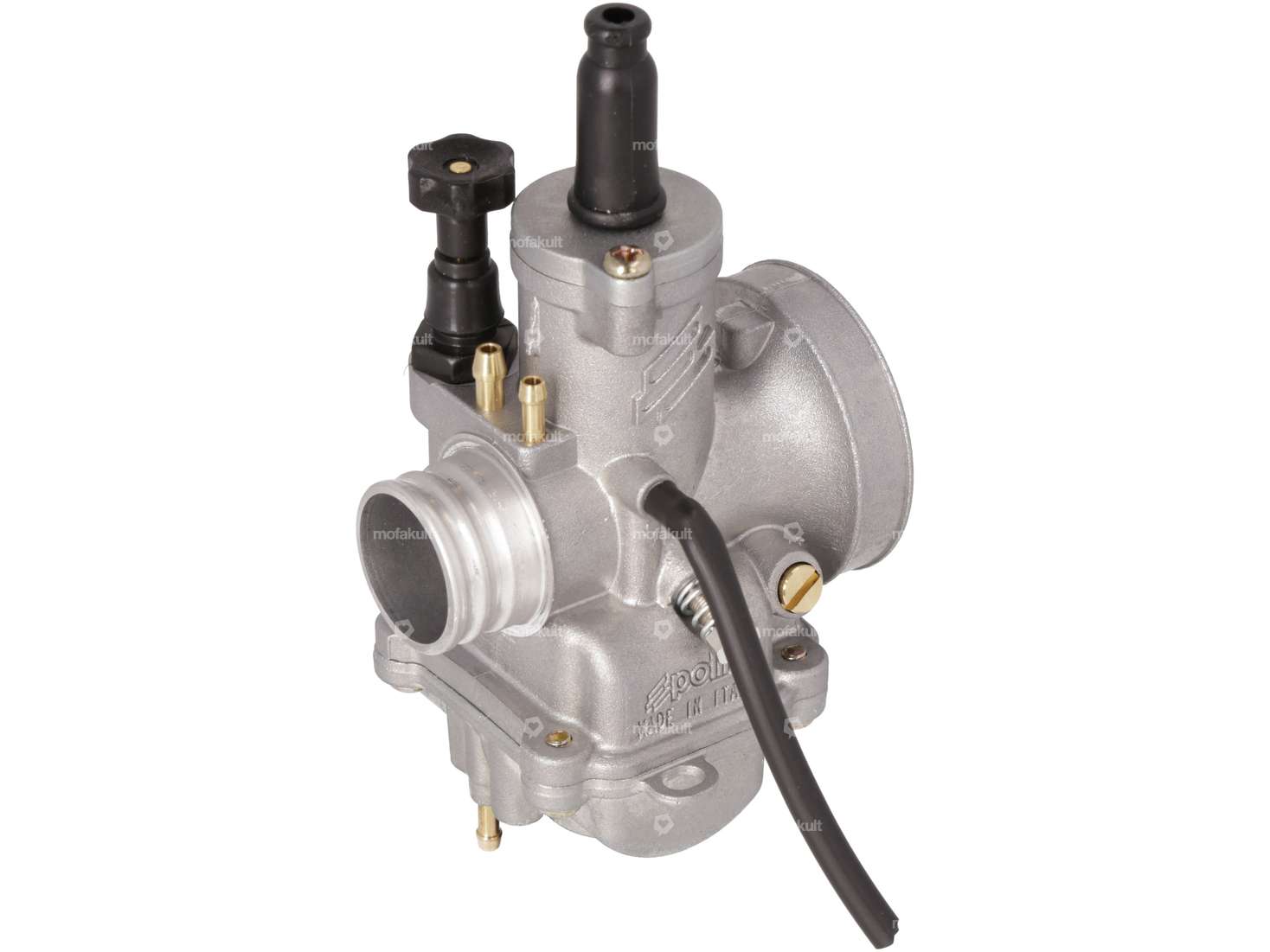

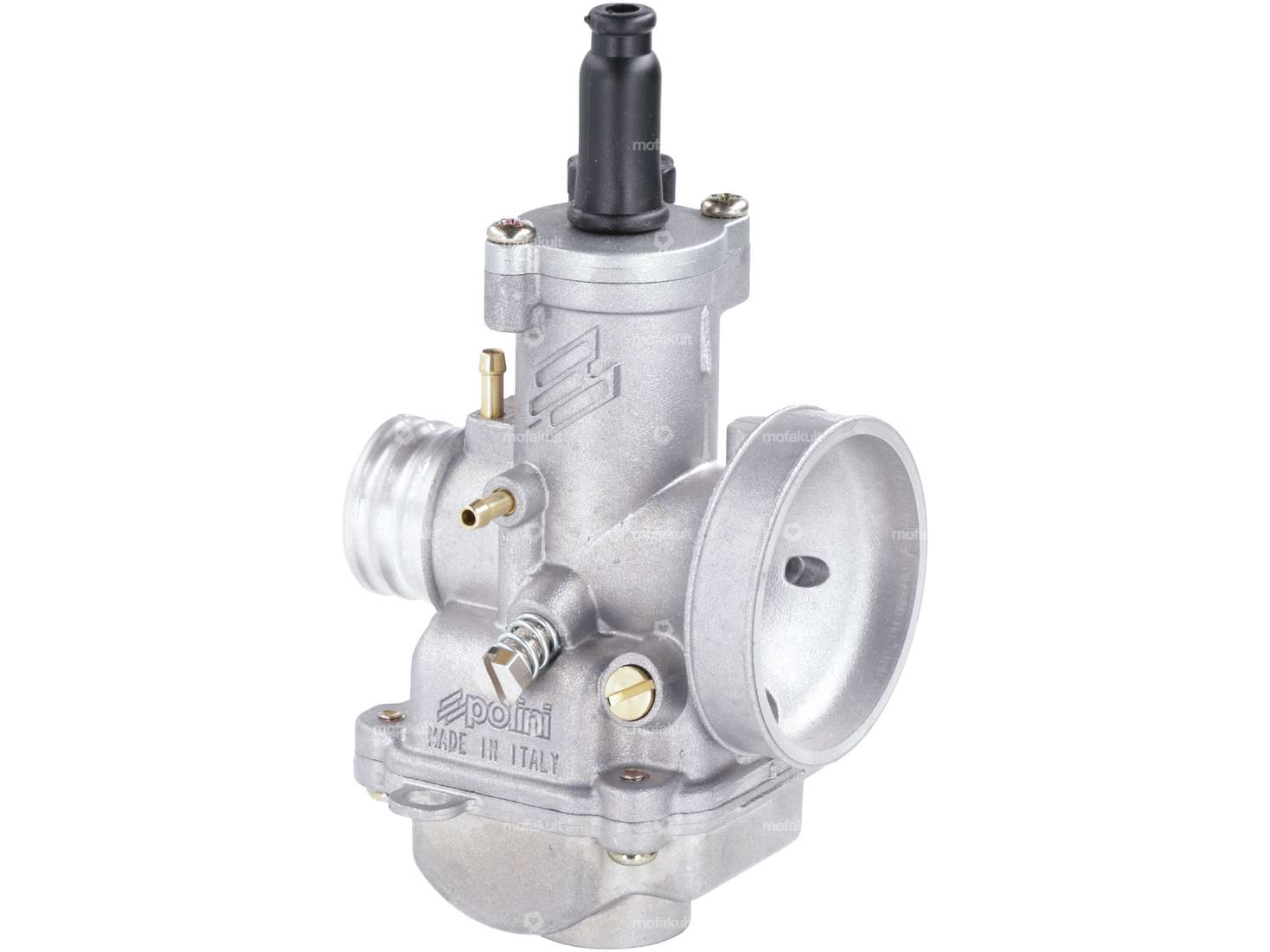

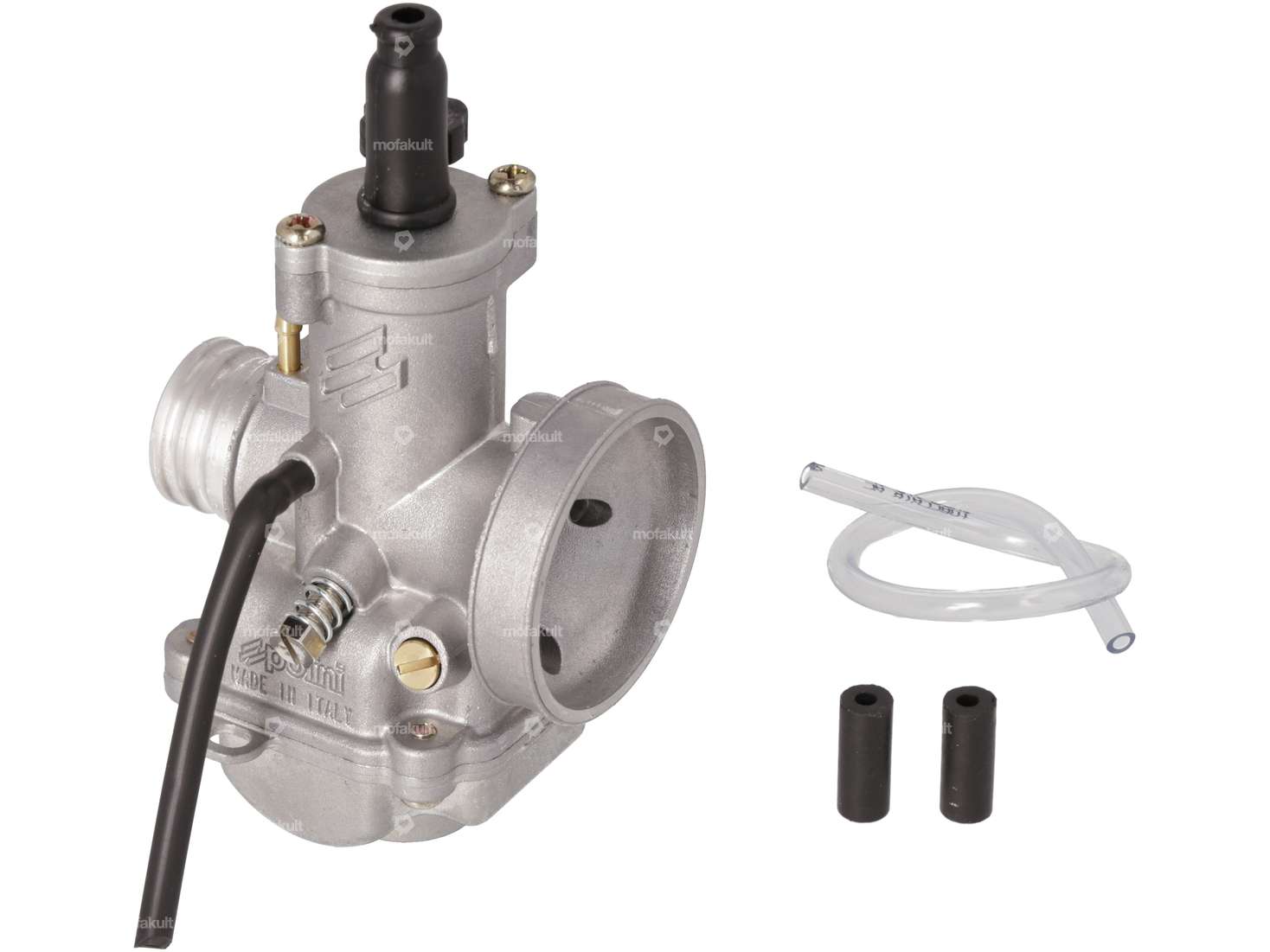

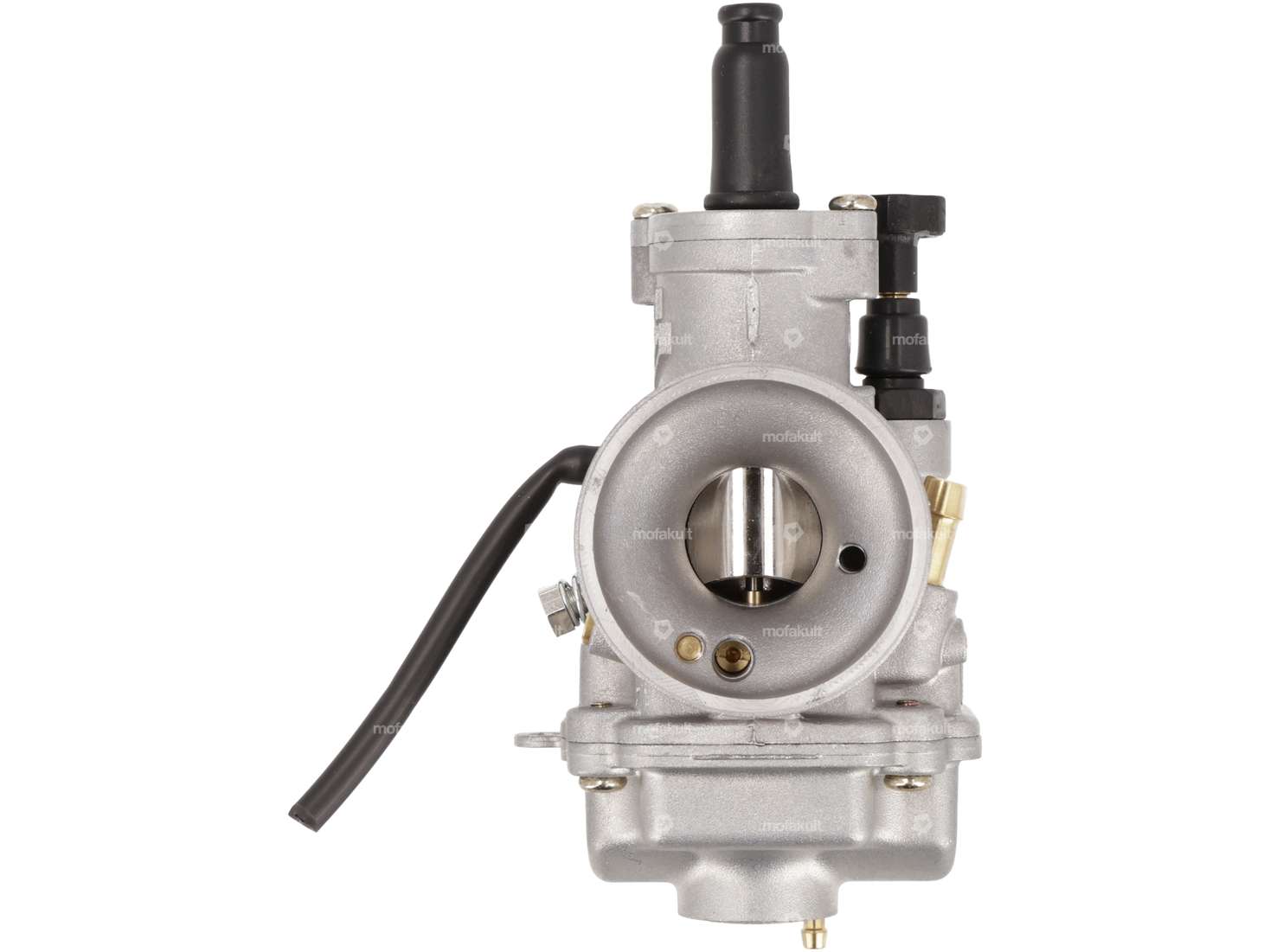

Polini CP 19 carburetor for your racing moped, moped and small motorcycle with the highest demands. The racing carburetor developed by Polini has a compact design and is around 40 % lighter than comparable carburetors. The air flow is optimized thanks to the short intake path and the circular passage. The larger needle and an adapted mixing tube support the atomization of the gas mixture. This makes it very easy to tune the carburetor. In addition, consumption is reduced even at high power levels.
Fastening to the intake manifold is by means of a rubber sleeve.
Installed main jet: 90
Installed secondary jet: 40
Ø Nominal: 19 mm
Ø Air filter connection: 46 mm
Ø Intake manifold connection: 25 mm
Alternative racing carburetors, the sleeve for installation and the matching nozzles can be found in the accessories section.
Quality product from the Italian manufacturer Polini.
Details
| Total length | 71 mm |
| Width | 66 mm |
| Height | 132 mm |
| Manufacturer | Polini |
| Material | Aluminum |
| Area of application | Tuning, Racing, Performance |
| Component group Carburetor | Carburetor complete |
| Nominal diameter | 19 mm |
| Carburetor type | CP |
| Choke control | Hand choke |
| Ø fuel hose connection | 6 mm, 7 mm |
| Nozzle thread | M5x0.8 (standard thread) |
| Ø Inside entrance | 42 mm |
| Ø Output inside | 21.8 mm |
| Ø Air filter connection | 47 mm |
| Mixed oil connection | Yes |
| Mounting type | Rubber sleeve |
| Vacuum connection | Yes |
| Nozzle block | 35-12 |
| Nozzle size | 90 |
| Camouflaged | No |
| Size of secondary nozzle | 40 |
Accessories & related products
Polini CP 17.5 mm carburetor (hand choke)
Manufacturer: Polini · Area of application: Tuning · Component group Carburetor: Carburetor complete · Nominal diameter: 17.5 mm · Carburetor type: CP · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Ø fuel hose connection: 6 mm · Ø without reducing sleeve: 26 mm · Ø Internal connection: 24 mm · Ø Air filter connection: 46 mm · Mounting type: Plug connection clamped · Mixed oil connection: Yes · Vacuum connection: Yes · Nozzle size: 62 · Size of secondary nozzle: 40
EUR 165.60
Polini jet set (80 - 98) main jets long version CP, Keihin, Koso, PWK
Manufacturer: Polini · Material: Brass · Component group Carburetor: Spraying · Carburetor type: CP · Carburetor type: Coso · Drive: External hexagon · Carburetor type: Keihin · Carburetor type: PWK · Quantity: 10 pcs · Nozzle type: Main nozzle · Nozzle size: 54 · Nozzle size: 80 · Nozzle size: 82 · Nozzle size: 86 · Nozzle size: 88 · Nozzle size: 90 · Nozzle size: 92 · Nozzle size: 94 · Nozzle size: 96 · Nozzle size: 98
EUR 47.20
Polini jet set (81 - 99) main jets long version CP, Keihin, Koso, PWK
Manufacturer: Polini · Material: Brass · Component group Carburetor: Spraying · Carburetor type: CP · Carburetor type: Coso · Drive: External hexagon · Carburetor type: Keihin · Carburetor type: PWK · Quantity: 10 pcs · Nozzle type: Main nozzle · Nozzle size: 83 · Nozzle size: 85 · Nozzle size: 87 · Nozzle size: 89 · Nozzle size: 91 · Nozzle size: 93 · Nozzle size: 95 · Nozzle size: 97 · Nozzle size: 99
EUR 47.20
Polini 26 mm carburetor (hand choke)
Height: 155 mm · Manufacturer: Polini · Material: Aluminum · Camouflaged: No · Component group Carburetor: Carburetor complete · Carburetor type: Flat slide valve · Nominal diameter: 26 mm · Choke control: Hand choke · Total length: 83 mm · Width: 65 mm · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 105 · Area of application: Performance · Area of application: Racing · Area of application: Tuning · Ø Inside entrance: 26 mm · Ø Output inside: 26 mm · Ø Air filter connection: 49 mm · Ø fuel hose connection: 6 mm · Ø fuel hose connection: 7 mm · Mixed oil connection: Yes · Vacuum connection: Yes · Size of secondary nozzle: 45
EUR 171.50
Not in stock

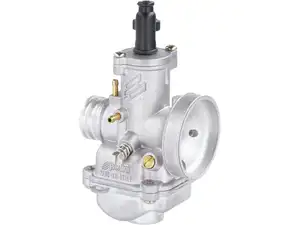

Polini CP 15 mm carburetor (hand choke) rubber flange
