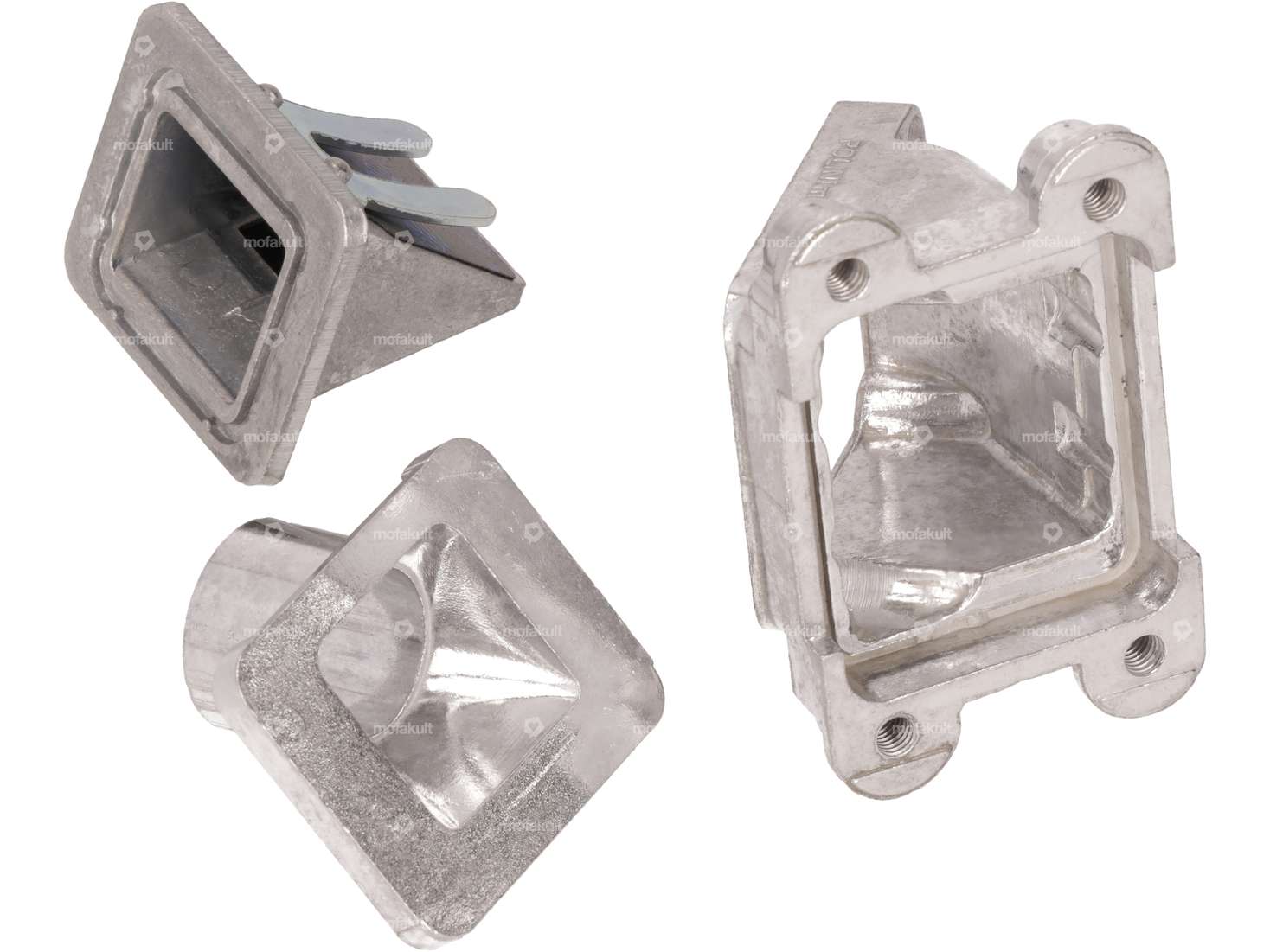

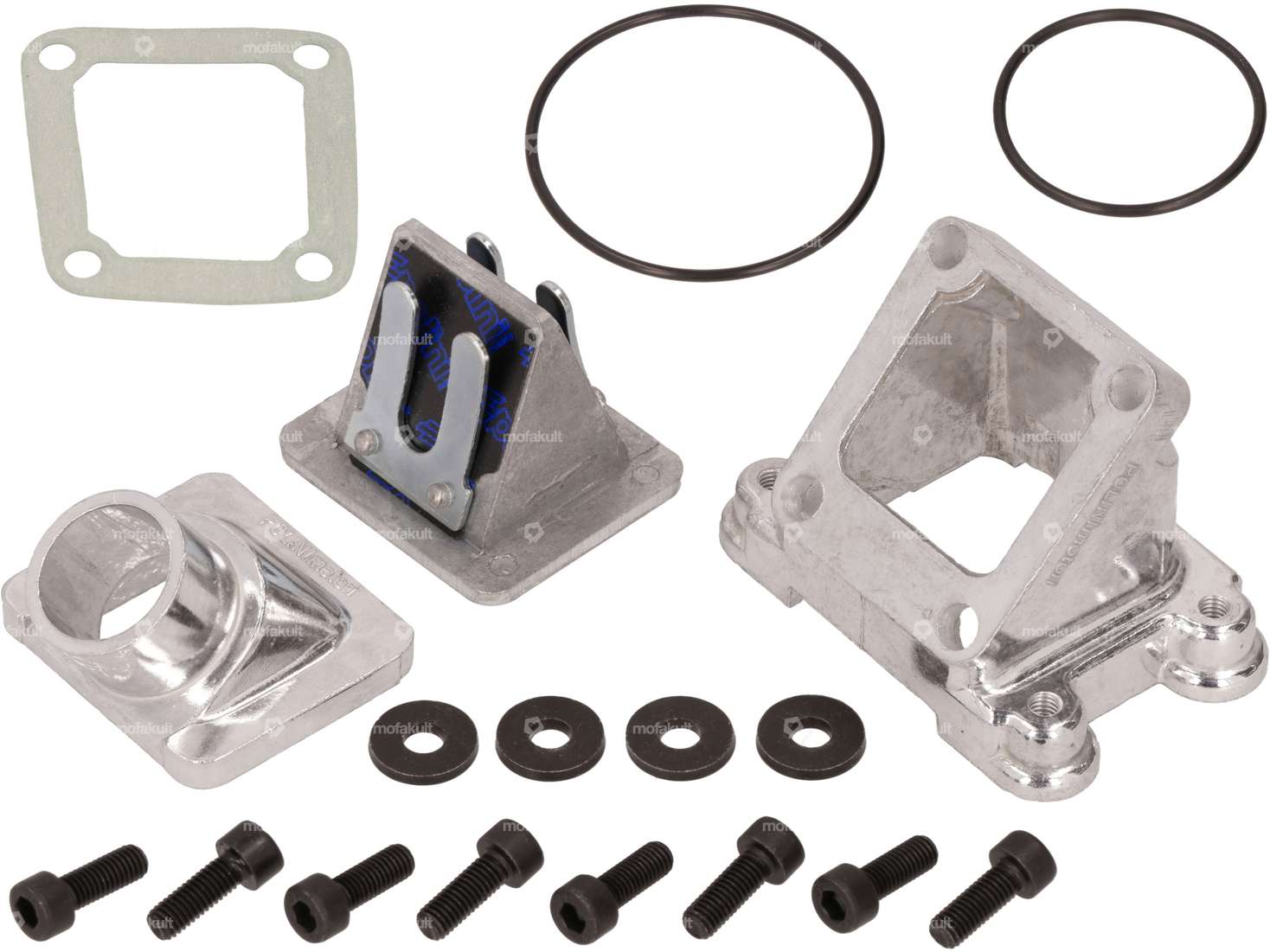

Polini intake system 4-folding diaphragm PHBG

Polini intake system 4-folding diaphragm "Big Valve" PHBG / CP carburetor | Puch

Ø outside: 24 mm · Manufacturer: Polini · Material: Aluminum · Material: Plastic · Surface: glass bead blasted · Area of application: Racing · Area of application: Tuning · Number of flaps: 4 pcs · Ø inside: 28.6 mm · Membrane material: Carbonite · Thick membrane platelets: 0.3 mm · Ø mounting hole: 5.2 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Thread type: M5x0.8 (standard thread) · Camouflaged: No

Polini 43.5 mm cylinder kit reed | Puch

Manufacturer: Polini · Material: Aluminum · Surface: Nickel silicon carbide (known as Nikasil®) · Displacement: 65 ccm · Crankshaft stroke: 43 mm · Ø piston pin (B): 12 mm · Hole spacing inlet: 32 mm · Hole spacing inlet: 39 mm · Nominal diameter: 43.5 mm · Ø cylinder neck: 48 mm · Ø outlet inside: 22 mm · Inlet window: 26 x 21 · Hole spacing outlet: 42 mm · Thread inlet: M5x0.8 (standard thread) · Number of fixing points: 4 pcs · Outlet type: straight · Hole pattern [mm]: 44 x 44 · Thread outlet: M6x1 (standard thread) · Area of application: Racing · Area of application: Tuning · Camouflaged: No

Dell'Orto 19 mm PHBG CS carburetor hand choke

Manufacturer: Dell'Orto · Material: Aluminum · Component group Carburetor: Carburetor complete · Color: black · Width: 70 mm · Carburetor type: PHBG CS · Height: 124 mm · Nominal diameter: 19 mm · Total length: 82 mm · Ø fuel hose connection: 5.4 mm · Ø fuel hose connection: 6 mm · Mounting type: Plug connection clamped · Ø without reducing sleeve: 26 mm · Area of application: Racing · Area of application: Tuning · Ø Inside entrance: 19 mm · Ø Internal connection: 24 mm · Ø Output inside: 19 mm · Ø Air filter connection: 32 mm · Ø Air filter connection: 60 mm · Air filter connection thread: MF32x1.25 (fine pitch thread) · Mixed oil connection: Yes · Vacuum connection: Yes · Choke control: Hand choke · Choke nozzle size: 60 · Nozzle thread: M5x0.8 (standard thread) · Camouflaged: No · Nozzle size: 75 · Size of secondary nozzle: 45

Gas cable Ø 1.25 mm x 220 cm (cylindrical nipple) Bing

Ø Stranded wire: 1.25 mm · Nipple shape: Cylinder · Ø nipple: 3 mm · Nipple length: 5 mm · Manufacturer: Made in Germany · Material: Steel · Surface: galvanized (blue) · Cable length: 2200 mm · Area of application: Standard · Number of components: 1 pcs

Motorex Automatic Motor Oil (ATF) 450 ml

Manufacturer: Motorex · Contents [ml]: 450 ml · Gearbox type: Automatic machine · Area of application: Gearbox lubrication with clutch · Temperature resistance (min.): -45 - 200 °C · Pony OEM number: A2080 · Sachs OEM no.: 0263 014 002

Polini gasket set 43.5 mm

Manufacturer: Polini · Ø cylinder: 43.5 mm · Area of application: Tuning · Hole spacing outlet: 42 mm · Number of components: 5 pcs · Hole pattern [mm]: 44 x 44 mm / 39 x 36/32 mm

Gas cable Ø 1.2 mm x 165 cm (nipple ball) Dell'Orto

Ø Stranded wire: 1.2 mm · Nipple shape: Ball · Ø nipple: 3.5 mm · Manufacturer: Made in Germany · Material: Steel · Surface: galvanized (blue) · Cable length: 1650 mm · Area of application: Standard · Number of components: 1 pcs

swiing® revival stud bolt set M6 x 106 mm | Puch

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Diameter: 5.9 mm · Total length: 106 mm · Width across flats SW: 10 mm · Drive: External hexagon · Thread length: 13 mm · Thread length: 18.5 mm · Thread type: M6x1 (standard thread) · Alternative version of the Puch OEM number: 360.1.10.034.1

GPO 43.5 mm cylinder head tuning Polini new version | Puch

Manufacturer: GPO · Total length: 135 mm · Material: Aluminum · Ø cylinder: 43.5 mm · Width: 140 mm · Height: 55 mm · Number of fixing points: 4 pcs · Area of application: Tuning · Decompressor: No

GPO 43.5 mm cylinder head with O-ring, Polini Tuning new version | Puch

Manufacturer: GPO · Total length: 140 mm · Material: Aluminum · Surface: sandblasted · Ø cylinder: 43.5 mm · Hole pattern [mm]: 44 x 44 · Candle thread: short · Width: 135 mm · Height: 55 mm · Decompressor: No · Number of fixing points: 4 pcs · Area of application: Tuning

Polini 43.5 mm cylinder kit reed valve with head | Puch

Manufacturer: Polini · Material: Aluminum · Surface: Nickel silicon carbide (known as Nikasil®) · Area of application: Racing · Area of application: Tuning · Displacement: 65 ccm · Crankshaft stroke: 43 mm · Ø piston pin (B): 12 mm · Hole spacing inlet: 32 mm · Hole spacing inlet: 39 mm · Nominal diameter: 43.5 mm · Ø cylinder neck: 48 mm · Ø outlet inside: 22 mm · Number of fixing points: 4 pcs · Inlet window: 26 x 21 · Hole spacing outlet: 42 mm · Thread inlet: M5x0.8 (standard thread) · Outlet type: straight · Hole pattern [mm]: 44 x 44 · Thread outlet: M6x1 (standard thread) · Camouflaged: No
