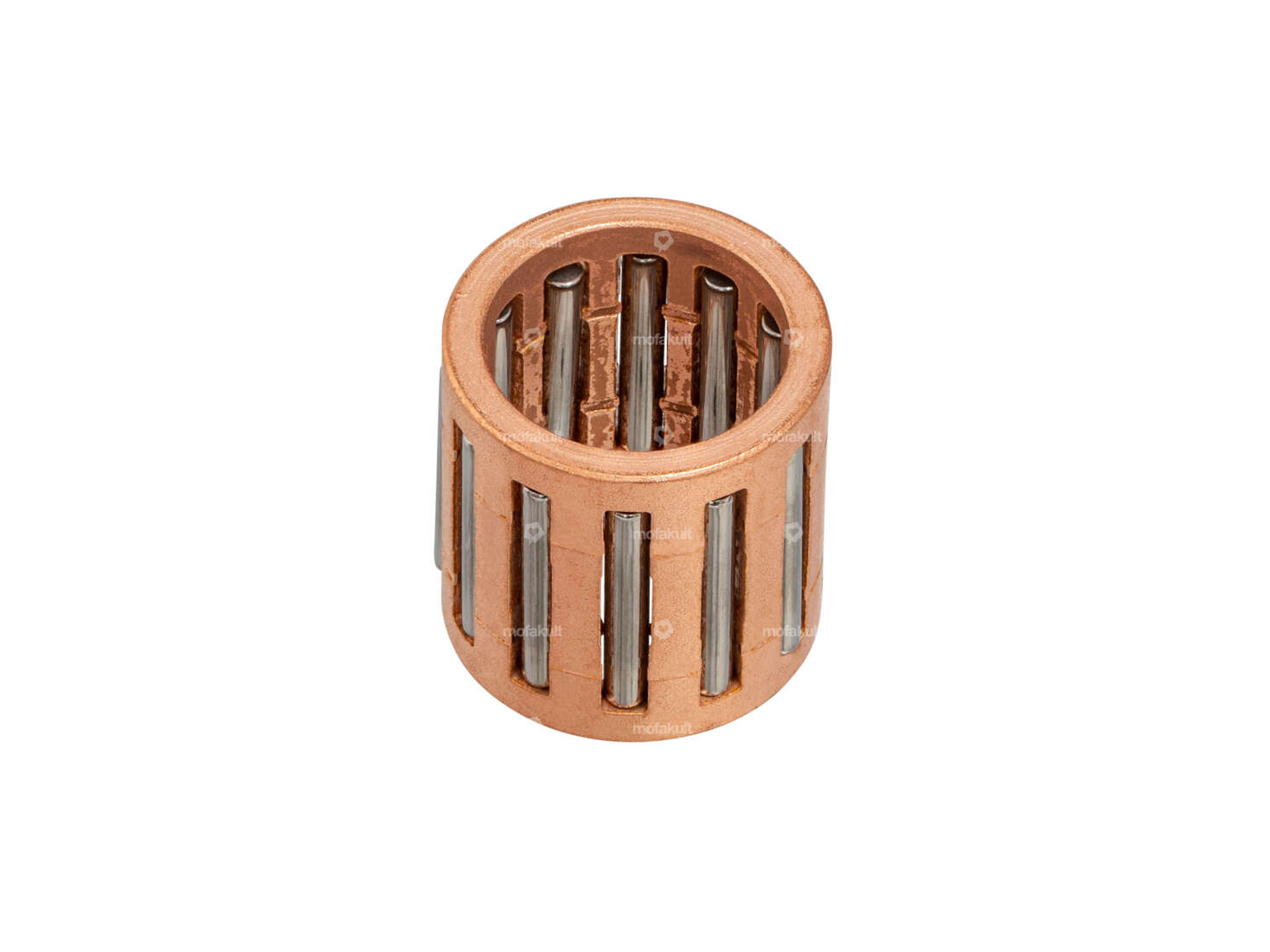

Polini needle bearing 13/17/17.3 piston pin copper cage

Buzzetti pliers for piston ring assembly

Manufacturer: Buzzetti · Area of application: (Dis)assembly tool

Motorex 2-stroke oil semi-synthetic 1 L (for running in cylinders)

Manufacturer: Motorex · Oil type: semi-synthetic · Color: green · Contents: 1000 ml

Stage6 needle bearing 12/17/15 connecting rod bearing "Racing" silver cage

Bearing type: Needle roller and cage assembly · Bearing cage: Silver cage · Dimension needle bearing: 12/17 x 15 · Ø inside: 12 mm · Ø outside: 17 mm · Manufacturer: Stage6 · Width: 15 mm

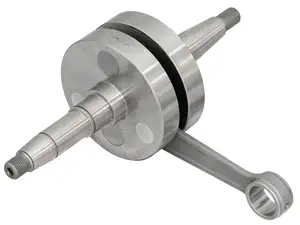

SRT crankshaft full cheeks 39.3 mm stroke | Puch E50

Cheek type: Full cheeks · Crankshaft stroke: 39.3 mm · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 75 mm · Total length crankpin ignition side: 67 mm · Ø crank webs: 70 mm · Ø piston pin (B): 12 mm · Ø piston pin (B): 13 mm · Ø piston pin (B): 14 mm · Ø Connecting rod eye: 17 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Wide crank webs: 34 mm · Area of application: Racing

SRT crankshaft full cheeks 43 mm stroke | Puch E50

Cheek type: Full cheeks · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 75 mm · Total length crankpin ignition side: 67 mm · Ø crank webs: 70 mm · Ø piston pin (B): 12 mm · Ø piston pin (B): 13 mm · Ø piston pin (B): 14 mm · Ø Connecting rod eye: 17 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Wide crank webs: 34 mm · Area of application: Standard

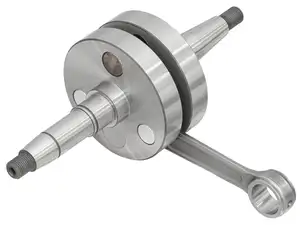

SRT crankshaft full cheeks 44 mm stroke | Puch E50

Cheek type: Full cheeks · Crankshaft stroke: 44 mm · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 75 mm · Total length crankpin ignition side: 67 mm · Ø crank webs: 70 mm · Ø piston pin (B): 12 mm · Ø piston pin (B): 13 mm · Ø piston pin (B): 14 mm · Ø Connecting rod eye: 17 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Wide crank webs: 34 mm · Area of application: Racing

Nut M12x1 x 10 SW19 Wheel nut Inox

Height: 10 mm · Area of application: Standard · Material: Chrome steel (colloquially known as stainless steel) · Nut type: Hexagon nut 1D · Thread type: MF12x1 (fine pitch thread) · Drive: External hexagon · Nominal diameter (thread): 12 mm · Strength class: A2-70 · Width across flats: 19 mm

swiing® revival screw set PVL ignition

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Number of components: 6 pcs · Thread type: M4x0.7 (standard thread) · Drive: Hexagon socket · Screw head: Cylinder head · Nominal diameter (thread): 4 mm · Shank: No · Shank: Yes · Thread length: 25 mm · Thread length: 35 mm

M8 sealing ring Fiber

Material: Fiber · Area of application: Standard · Surface: raw · Thickness: 1 mm · Ø inside: 8.3 mm · Place of use: Carburetor · Place of use: Motor housing · Ø outside: 13.7 mm · Puch OEM number: 26482

swiing® revival nut / spring washer clutch E50 | Puch Maxi

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Nut type: Hexagon nut 0.8D · Thread type: MF10x1 (fine pitch thread) · Drive: External hexagon · Height: 8 mm · Nominal diameter (thread): 10 mm · Width across flats: 17 mm

Polini adhesive kit large

Manufacturer: Polini · Material: Polyvinyl chloride (PVC) · Width: 333 mm · Height: 155 mm · Place of use: Universal · Rear side texture: Adhesive · Transferfolie: No

MBR retaining plate shaft seal on ignition side "Racing" Inox

Manufacturer: MBR · Material: Chrome steel (colloquially known as stainless steel) · Area of application: Tuning · Surface: brushed · Ø inside: 25.3 mm · Ø outside: 89.4 mm · Number of fixing points: 4 pcs · Color: silver

Stop nut M12x1 x 12 SW19 Wheel nut galvanized

Material: Steel · Surface: galvanized (blue) · Nut type: Self-securing nut · Thread type: MF12x1 (fine pitch thread) · Drive: External hexagon · Height: 12 mm · Nominal diameter (thread): 12 mm · Strength class: 8 · Width across flats: 19 mm

swiing® revival gasket gearbox cover engine 0.5 mm | Puch E50

Manufacturer: swiing® revival parts · Material: Sealing paper · Color: sand-colored · Ø outside: 116 mm · Number of components: 1 pcs · Ø inside: 106 mm · Number of fixing points: 4 pcs · Thickness: 0.5 mm · Alternative version of the Puch OEM number: 349.1.10.349.1

swiing® revival thrust washer set Ø 15 / 17 mm | Puch E50

Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Area of application: Standard · Ø inside: 15 mm · Ø inside: 17 mm · Ø outside: 22 mm · Ø outside: 24 mm · Thickness: 1.1 mm · Thickness: 1.3 mm · Thickness: 1.5 mm · Thickness: 1.7 mm

swiing® ingenious plain bearing 15/17/21.75 Clutch basket "Racing" | Puch E50

Ø inside: 15 mm · Nominal diameter inside: 15 mm · Ø outside: 17 mm · Total height: 21.75 mm · Manufacturer: swiing® ingenious parts · Material: special bearing bronze
