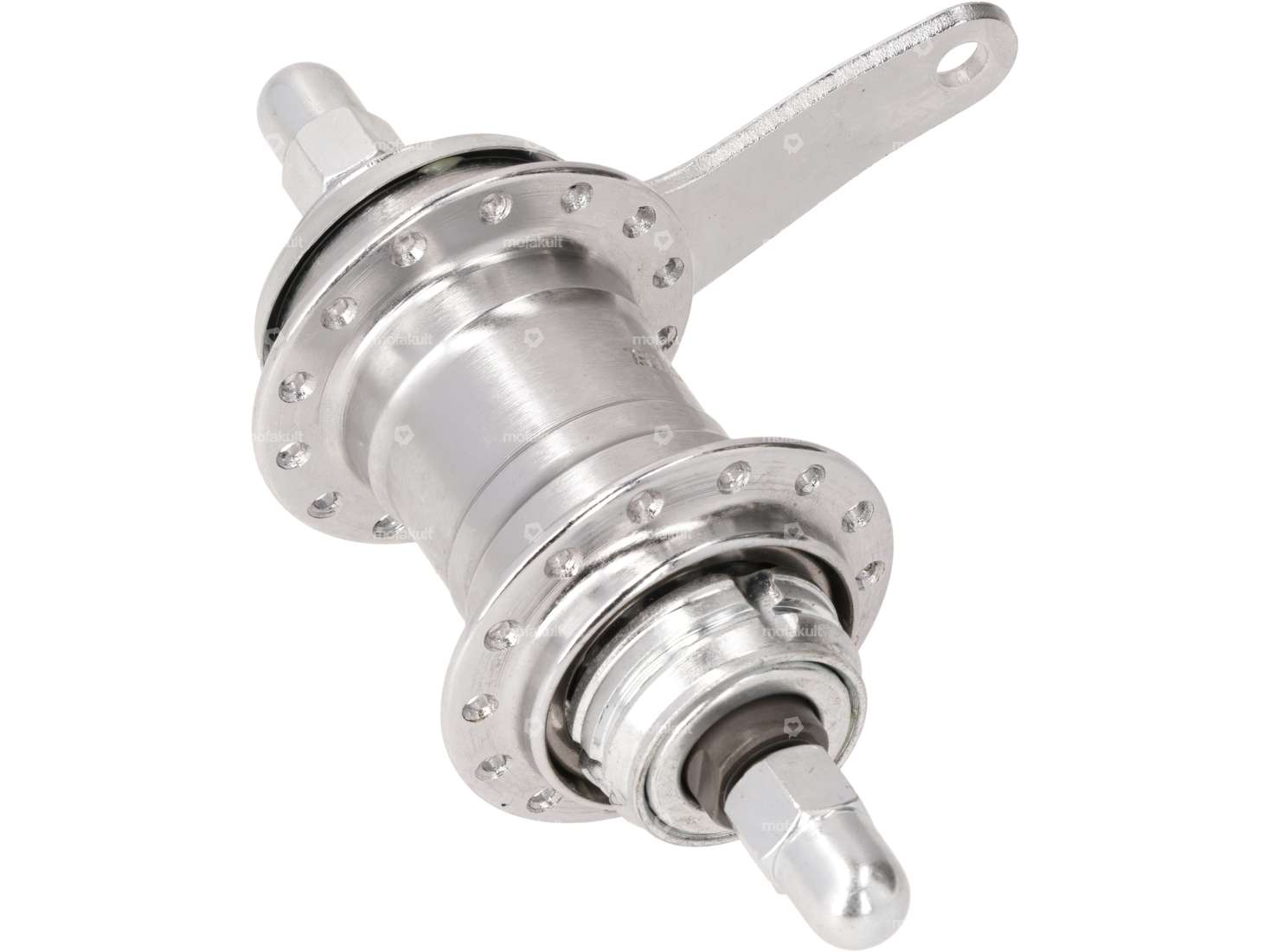

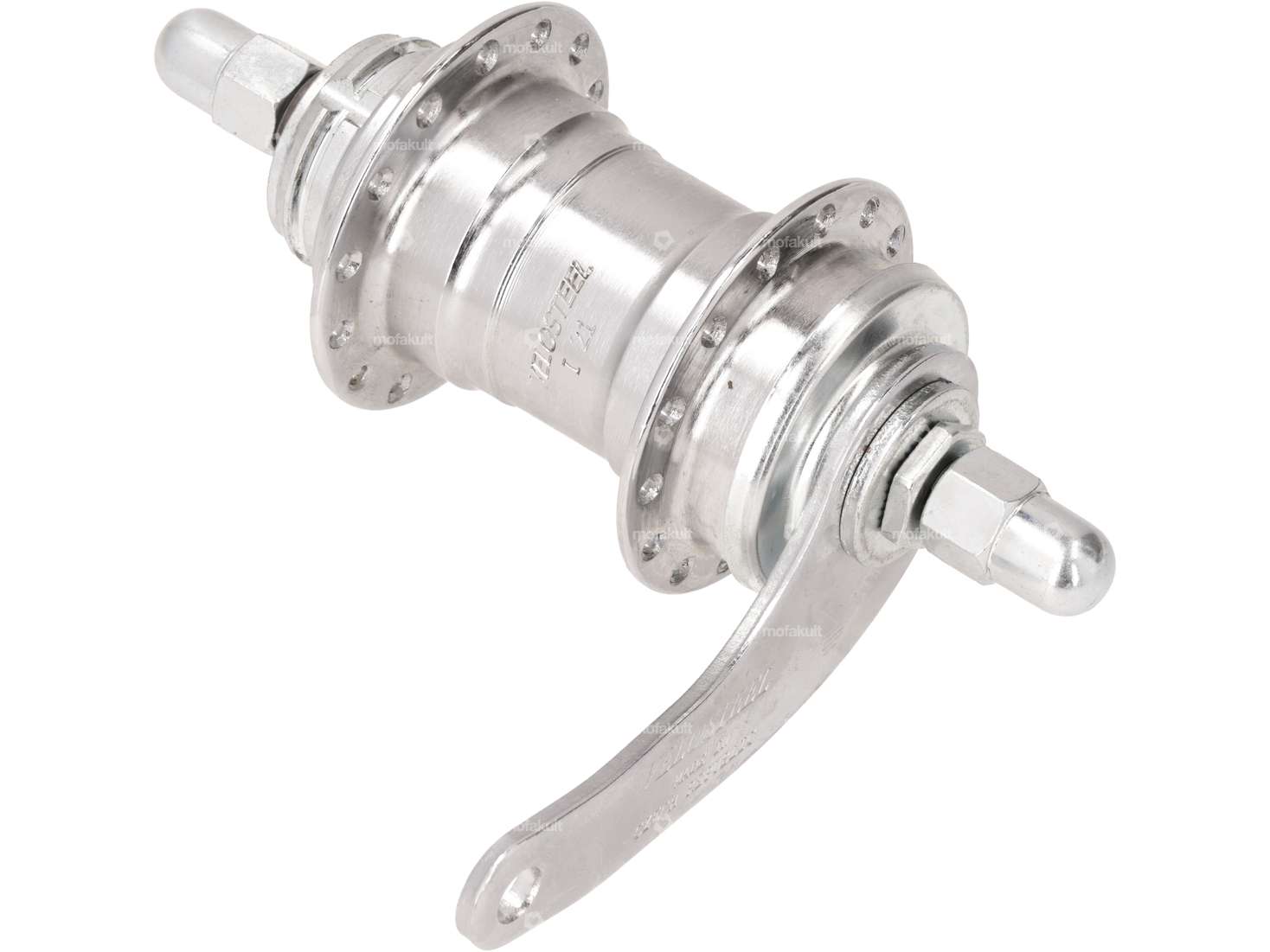

Complete rear hub for various Solex models with 28-hole rim rings and hub brake.

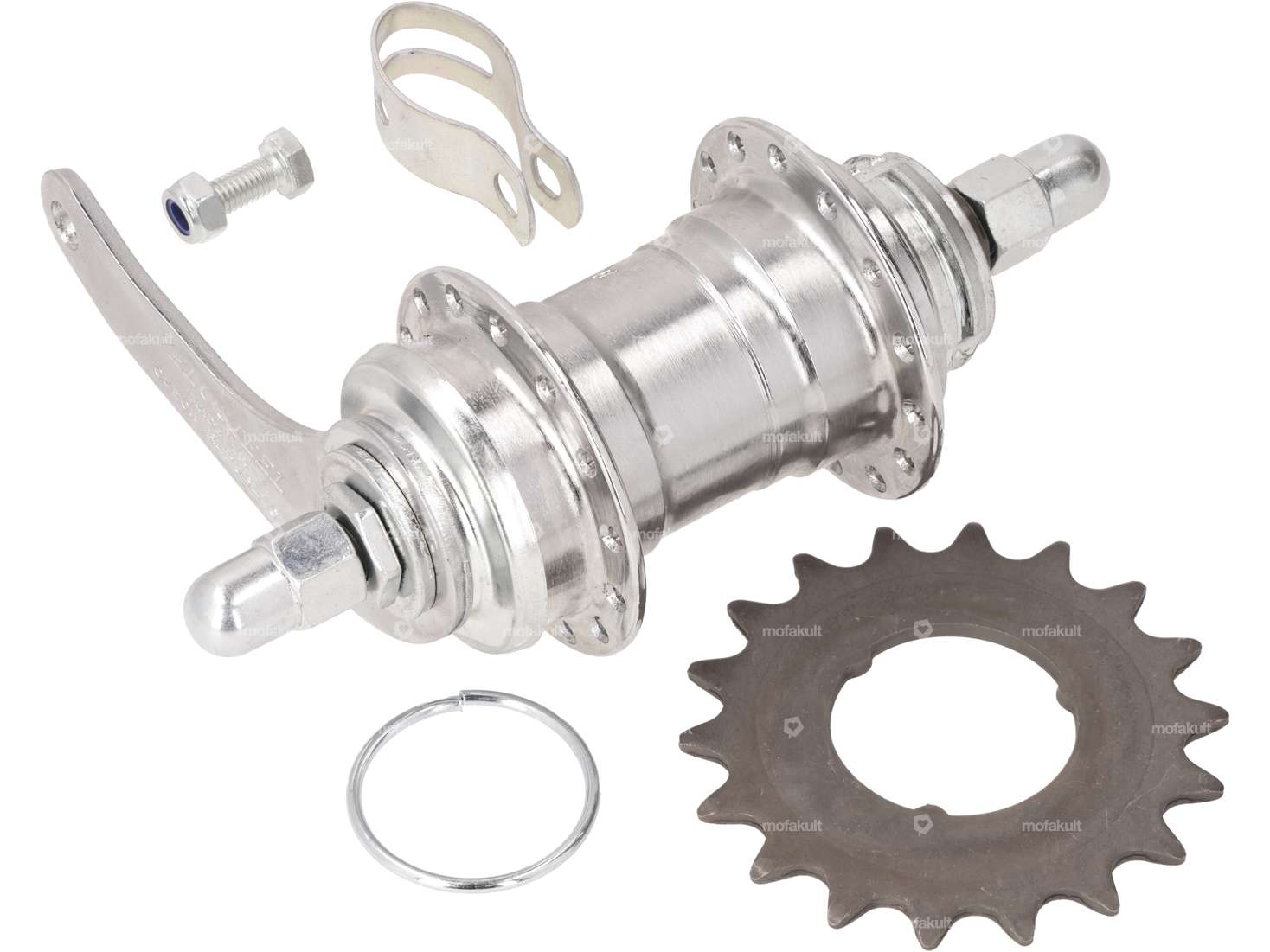

The hub shell for the rear wheel comes complete with brake anchor, pedal sprocket, lock washer and cap nuts. The hub has a sprocket brake which is operated via the pedal chain. There is a steel ring to secure the sprocket (but you may prefer to use a piece of welding wire and tighten it this way).
Axle length: 150 mm
Axle thread: M9.5 x 1
Ø outer: 61 mm
Ø hub (center): 38.3 mm
Ø Bolt circle: 53 mm
Spoke mount spacing: 52 mm
Spoke holes per side: 14 holes
Pedal sprocket mount: toothed
Further attachments for your Solex moped / moped can be found in the accessories section.
| Material | Steel |
| Surface | galvanized (blue) |
| Color | silver |
| Thread type | MF9.5x1 (fine pitch thread) |
| Ø axle | 9.5 mm |
| Axle length | 150 mm |
| Ø bolt circle | 53 mm |
| Ø inside | 38.3 mm |
| Ø outside | 61 mm |
| Total length | 150 mm |
| Number of spoke holes | 28 pcs |
| Ø spoke hole | 3 mm |
| Solex |
