Product description

Repair instructions for the Sachs 50 type Saxonette automatic engine from Fichtel & Sachs AG.

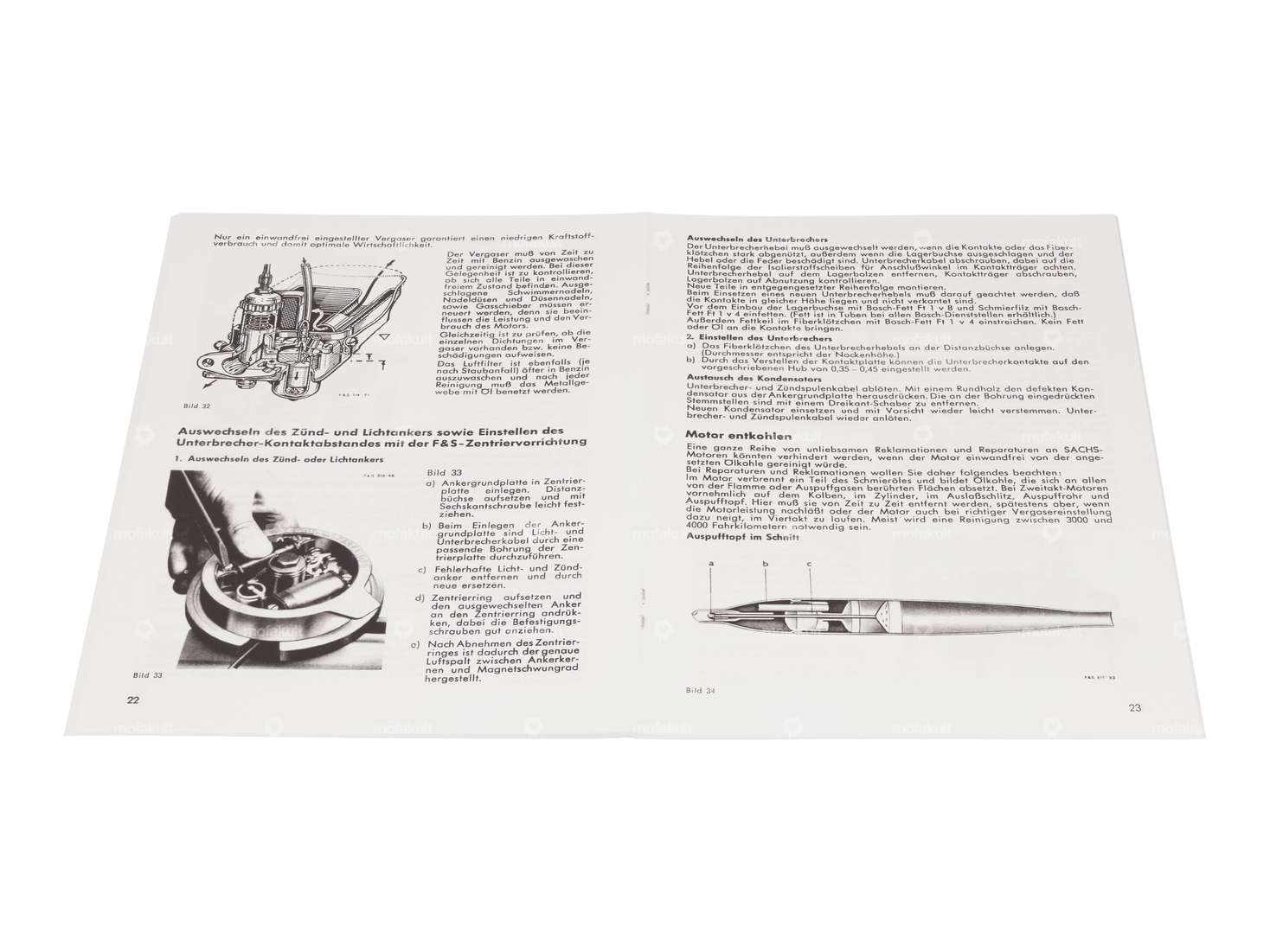

Very helpful, informative booklet. Among other things, it explains the operating elements, repair, maintenance and adjustment work. No workshop with Sachs mopeds should be without this detailed instruction manual.

Size: A5 (148 x 210 mm)
Pages: 44
Language: German

High-quality facsimile (reproduction) of the original edition.

Further workshop manuals, spare parts catalogs and repair manuals can be found in the accessories section.

Product details

Material	Paper
Width	148 mm
Height	210 mm
DIN format	A5
Number of pages	44 pcs
Language	German

Suitable for the following models
