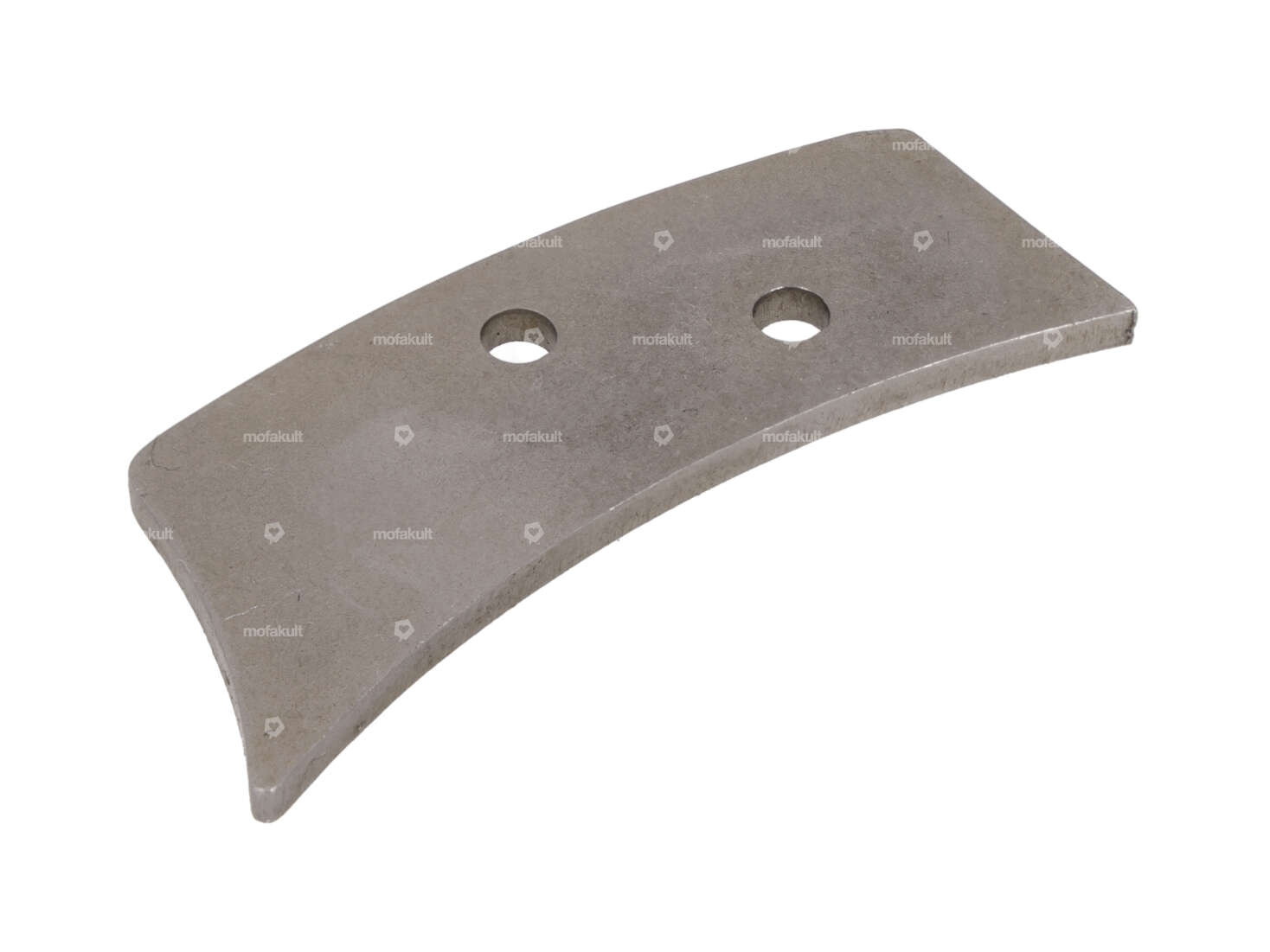

Steel drilling jig, designed to fit the repair tab on the fan cover of your Puch X30 Velux moped with an EX30 (Z50) engine.
Installation procedure
: - Place the drilling jig in position and secure it with locking pliers or a small screw clamp
- Pre-drill the hole with a 3 mm drill bit,
remove the template—enlarge the hole to 4 mm
—
deburr the hole on both sides with a countersink—screw on the bracket (item 33323 in the accessories) and
use threadlocker as needed—reinstall the fan cover as usual
You’ll find matching fasteners and other practical repair solutions from Sigg’s workshop in the accessories section.
A sophisticated product from the swiing® quality brand, designed to meet the highest standards.
| Width | 18.6 mm |
| Height | 2 mm |
| Manufacturer | swiing® ingenious parts |
| Material | Steel |
| Total length | 44 mm |
| Hole pattern [mm] | 11.2 |
| Puch | Z50 (X30 Velux) |
