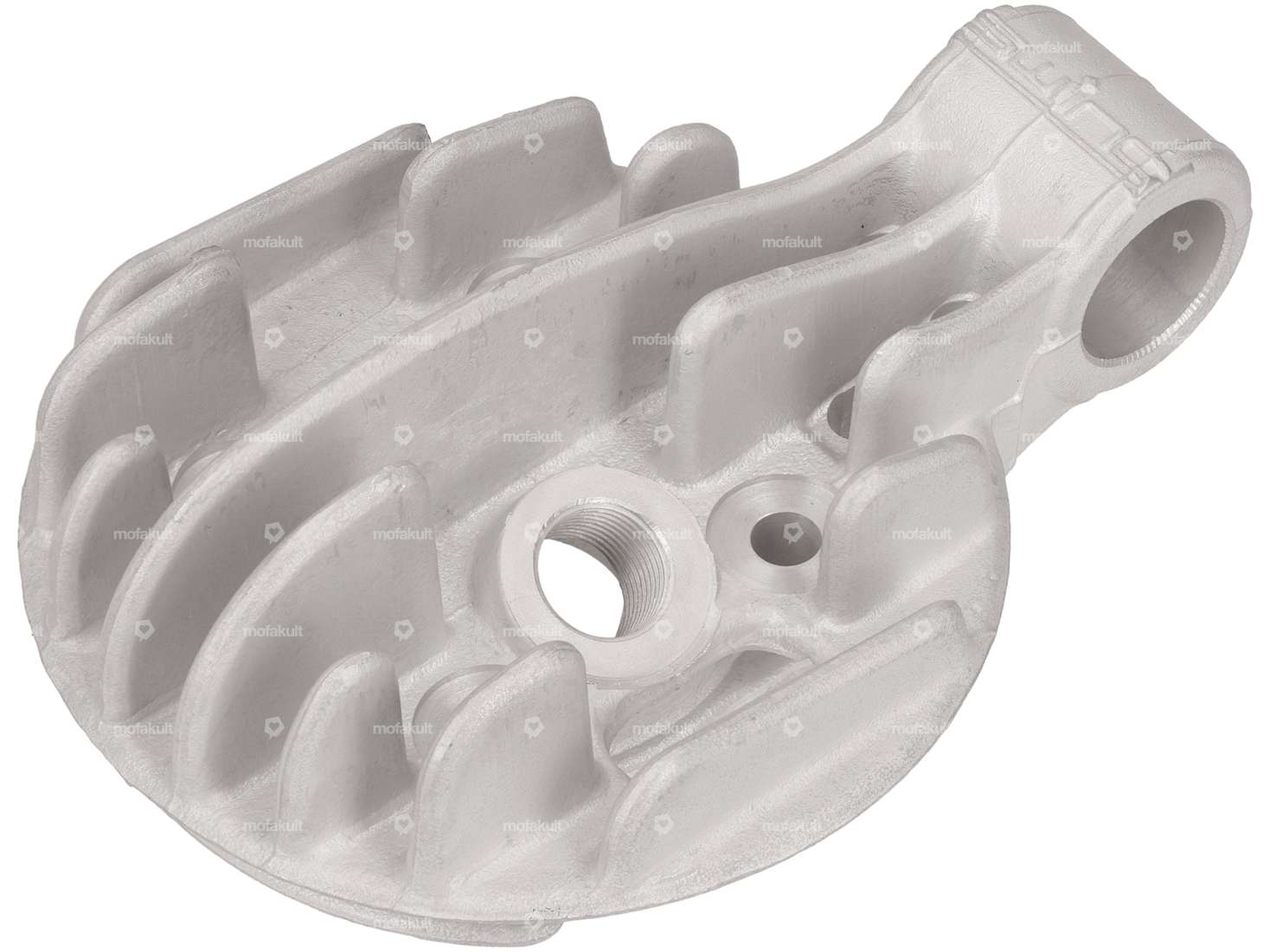

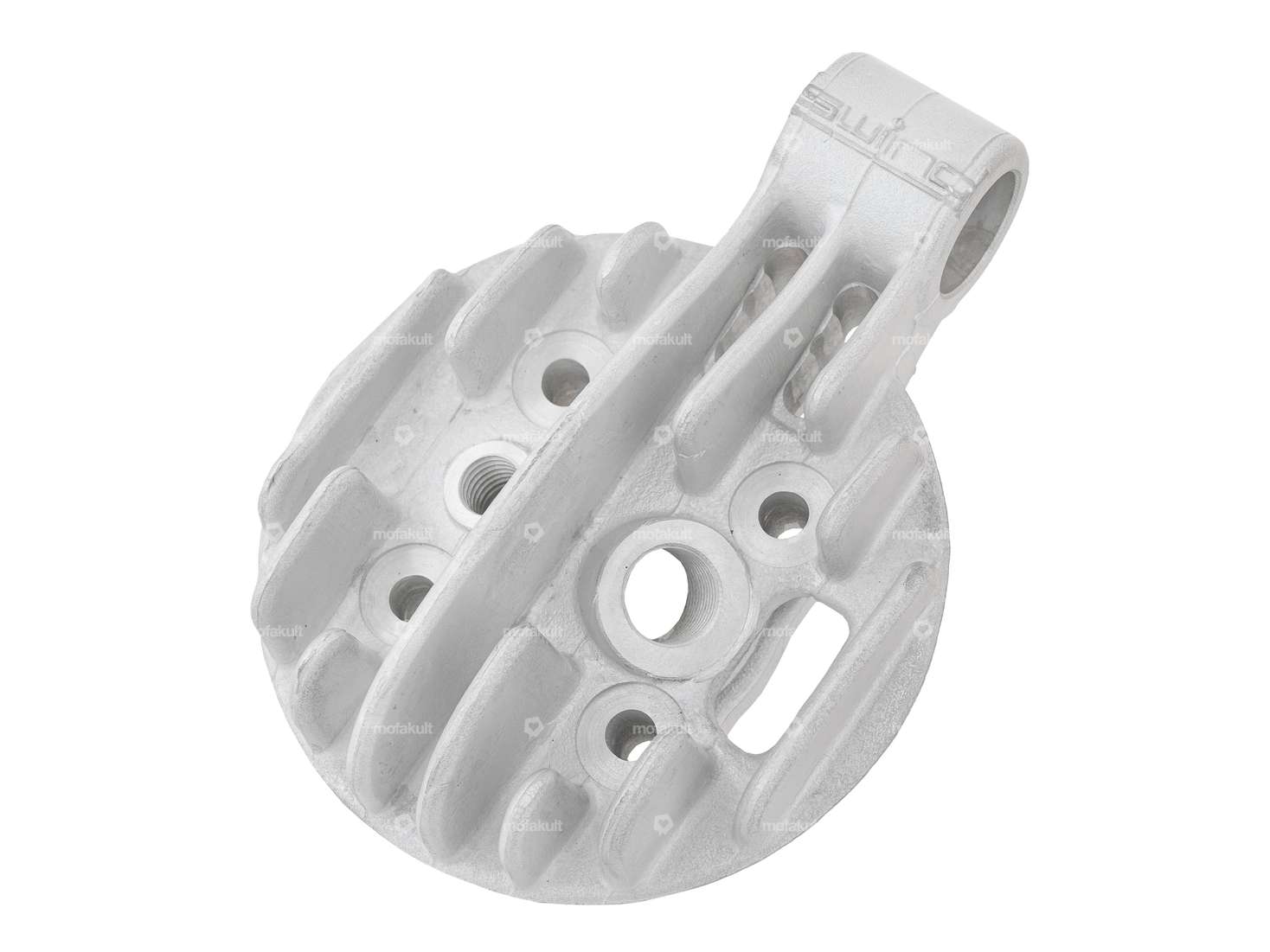

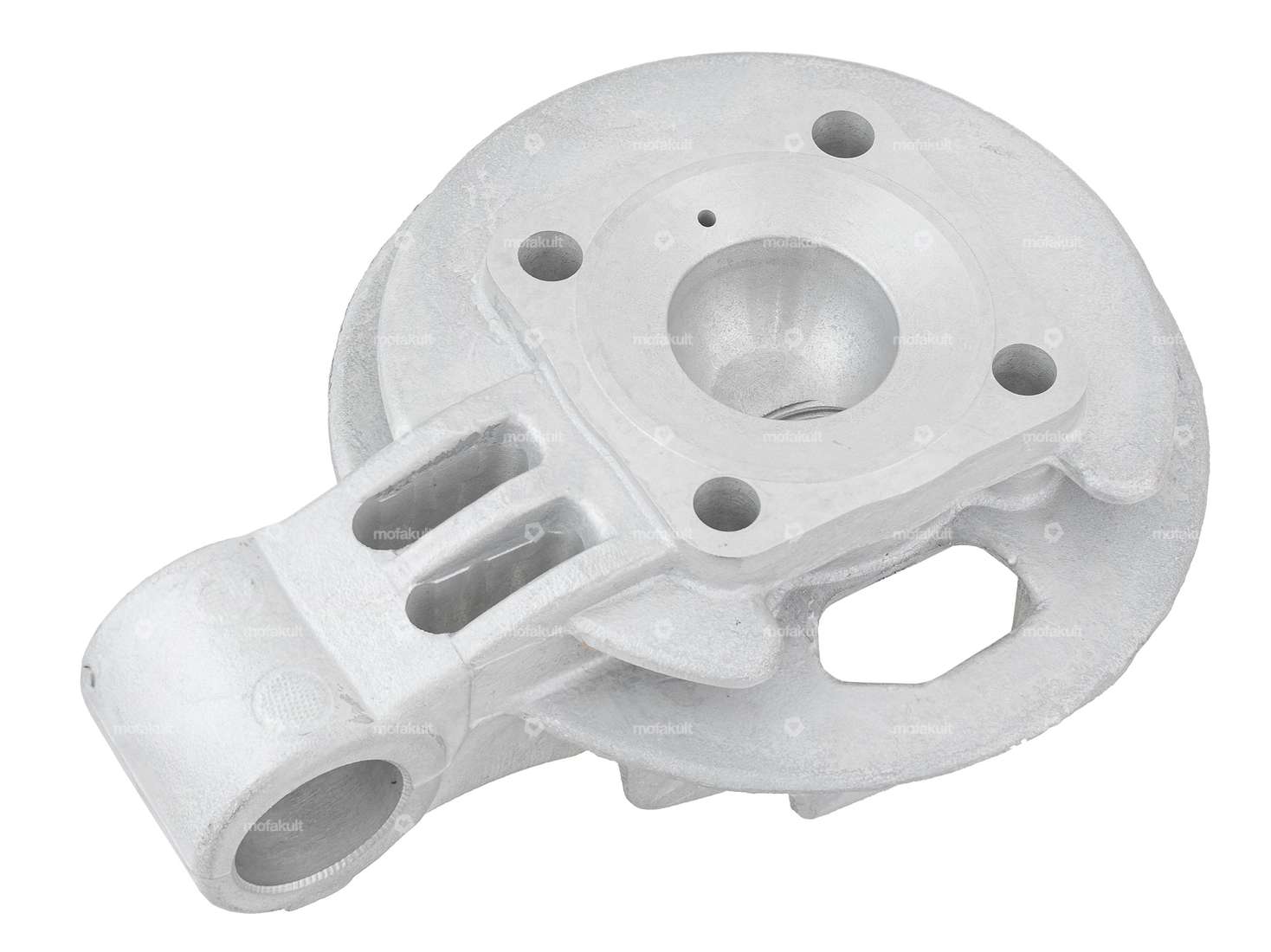

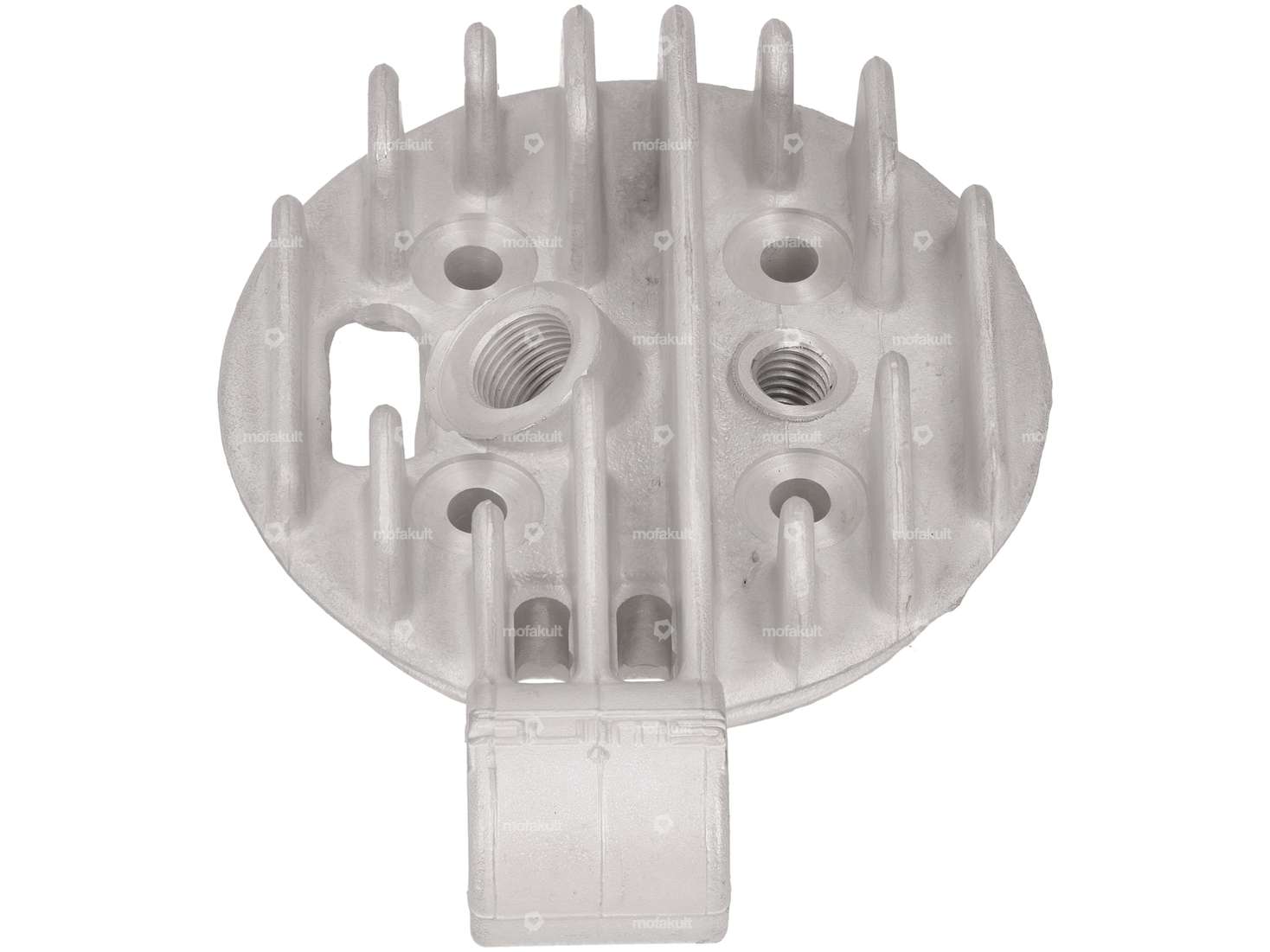

41 mm cylinder head for Sachs 2-, 3- and 4-speed engines with blower clutch, which among others on Alpa, Caravelle, Comet, DKW, Eiger, Göricke, Hercules, Prior, Pony Junior, Rico, Rixe, Walco and Hercules 50/ALS, 50/2 S, 50/KS, 50/2 DK, 50/3 LS, 50/4 mopeds, mopeds and small motorcycles.
A perfectly fitting cylinder cover with flat milled sealing surface. The cylinder head has a decompressor mount with M10 x 1.5 mm thread.
Matching add-on parts such as decompression valves, silentblowers, gaskets etc. can be found in the accessories section.
Exceptional product for the highest demands of the quality brand swiing®.
| Manufacturer | swiing® ingenious parts |
| Material | Aluminum |
| Ø cylinder | 41 mm |
| Surface | sandblasted |
| Total length | 127 mm |
| Ø screw holder | 19 mm |
| Candle thread | long |
| Ø outside | 98 mm |
| Width | 95 mm |
| Height | 50 mm |
| Hole pattern [mm] | 37 x 37 |
| Number of fixing points | 4 pcs |
| Decompressor | M10x1.5 |
| Area of application | Standard |
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 hp, DE) 502 (Saxonette) - AL, AML 50/2 - L CH (0.8 PS), ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS), LKH (4.5 PS) 50/5 503 - AAL, ABL, 2AL / 2BL |
Ratings
Accessories & related products
swiing® revival screw set cylinder head Inox | Sachs 503 / 50/2 / 50/3 / 50/4
Manufacturer: swiing® revival parts · Material: Chrome steel (colloquially known as stainless steel) · Number of components: 12 pcs · Total length: 34 mm · Drive: External hexagon · Screw head: Hexagon · Width across flats: 10 mm · Shank: Yes · Ø shaft: 5.85 mm · Shank length: 8 mm · Thread type: M6x1 (standard thread) · Thread length: 22 mm · Area of application: Standard
EUR 8.80
NGK B6ES spark plug long thread
Manufacturer: NGK · Candle designation: B6ES · Candle thread type: long · Spark plug socket: M4 · Spark plug socket: SAE · Suppressed: No · Width across flats: 21 mm · Thread type: MF14x1.25 (fine pitch thread) · Area of application: Original · Area of application: Standard
EUR 7.75
NGK B5ES spark plug long thread
Manufacturer: NGK · Candle designation: B5ES · Candle thread type: long · Spark plug socket: M4 · Spark plug socket: SAE · Suppressed: No · Thread type: MF14x1.25 (fine pitch thread) · Width across flats: 21 mm · Area of application: Original · Area of application: Standard
EUR 7.75
swiing® ingenious gasket cylinder head 41 mm | Sachs 503, 502, 50/2, 50/3, 50/4
Manufacturer: swiing® ingenious parts · Material: Aluminum · Ø cylinder: 41 mm · Nominal diameter: 41 mm · Thickness: 0.3 mm · Place of use: Cylinder head · Ø inside: 41.7 mm · Area of application: Standard · Hole pattern [mm]: 37 x 37
EUR 5.85

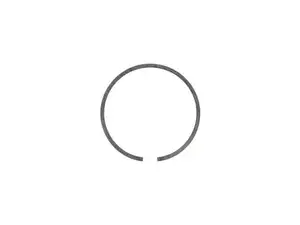

Meteor piston ring 41 x 1.5 mm (FS) hard chrome-plated for aluminum cylinder
Manufacturer: Meteor · Surface: hard chrome plated · Diameter: 41 mm · Nominal diameter: 41 mm · Height: 1.5 mm · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Thick piston ring: 1.7 mm
EUR 11.40

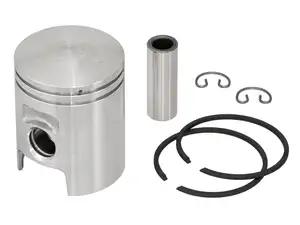

swiing® ingenious piston 41 mm | Sachs 50/2
