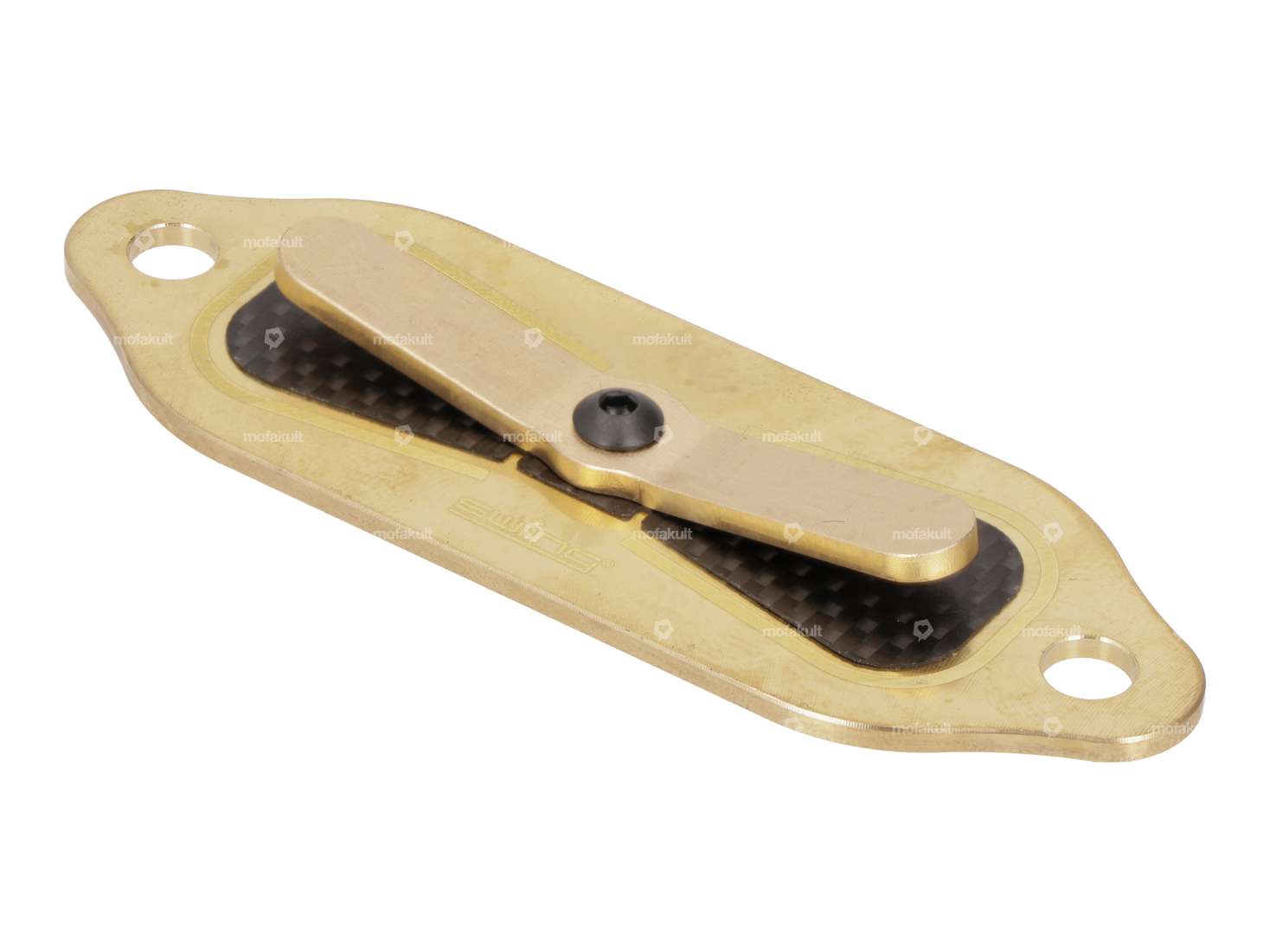

High-quality brass diaphragm insert for your moped, moped and small motorcycle with Sachs 50/2 (502), 50/3 and 50/4 engine.

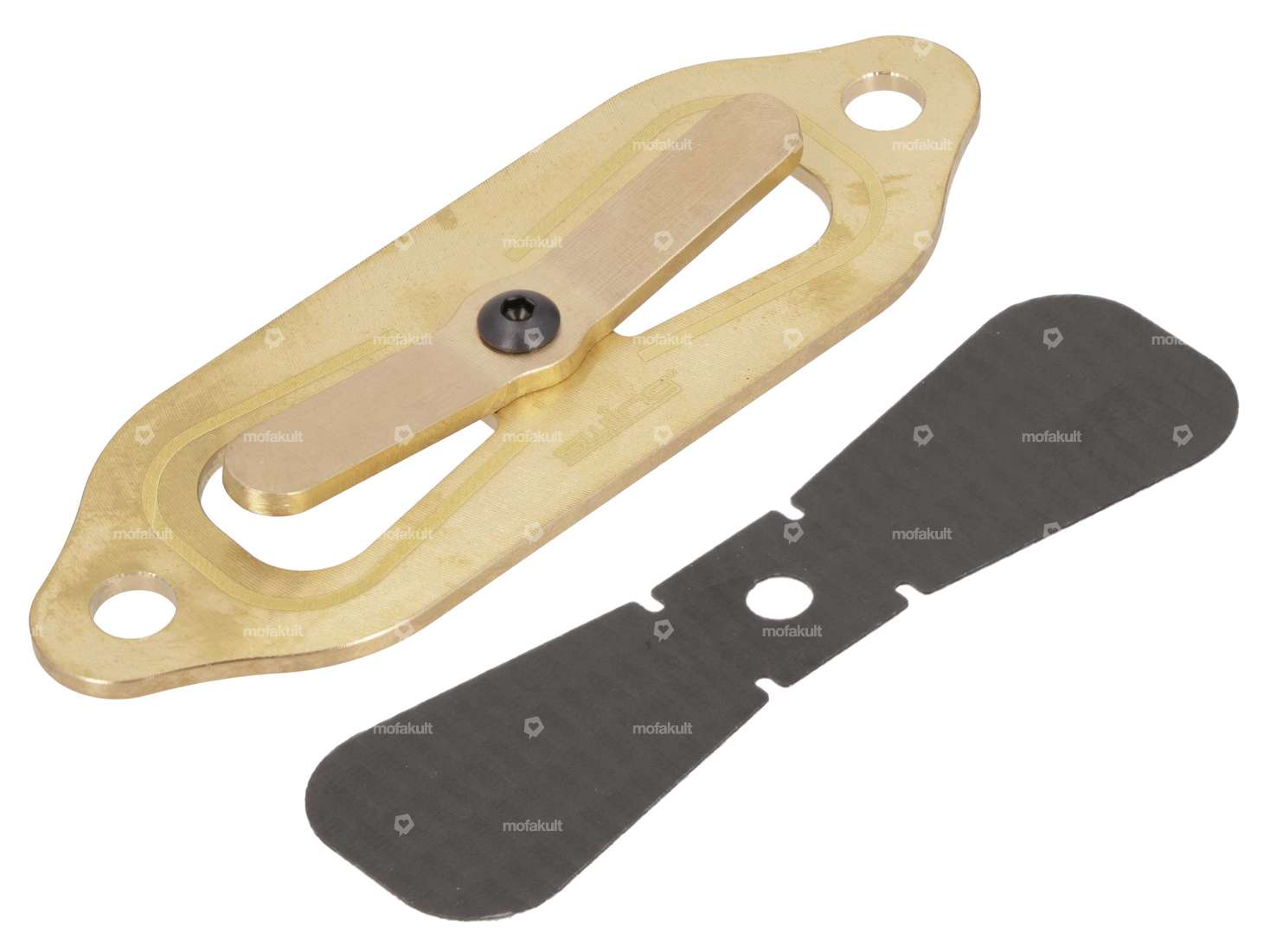

In the selection field, you can choose between 0.15 mm spring steel or carbon from Polini in thicknesses of 0.25 mm, 0.30 mm or 0.40 mm for the diaphragm.
Here are some key points to help you decide when a thin, thick or steel diaphragm is the best choice instead of a carbon diaphragm:
Torque and power development: A thinner diaphragm can help the engine to respond faster and more smoothly, as it reacts more quickly to changes in pressure. On the other hand, a thicker diaphragm can help the engine to develop higher torque at lower engine speeds, which can be particularly beneficial for low-speed engines.
Manufacturer: swiing® ingenious parts · Material: Brass · Number of flaps: 2 pcs · Total length: 80.6 mm · Width: 27 mm · Hole spacing: 67 mm
| Manufacturer | swiing® ingenious parts |
| Material | Brass |
| Number of flaps | 2 pcs |
| Width | 27 mm |
| Total length | 80.6 mm |
| Hole spacing | 67 mm |
| Area of application | Tuning, Racing |
| Alternative version of the Sachs OEM number | A2624 |
| Sachs | 50/2 - ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) 50/3 50/4 |
