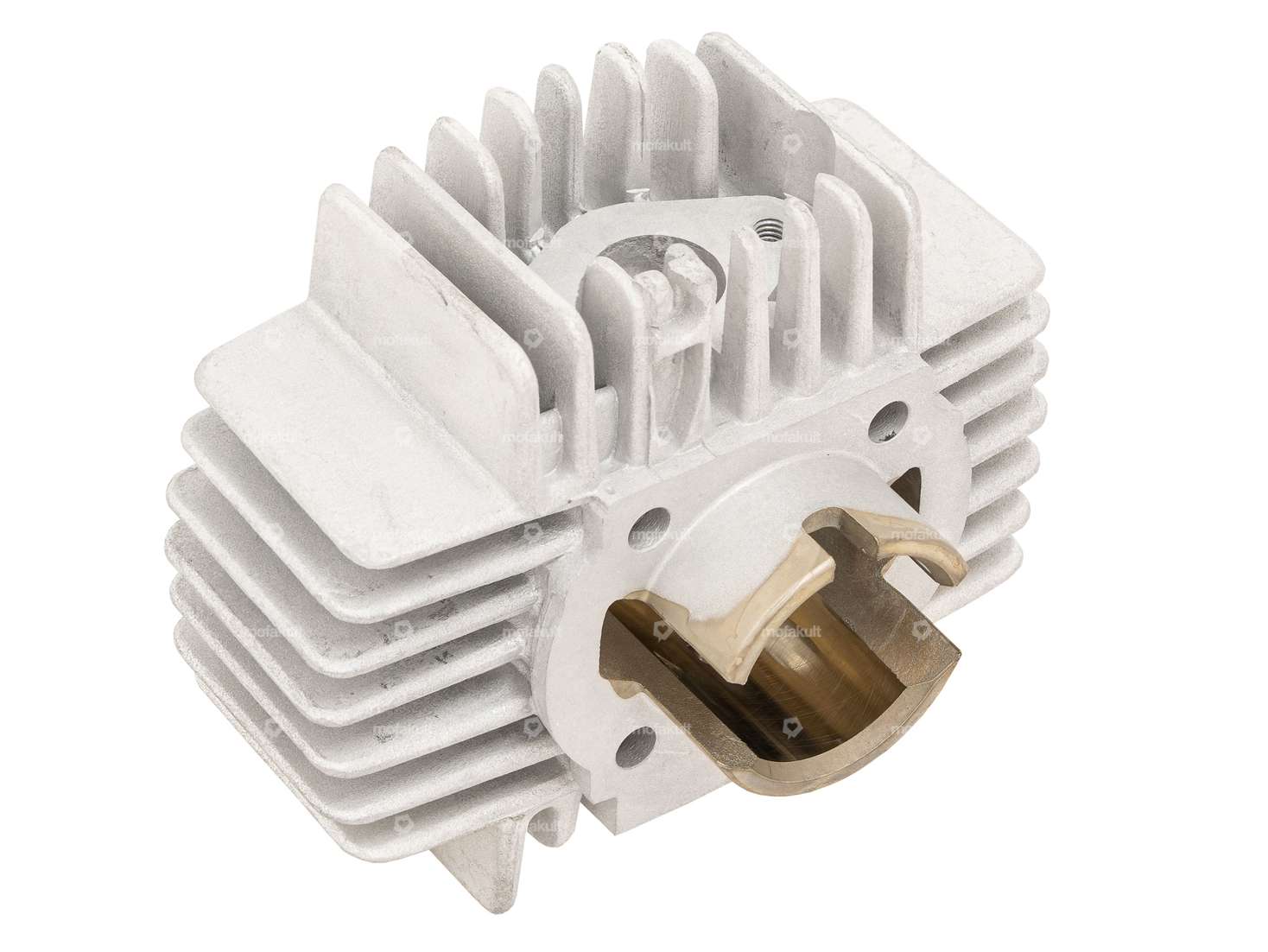

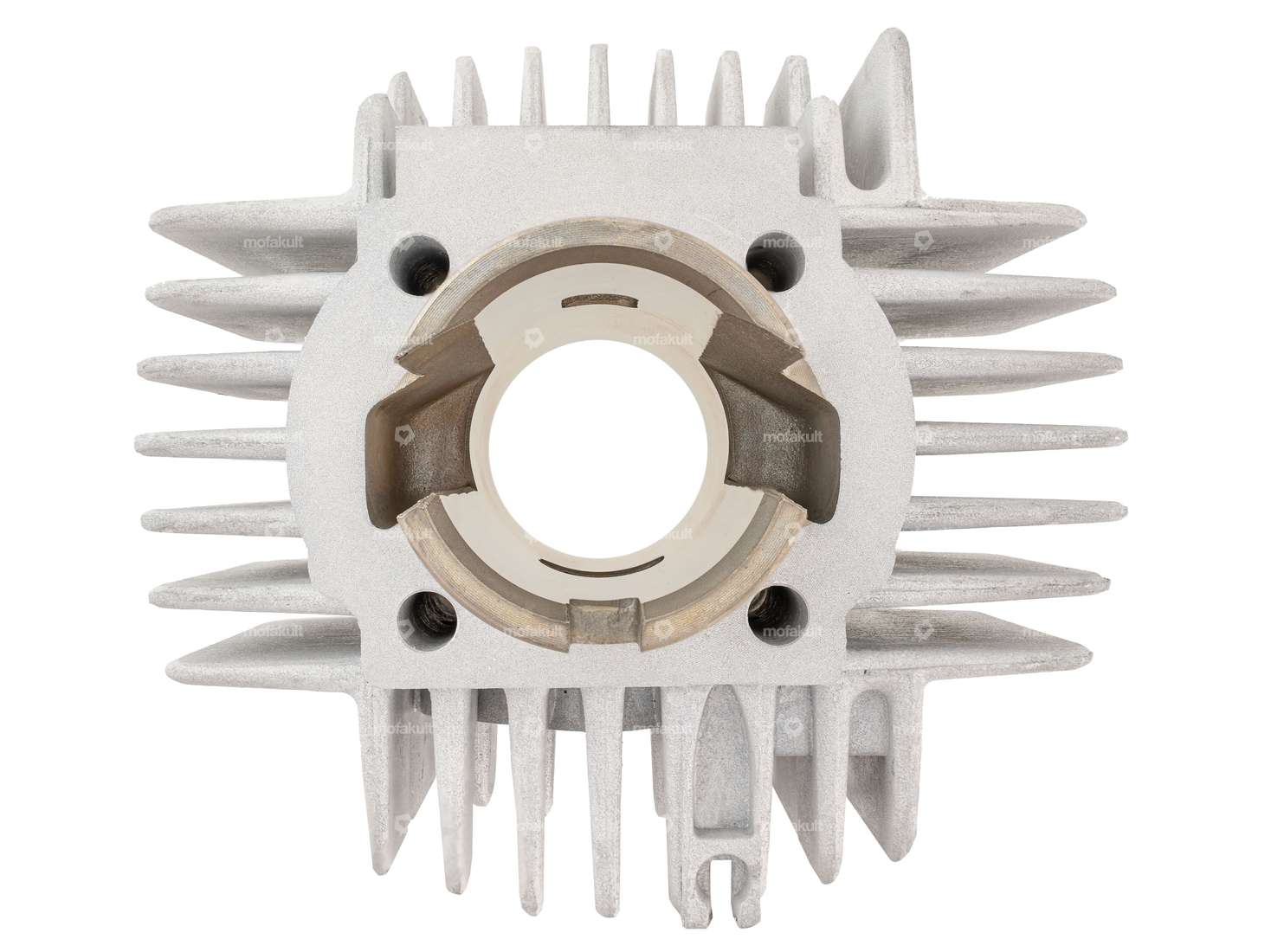

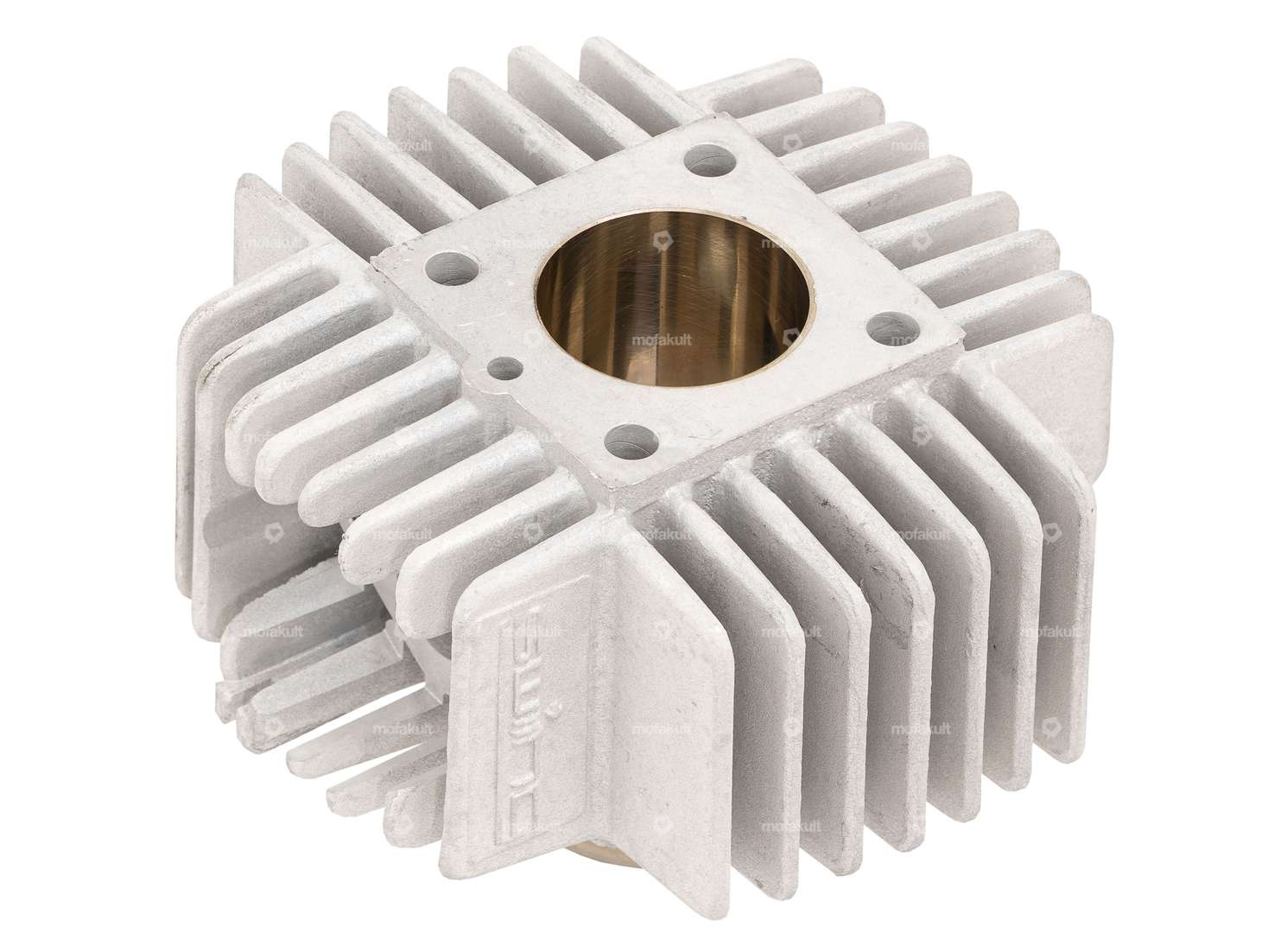

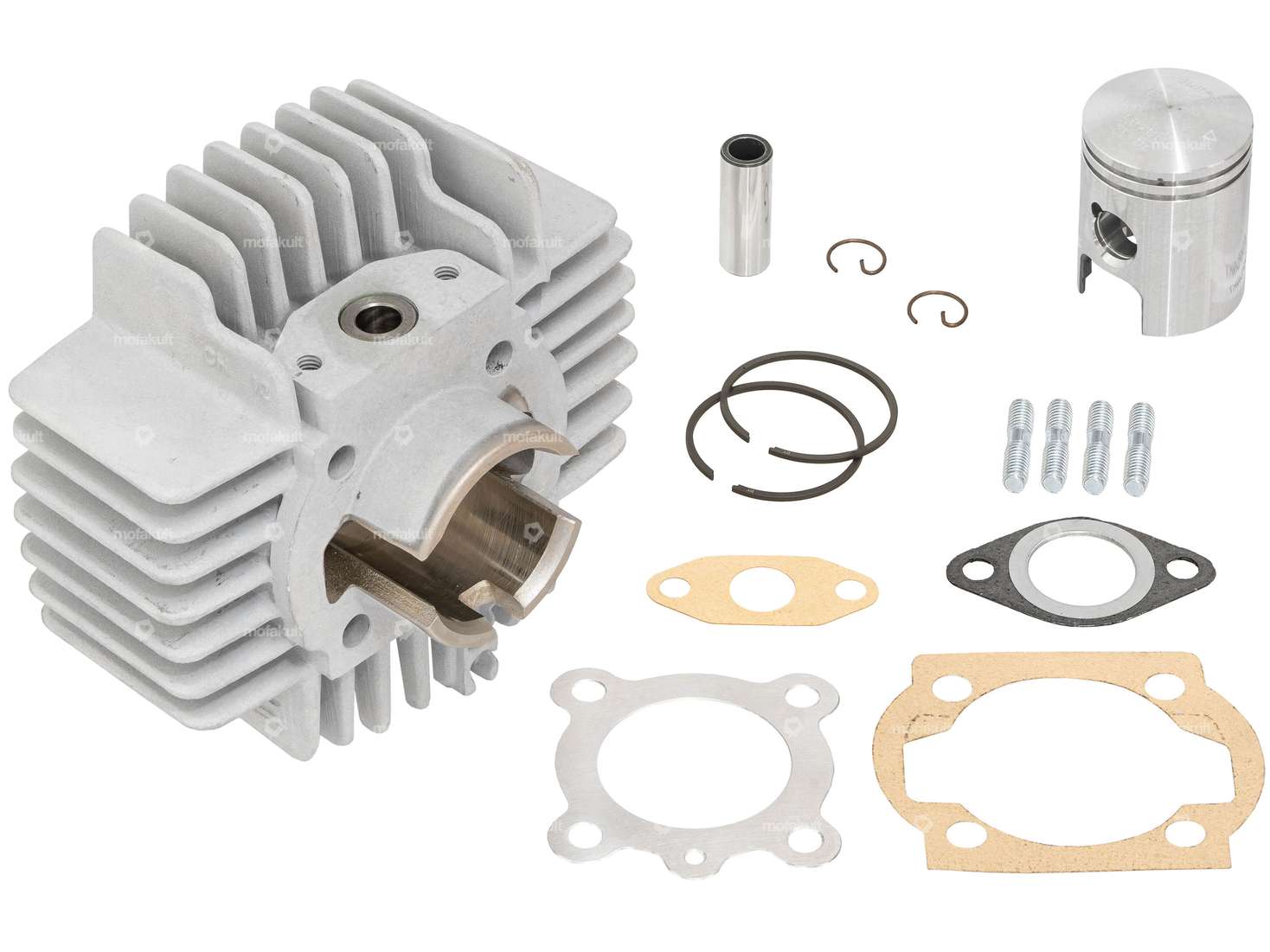

The high-quality 38 mm original cylinder is now also available exclusively with «Vertex» pistons.
This cylinder fits various Puch mopeds / mopeds such as Maxi S / N, Puch X30 NS / NL, Puch X30 NG-2A.
Vertex pistons are world-renowned for their quality and design.
With this cylinder, you will reach your destination quickly and powerfully.
- The intake window has been moved slightly downwards to achieve better timing
- Lubrication holes on the piston to the piston pin.
- The inner flats on the piston were milled flat for clean guidance of the connecting rod bearing
- The piston skirt has been optimized
- The inlet angles of the transfer ports have been adjusted
- Intake and exhaust largely milled flat (exhaust and intake manifold can be fitted without any problems)
With these optimizations, the 38 mm cylinder kit delivers a full 1.6 hp to the rear tire with the correct setting. This makes it the most powerful 38 mm cylinder with seal for Puch ever!

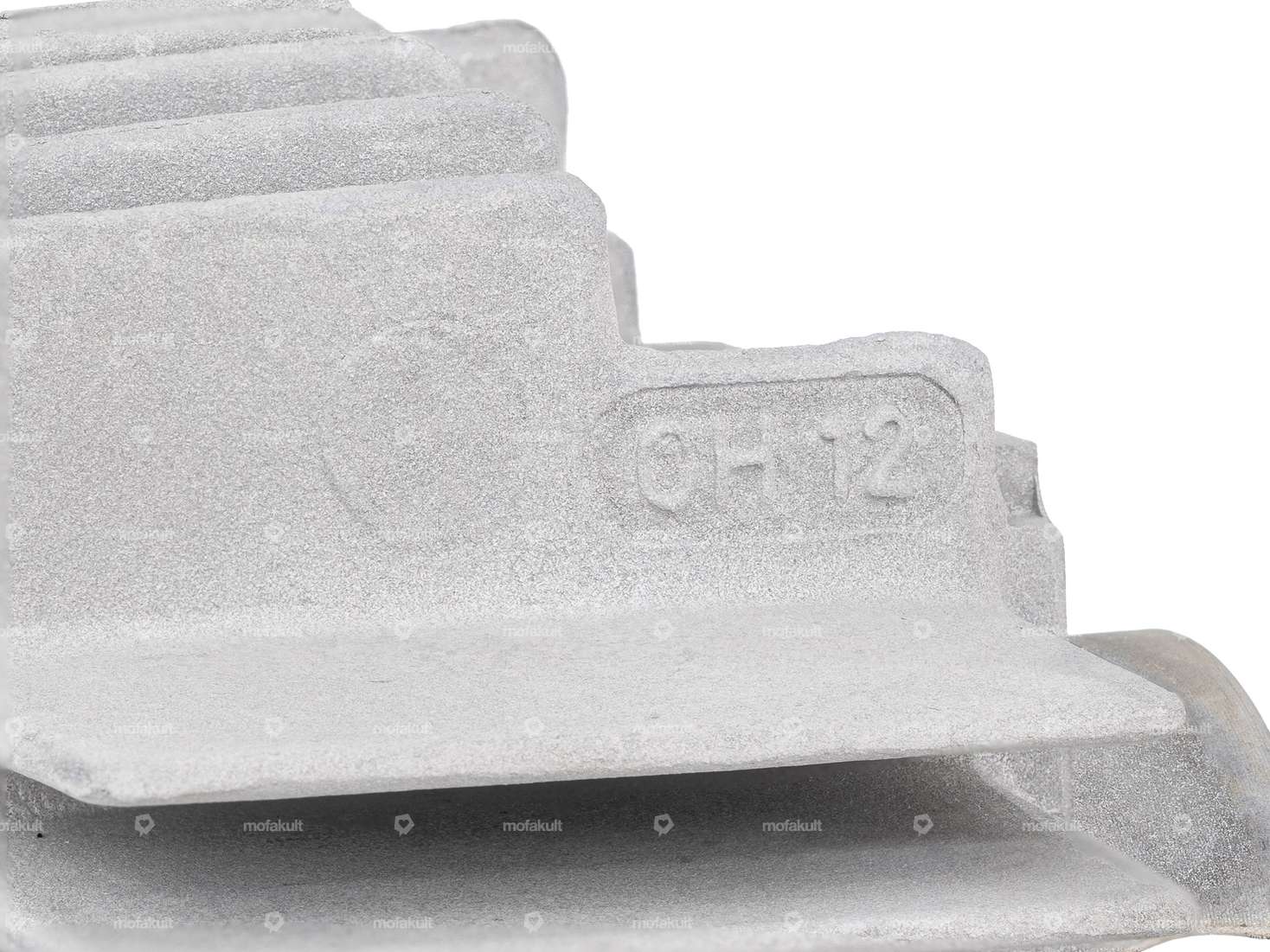

Of course, the original «CH12» is also cast in.
Note: Please note the installation direction when assembling. The piston is inserted with the arrow pointing towards the outlet on the exhaust side.
Attention: This cylinder is a reproduction product which is not approved for use on public roads.
Nostalgic product for the highest demands of the quality brand swiing®.
| Manufacturer | swiing® revival parts |
| Material | Aluminum |
| Area of application | Standard |
| Surface | sandblasted |
| Displacement | 50 ccm |
| Crankshaft stroke | 43 mm |
| Nominal diameter | 38 mm |
| Ø cylinder neck | 48 mm |
| Ø Inlet inside | 9 mm |
| Inlet window | 2 |
| Ø piston pin (B) | 12 mm |
| Ø outlet inside | 20 mm |
| Thread inlet | M6x1 (standard thread) |
| Number of fixing points | 4 pcs |
| Hole spacing outlet | 42 mm |
| Decompressor | Yes |
| Hole pattern [mm] | 44 x 44 |
| Hole spacing inlet | 38 mm |
| Outlet type | straight |
| Thread outlet | M6x1 (standard thread) |
| Camouflaged | Yes |
| Puch | E50 ZA50 (air-cooled) Z50 (X30 Sport) |
Ratings
Accessories & related products
GPO 38 mm cylinder head original | Puch Maxi S, N / X30 NS, NL, N-2AH
Manufacturer: GPO · Area of application: Standard · Material: Aluminum · Surface: sandblasted · Ø cylinder: 38 mm · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44 · Total length: 135 mm · Candle thread: short · Width: 125 mm · Height: 55 mm · Decompressor: No
EUR 39.00
GPO gasket set cylinder original | Puch Maxi S, N / X30 NS, NL, N-2AH
Manufacturer: GPO · Area of application: Standard · Material: Aluminum · Material: Sealing carton · Material: Sealing paper · Ø cylinder: 38 mm · Ø outlet inside: 22 mm · Hole spacing inlet: 32 - 38 mm · Thickness: 0.3 mm · Thickness: 0.4 mm · Thickness: 1.8 mm · Hole pattern [mm]: 44 x 44 mm · Hole spacing outlet: 42 mm · Number of components: 4 pcs · Decompressor: Yes
EUR 8.80
swiing® revival piston 38 mm Vertex | Puch
Nominal diameter: 38 mm · Manufacturer: Vertex · Manufacturer: swiing® revival parts · Ø outside piston (A): 37.96 mm · Compression height (C): 22.45 mm · Curvature (D): 3.5 mm · Total piston height (E): 50.45 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 1.5 mm · Thick piston ring: 1.6 mm · Ø piston pin (B): 12 mm · Tolerance group: A · Weight piston kit: 71 g
EUR 71.10
swiing® ingenious needle roller bearing 12/15/14.2 original silver cage
Bearing cage: Silver cage · Manufacturer: swiing® ingenious parts · Bearing type: Needle roller and cage assembly · Width: 14.2 mm · Ø inside: 12 mm · Ø outside: 15 mm · Dimension needle bearing: 12/15 x 14.2 · Alternative version of the Pony OEM number: A4222 · Tomos OEM number: 035548 · Alternative version of the Sachs OEM number: 0232 157 001
EUR 14.10
