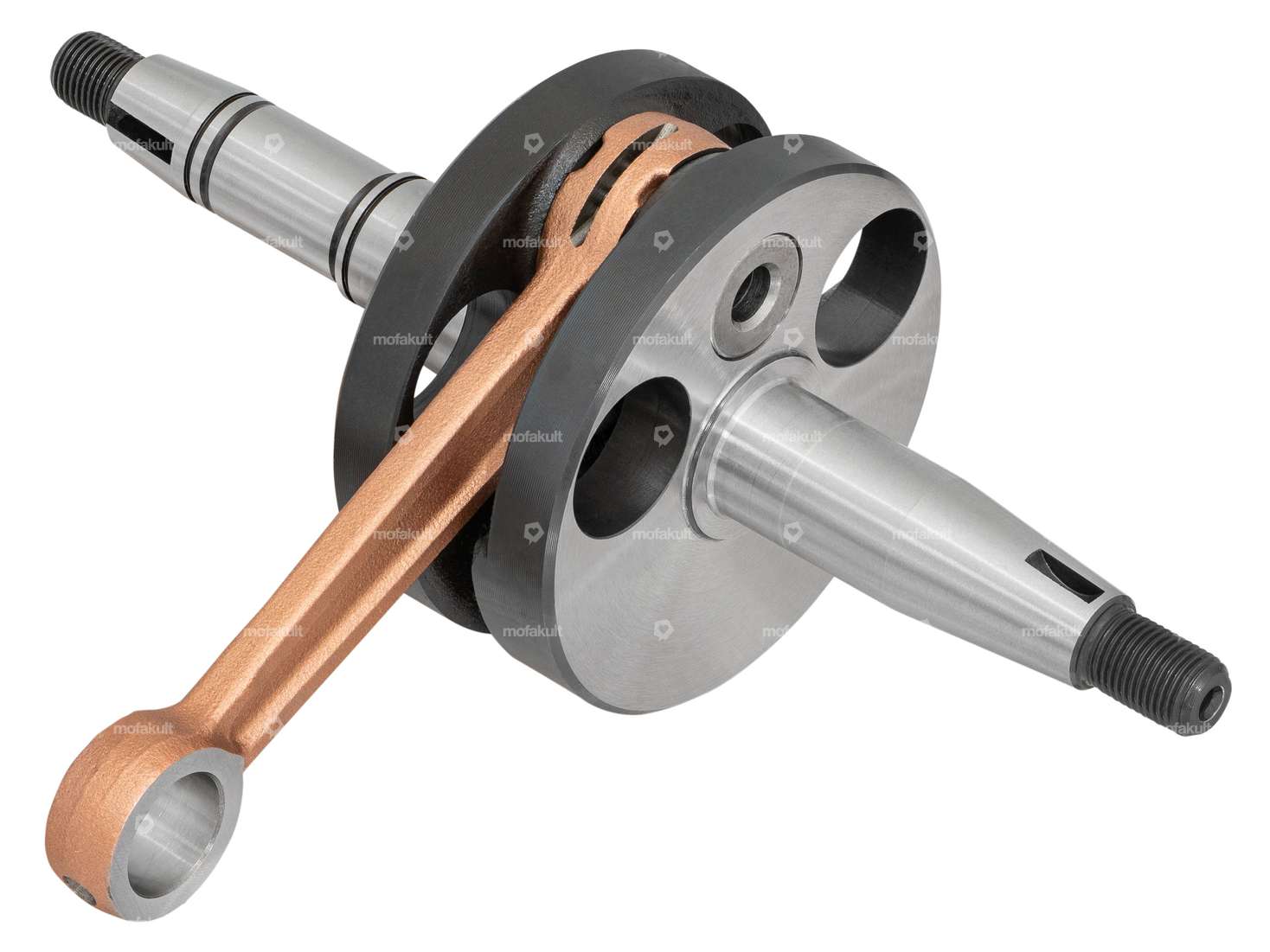

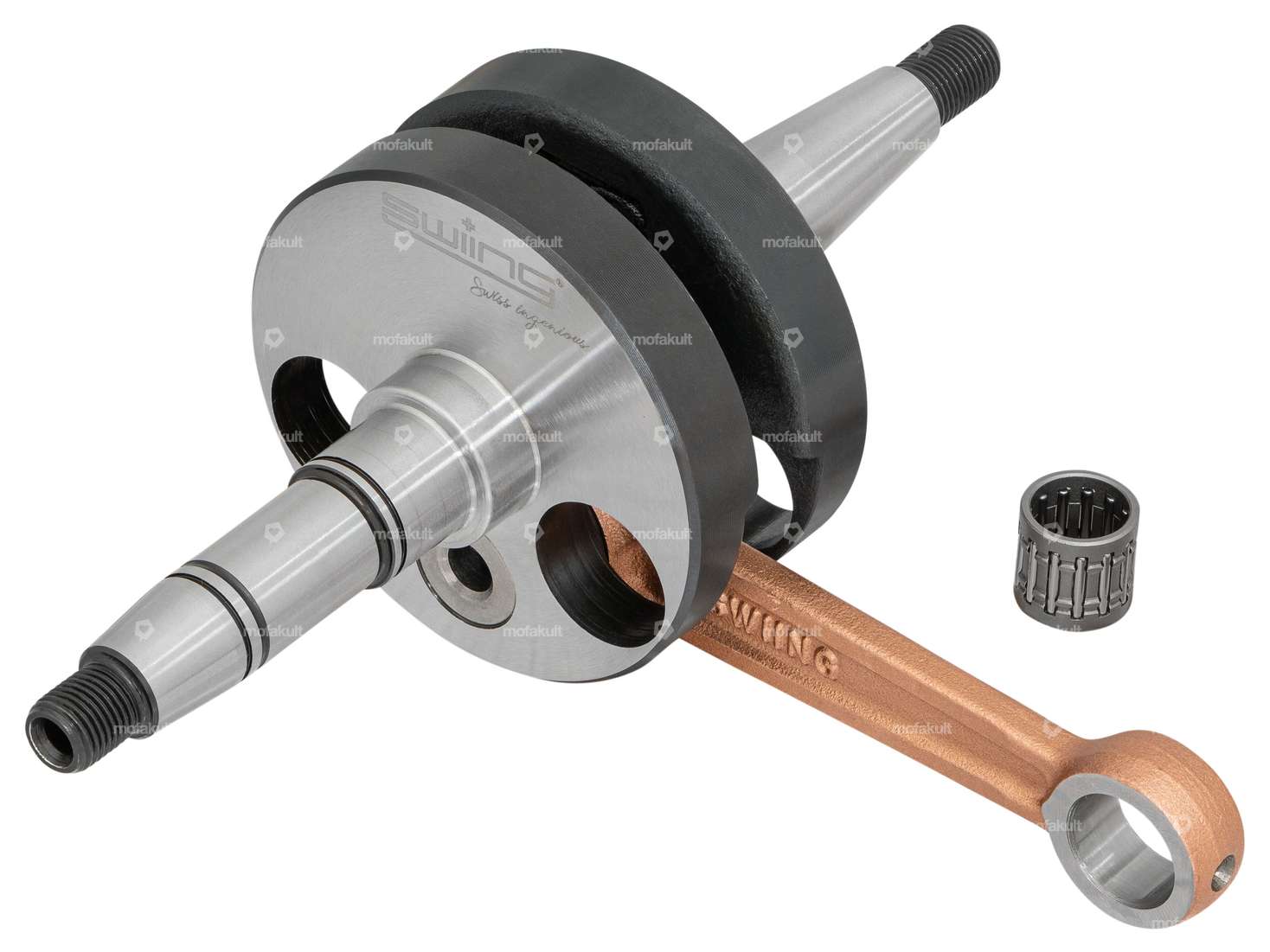

Original crankshaft suitable for your Puch Maxi S / N and Supermaxi LG1 moped / moped with a 1-speed E50 engine.
High-quality and precisely fitting standard crankshaft weighing 873 grams, which has proven itself in various load tests.
| Manufacturer | swiing® revival parts |
| Material | Steel |
| Cheek type | standard |
| Crankshaft stroke | 43 mm |
| Connecting rod length center-center | 90 mm |
| Thread type | MF10x1 (fine pitch thread), MF8x1 (fine pitch thread) |
| Total length of crankpin on clutch side | 74 mm |
| Thread length | 11 mm, 15 mm |
| Number of gears | 1 pcs |
| Total length crankpin ignition side | 66 mm |
| Ø crank webs | 69.9 mm |
| Area of application | Standard |
| Ø Connecting rod eye | 15 mm |
| Weight | 873 g |
| Ø Bearing seat (clutch side) | 17 mm |
| Ø Bearing seat (ignition side) | 17 mm |
| Dimension needle bearing | 12 / 15 x 14.2 mm (axe 12) |
| Wide crank webs | 34 mm |
| Length 1st paragraph | 9 mm |
| Length 2nd paragraph | 14.5 mm |
| Length 3rd paragraph | 25 mm |
| Ø 1st step (on the coupling side) | 22 mm |
| Ø 2nd shoulder (on the clutch side) | 17 mm |
| Ø 3rd step (on the clutch side) | 15 mm |
| Length of shoulder (ignition side) | 26.3 mm |
| Puch | E50 |
