swiing revival parts transparent

For: Puch

23998

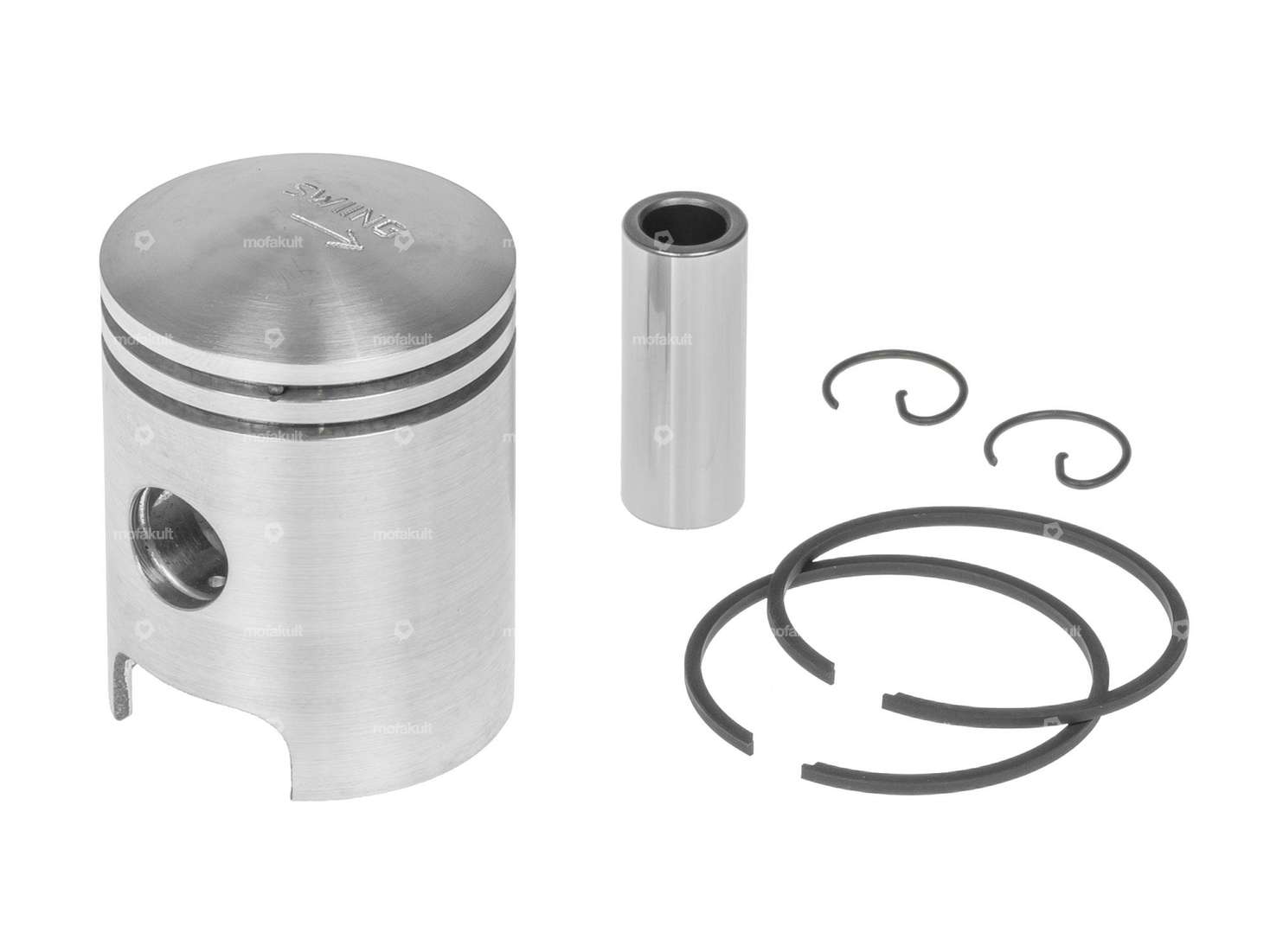

swiing® revival piston 38 mm 1.6 hp | Puch

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 53.30

Incl. 21% VAT.

Description

38.0 mm piston with two rectangular piston rings with internal fuse (IS) suitable for your moped / moped with 38 mm swiing cylinder kit with seal.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

Manufacturerswiing® revival parts
Nominal diameter38 mm
Ø outside piston (A)37.96 mm
Ø piston pin (B)12 mm
Compression height (C)22.6 mm
Curvature (D)2.5 mm
Total piston height (E)50.45 mm
Number of piston rings (F)2 pcs
Piston ring moldRectangular ring
Piston ring impactInternal fuse (IS)
Weight piston kit74 g
Puch

E50

ZA50 (air-cooled)

Z50 (X30 Sport)
