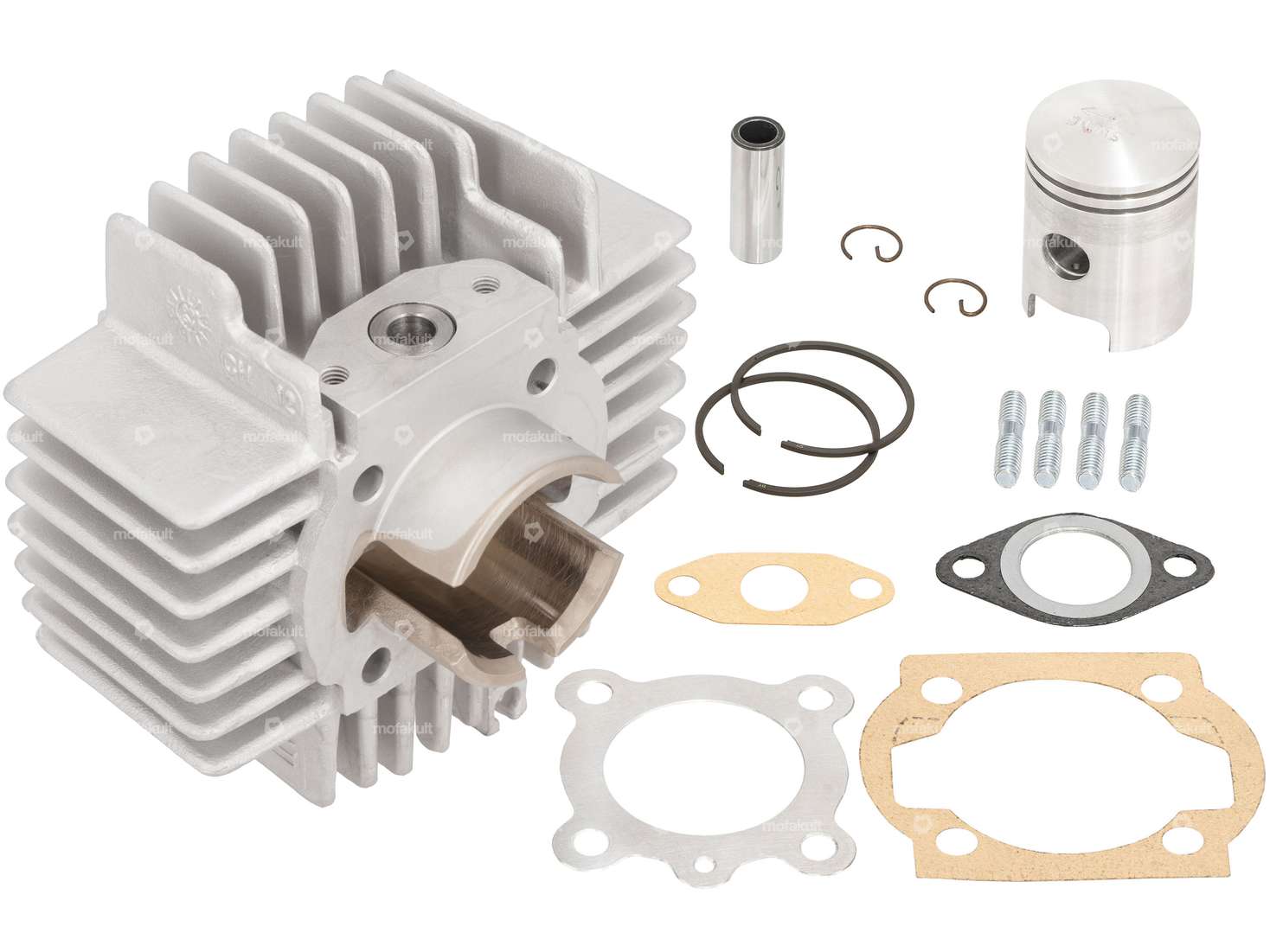

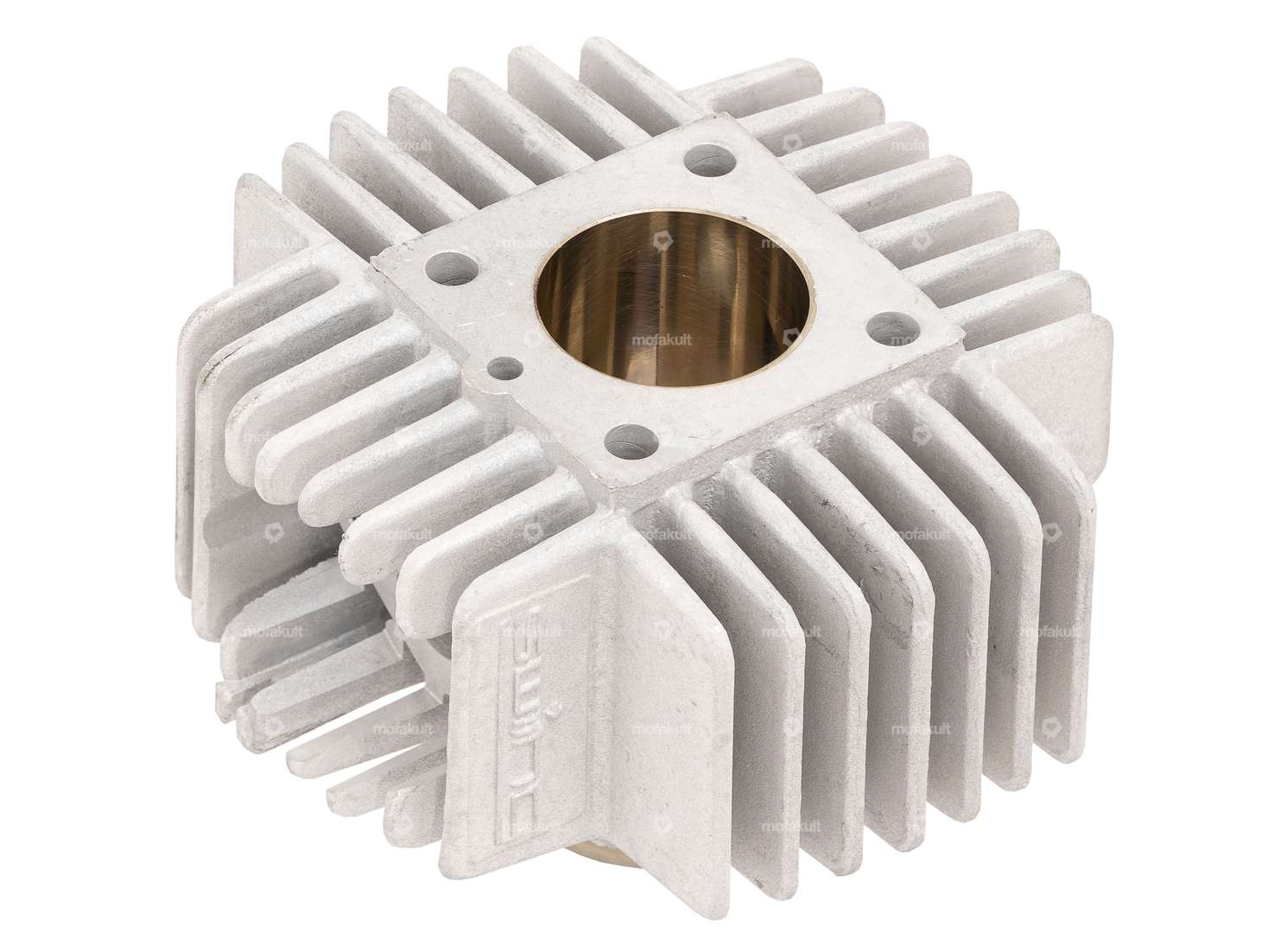

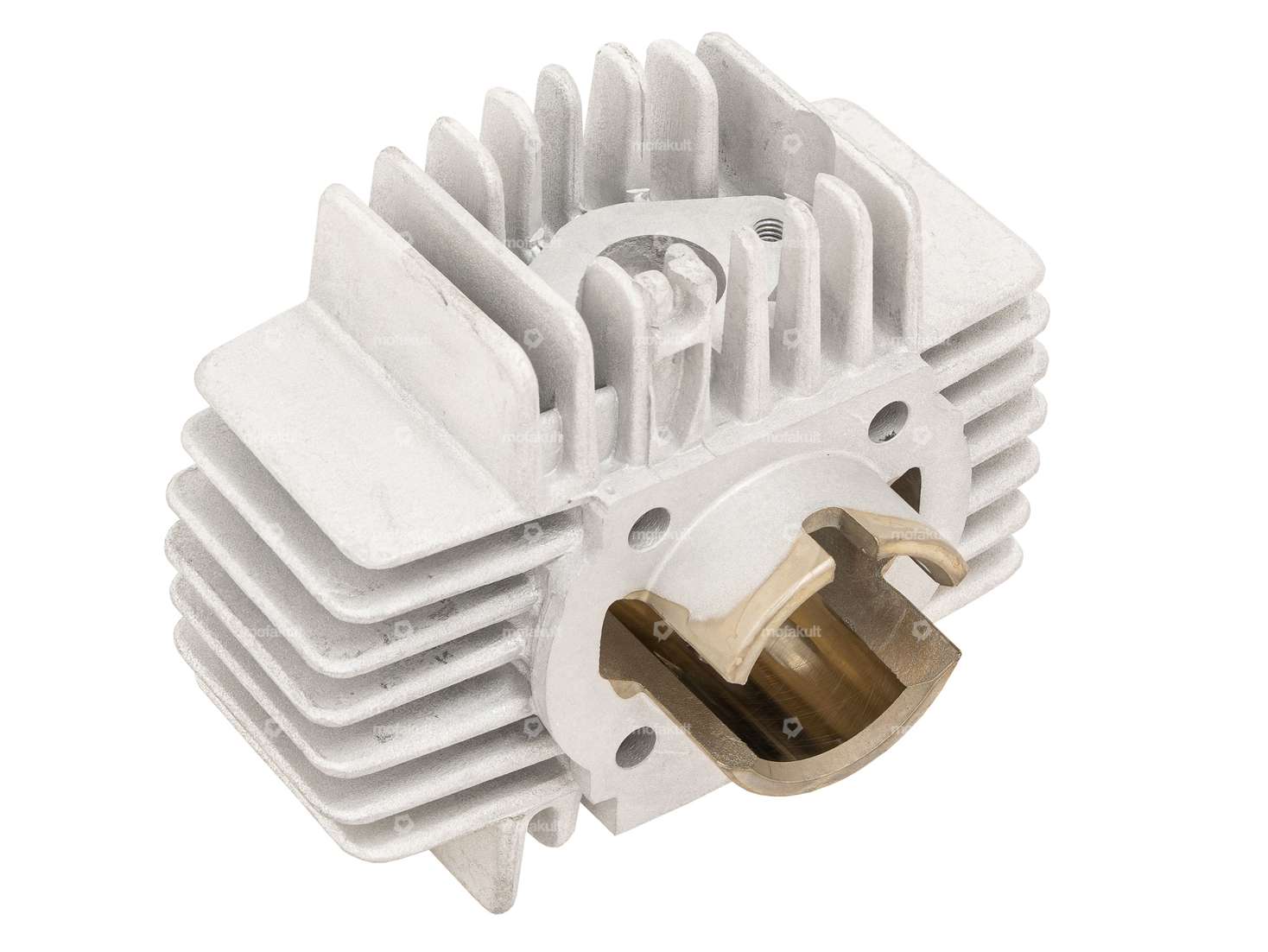

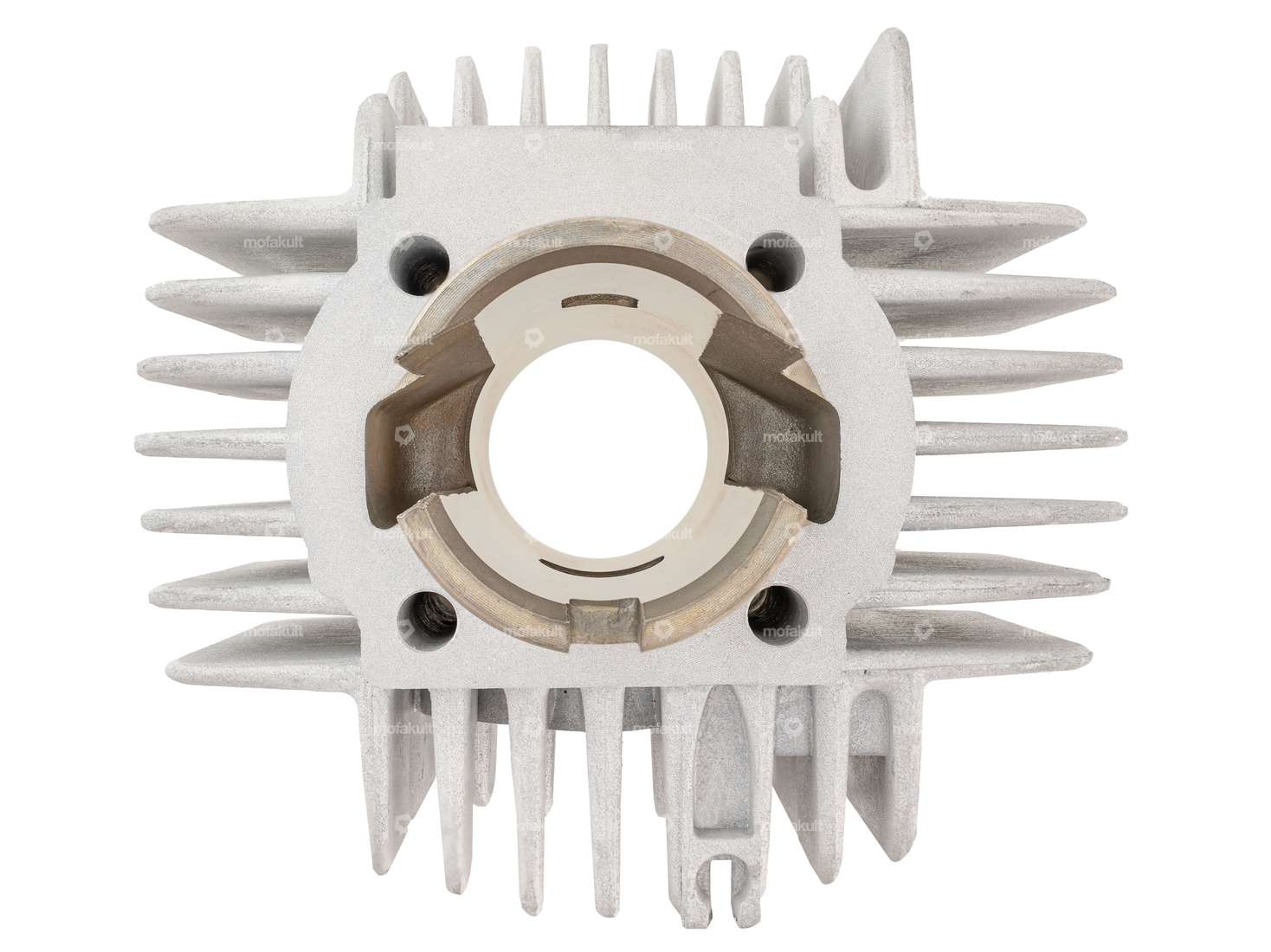

Lightly optimized, high-quality 38 mm original cylinder suitable for various Puch mopeds / mopeds such as Maxi S / N and Puch X30 NS / NL.
With this cylinder, you can reach your destination quickly and powerfully
.- The intake window has been moved slightly downwards to achieve better timing

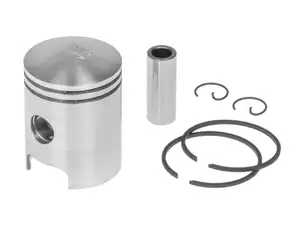

- Lubrication holes on the piston to the piston pin.
- The inner flats on the piston were milled flat for clean guidance of the connecting rod bearing
- The piston skirt has been optimized
- The inlet angles of the transfer ports have been adjusted
- Intake and exhaust largely milled flat (exhaust and intake manifold can be fitted without any problems)
With these optimizations, the 38 mm cylinder kit delivers a whopping 1.6 hp to the rear tire with the correct setting. This makes it the most powerful 38 mm cylinder with seal for Puch ever!

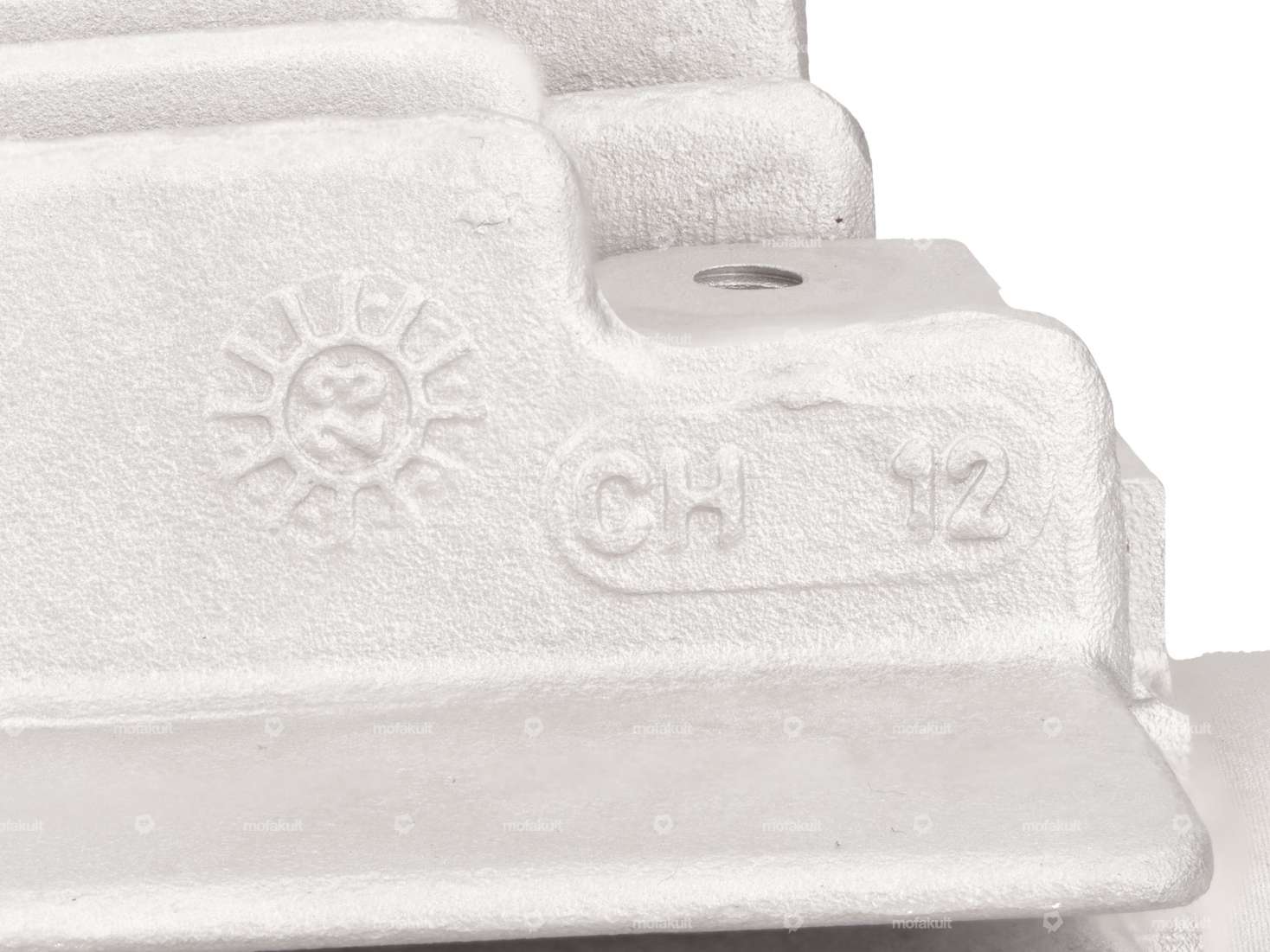

Of course, the original «CH12» is also cast in.
You can find detailed installation instructions in the video below.
| Nominal diameter | 38 mm |
| Manufacturer | swiing® revival parts |
| Material | Aluminum |
| Camouflaged | Yes |
| Area of application | Standard |
| Surface | sandblasted |
| Displacement | 50 ccm |
| Crankshaft stroke | 43 mm |
| Ø cylinder neck | 48 mm |
| Ø outlet inside | 19 mm |
| Ø Inlet inside | 9 mm |
| Hole spacing inlet | 38 mm |
| Thread inlet | M6x1 (standard thread) |
| Number of fixing points | 4 pcs |
| Ø piston pin (B) | 12 mm |
| Hole pattern [mm] | 44 x 44 |
| Outlet type | straight |
| Hole spacing outlet | 42 mm |
| Thread outlet | M6x1 (standard thread) |
| Decompressor | Yes |
| Alternative version of the Puch OEM number | 349.7.10.105.0 |
| Puch | E50 Z50 (X30 Sport) |
