Inox
Carousel Image 1
swiing revival parts transparent

For: Sachs · Hercules

35709

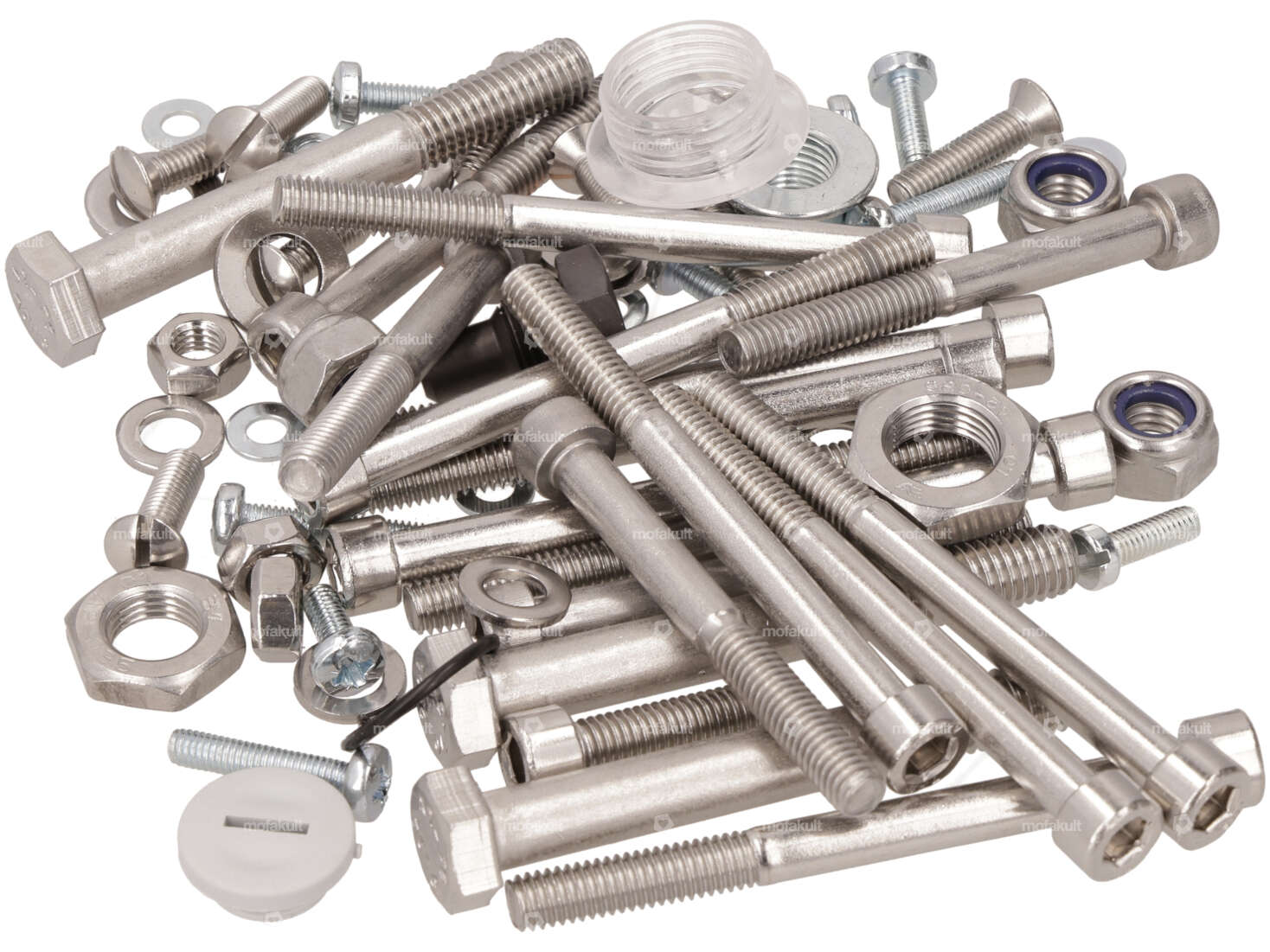

swiing® revival screw set Motor Inox | Sachs 505/1, 505/2, 505/3, 535/1

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 53.30

Incl. 21% VAT.

Description

Complete screw set suitable for your moped / moped with Sachs 505/1, 505/2, 505/3 or 535/1 engine. The screw set covers all four versions.

The set is suitable for Hercules Prima and Optima models which were equipped with a Sachs 505 engine.

The screw set includes all screws, washers, lock washers, nuts, stud bolts etc. which are required for a professional engine overhaul.

With a few exceptions, all components are made of stainless steel.

A list with the corresponding mounting points is included in the scope of delivery.

You will find the galvanized steel version together with the matching gasket set and bearing set in the accessories section.

Nostalgic product for the highest demands of the quality brand swiing®.

Manufacturerswiing® revival parts
MaterialChrome steel (colloquially known as stainless steel)
Surfacestainless
Number of components75 pcs
Sachs

505 (with pedal shaft) - 1A (AT) , 2A (HG)

535

Hercules

Great - 2 , 3 , 4 , 5 , Optima

Accessories & related products

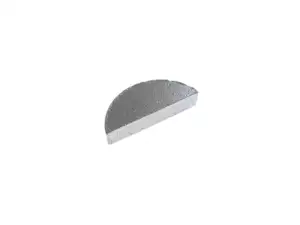

Wedge for flywheel | Sachs 504, 508

For: Sachs

18490

Wedge for flywheel | Sachs 504, 508

Material: Steel · Total length: 9.3 mm · Width: 2 mm · Height: 3.8 mm · Sachs OEM no.: 0246 005 000

EUR 2.25

Original front air filter box | Sachs 504, 505, 535 (A4209)

For: Sachs

20560

Original front air filter box | Sachs 504, 505, 535 (A4209)

Material: Plastic · Color: black · Area of application: Original · Area of application: Standard

EUR 47.30

Clutch cover gasket | Sachs 504, 505, 535 (A4278)
undefined

For: Sachs · Hercules

22558

Clutch cover gasket | Sachs 504, 505, 535 (A4278)

Number of components: 1 pcs · Manufacturer: Sachs · Material: Sealing paper · Number of fixing points: 5 pcs · Pony OEM number: A4278 · Sachs OEM no.: 0250 131 000

EUR 5.80

BING gasket set Bing SSB carburetor | Sachs
undefined

For: Universal · Sachs

23691

BING gasket set Bing SSB carburetor | Sachs

Manufacturer: BING · Component group Carburetor: Sealing, revising · Carburetor type: SSB

EUR 14.60

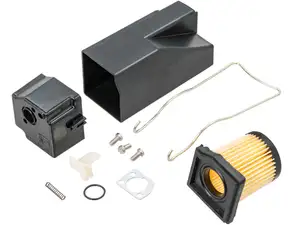

Air filter box set "Racing" | Sachs 504, 505, 535 (A4209)

For: Sachs

32016

Air filter box set "Racing" | Sachs 504, 505, 535 (A4209)

Area of application: Tuning · Camouflaged: Yes · Material: Paper · Material: Plastic · Color: black · Width: 57 mm · Height: 57 mm · Filter type: Box · Filter type: Filter paper · Total length: 173 mm · Ø Internal connection: 14.5 mm · Mounting type: Screws · Pony OEM number: A4209

EUR 65.20

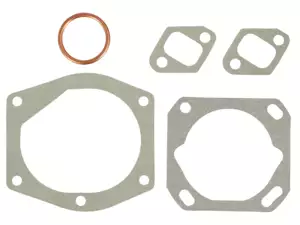

Gasket set (1A quality) | Sachs 504, 505, 535
