Membrane system

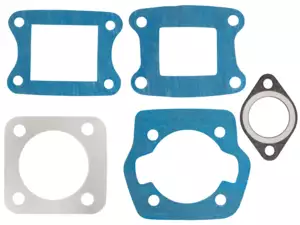

Athena gasket set 45 mm AJH diaphragm

Manufacturer: Athena · Ø cylinder: 45 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 mm / 60 x 40 mm · Number of components: 5 pcs · Area of application: Tuning

Polini 2-folding diaphragm insert

Manufacturer: Polini · Thickness: 2 mm · Area of application: Tuning · Number of flaps: 2 pcs · Number of fixing points: 4 pcs · Ø mounting hole: 5.3 mm · Mounting type: Screws · Hole pattern [mm]: 39 x 36/32 mm

Polini gasket diaphragm

Manufacturer: Polini · Ø cylinder: 45 mm · Place of use: Admission

Stage6 8-folding diaphragm by Moto Tassinari (Gilardoni italkit)

Manufacturer: Stage6 · Material: Plastic · Surface: raw · Number of flaps: 8 pcs · Membrane material: Carbon · Thick membrane platelets: 0.4 mm · Total length: 77 mm · Width: 49 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Ø mounting hole: 6.6 mm · Hole pattern [mm]: 60 x 35 mm · Area of application: High End

Polini intake system 4-folding diaphragm PHBG

Manufacturer: Polini · Number of flaps: 4 pcs · Ø inside: 19 mm · Ø outside: 24 mm · Mounting type: Screws · Area of application: Tuning

Malossi 4-folding diaphragm carbonite Puch

Ø outside: 24 mm · Manufacturer: Malossi · Number of flaps: 4 pcs · Membrane material: Carbonite · Thick membrane platelets: 0.3 mm · Mounting type: Screws · Area of application: Tuning

Polini lung aluminum

Manufacturer: Polini · Material: Aluminum · Area of application: Tuning · Total length: 105 mm · Mounting type: Cable ties · Total height: 40 mm

Stage6 lung aluminum

Manufacturer: Stage6 · Color: Chrome · Camouflaged: No · Material: Aluminum · Surface: chrome-plated · Area of application: Tuning · Ø External connection: 6 mm · Total length: 105 mm · Total length: 125 mm · Ø inside: 4 mm · Mounting type: Cable ties · Total height: 40 mm

Intermediate flange cylinder Athena AJH Puch

Material: Plastic · Color: black-matt · Mounting type: Screws · Area of application: Tuning · Number of fixing points: 4 pcs · Hole pattern [mm]: 60 x 40

Athena diaphragm seal AJH

Manufacturer: Athena · Place of use: Admission · Material: Oiled paper · Thickness: 0.5 mm · Ø screw holder: 6.7 mm · Hole pattern [mm]: 40 x 62 · Area of application: Tuning

Polini intake system 4-folding diaphragm "Big Valve" PHBG / CP carburetor | Puch

Material: Aluminum · Material: Plastic · Surface: glass bead blasted · Manufacturer: Polini · Thread type: M5x0.8 (standard thread) · Number of flaps: 4 pcs · Ø mounting hole: 5.2 mm · Membrane material: Carbonite · Ø outside: 24 mm · Thick membrane platelets: 0.3 mm · Number of fixing points: 4 pcs · Area of application: Racing · Area of application: Tuning · Ø inside: 28.6 mm · Mounting type: Screws · Camouflaged: No

Malossi diaphragm plate carbonite 0.3 mm

Manufacturer: Malossi · Membrane material: Carbonite · Width: 100 mm · Thick membrane platelets: 0.3 mm · Total length: 100 mm · Area of application: Tuning

Athena membrane seal set (2 pcs.)

Manufacturer: Athena · Material: Sealing paper · Hole pattern [mm]: 33 x 32 mm · Thickness: 0.5 mm · Mounting type: Screws · Number of fixing points: 4 pcs

Malossi 4-flap diaphragm Carbon Gilardoni italkit | Puch

Manufacturer: Malossi · Material: Plastic · Number of flaps: 4 pcs · Membrane material: Carbon · Number of fixing points: 4 pcs · Mounting type: Screws · Area of application: Tuning · Hole pattern [mm]: 61 x 39 mm / 58 x 35 mm

Polini 20 mm intake manifold 2-folding diaphragm Puch

Manufacturer: Polini · Material: Aluminum · Ø inside: 20 mm · Ø External connection: 25 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Total height: 46 mm · Area of application: Tuning

Athena 22 mm intake manifold Diaphragm Dell'Orto PHBG | Puch

Manufacturer: Athena · Material: Aluminum · Ø inside: 22 mm · Hole pattern [mm]: 60 x 40 · Area of application: Tuning · Ø External connection: 26 mm · Mounting type: Screws · Number of fixing points: 4 pcs

Polini gasket set 4-folding diaphragm | Puch

Manufacturer: Polini · Number of flaps: 4 pcs · Hole pattern [mm]: 39 x 36/32 mm · Area of application: Tuning

Malossi reed valve carbon 0.3 mm

Manufacturer: Malossi · Total length: 100 mm · Membrane material: Carbon · Width: 100 mm · Thick membrane platelets: 0.3 mm · Area of application: Tuning

Malossi gasket set 4-folding diaphragm

Manufacturer: Malossi · Material: Sealing paper · Area of application: Tuning · Mounting type: Screws · Number of fixing points: 4 pcs

MBR plate inlet Gilardoni italkit steel

Manufacturer: MBR · Area of application: Tuning · Material: Steel · Surface: raw · Thickness: 5 mm · Mounting type: Screws · Ø inside: 21 mm · Number of fixing points: 4 pcs · Hole pattern [mm]: 60 x 35 mm · Total length: 72.5 mm · Width: 48 mm

Malossi 4-folding diaphragm insert carbonite Gilardoni italkit Puch

Manufacturer: Malossi · Area of application: Tuning · Number of flaps: 4 pcs · Membrane material: Carbonite · Mounting type: Screws · Number of fixing points: 4 pcs · Hole pattern [mm]: 61 x 39 mm / 58 x 35 mm

Malossi diaphragm plate carbonite 0.4 mm

Manufacturer: Malossi · Membrane material: Carbonite · Width: 100 mm · Thick membrane platelets: 0.4 mm · Total length: 100 mm · Area of application: Tuning

Malossi diaphragm plate carbonite 0.35 mm

Manufacturer: Malossi · Membrane material: Carbonite · Width: 100 mm · Thick membrane platelets: 0.35 mm · Total length: 100 mm · Area of application: Tuning

Membrane box for ADDY GME engine housing "der.pruefstand" | Puch E50

Material: Aluminum · Total length: 48 mm · Width: 66 mm · Hole spacing: 52 mm · Hole pattern [mm]: 37 x 55 · Thread type: M6x1 (standard thread)

Membrane transpacer Polini Trapez 12 mm aluminum | Puch ZA50

Material: Aluminum · Surface: blank · Total length: 50 mm · Width: 42.5 mm · Width: 46 mm · Hole pattern [mm]: 32 / 36 x 39 · Thickness: 12 mm · Ø mounting hole: 5.4 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Area of application: Tuning

MBR cover diaphragm inlet Gilardoni italkit | Puch

Manufacturer: MBR · Material: Steel · Surface: raw · Width: 48 mm · Total length: 72.5 mm · Hole pattern [mm]: 60 x 35 mm · Thickness: 5 mm · Ø mounting hole: 6.3 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Area of application: Tuning

MLM 19 mm intake manifold Polini 4-folding diaphragm Dell'Orto PHBG, CP | Puch

Manufacturer: MLM · Material: Steel · Surface: varnished · Ø inside: 25.3 mm · Ø External connection: 28.5 mm · Mounting type: Plug connection clamped · Area of application: Tuning · Total height: 80 mm · Color: black

Malossi diaphragm insert carbon 0.3 mm | Peugeot 103 / BYE BIKE

Manufacturer: Malossi · Camouflaged: No · Material: Plastic · Surface: raw · Number of flaps: 1 pcs · Membrane material: Carbon · Thick membrane platelets: 0.3 mm · Total length: 50 mm · Width: 43 mm · Width: 47 mm · Hole pattern [mm]: 32 / 36 x 39 · Thickness: 3 mm · Ø mounting hole: 5.4 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Area of application: Tuning

MLM 19 mm intake manifold Polini 2-folding diaphragm Dell'Orto PHBG, CP | Puch

Surface: varnished · Manufacturer: MLM · Material: Steel · Total height: 67 mm · Ø inside: 19 mm · Color: black · Area of application: Tuning · Number of fixing points: 4 pcs · Ø External connection: 23 mm · Mounting type: Screws

2-folding membrane insert Athena AJH

Number of flaps: 2 pcs · Membrane material: Spring steel · Hole pattern [mm]: 60 x 40 mm · Mounting type: Screws · Area of application: Tuning · Number of fixing points: 4 pcs

Polini 2-folding diaphragm Puch

Manufacturer: Polini · Area of application: Tuning · Number of flaps: 2 pcs · Thickness: 2 mm · Number of fixing points: 4 pcs · Ø mounting hole: 5.3 mm · Mounting type: Screws · Hole pattern [mm]: 39 x 36/32 mm

DMP 2 hinged membrane insert

Manufacturer: DMP · Number of flaps: 2 pcs · Membrane material: Spring steel · Mounting type: Screws · Ø mounting hole: 5.8 mm · Number of fixing points: 4 pcs · Hole pattern [mm]: 39 x 36/32 mm · Area of application: Tuning

Gasket set diaphragm Gilardoni italkit Puch

Area of application: Tuning · Number of components: 2 pcs · Hole pattern [mm]: 60 x 35 mm

Malossi 4-folding diaphragm insert carbonite Puch / Peugeot 103 / 104 / 105

Manufacturer: Malossi · Area of application: Tuning · Number of flaps: 4 pcs · Membrane material: Carbonite · Mounting type: Screws · Thick membrane platelets: 0.3 mm · Number of fixing points: 4 pcs

Stage6 reed valve block VForce 3 by Moto Tassinari

Manufacturer: Stage6 · Number of flaps: 8 pcs · Hole spacing: 52 mm

Athena 2-folding diaphragm Puch / Sachs

Manufacturer: Athena · Number of flaps: 2 pcs · Membrane material: Spring steel · Mounting type: Screws · Number of fixing points: 4 pcs · Area of application: Tuning

Gilardoni italkit 4-folding diaphragm original

Manufacturer: Gilardoni italkit · Number of flaps: 4 pcs · Membrane material: Carbon · Hole pattern [mm]: 60 x 35 mm · Ø mounting hole: 6.3 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Area of application: Tuning

Malossi intake system 4-folding diaphragm (SHA carburetor)

Manufacturer: Malossi · Number of flaps: 4 pcs · Ø outside: 19 mm · Mounting type: Screws · Ø inside: 15 mm · Area of application: Tuning

Membrane transpacer Polini Trapez 6 mm aluminum | Puch ZA50

Material: Aluminum · Surface: blank · Total length: 50 mm · Width: 46 mm · Hole pattern [mm]: 32 / 36 x 39 · Thickness: 6.15 mm · Ø mounting hole: 5.4 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Area of application: Tuning

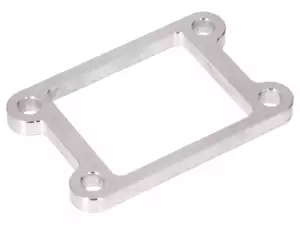

Membrane transpacer Gilardoni italkit rectangle 6 mm aluminum | Puch ZA50

Material: Aluminum · Surface: blank · Total length: 72.8 mm · Width: 47.8 mm · Hole pattern [mm]: 59 x 34.5 · Thickness: 6.15 mm · Ø mounting hole: 5.4 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Area of application: Tuning

Diaphragm seal | Minarelli, Aprilia, Suzuki

Material: Sealing paper · Place of use: Admission · Thickness: 0.5 mm · Ø screw holder: 6.3 mm · Area of application: Racing · Area of application: Tuning

Polini intake system 4-folding diaphragm SHA

Ø outside: 19 mm · Manufacturer: Polini · Material: Aluminum · Area of application: Tuning · Number of flaps: 4 pcs · Ø inside: 15 mm · Mounting type: Screws

MBR cover aluminum reed valve inlet Gilardoni italkit cylinder kit | Puch

Manufacturer: MBR · Area of application: Tuning · Material: Aluminum · Thickness: 8 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Hole pattern [mm]: 60 x 35 mm · Total length: 72.5 mm · Width: 48 mm

Malossi 2-folding diaphragm insert

Manufacturer: Malossi · Area of application: Tuning · Number of flaps: 1 pcs · Hole pattern [mm]: 39 x 36/32 mm · Number of fixing points: 4 pcs · Mounting type: Screws

Polini 4-flap diaphragm insert

Manufacturer: Polini · Camouflaged: No · Material: Plastic · Material: Sheet metal (steel) · Surface: raw · Number of flaps: 4 pcs · Membrane material: Carbon · Thick membrane platelets: 0.3 mm · Total length: 72.9 mm · Width: 47.9 mm · Hole pattern [mm]: 35 x 60 · Mounting type: Stud bolts & nuts · Number of fixing points: 4 pcs · Area of application: Tuning

Polini diaphragm plate carbon 0.3 / 0.35 mm

Manufacturer: Polini · Camouflaged: No · Material: Carbon · Number of flaps: 4 pcs · Membrane material: Carbon · Thick membrane platelets: 0.3 mm · Thick membrane platelets: 0.35 mm · Total length: 38 mm · Width: 36 mm · Hole spacing: 17 mm · Ø mounting hole: 3 mm · Mounting type: Screws · Number of fixing points: 2 pcs · Area of application: Racing · Area of application: Tuning

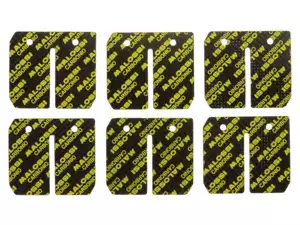

Malossi reed valve carbon 0.3 / 0.35 / 0.4 mm VL6 Gilardoni italkit

Manufacturer: Malossi · Area of application: Tuning · Number of flaps: 4 pcs · Membrane material: Carbon · Mounting type: Screws · Thick membrane platelets: 0.3 mm · Thick membrane platelets: 0.35 mm · Thick membrane platelets: 0.4 mm · Total length: 37 mm · Number of fixing points: 2 pcs · Width: 42 mm · Hole spacing: 22 mm

Malossi gasket set 2-folding diaphragm for Polini 43.5 mm | Puch

Manufacturer: Malossi · Material: Sealing paper · Area of application: Tuning · Number of fixing points: 4 pcs · Hole pattern [mm]: 39 x 36/32 mm

Stage6 reed valve V-Force 3 by Moto Tassinari | Minarelli

Manufacturer: Stage6 · Width: 68 mm · Material: Plastic · Area of application: Racing · Area of application: Tuning · Number of flaps: 8 pcs · Membrane material: Carbon · Thick membrane platelets: 0.3 mm · Total length: 76 mm · Ø mounting hole: 6.5 mm · Mounting type: Screws · Number of fixing points: 4 pcs

MBR inclined spacer inlet Gilardoni italkit

Manufacturer: MBR · Area of application: Tuning · Material: Aluminum · Mounting type: Screws · Number of fixing points: 4 pcs · Total height: 3 mm · Total height: 8 mm · Hole pattern [mm]: 60 x 35

Polini Lunge plastic black

Thread type: MF10x1 (fine pitch thread) · Manufacturer: Polini · Material: Plastic · Area of application: Tuning · Total length: 126 mm · Mounting type: Cable ties · Total height: 45 mm · Color: black

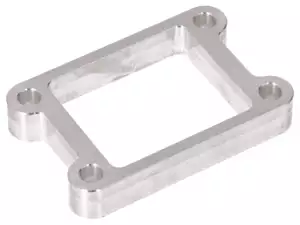

Membrane transpacer Gilardoni italkit rectangle 12 mm aluminum | Puch ZA50

Material: Aluminum · Surface: blank · Total length: 72.8 mm · Width: 47.8 mm · Hole pattern [mm]: 59 x 34.5 · Thickness: 12 mm · Ø mounting hole: 5.4 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Area of application: Tuning

Parmakit 2-folding diaphragm insert carbon

Manufacturer: Parmakit · Number of flaps: 2 pcs · Membrane material: Carbon · Hole pattern [mm]: 60 x 40 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Area of application: Tuning

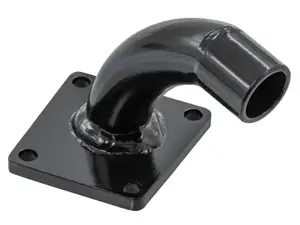

MLM 15 mm intake manifold Polini 2-folding diaphragm Dell'Orto SHA | Puch

Surface: varnished · Manufacturer: MLM · Material: Steel · Total height: 58 mm · Ø inside: 15 mm · Color: black · Area of application: Tuning · Number of fixing points: 4 pcs · Ø External connection: 18 mm · Mounting type: Screws

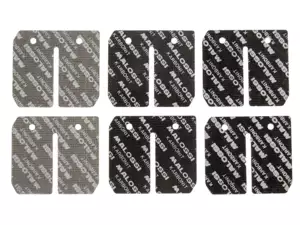

Malossi reed valve carbonite 0.3 / 0.35 / 0.4 mm VL6 Gilardoni italkit

Manufacturer: Malossi · Area of application: Tuning · Number of flaps: 4 pcs · Membrane material: Carbonite · Mounting type: Screws · Thick membrane platelets: 0.3 mm · Thick membrane platelets: 0.35 mm · Thick membrane platelets: 0.4 mm · Total length: 37 mm · Number of fixing points: 2 pcs · Width: 42 mm · Hole spacing: 22 mm

MLM 21 mm intake manifold diaphragm adapter Dell'Orto PHBG | Puch

Manufacturer: MLM · Material: Steel · Surface: varnished · Area of application: Tuning · Color: black · Ø External connection: 25 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Ø inside: 21.5 mm

MLM 15 mm intake manifold diaphragm adapter Bing SRE | Puch

Manufacturer: MLM · Material: Steel · Surface: varnished · Color: black · Ø External connection: 20 mm · Mounting type: Screws · Ø inside: 15 mm · Number of fixing points: 4 pcs · Area of application: Tuning

MLM 15 mm intake manifold diaphragm adapter Dell'Orto SHA | Puch

Manufacturer: MLM · Material: Steel · Surface: varnished · Area of application: Tuning · Color: black · Ø External connection: 19 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Ø inside: 15 mm

Malossi MHR diaphragm intake system PHGB

Manufacturer: Malossi · Camouflaged: No · Material: Aluminum · Material: FPM / FKM (known as VITON®) · Number of flaps: 2 pcs · Membrane material: Carbonite · Hole pattern [mm]: 60 x 35 / 61 x 40 · Ø inside: 24.5 mm · Ø mounting hole: 6.5 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Area of application: Tuning

Malossi reed valve block MHR TEAM VL16

Manufacturer: Malossi · Camouflaged: No · Material: Plastic · Number of flaps: 2 pcs · Membrane material: Carbon · Thick membrane platelets: 0.35 mm · Total length: 66.2 mm · Width: 48.3 mm · Hole spacing: 53 mm · Ø mounting hole: 6.6 mm · Mounting type: Screws · Number of fixing points: 2 pcs · Area of application: Racing
