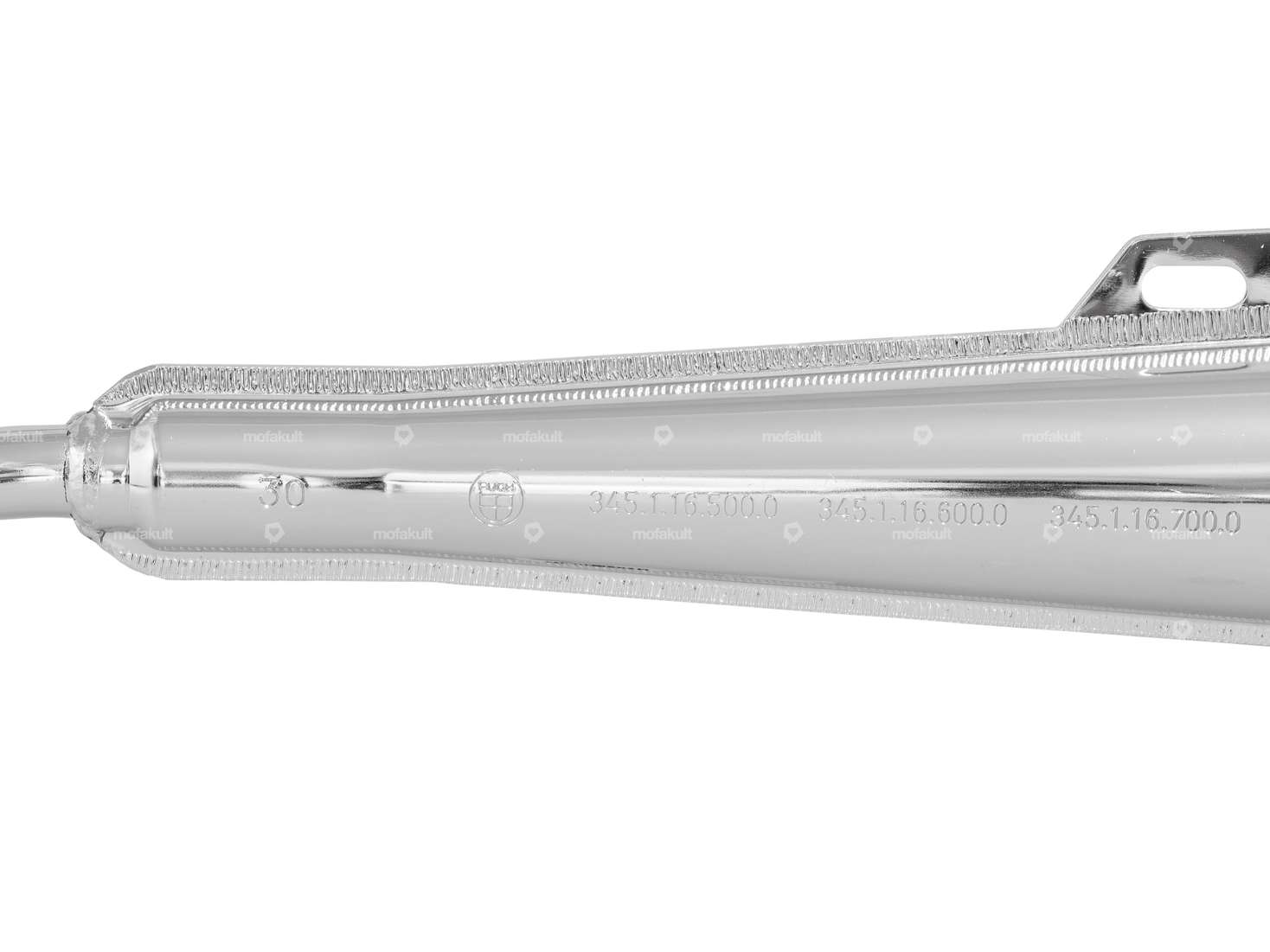

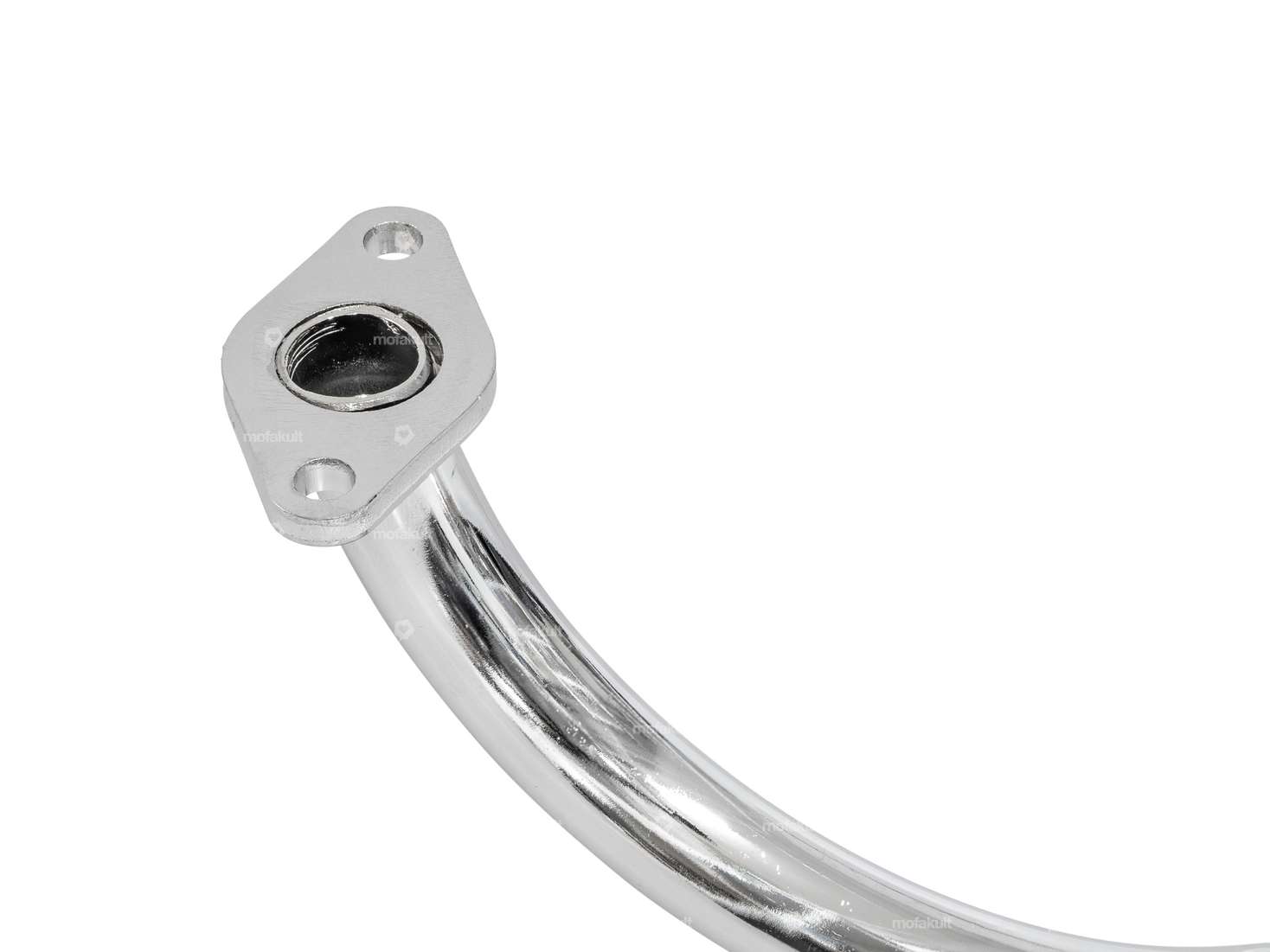

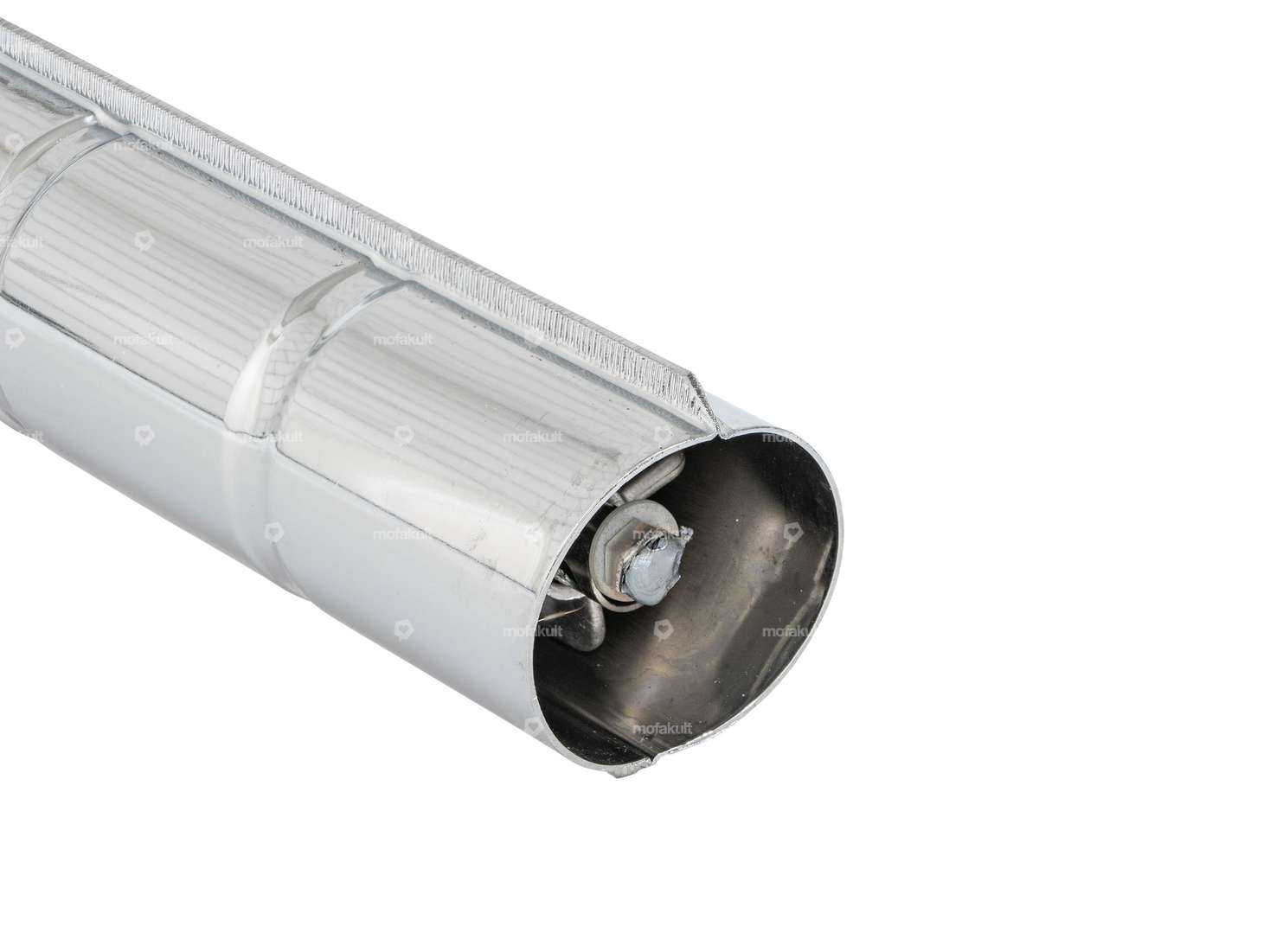

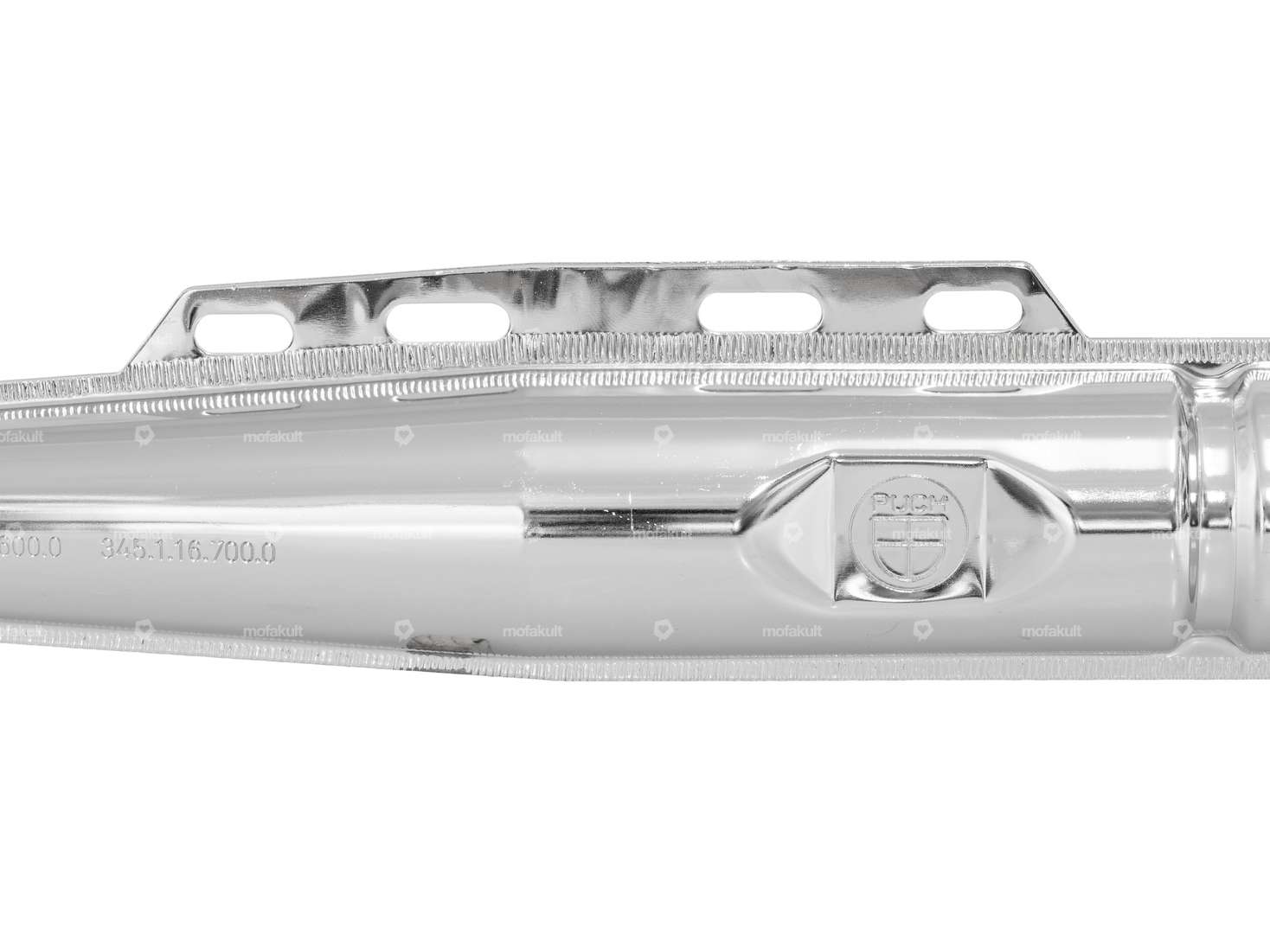

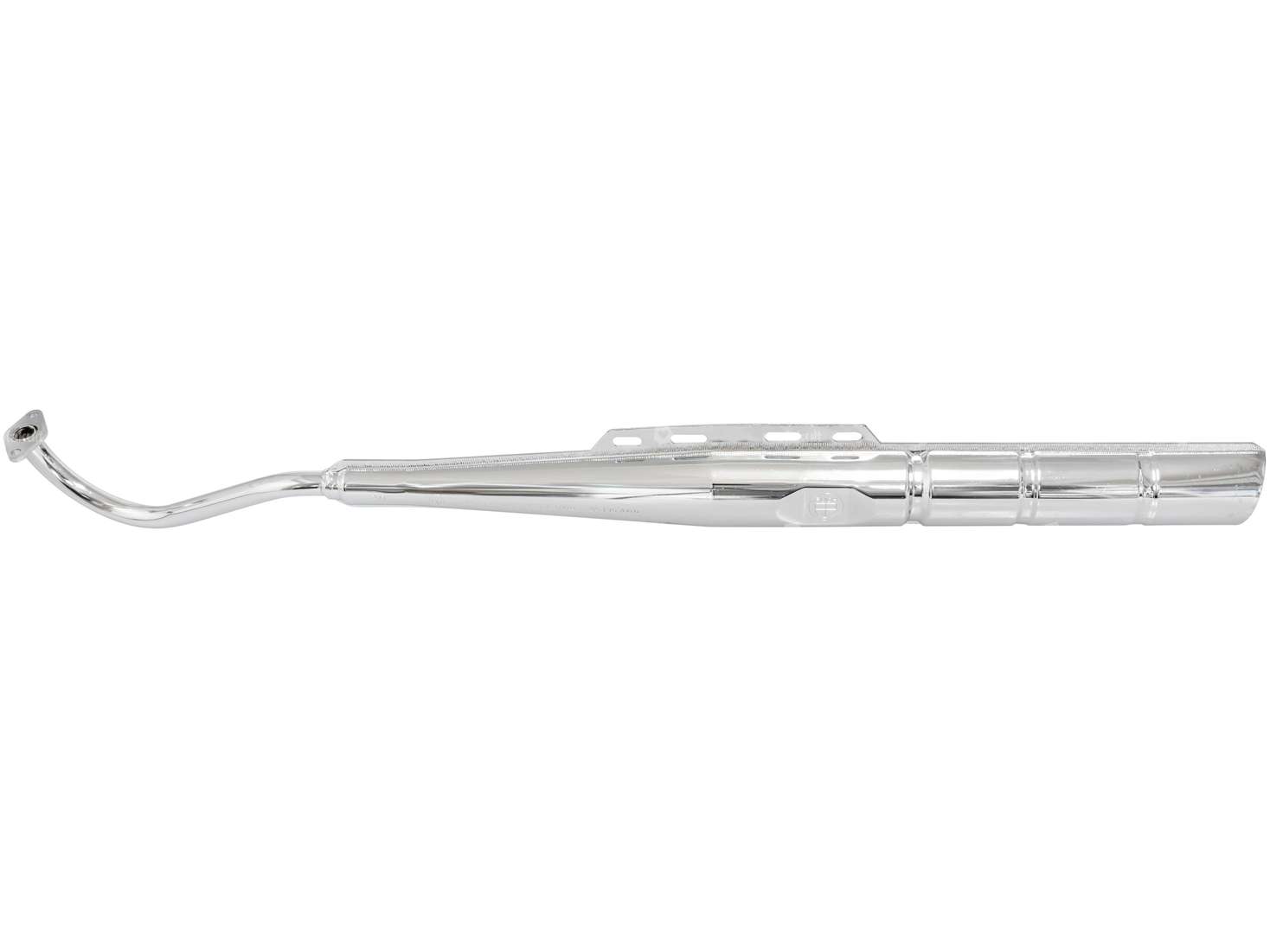

Exhaust 18 mm original 1-piece | Puch Maxi S, N

Stop nut M7 galvanized

Material: Steel · Surface: galvanized (blue) · Area of application: Standard · Nut type: Self-securing nut · Thread type: M7x1 (standard thread) · Drive: External hexagon · Height: 7.3 mm · Thread depth: 4.8 mm · Width across flats SW: 11 mm · Strength class: 8

Silicone seal Ø 45 x 2 silencer | Puch

Place of use: Exhaust · Ø inside: 45 mm · Ø outside: 52 mm · Manufacturer: Puch · Material: Silicone · Thickness: 2.9 mm · Nominal diameter: 45 mm · Area of application: Standard

Flute insert replica | Puch

Material: Steel · Surface: galvanized (blue) · Ø inside: 11.8 mm · Ø outside: 13.8 mm · Total length: 102 mm · Color: silver

Washer special silencer | Puch

Material: Steel · Surface: galvanized (blue) · Area of application: Standard · Thread size: M6 · Ø inside: 7 mm · Nominal diameter (thread): 7 mm · Ø outside: 16 mm · Thickness: 2.9 mm

Outlet gasket 18 - 22 mm metal ring

Material: Sealing carton · Material: Sheet metal (steel) · Place of use: Outlet · Ø inside: 22 mm · Thickness: 2 mm · Number of fixing points: 2 pcs · Hole spacing: 38 - 42.5 mm · Ø mounting hole: 6.7 mm

Stop nut M7 Inox

Material: Chrome steel (known as Nirosta®) · Thread type: M10x1.5 (standard thread) · Thread type: M4x0.7 (standard thread) · Thread type: M5x0.8 (standard thread) · Thread type: M6x1 (standard thread) · Thread type: M7x1 (standard thread) · Thread type: M8x1.25 (standard thread) · Nut type: Self-securing nut · Drive: External hexagon

GPO 38 mm cylinder head original | Puch Maxi S, N / X30 NS, NL, N-2AH

Manufacturer: GPO · Material: Aluminum · Area of application: Standard · Surface: sandblasted · Ø cylinder: 38 mm · Height: 55 mm · Total length: 135 mm · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44 · Candle thread: short · Width: 125 mm · Decompressor: No

GPO sprocket 13 teeth (wide) | Puch

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Manufacturer: GPO · Material: Steel · Surface: Hardened · Ø inside: 13.7 mm · Ø inside: 16.9 mm · Recording type: Interlocking · Number of teeth: 13 pcs · Total thickness: 4.6 mm

swiing® revival air filter screen Ø 52 mm original

Manufacturer: swiing® revival parts · Area of application: Standard · Material: Steel · Surface: galvanized (blue) · Color: silver · Ø outside: 52 mm · Height: 10 mm · Camouflaged: No

swiing® revival side protection screw set black | Puch Maxi S

Manufacturer: swiing® revival parts · Material: Plastic · Material: Steel · Surface: galvanized (blue) · Surface: raw · Color: silver · Thread type: M5x0.8 (standard thread) · Drive: Slot · Drive: Triangular head · Total length: 47 mm · Total length: 60 mm · Thread length: 35 mm · Thread length: 50 mm

Outlet gasket 18 - 22 mm metal ring

Material: Sealing carton · Material: Sheet metal (steel) · Place of use: Outlet · Ø inside: 22 mm · Thickness: 2 mm · Number of fixing points: 2 pcs · Hole spacing: 38 - 42.5 mm · Ø mounting hole: 6.7 mm

Inner cable set automatic | Puch E50

Manufacturer: Made in Germany · Material: Steel · Ø Stranded wire: 1.25 mm · Ø Stranded wire: 1.5 mm · Ø Stranded wire: 1.8 mm · Quantity: 4 pcs · Nipple shape: Barrel (transverse) · Nipple shape: Cylinder · Nipple shape: Pears · Total length: 1600 mm · Total length: 2200 mm

swiing® revival 12 mm carburetor (original) | Puch

Manufacturer: swiing® revival parts · Material: Aluminum · Area of application: Standard · Component group Carburetor: Carburetor complete · Color: gray · Nominal diameter: 12 mm · Carburetor type: SRE · Choke control: Hand choke · Nozzle thread: M3.5x0.6 (standard thread) · Ø fuel hose connection: 6 mm · Height: 108 mm · Total length: 65 mm · Ø Inside entrance: 12 mm · Ø Output inside: 12 mm · Mounting type: Plug connection clamped · Ø Air filter connection: 20 mm · Width: 50 mm · Ø Internal connection: 20 mm · Mixed oil connection: No · Vacuum connection: No · Nozzle block: 2.15 · Camouflaged: No · Nozzle size: 52 · Clamping screw torque (max.): 4 N/m

swiing® revival 12 mm intake manifold | Puch E50

Manufacturer: swiing® revival parts · Material: Aluminum · Area of application: Original · Ø inside: 12 mm · Ø External connection: 20 mm · Total length: 45.5 mm · Number of fixing points: 2 pcs · Mounting type: Screws · Total height: 53 mm · Height flange center hole: 43 mm · Camouflaged: No · Hole spacing inlet: 38 mm

swiing® revival 38 mm original cylinder 1.6 PS | Puch

Nominal diameter: 38 mm · Manufacturer: swiing® revival parts · Material: Aluminum · Surface: sandblasted · Displacement: 50 ccm · Crankshaft stroke: 43 mm · Ø cylinder neck: 48 mm · Ø outlet inside: 19 mm · Ø Inlet inside: 9 mm · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 38 mm · Ø piston pin (B): 12 mm · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44 · Decompressor: Yes · Camouflaged: Yes · Area of application: Standard · Alternative version of the Puch OEM number: 349.7.10.105.0
