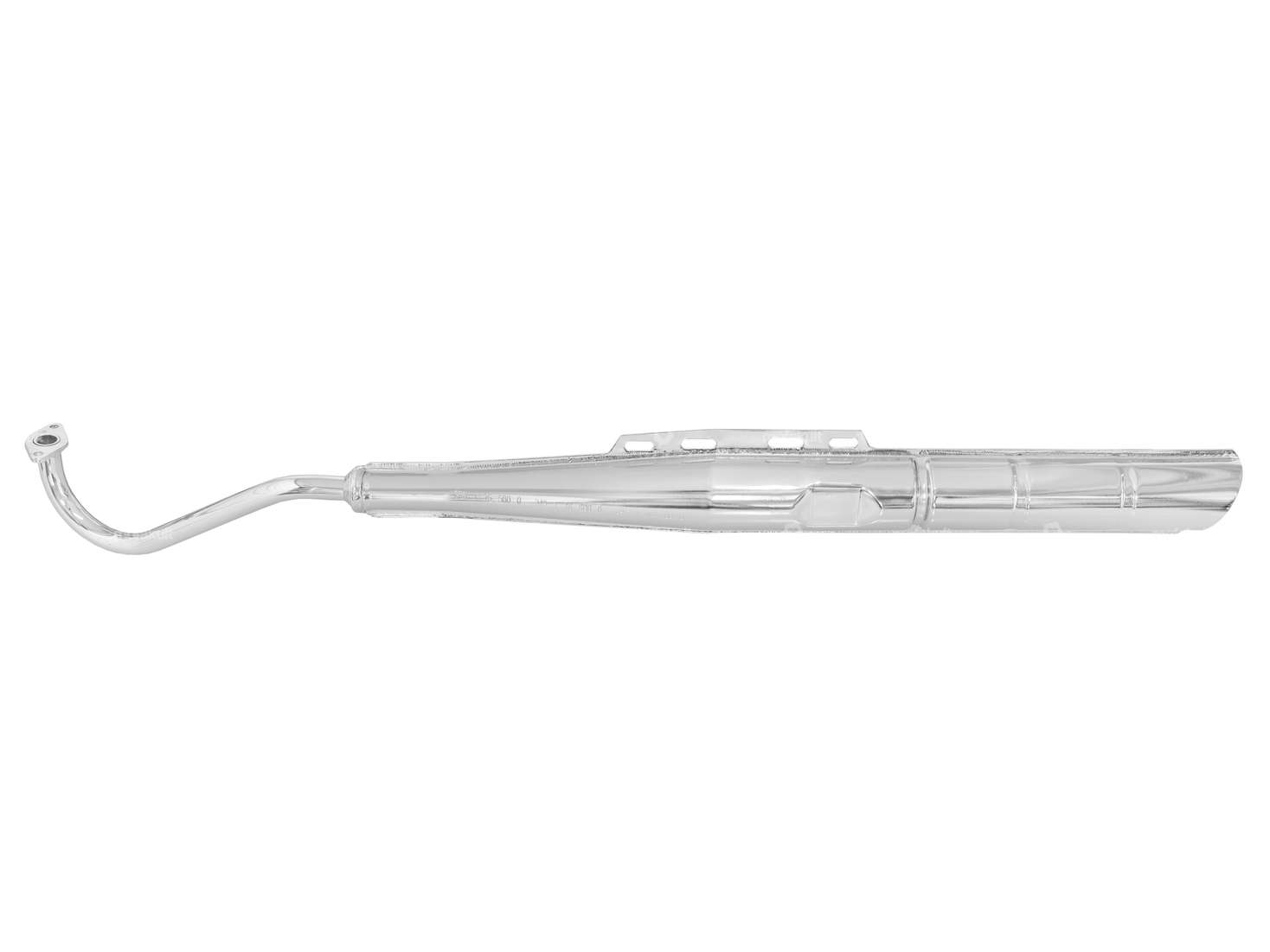

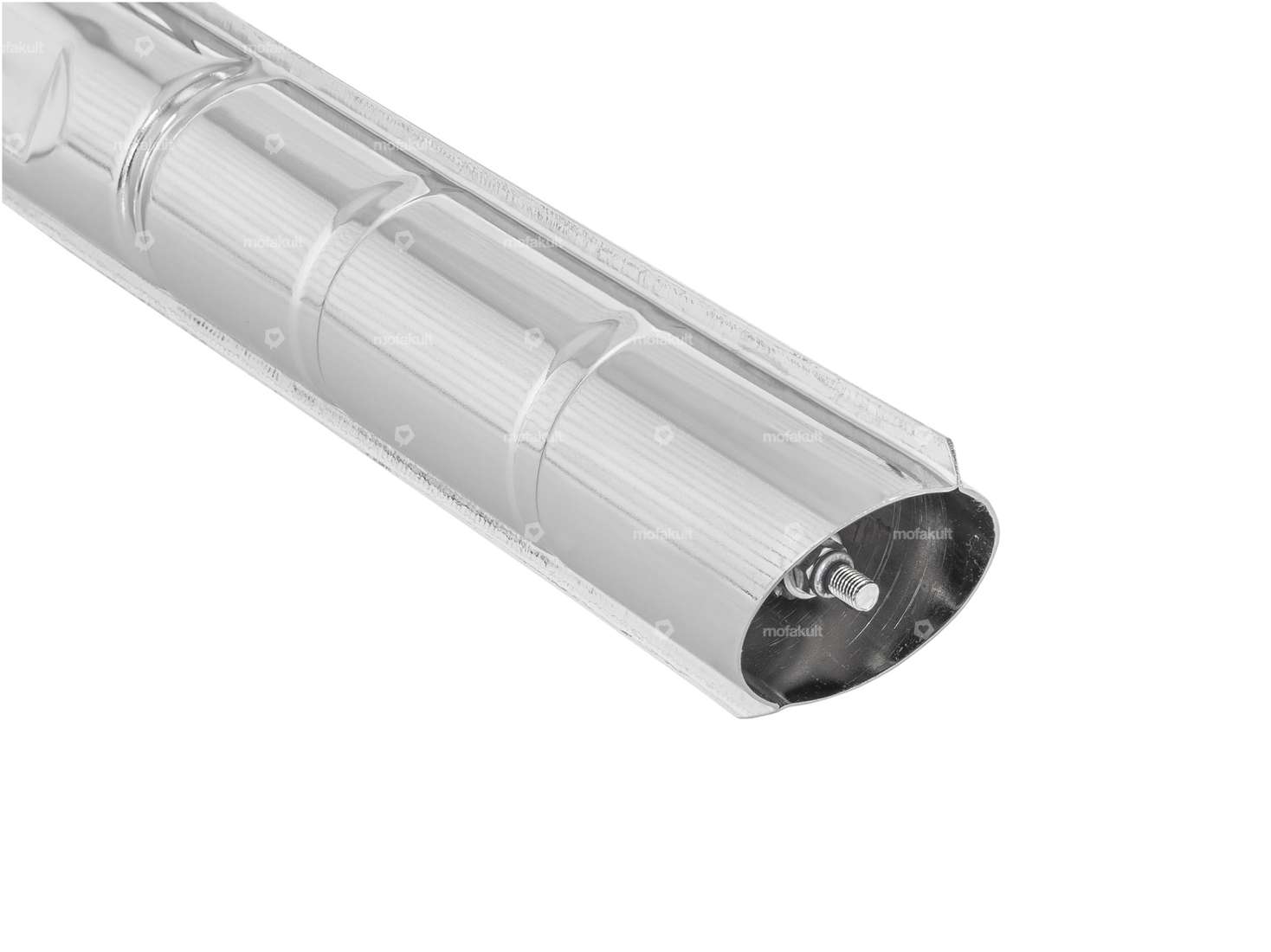

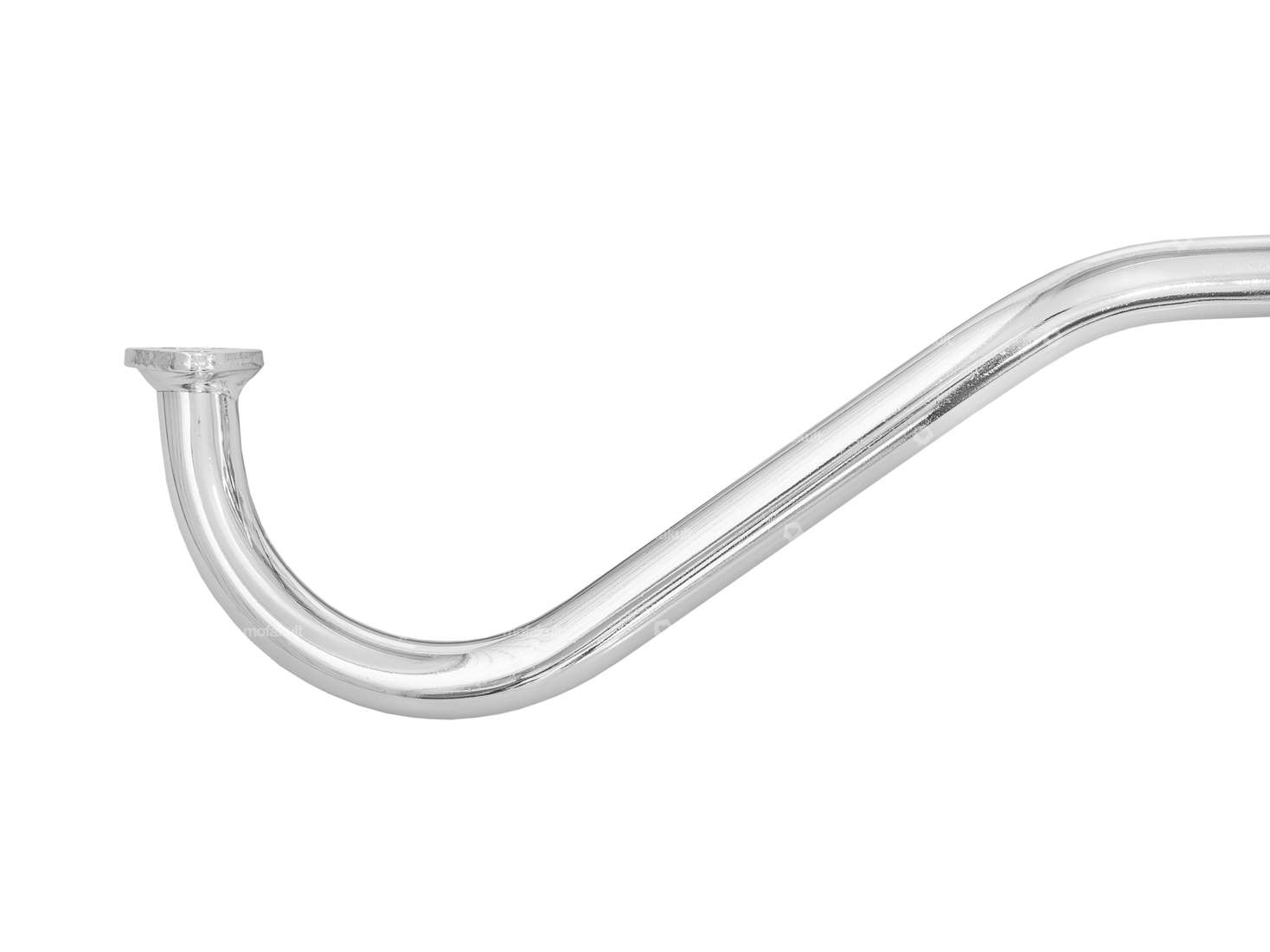

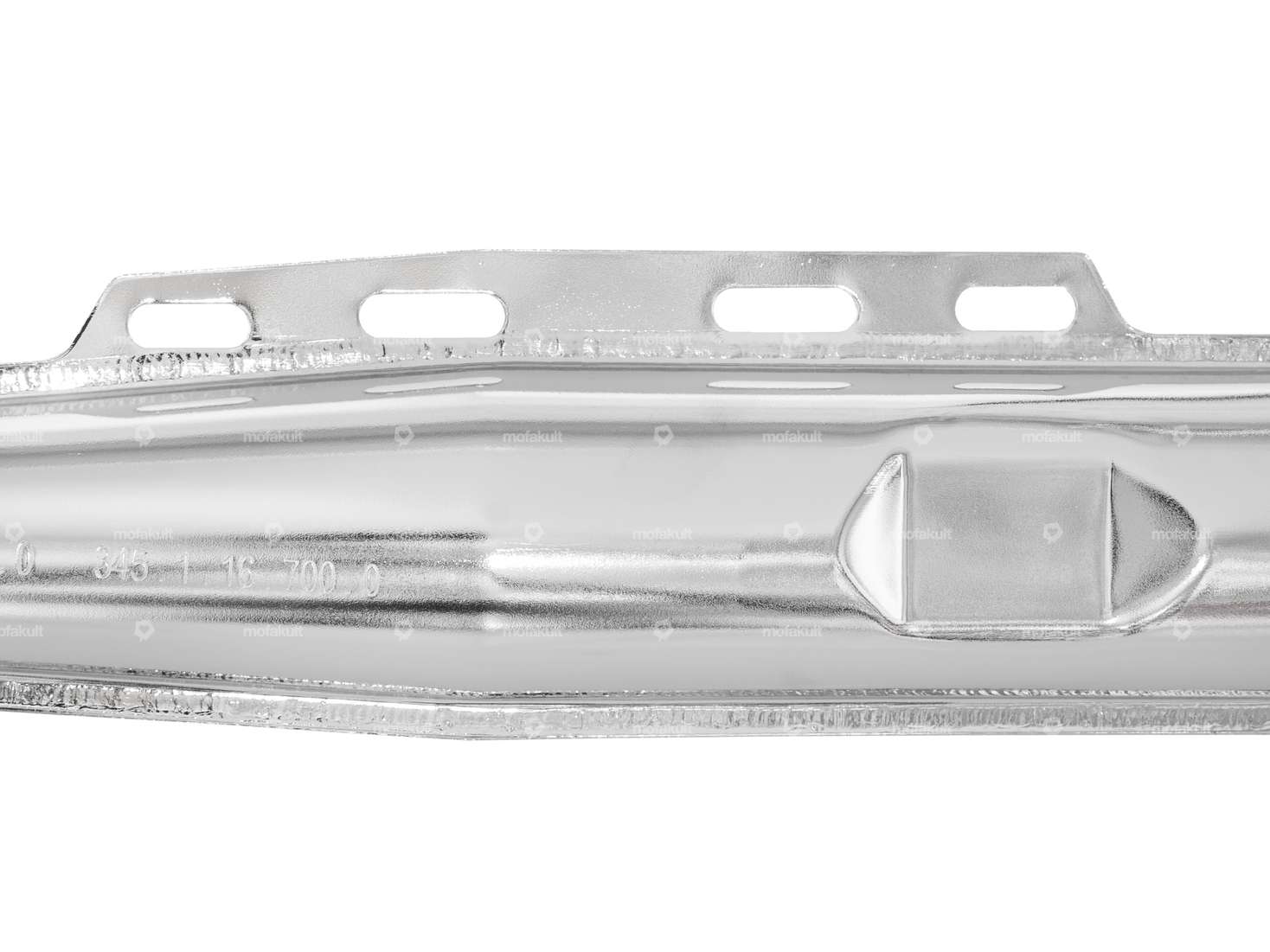

Exhaust 18 mm replica (with number) | Puch Maxi S, N

Stop nut M7 galvanized

Material: Steel · Surface: galvanized (blue) · Area of application: Standard · Nut type: Self-securing nut · Drive: External hexagon · Thread type: M7x1 (standard thread) · Strength class: 8 · Thread depth: 4.8 mm · Height: 7.3 mm · Width across flats SW: 11 mm

Silicone seal Ø 45 x 2 silencer | Puch

Nominal diameter: 45 mm · Manufacturer: Puch · Thickness: 2.9 mm · Material: Silicone · Place of use: Exhaust · Area of application: Standard · Ø inside: 45 mm · Ø outside: 52 mm

Flute insert replica | Puch

Material: Steel · Surface: galvanized (blue) · Color: silver · Ø outside: 13.8 mm · Ø inside: 11.8 mm · Total length: 102 mm

Washer special silencer | Puch

Thickness: 2.9 mm · Material: Steel · Surface: galvanized (blue) · Area of application: Standard · Ø inside: 7 mm · Thread size: M6 · Ø outside: 16 mm · Nominal diameter (thread): 7 mm

Insulating wool exhaust 25 x 40 cm

Thickness: 10 mm · Material: Ceramics · Color: white · Width: 400 mm · Height: 220 mm

Outlet gasket 18 - 22 mm metal ring

Thickness: 2 mm · Material: Sealing carton · Material: Sheet metal (steel) · Place of use: Outlet · Ø inside: 22 mm · Number of fixing points: 2 pcs · Hole spacing: 38 - 42.5 mm · Ø mounting hole: 6.7 mm

Insulating wool (balls)

Manufacturer: Made in Portugal · Material: Fabric insert · Surface: raw · Ø inside: 39 mm · Ø outside: 45.5 mm · Total length: 26 mm · Color: beige

TECNO Exhaust insulating wool 39 x 61 cm

Material: Ceramics · Color: white · Width: 610 mm · Height: 390 mm · Thickness: 10 mm · Manufacturer: TECNO

Stop nut M7 Inox

Material: Chrome steel (known as Nirosta®) · Thread type: M10x1.5 (standard thread) · Thread type: M4x0.7 (standard thread) · Thread type: M5x0.8 (standard thread) · Thread type: M6x1 (standard thread) · Thread type: M7x1 (standard thread) · Thread type: M8x1.25 (standard thread) · Nut type: Self-securing nut · Drive: External hexagon

GPO 38 mm cylinder head original | Puch Maxi S, N / X30 NS, NL, N-2AH

Manufacturer: GPO · Material: Aluminum · Surface: sandblasted · Area of application: Standard · Ø cylinder: 38 mm · Total length: 135 mm · Number of fixing points: 4 pcs · Candle thread: short · Width: 125 mm · Decompressor: No · Height: 55 mm · Hole pattern [mm]: 44 x 44

swiing® revival air filter screen Ø 52 mm original

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Area of application: Standard · Ø outside: 52 mm · Color: silver · Height: 10 mm · Camouflaged: No

swiing® revival side protection screw set black | Puch Maxi S

Manufacturer: swiing® revival parts · Material: Plastic · Material: Steel · Surface: galvanized (blue) · Surface: raw · Drive: Slot · Drive: Triangular head · Color: silver · Thread length: 35 mm · Thread length: 50 mm · Thread type: M5x0.8 (standard thread) · Total length: 47 mm · Total length: 60 mm

Outlet gasket 18 - 22 mm metal ring

Thickness: 2 mm · Material: Sealing carton · Material: Sheet metal (steel) · Place of use: Outlet · Ø inside: 22 mm · Number of fixing points: 2 pcs · Hole spacing: 38 - 42.5 mm · Ø mounting hole: 6.7 mm

swiing® revival 12 mm carburetor (original) | Puch

Nominal diameter: 12 mm · Manufacturer: swiing® revival parts · Material: Aluminum · Component group Carburetor: Carburetor complete · Area of application: Standard · Carburetor type: SRE · Choke control: Hand choke · Total length: 65 mm · Color: gray · Ø Inside entrance: 12 mm · Ø Internal connection: 20 mm · Ø Output inside: 12 mm · Ø Air filter connection: 20 mm · Width: 50 mm · Mounting type: Plug connection clamped · Height: 108 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Nozzle thread: M3.5x0.6 (standard thread) · Nozzle block: 2.15 · Camouflaged: No · Nozzle size: 52 · Clamping screw torque (max.): 4 N/m

swiing® revival 12 mm intake manifold | Puch E50

Manufacturer: swiing® revival parts · Material: Aluminum · Area of application: Original · Ø inside: 12 mm · Number of fixing points: 2 pcs · Ø External connection: 20 mm · Hole spacing inlet: 38 mm · Mounting type: Screws · Total height: 53 mm · Height flange center hole: 43 mm · Total length: 45.5 mm · Camouflaged: No

swiing® revival 38 mm original cylinder 1.6 PS | Puch

Nominal diameter: 38 mm · Manufacturer: swiing® revival parts · Material: Aluminum · Surface: sandblasted · Area of application: Standard · Crankshaft stroke: 43 mm · Displacement: 50 ccm · Ø cylinder neck: 48 mm · Ø outlet inside: 19 mm · Ø Inlet inside: 9 mm · Number of fixing points: 4 pcs · Ø piston pin (B): 12 mm · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 38 mm · Decompressor: Yes · Hole spacing outlet: 42 mm · Outlet type: straight · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Camouflaged: Yes · Alternative version of the Puch OEM number: 349.7.10.105.0

swiing® revival nozzle set M3.5 (50 - 60) Bing SRE, SRA, SRC, SRF

Manufacturer: swiing® revival parts · Material: Brass · Quantity: 11 pcs · Component group Carburetor: Spraying · Carburetor type: SRA (1/11/31) Velux · Carburetor type: SRA (1/11/35) Velux · Carburetor type: SRC · Carburetor type: SRE · Carburetor type: SRF · Total length: 6 mm · Nozzle type: Main nozzle · Drive: Slot · Nozzle thread: M3.5x0.6 (standard thread) · Nozzle size: 50 · Nozzle size: 51 · Nozzle size: 52 · Nozzle size: 53 · Nozzle size: 54 · Nozzle size: 55 · Nozzle size: 56 · Nozzle size: 57 · Nozzle size: 58 · Nozzle size: 59 · Nozzle size: 60
