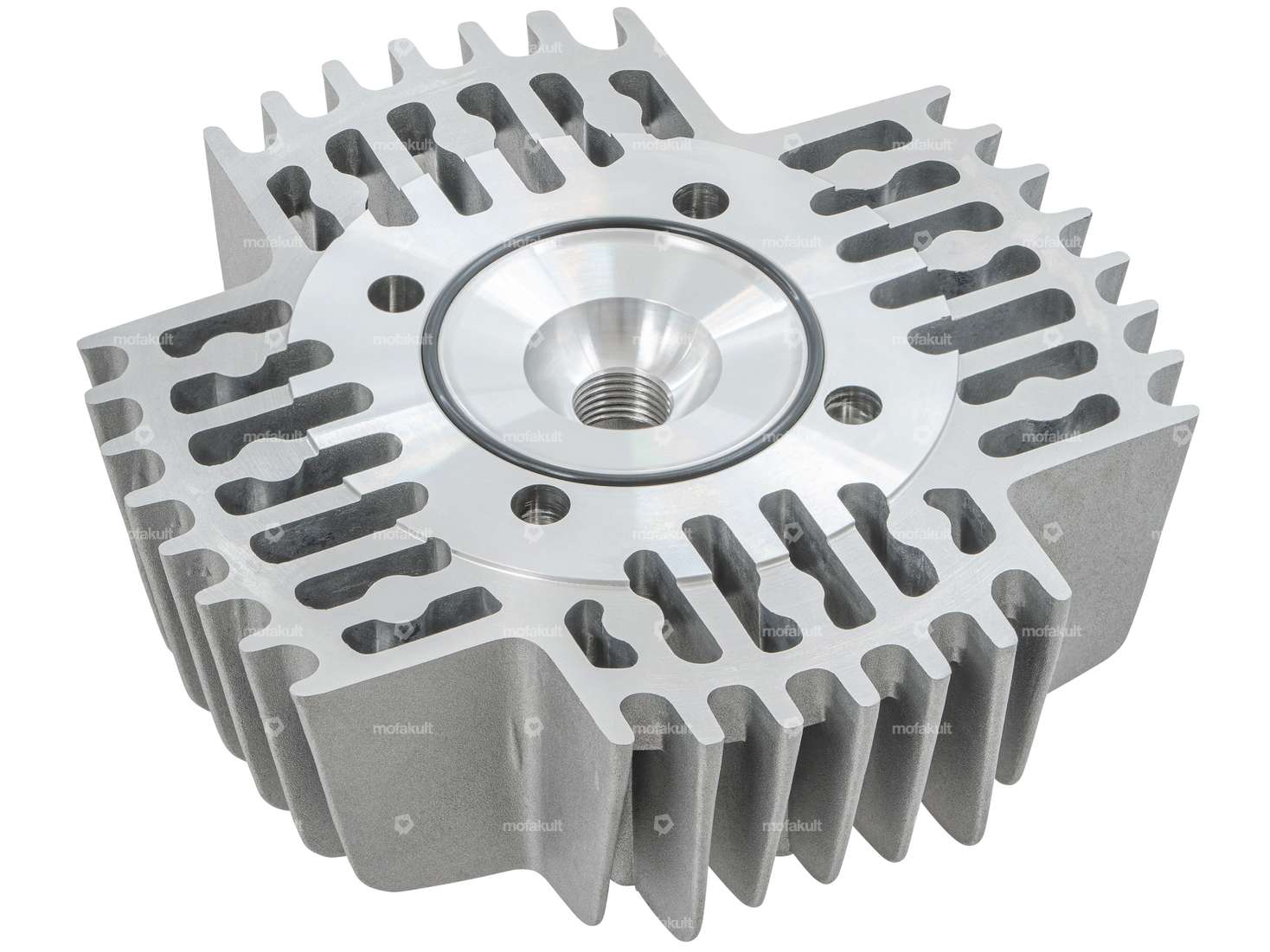

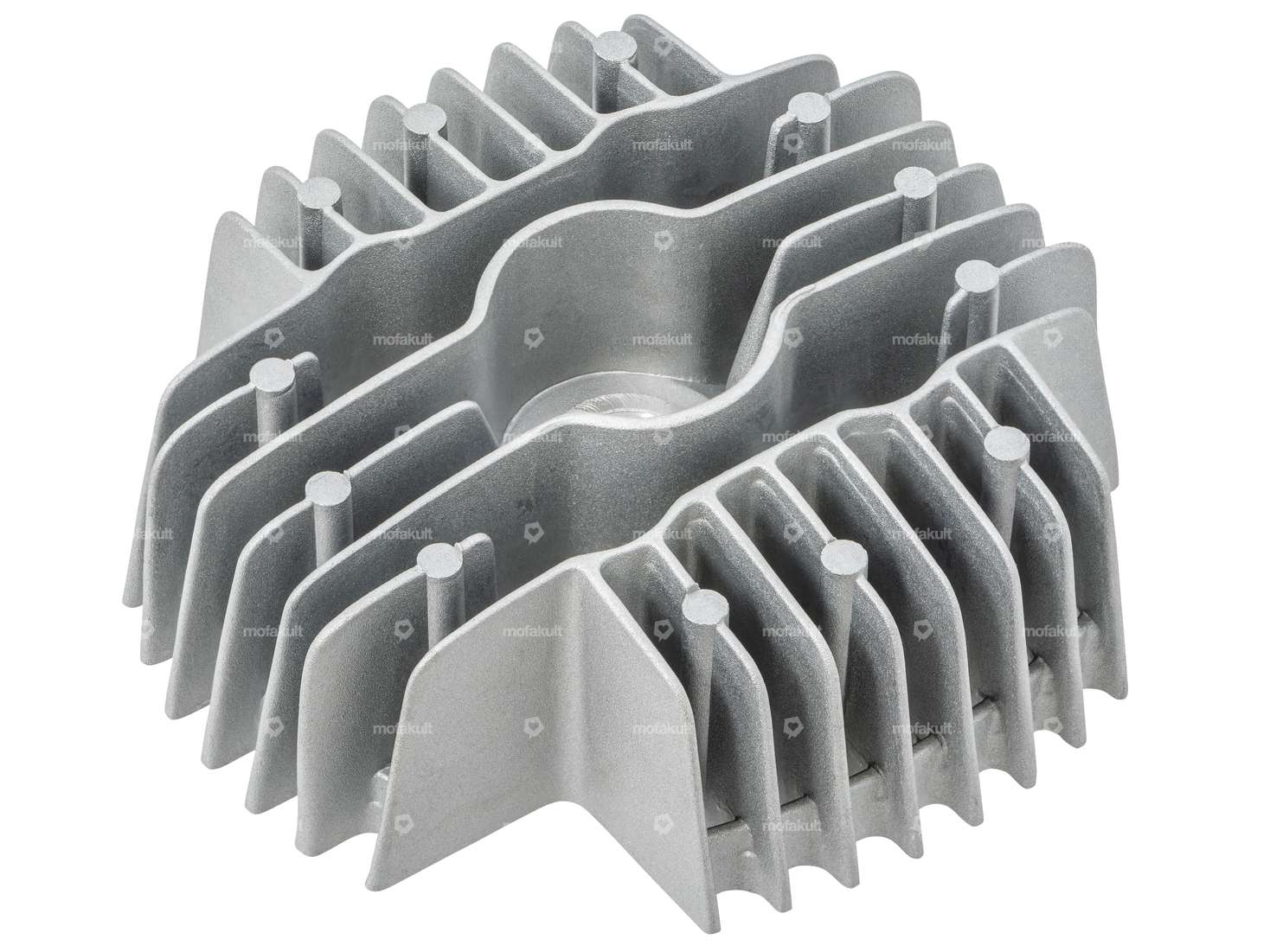

Cylinder cover with 45 mm combustion chamber diameter suitable for rebuilt Puch Maxi S/ N, Puch X30 Sport NS/ NL, Puch X30 Sport N-2AH and Puch Supermaxi LG1/ LG2 mopeds/ mopeds.
The sealing ring made of FPM / FKM (colloquially known as Viton) is temperature-resistant up to 200 °C.
A good replica of the original Austrian version with slightly larger cooling ribs, also known colloquially as the new model, which is cooled by ambient air (airstream).
This head is the best choice for your 45 Athena, DMP, PowerOne, GPO, AKOA, PSR or ParmaKit racing kit (racing cylinder) with large cooling fins. Also ideal for honed Austrian cylinders, of course.
| Manufacturer | GPO |
| Area of application | Tuning |
| Material | Aluminum |
| Ø cylinder | 45 mm |
| Surface | glass bead blasted |
| Number of fixing points | 4 pcs |
| Hole pattern [mm] | 44 x 44 |
| Total length | 140 mm |
| Candle thread | short |
| Width | 137 mm |
| Height | 50 mm |
| Decompressor | No |
| Puch | E50 ZA50 (air-cooled) Z50 (X30 Sport) |
Ratings
Accessories & related products
Athena 45 mm cylinder kit 70 ccm camouflaged | Puch
Manufacturer: Athena · Area of application: Tuning · Camouflaged: Yes · Material: Aluminum · Surface: sandblasted · Crankshaft stroke: 43 mm · Displacement: 70 ccm · Nominal diameter: 45 mm · Ø cylinder neck: 48 mm · Ø outlet inside: 23.5 mm · Hole spacing inlet: 38 mm · Number of fixing points: 4 pcs · Ø piston pin (B): 12 mm · Inlet window: 22.3 x 14 · Thread inlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Decompressor: No
EUR 188.50
swiing® ingenious 45 mm cylinder kit CH12 camouflaged | Puch
Manufacturer: swiing® ingenious parts · Area of application: Tuning · Camouflaged: Yes · Material: Aluminum · Surface: sandblasted · Crankshaft stroke: 43 mm · Displacement: 70 ccm · Nominal diameter: 45 mm · Ø cylinder neck: 48 mm · Ø outlet inside: 25 mm · Hole spacing inlet: 38 mm · Number of fixing points: 4 pcs · Ø piston pin (B): 12 mm · Inlet window: 23 / 21 x 14 · Thread inlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Decompressor: No
EUR 142.30
BAD ASS Lucifer BigBore cylinder kit Ø 45 mm | Puch X30 Velux, NG-2AH
Nominal diameter: 45 mm · Manufacturer: BAD ASS · Material: Gray cast iron · Area of application: Tuning · Displacement: 70 ccm · Crankshaft stroke: 43 mm · Ø cylinder neck: 49 mm · Ø Outlet outside: 26 mm · Ø outlet inside: 25 mm · Ø Inlet inside: 19 mm · Hole spacing inlet: 32 mm · Thread inlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Number of fixing points: 4 pcs · Ø piston pin (B): 12 mm · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread)
EUR 296.50
Explore categories from Cylinder
Moped fans also bought
Airsal 45 mm cylinder kit 70 ccm camouflaged | Puch
Nominal diameter: 45 mm · Manufacturer: Airsal · Material: Aluminum · Camouflaged: Yes · Surface: sandblasted · Displacement: 70 ccm · Crankshaft stroke: 43 mm · Ø cylinder neck: 48 mm · Ø outlet inside: 25 mm · Hole spacing inlet: 38 mm · Inlet window: 23.5 / 20 x 15 · Thread inlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44 · Area of application: Tuning · Ø piston pin (B): 12 mm · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Decompressor: Yes
EUR 118.50
Dell'Orto 19 mm PHBG CS carburetor hand choke
Total length: 82 mm · Manufacturer: Dell'Orto · Material: Aluminum · Component group Carburetor: Carburetor complete · Color: black · Carburetor type: PHBG CS · Nominal diameter: 19 mm · Choke control: Hand choke · Width: 70 mm · Height: 124 mm · Camouflaged: No · Ø Internal connection: 24 mm · Ø without reducing sleeve: 26 mm · Ø Inside entrance: 19 mm · Ø Output inside: 19 mm · Ø Air filter connection: 32 mm · Ø Air filter connection: 60 mm · Air filter connection thread: MF32x1.25 (fine pitch thread) · Area of application: Racing · Area of application: Tuning · Ø fuel hose connection: 5.4 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: Yes · Vacuum connection: Yes · Choke nozzle size: 60 · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 75 · Size of secondary nozzle: 45 · Mounting type: Plug connection clamped
EUR 142.30
Hot
Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom
Possible lever positions: open / closed / reserve · Thread type: MF12x1 (fine pitch thread) · Material lever: Metal · Filter type: Plastic net · Mounting type: Union nut · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Ø fuel hose connection: 6 mm · Reserve level: 70 mm
EUR 11.80
18.5 mm intake manifold Dell'Orto PHBG | Puch E50
Mounting type: Screws · Number of fixing points: 2 pcs · Material: Aluminum · Camouflaged: No · Area of application: Tuning · Color: Chrome · Surface: polished · Total length: 40 mm · Ø inside: 18.8 mm · Hole spacing inlet: 38 mm · Height flange center hole: 45 mm · Total height: 57 mm · Ø External connection: 23.9 mm
EUR 21.20
Continental 2.00 - 2.50 x 17" tube
Valve type: TR6 car valve · Manufacturer: Continental · Tire width: 2 - 2.5 " · Tire width: 2.25 - 2.5 " · Tire width [mm]: 50.8 - 63.5 · Width: 2 " · Width: 2 1/4 " · Width: 2 1/2 " · Wheel size: 17 " · Tire height [%]: 100 · Old designation: 21 x 2 " · Old designation: 21 x 2.25 " · Old designation: 21 x 2.5 "
EUR 17.70

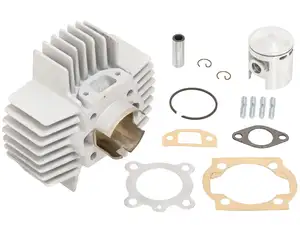

Airsal 45 mm cylinder kit (large ribs) | Puch
