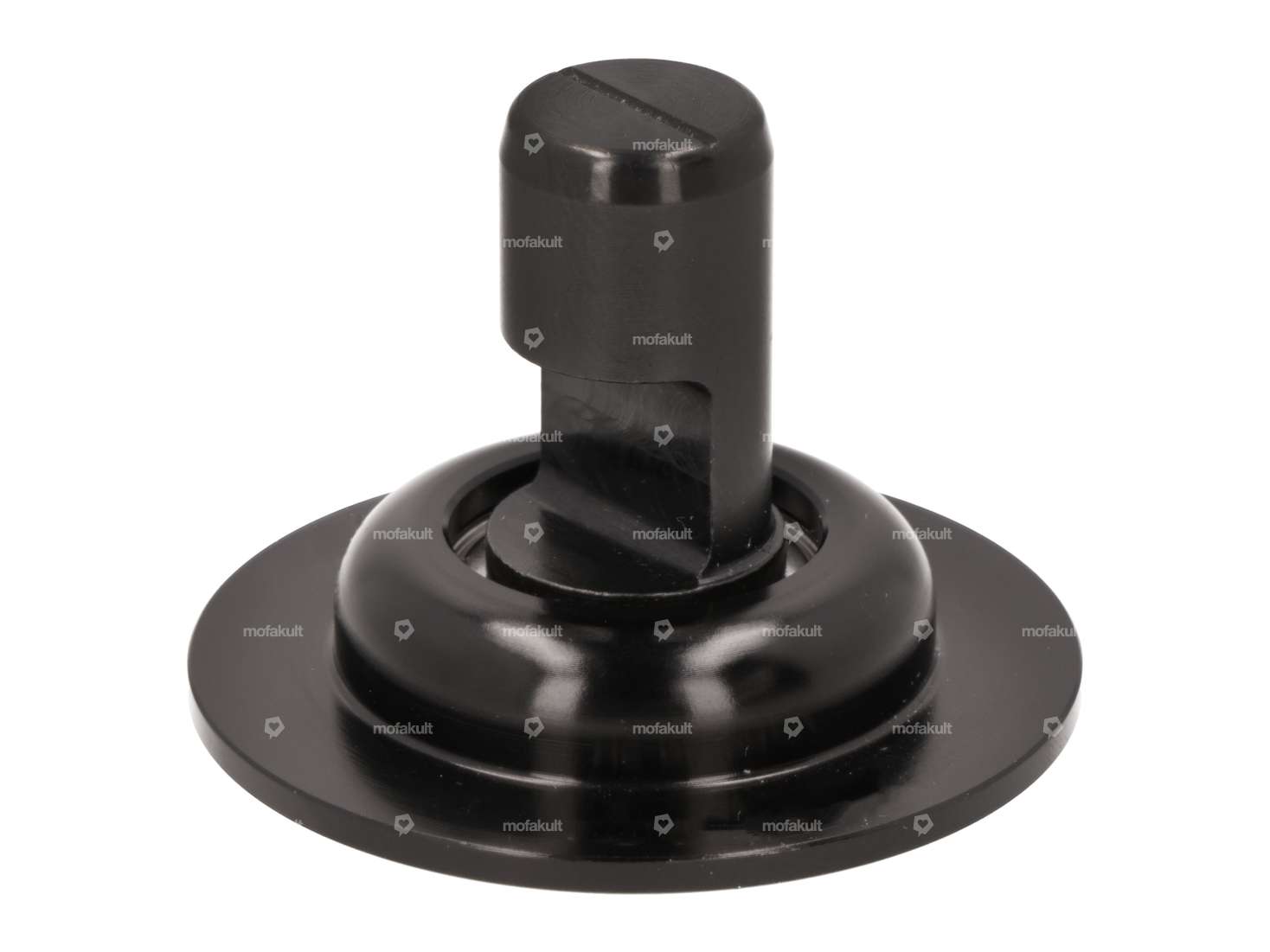

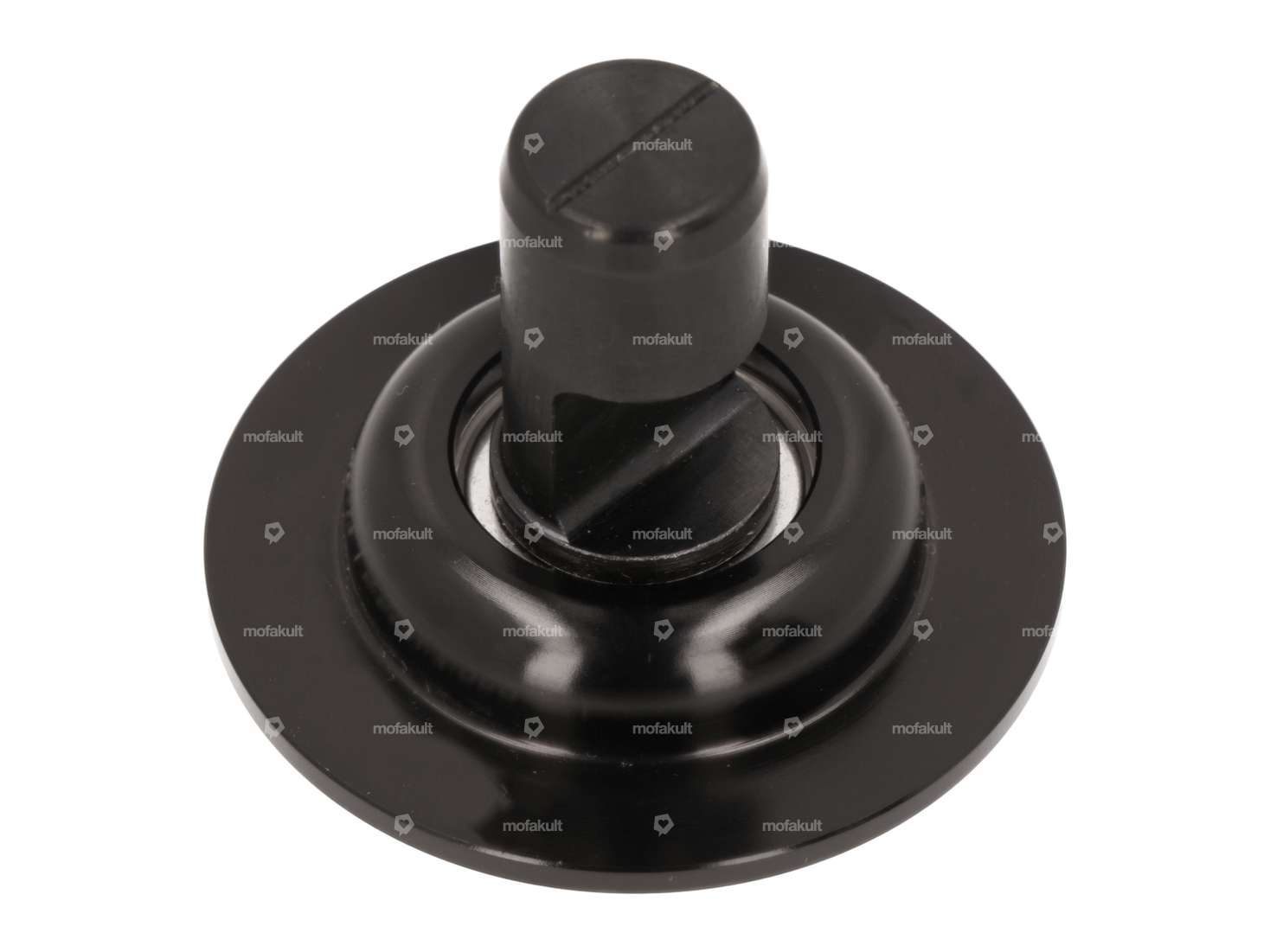

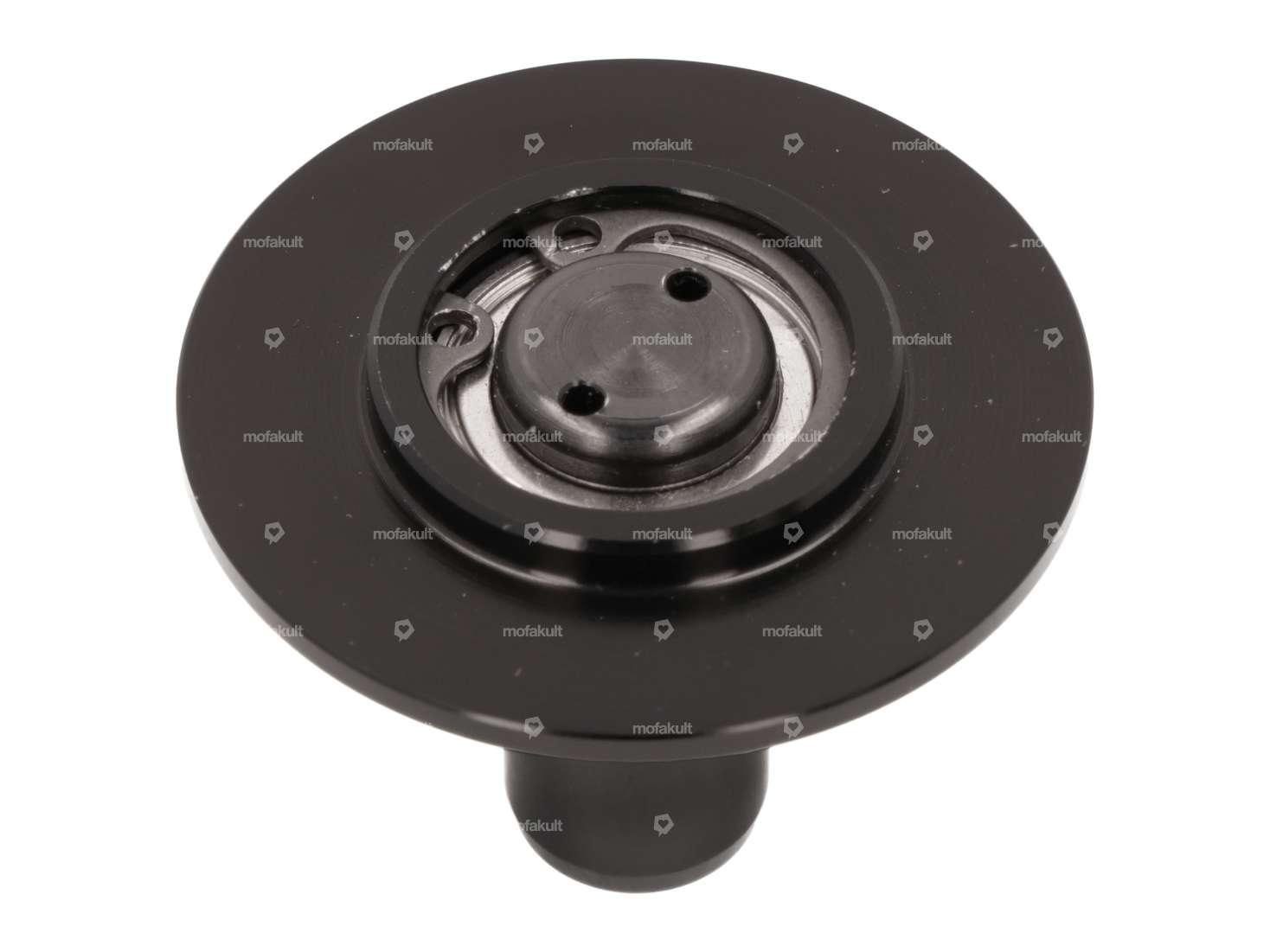

Reinforced pull pin suitable for the manual Z50 engine of Puch X30 Sport NS / NL, as well as Puch X30 Velux mopeds / mopeds.
Design with thrust ball bearing with 60° contact angle and enlarged contact surface on the pivot shaft. In addition, the pull pin is bolted to the bearing and not caulked, which makes it almost impossible to tear out.The reinforced clutch springs in the accessories can be used in conjunction with the clutch bearing without any problems.
Adjusting the clutch is no longer necessary with this version.
Attention: A half-height M10x1 nut must be used to mount the clutch so that the screw connection of the tension bolt cannot touch the nut.
Alternative of the original Puch spare part number: 050.2.1230.0
| Manufacturer | HS-Retro |
| Material | Steel, Aluminum |
| Area of application | Original, High End |
| Surface | Hardened, anodized |
| Color | black |
| Height | 35.2 mm |
| Ø outside | 44.75 mm |
| Alternative version of the Puch OEM number | 050.2.1230.0 |
| Puch | Z50 (X30 Sport) Z50 (X30 Velux) 2-speed MS, MV, MV50 |
