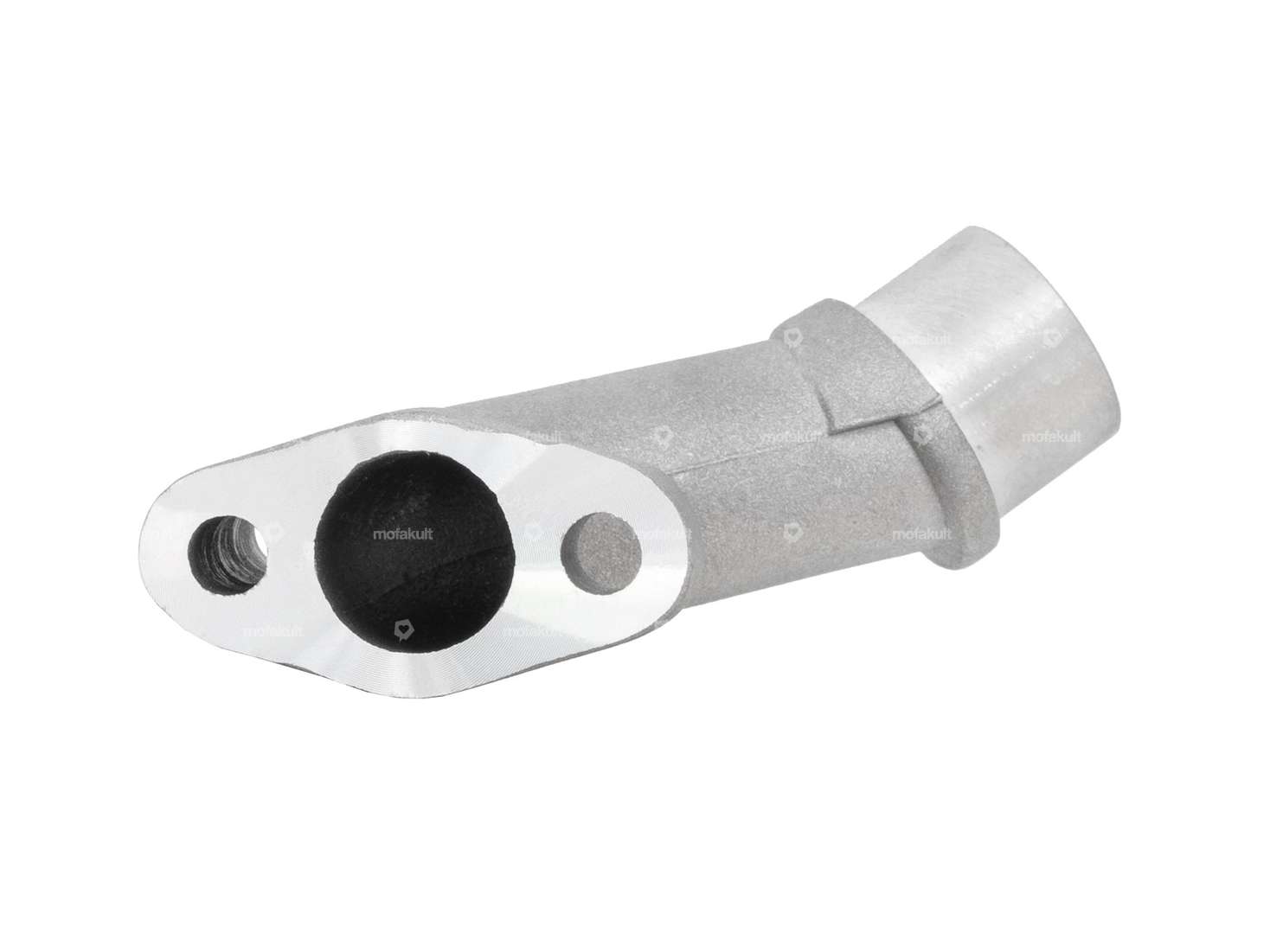

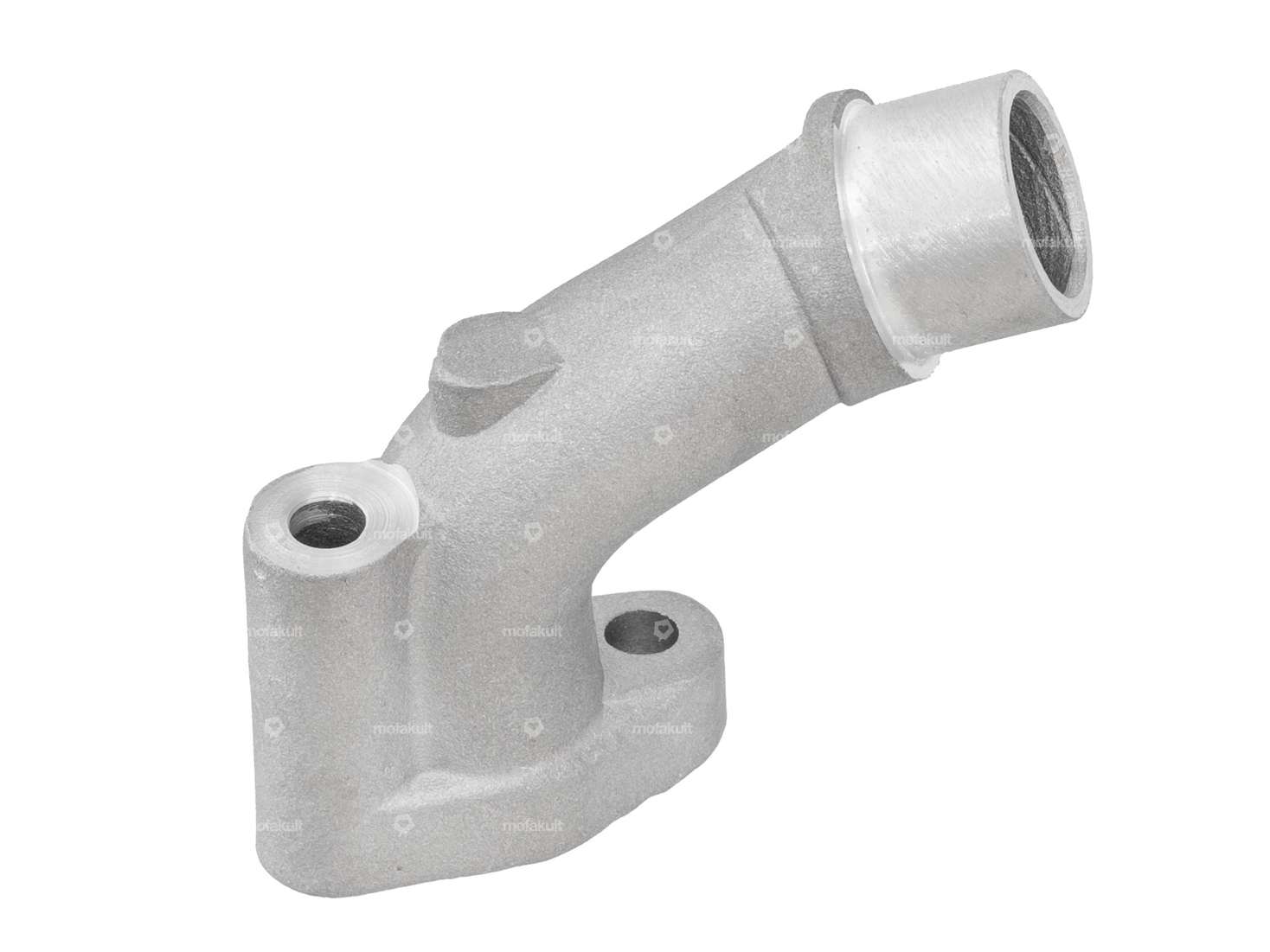

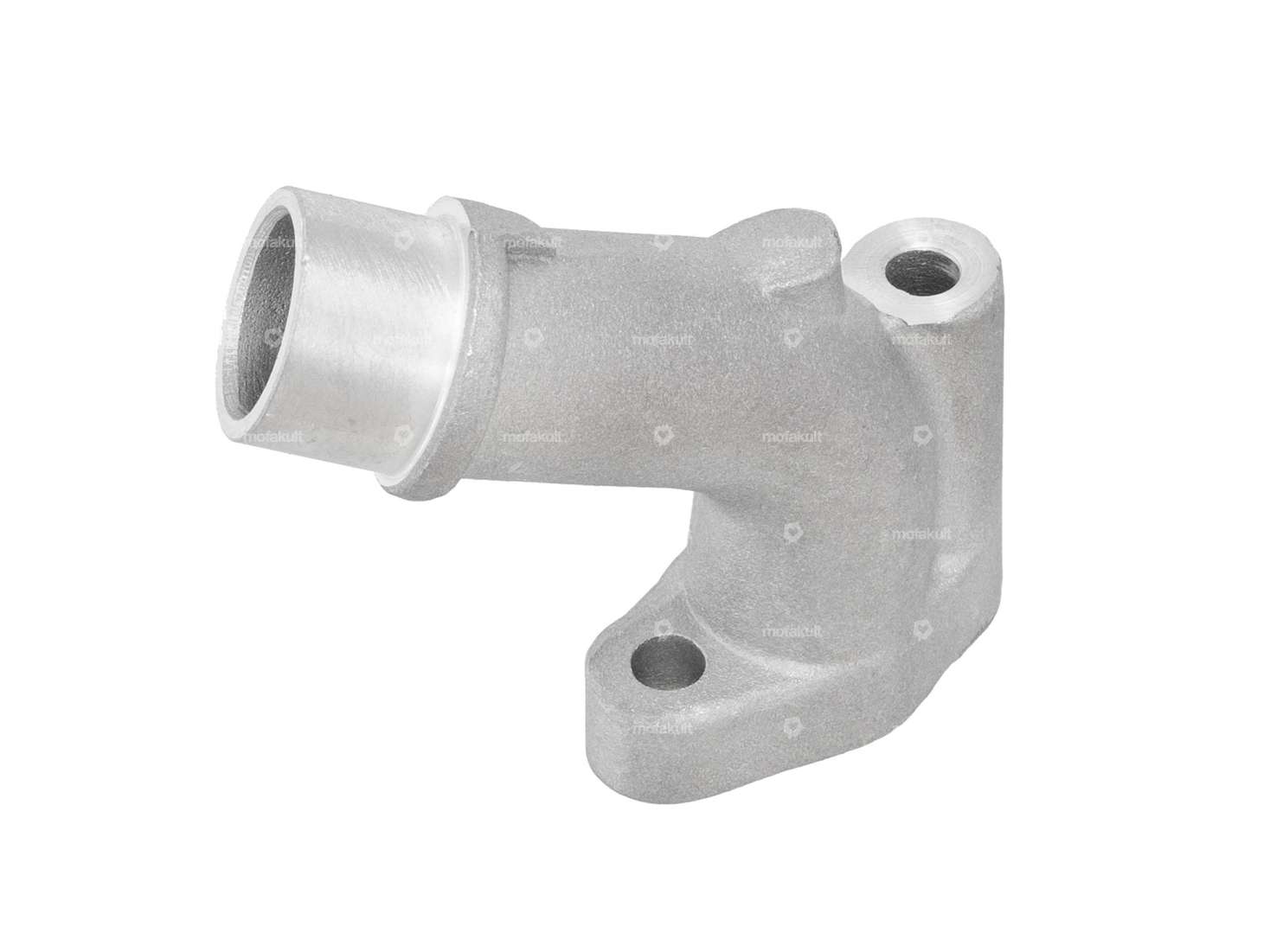

Intake manifold 17 mm | Puch MS, VS, VSD, MV

Inlet gasket 3.2 mm | Puch X30 Velux / Sachs

Place of use: Admission · Thickness: 3.2 mm · Hole spacing inlet: 32 mm

GPO 12 mm intake manifold | Puch X30 NS, NL, Sprinter

Manufacturer: GPO · Material: Aluminum · Camouflaged: No · Area of application: Original · Total length: 48.5 mm · Ø inside: 12 mm · Ø External connection: 20 mm · Mounting type: Screws · Hole spacing inlet: 38 mm · Height flange center hole: 59 mm · Total height: 70 mm · Number of fixing points: 2 pcs

swiing® revival 12 mm carburetor set "original" | Puch E50

Manufacturer: swiing® revival parts · Camouflaged: No · Component group Carburetor: Carburetor complete · Area of application: Standard · Carburetor type: SRE · Choke control: Hand choke · Nominal diameter: 12 mm · Nozzle thread: M3.5x0.6 (standard thread) · Ø fuel hose connection: 6 mm · Mounting type: Flange · Mounting type: Plug connection clamped · Nozzle size: 52 · Ø Inside entrance: 12 mm · Ø Output inside: 12 mm · Ø Air filter connection: 20 mm · Ø Internal connection: 20 mm · Hole spacing inlet: 38 mm · Clamping screw torque (max.): 4 N/m

swiing® revival carburetor set 12 mm "original" | Puch X30 NS, NL

Elring Dirko HT sealing compound red (silicone) high temp. 70 ml elastic up to 315°C

Temperature resistance (min.): -60 - 300 °C · Manufacturer: Elring · Contents: 70 ml · Area of application: Chemistry · Color: red · Hazard warning: Causes serious eye irritation · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Gap dimension (max.): 2 mm

Rim tape blue 17" (protection for inner tube)

Manufacturer: Made in Germany · Material: Rubber · Color: blue · Wheel size: 17 " · Total length: 1280 mm · Width: 23 mm

GPO piston 41 mm (12 mm KoBo) | Puch X30 Velux, M50, MS50, VS50, DS50, VZ50

Nominal diameter: 41 mm · Manufacturer: GPO · Ø outside piston (A): 40.94 mm · Compression height (C): 23.2 mm · Curvature (D): 3.7 mm · Total piston height (E): 49.3 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring impact: Internal fuse (IS) · Ø piston pin (B): 12 mm · Weight piston kit: 85 g

Inlet gasket 3.2 mm | Puch X30 Velux / Sachs

Place of use: Admission · Thickness: 3.2 mm · Hole spacing inlet: 32 mm

17 mm Bing SRF carburetor (replica)

Material: Aluminum · Component group Carburetor: Carburetor complete · Area of application: Tuning · Carburetor type: SRF · Choke control: Hand choke · Nominal diameter: 17 mm · Total length: 78 mm · Nozzle thread: M4x0.7 (standard thread) · Ø fuel hose connection: 6 mm · Width: 64 mm · Mounting type: Plug connection clamped · Height: 117 mm · Ø Air filter connection: 60 mm · Ø Air filter connection: 64 mm · Ø Internal connection: 23 mm · Mixed oil connection: No · Vacuum connection: No · Nozzle block: 2.xx · Clamping screw torque (max.): 3 N/m · Clamping screw torque (max.): 4 N/m

swiing® revival special nut M6 SW8 (sprocket ref. back pedal / intake manifold)

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Nut type: Hexagon nut · Drive: External hexagon · Height: 6 mm · Thread type: M6x1 (standard thread) · Nominal diameter (thread): 6 mm · Width across flats: 8 mm

Michelin 2.25 - 2.50 x 17" tube

Manufacturer: Michelin · Tire width: 2.25 - 2.5 " · Tire width: 2.5 " · Tire width [mm]: 57.15 - 63.5 · Width: 2 1/4 " · Width: 2 1/2 " · Tire height [%]: 100 · Wheel size: 17 " · Old designation: 21 x 2.25 " · Old designation: 21 x 2.5 " · Valve type: TR4 Auto valve

Michelin 2.25 x 17" tires City Extra Allround

Inventory-managed: No · Manufacturer: Michelin · Tire width: 2.25 " · Color: black · Width: 2 1/4 " · Wheel size: 17 " · Old designation: 21 x 2.25 " · Speed index: P = 150 km/h · Load capacity index: 38 = 132 kg · Profile type: City Extra · Tire type: Allround · White wall: No · Tubeless (yes/no): Tubetype TT (requires hose)

Michelin tire set 2.25 x 17"

Inventory-managed: Yes · Manufacturer: Michelin · Color: black · Tire width: 2.25 " · Tire width [mm]: 57.15 · Width: 2 1/4 " · Wheel size: 17 " · Old designation: 21 x 2.25 " · Speed index: P = 150 km/h · Load capacity index: 38 = 132 kg · Profile type: City Extra · Tire type: Allround · White wall: No · Tubeless (yes/no): Tubetype TT (requires hose)

Blank aluminum fan wheel Bosch / Ducati | Puch MS, VS, DS, MV, VZ

Material: Aluminum · Surface: raw · Ø outside: 163 mm · Ø inside: 90 mm · Number of fixing points: 4 pcs · Ø mounting hole: 5 mm · Ø bolt circle: 102 mm
