45 mm replacement piston with a 1.5 mm rectangular piston ring featuring an internal lock (IS) for the 45 mm cylinder kits for various Puch mopeds.
You can find the detailed dimensions of the piston, as shown in the technical drawing, in the product details. You can also find information about common piston rings, their joints, and retaining types in the legend accompanying the images.
Tolerance type: C

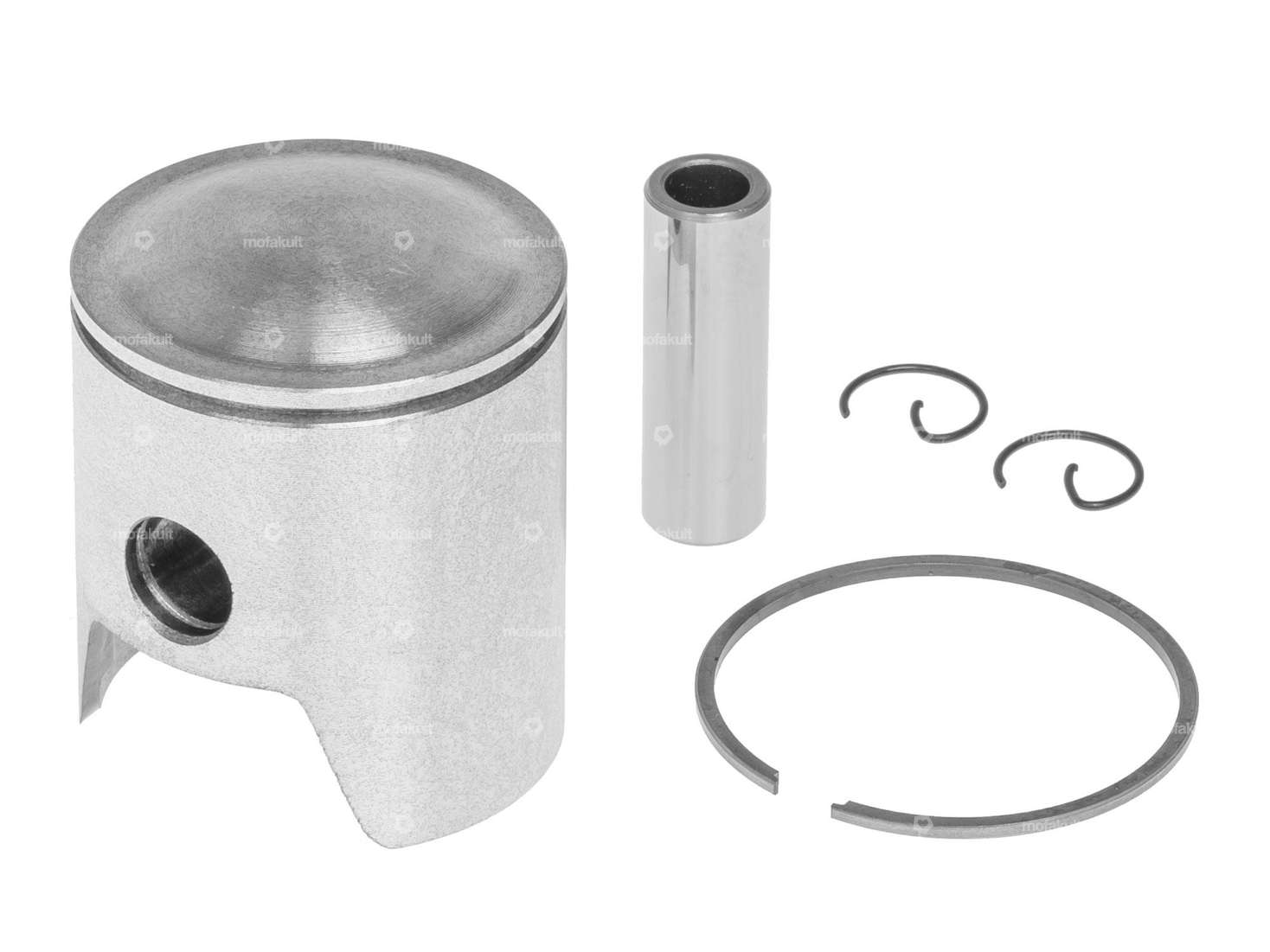

The piston kit includes a piston pin, piston clips, and piston rings.
Note: Please observe the installation direction during assembly. The piston is installed with the arrow pointing toward the exhaust on the exhaust side.
You’ll find the necessary installation tools, piston pin retainers, and, if needed, the corresponding cylinder among the accessories.
Product from the Italian manufacturer Parmakit.
| Nominal diameter | 45 mm |
| Manufacturer | Parmakit |
| Ø outside piston (A) | 44.95 mm |
| Compression height (C) | 22.45 mm |
| Curvature (D) | 4.5 mm |
| Total piston height (E) | 53.98 mm |
| Number of piston rings (F) | 1 pcs |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Internal fuse (IS) |
| Piston ring height | 1.5 mm |
| Ø piston pin (B) | 12 mm |
| Tolerance group | C |
| Weight piston kit | 97 g |
| Puch | E50 ZA50 (air-cooled) Z50 (X30 Sport) |
