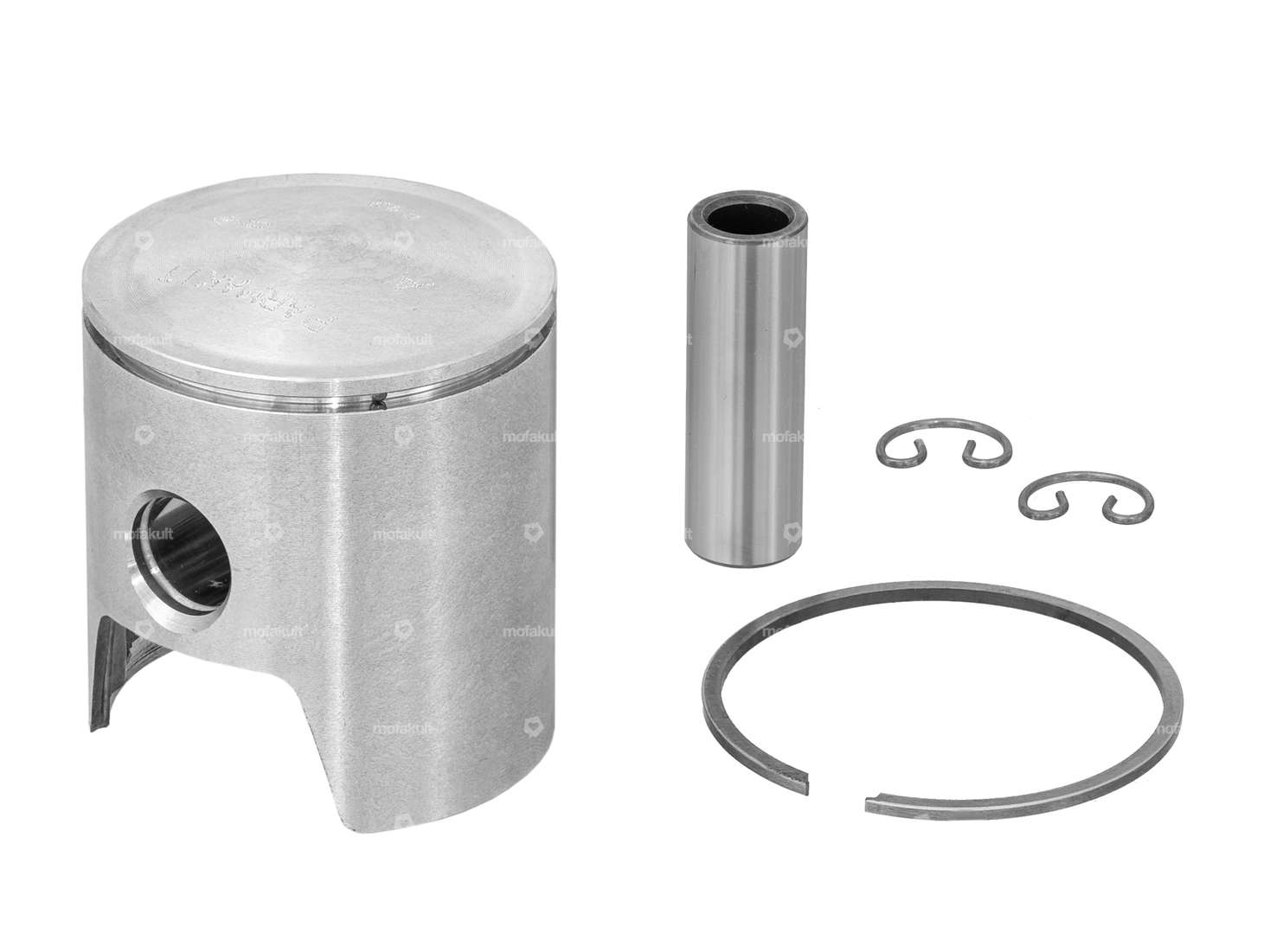

Parmakit piston 45 mm #A | Puch

GPO 45 mm cylinder head tuning | Puch Maxi S, N / X30 NS, NL, N-2AH

Manufacturer: GPO · Area of application: Tuning · Material: Aluminum · Camouflaged: Yes · Surface: sandblasted · Ø cylinder: 45 mm · Height: 55 mm · Width: 125 mm · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44 · Candle thread: short · Decompressor: No · Total length: 135 mm

Motorex 2-stroke oil "POWER SYNT" fully synthetic 1 L

Manufacturer: Motorex · Oil type: fully synthetic · Contents: 1000 ml · Color: red

Buzzetti pliers for piston ring assembly

Manufacturer: Buzzetti · Area of application: (Dis)assembly tool

Motorex 2-stroke oil semi-synthetic 1 L (for running in cylinders)

Manufacturer: Motorex · Oil type: semi-synthetic · Contents: 1000 ml · Color: green

GPO piston pin extractor Ø 10, 12, 14 mm

Number of components: 7 pcs · Manufacturer: GPO · Area of application: (Dis)assembly tool · Material: Steel · Surface: burnished · Width across flats: 10 mm · Width across flats: 17 mm · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Total length: 130 mm

Parmakit 45 mm cylinder kit (large ribs) | Puch

Manufacturer: Parmakit · Area of application: Tuning · Material: Aluminum · Camouflaged: No · Surface: sandblasted · Crankshaft stroke: 43 mm · Displacement: 70 ccm · Nominal diameter: 45 mm · Number of fixing points: 4 pcs · Ø piston pin (B): 12 mm · Thread inlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Thread outlet: M6x1 (standard thread)

Parmakit 45 mm cylinder kit 70 ccm camouflaged | Puch

Manufacturer: Parmakit · Area of application: Tuning · Material: Aluminum · Camouflaged: No · Surface: sandblasted · Crankshaft stroke: 43 mm · Displacement: 70 ccm · Nominal diameter: 45 mm · Ø cylinder neck: 47.8 mm · Ø outlet inside: 26.5 mm · Number of fixing points: 4 pcs · Hole spacing inlet: 38 mm · Ø piston pin (B): 12 mm · Inlet window: 23.7 x 15 mm · Thread inlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Decompressor: No · Hole spacing outlet: 42 mm · Outlet type: straight · Thread outlet: M6x1 (standard thread)

Parmakit piston 45 mm #C | Puch

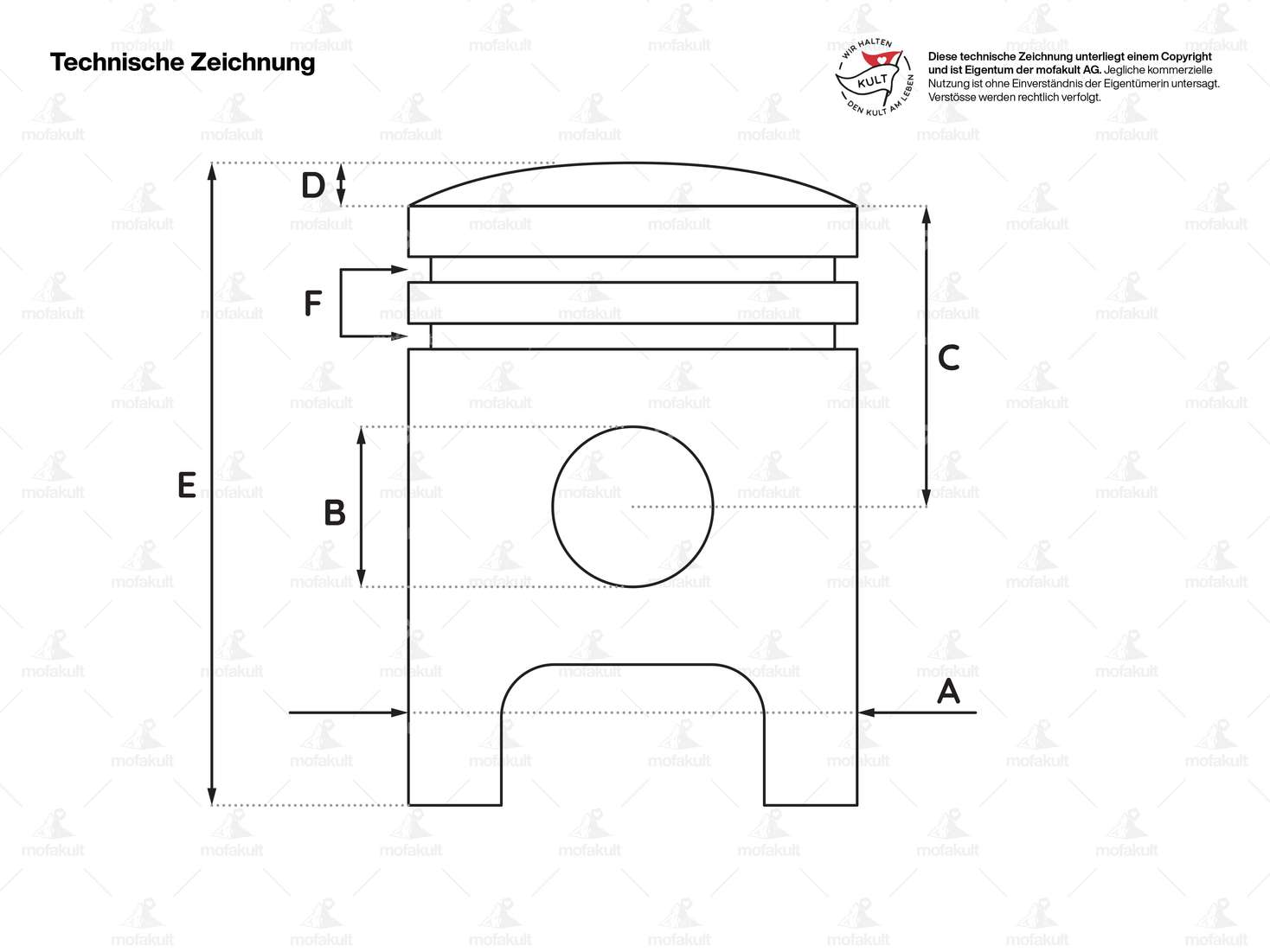

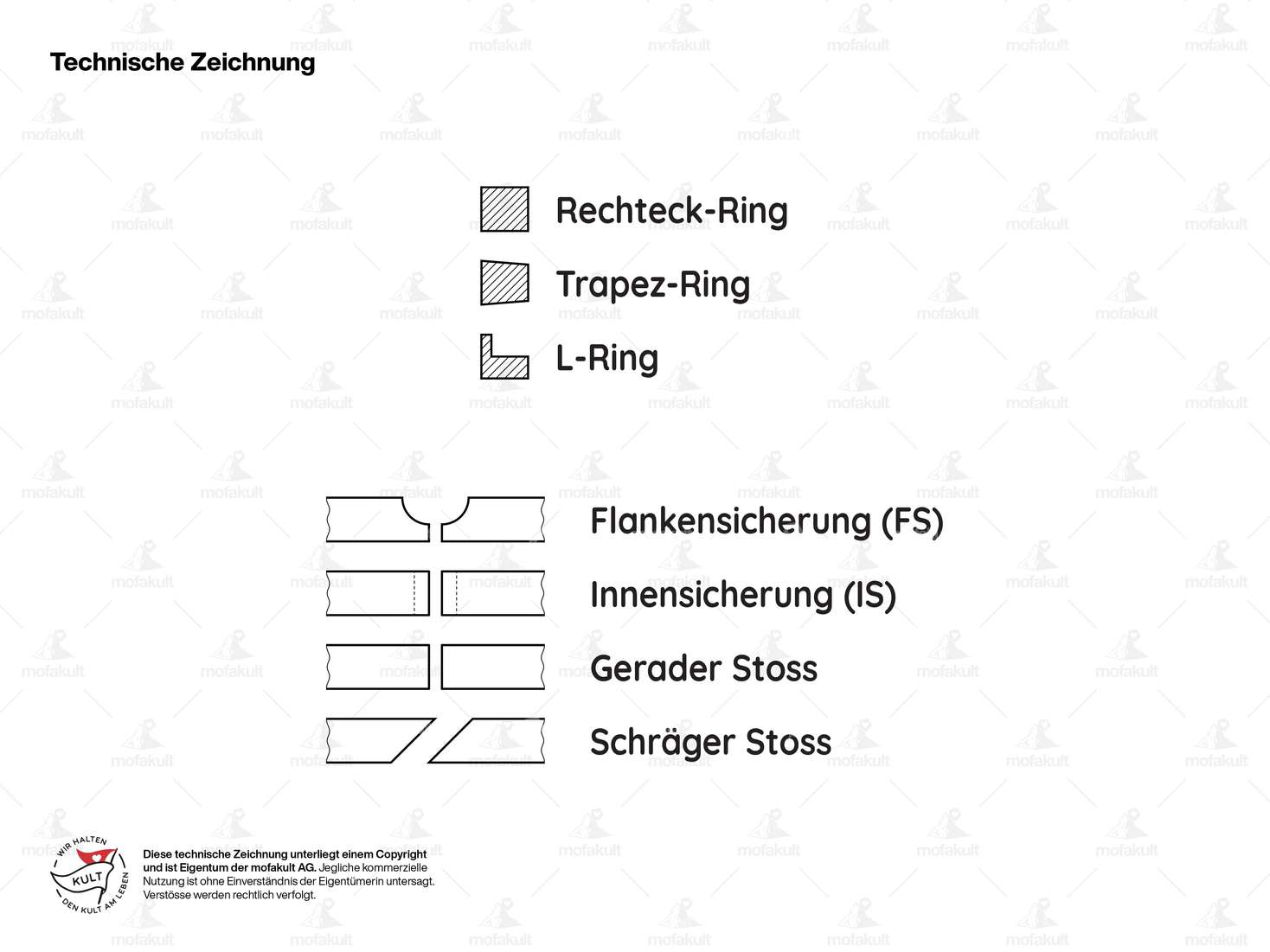

Manufacturer: Parmakit · Ø outside piston (A): 44.95 mm · Compression height (C): 22.45 mm · Curvature (D): 4.5 mm · Total piston height (E): 53.98 mm · Number of piston rings (F): 1 pcs · Nominal diameter: 45 mm · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Ø piston pin (B): 12 mm · Piston ring height: 1.5 mm · Tolerance group: C · Weight piston kit: 97 g

Parmakit piston ring 45 mm | Puch / Tomos

Manufacturer: Parmakit · Nominal diameter: 45 mm · Piston ring impact: Internal fuse (IS)

Parmakit piston 45 mm #B | Puch

Manufacturer: Parmakit · Ø outside piston (A): 44.94 mm · Compression height (C): 22.38 mm · Curvature (D): 4.5 mm · Total piston height (E): 53.9 mm · Number of piston rings (F): 1 pcs · Nominal diameter: 45 mm · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Ø piston pin (B): 12 mm · Piston ring height: 1.5 mm · Tolerance group: B · Weight piston kit: 98 g

swiing® revival Stud Bolt, Inlet/Outlet M6x30 (Grade 10.9)

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Thread type: M6x1 (standard thread) · Nominal diameter (thread): 6 mm · Diameter: 5.95 mm · Total length: 30 mm · Thread length: 12 mm · Strength class: 10.9

Athena piston 45 mm #A | Puch

Manufacturer: Athena · Ø outside piston (A): 44.94 mm · Compression height (C): 22.4 mm · Curvature (D): 3.15 mm · Total piston height (E): 52.67 mm · Number of piston rings (F): 1 pcs · Nominal diameter: 45 mm · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Ø piston pin (B): 12 mm · Piston ring height: 1.5 mm · Tolerance group: A · Weight piston kit: 98 g

Athena piston 45 mm AJH #B | Puch

Manufacturer: Athena · Ø outside piston (A): 44.93 mm · Compression height (C): 24.9 mm · Curvature (D): 2.82 mm · Total piston height (E): 50.8 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 45 mm · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Ø piston pin (B): 12 mm · Piston ring height: 1.5 mm · Tolerance group: B · Weight piston kit: 94 g

Parmakit piston ring 45 mm | Puch / Tomos

Manufacturer: Parmakit · Nominal diameter: 45 mm · Piston ring impact: Internal fuse (IS)

GPO 45 mm cylinder head tuning black | Puch Maxi S, N, X30 NS, NL, N-2AH

Manufacturer: GPO · Area of application: Tuning · Material: Aluminum · Camouflaged: Yes · Surface: varnished · Ø cylinder: 45 mm · Height: 55 mm · Width: 125 mm · Number of fixing points: 4 pcs · Decompressor: No · Total length: 135 mm

O-ring cylinder head Ø 44 x 1.8 mm FPM | Puch

Place of use: Cylinder head · Material: FPM / FKM (colloquially known as Viton) · Ø inside: 44 mm · Cord thickness: 1.8 mm · Temperature resistance (min.): 0 - 200 °C

GPO cylinder base gasket BAD ASS Lucifer 45 mm | Puch X30 Velux, NG-2AH

Manufacturer: GPO · Area of application: Tuning · Place of use: Cylinder base · Material: Oiled paper · Ø cylinder: 45 mm · Thickness: 0.5 mm · Hole pattern [mm]: 44 x 44

GPO 45 mm piston (Metrakit replica) | Puch

Nominal diameter: 45 mm · Manufacturer: GPO · Material: Aluminum · Ø outside piston (A): 44.93 mm · Compression height (C): 23.25 mm · Curvature (D): 2.85 mm · Total piston height (E): 49.6 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.55 mm · Piston ring height: 2 mm · Thick piston ring: 1.8 mm · Thick piston ring: 1.9 mm · Ø piston pin (B): 12 mm · Weight piston kit: 98 g

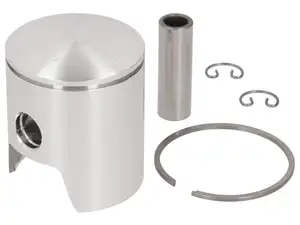

Meteor piston 44.94 mm type A | Puch Maxi

Manufacturer: Meteor · Ø outside piston (A): 44.94 mm · Compression height (C): 22.5 mm · Curvature (D): 3 mm · Total piston height (E): 52.66 mm · Number of piston rings (F): 1 pcs · Nominal diameter: 45 mm · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Ø piston pin (B): 12 mm · Piston ring height: 1.5 mm · Weight piston kit: 97 g
