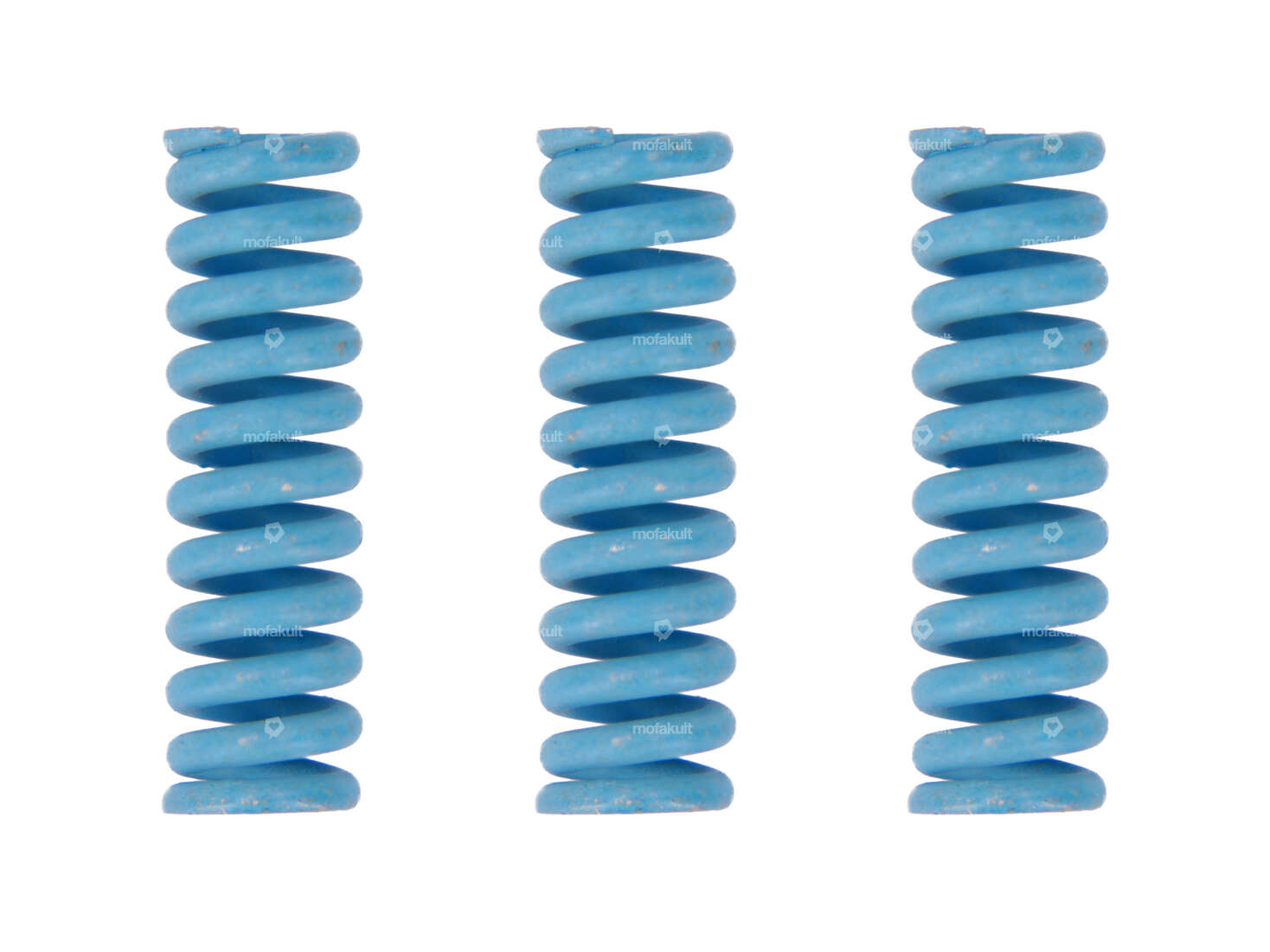

swiing® ingenious clutch springs reinforced (+20%) | Puch E50

Motorex Automatic Motor Oil (ATF) 450 ml

Manufacturer: Motorex · Contents [ml]: 450 ml · Gearbox type: Automatic machine · Temperature resistance (min.): -45 - 200 °C · Area of application: Gearbox lubrication with clutch · Pony OEM number: A2080 · Sachs OEM no.: 0263 014 002

swiing® revival gearbox cover gasket 0.3 mm engine | Puch E50

Manufacturer: swiing® revival parts · Material: Sealing paper · Color: sand-colored · Ø inside: 106 mm · Ø outside: 116 mm · Thickness: 0.35 mm · Number of components: 1 pcs · Number of fixing points: 4 pcs · Puch OEM number: 349.1.10.349.1

swiing® revival clutch springs original | Puch E50

Spring design: Pressure spring · Ø wire: 1.6 mm · Manufacturer: swiing · Number of components: 3 pcs · Material: Spring steel · Ø outside: 8.3 mm · Total length: 28 mm · Area of application: Tuning

swiing clutch springs reinforced (+50%) | Puch E50

Spring design: Pressure spring · Ø wire: 2 mm · Manufacturer: swiing® ingenious parts · Material: Spring steel · Color: red · Number of components: 3 pcs · Ø inside: 4.3 mm · Total length: 26.6 mm · Ø outside: 8.45 mm · Surface: coated · Area of application: Tuning

swiing clutch springs reinforced (+60%) | Puch E50

Spring design: Pressure spring · Ø wire: 2.05 mm · Manufacturer: swiing® ingenious parts · Material: Spring steel · Color: yellow · Number of components: 3 pcs · Ø inside: 4.3 mm · Total length: 26.9 mm · Ø outside: 8.45 mm · Surface: coated · Area of application: Tuning

GPO clutch 3-jaw aluminum | Puch E50

Manufacturer: GPO · Material: Aluminum · Area of application: Original · Area of application: Standard · Material: Steel · Material addition: Composite materials · Ø inside: 12 mm · Ø inside: 14.6 mm · Recording type: Cone mounting · Ø outside: 93 mm · Number of jaws: 3 pcs · Number of springs: 3 pcs · Thickness: 20.9 mm

GPO clutch trigger | Puch E50

Manufacturer: GPO · Material: Steel · Surface: blackened · Area of application: (Dis)assembly tool

swiing® revival plain bearing clutch basket | Puch E50

Manufacturer: swiing® revival parts · Material: special bearing bronze · Total height: 21.75 mm · Ø inside: 15 mm · Ø outside: 17 mm · Nominal diameter inside: 15 mm

Motorex Automatic Motor Oil (ATF) 450 ml

Manufacturer: Motorex · Contents [ml]: 450 ml · Gearbox type: Automatic machine · Temperature resistance (min.): -45 - 200 °C · Area of application: Gearbox lubrication with clutch · Pony OEM number: A2080 · Sachs OEM no.: 0263 014 002

swiing® revival nut / spring washer clutch E50 | Puch Maxi

Drive: External hexagon · Width across flats SW: 17 mm · Thread type: MF10x1 (fine pitch thread) · Height: 8 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Nut type: Hexagon nut 0.8D

swiing® revival gasket gearbox cover engine 0.5 mm | Puch E50

Thickness: 0.5 mm · Manufacturer: swiing® revival parts · Number of components: 1 pcs · Material: Sealing paper · Ø inside: 106 mm · Ø outside: 116 mm · Color: sand-colored · Number of fixing points: 4 pcs · Alternative version of the Puch OEM number: 349.1.10.349.1

swiing® revival gasket gearbox cover engine 1 mm | Puch E50

Thickness: 1 mm · Manufacturer: swiing® revival parts · Number of components: 1 pcs · Material: Sealing paper · Ø inside: 106 mm · Ø outside: 116 mm · Color: sand-colored · Number of fixing points: 4 pcs · Alternative version of the Puch OEM number: 349.1.10.349.1

swiing® ingenious crankshaft "High End" with mounted bearings | Puch E50

Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Thread type: MF10x1 (fine pitch thread) · Manufacturer: swiing® ingenious parts · Thread length: 11 mm · Thread length: 15 mm · Material: Aluminum · Material: Steel · Cheek type: Full cheeks · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Ø Connecting rod eye: 15 mm · Weight: 968 g · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Area of application: High End · Area of application: Racing · Area of application: Tuning · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Number of gears: 1 pcs

GPO 3-jaw clutch (Ultra Light Version) | Puch E50

Manufacturer: GPO · Material: Aluminum · Material: Steel · Number of springs: 3 pcs · Recording type: Cone mounting · Number of jaws: 3 pcs · Ø outside: 93.5 mm · Thickness: 21 mm · Area of application: Tuning
