Front wheel bearing kit including a complete axle, suitable for Piaggio Ciao mopeds with 16- and 17-inch cast rims.
The advantages of this conversion kit include improved stability, reduced vibration, and a longer bearing life.
The set consists of the front wheel bearing kit with two 6002 RS ball bearings from SKF, the world’s leading ball bearing manufacturer, an aluminum spacer tube, and the complete axle set from the quality brand swiing® ingenious.
The two low-profile nuts, on the speedometer side, are already pre-assembled in their fixed positions. This ensures the necessary clearance and eliminates the need for time-consuming spacing adjustments.

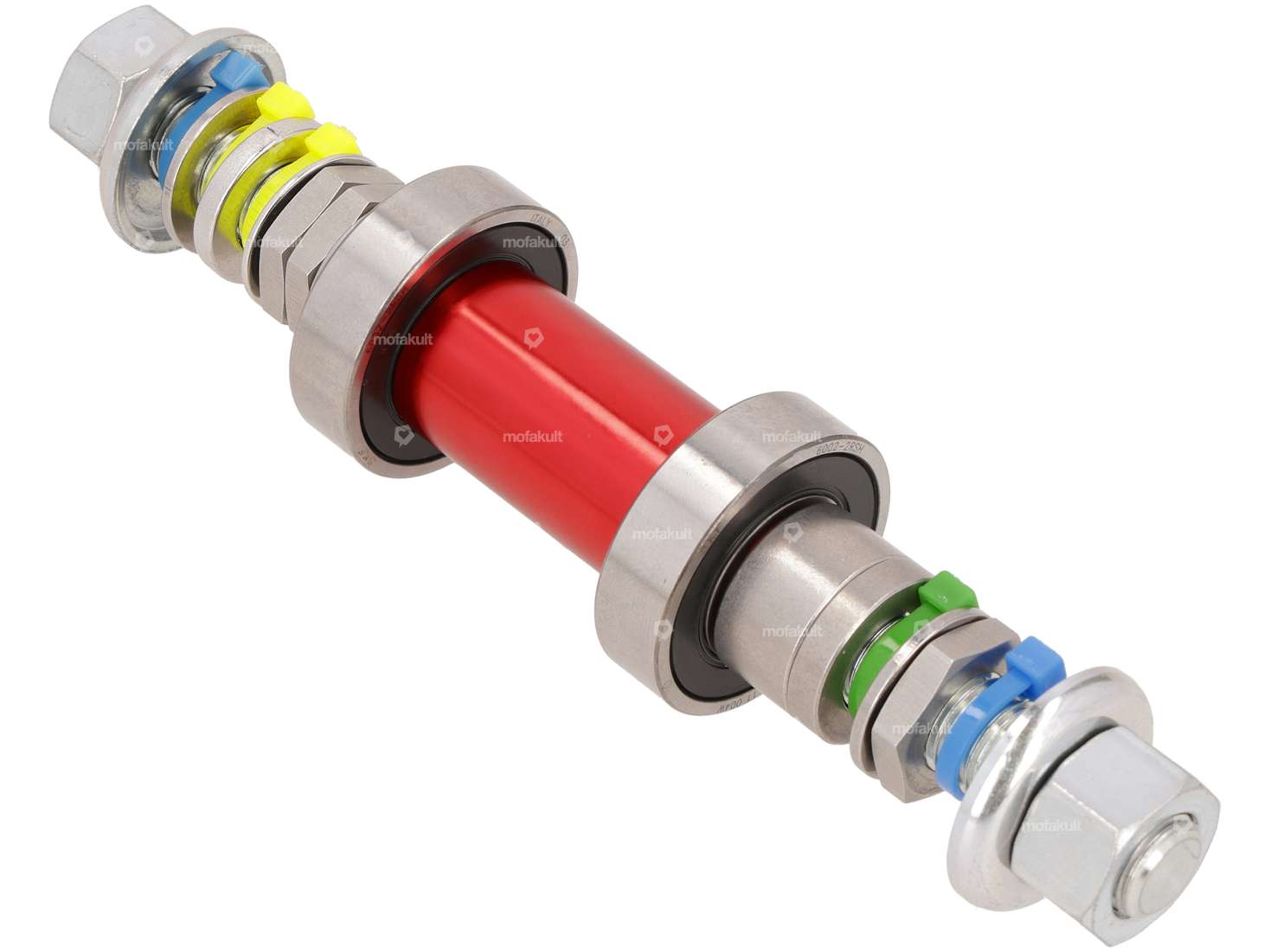

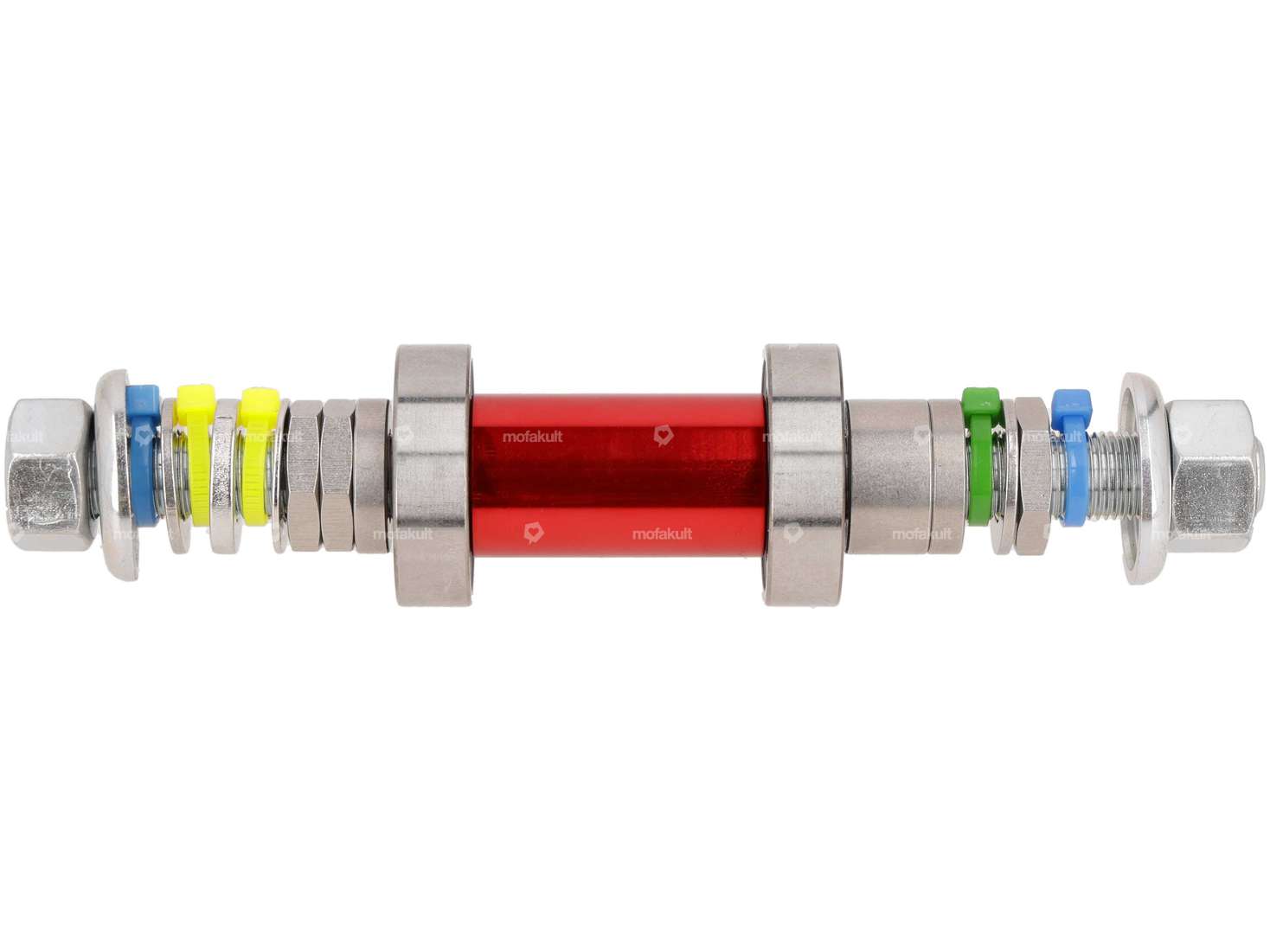

The colored markings show you where to install each part:
- green mark: brake anchor plate
- yellow mark: Spacer disc for the speedometer drive (the disc is not needed if a drive is installed)
- red mark: wheel hub (not visible in the picture)
- blue mark: fork legs
Note: The conversion kit fits only cast wheels, not spoked rims.
When you purchase this complete set, you’ll save a significant percentage off the retail price of the individual parts.
A sophisticated product meeting the highest standards from the quality brand swiing®.
Manufacturer: swiing® ingenious parts, SKF · Material: Aluminum, Steel · Ø outside: 20 mm, 14.9 mm, 32 mm · Ø inside: 11.25 mm, 15 mm · Total length: 53.5 mm · Width: 9 mm · Ball bearing closed: Yes
Manufacturer: swiing® ingenious parts · Material: Steel, Chrome steel (colloquially known as stainless steel) · Thread type: MF11x1 (fine pitch thread) · Total length: 150 mm · Surface: galvanized (blue)
| Manufacturer | swiing® ingenious parts |
| Ball bearing closed | Yes |
| Material | Steel, Aluminum |
| Diameter | 15 mm |
| Total length | 150 mm |
| Surface | galvanized (blue), anodized |
| Ø inside | 11.25 mm |
| Ø outside | 20 mm, 14.9 mm |
| Piaggio | Ciao - PX , C24 |
